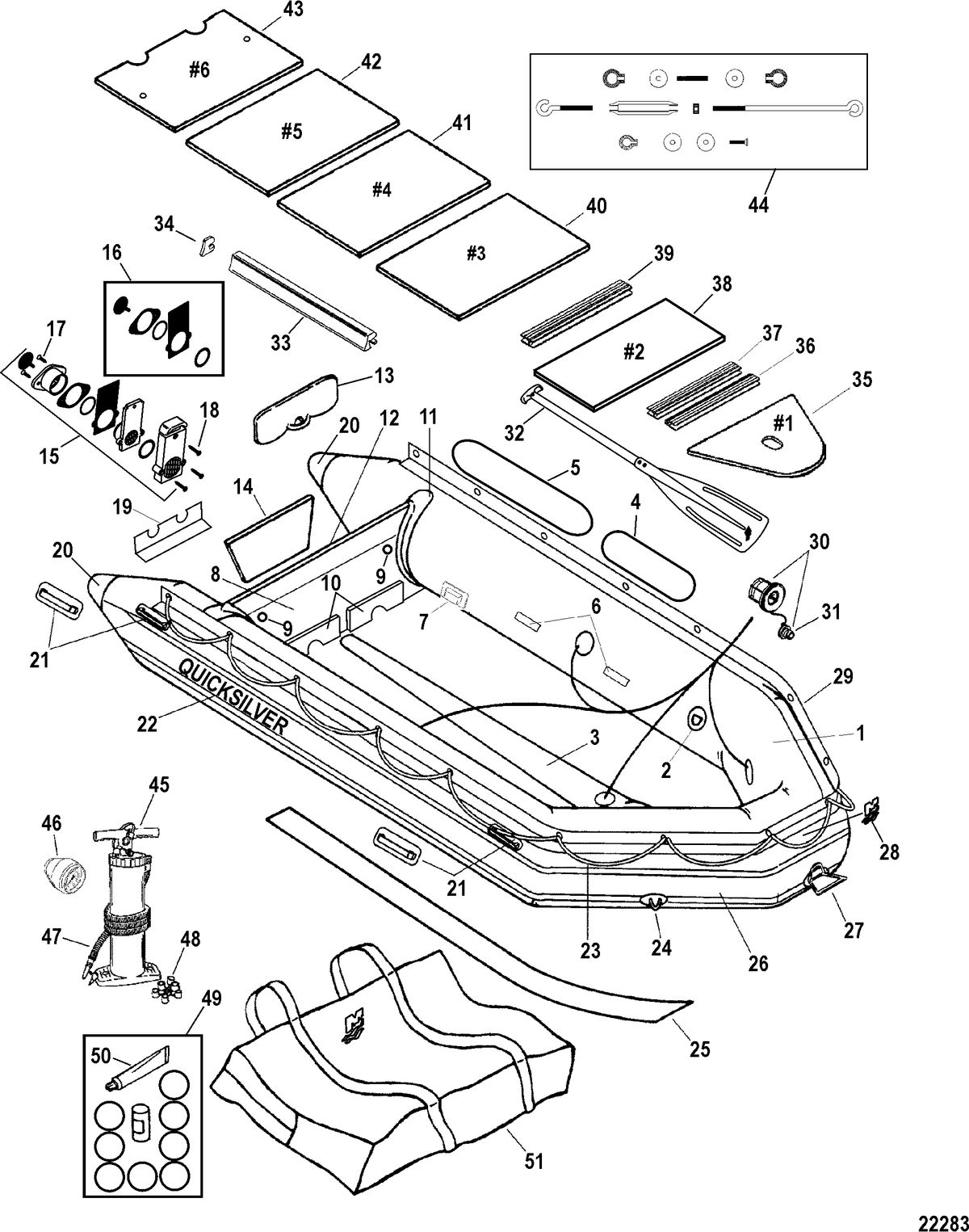

Heavy Duty 530 Model(Red/Black - Aluminum Floors)

Ref ID	Description	Price
1	SKIN ASSEMBLY, PVC - Red/Black (17 Feet 4 Inches) (#62-899670002) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-899670001, 62-899670 Supersedes: 62-899670001, 62-899670	NLA
2	D RING, Medium - Stainless Steel On Red PVC Fabric (#62-8113102) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
3	KEEL, PVC - Black (#62-899671T) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
4	WEAR PATCH, PVC - Black (96.3 cm x 29 cm) (#62-899715002) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
5	WEAR PATCH, PVC - Black (139.6 cm x 29 cm) (#62-899716002) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
6	STRAP, T Paddle Retainer - Red PVC Fabric With Red Velcro (#62-8097853) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
7	STOPPER, Side Joiner - PVC Black (#62-877696) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
8	TRANSOM ASSEMBLY, ABS Coated - Black (T36 mm) (#62-899704T) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
9	TOWING HOLE SET, (28 mm x T36 mm) Stainless Steel (#62-898172001) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
10	RETAINER, (L20 cm) Black (#62-899677) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
11	HOLDER, Transom - PVC Red (T36 mm) (#62-809783001) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
12	CAP, Transom Cover (W36 mm x 135 cm) PVC Black (#62-802607004) Qty Required For Repair: 1 Minimum Order Qty: 1	$6.10 ~~$5.44~~
13	PAD, Transom - Aluminum (#62-811317) Qty Required For Repair: 1 Minimum Order Qty: 1	$33.97 ~~$30.33~~
14	PLATE, Transom - Black Wood (#62-8113362) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
15	DRAIN VALVE ASSEMBLY, Black (36 mm) (#62-899765A02) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 62-899675A01, 62-899675A02 Qty Required For Repair: 2 Supersedes: 62-899675A01, 62-899675A02	$18.29 ~~$16.33~~
16	REPAIR KIT, Drain Valve (#62-899676A01) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
17	ORDER PART LOCAL, Flat Head Screw (4 mm x 16 mm) (#ORDLOCAL) Qty Required For Repair: 4 Qty Required For Repair: 4	NLA
18	ORDER PART LOCAL, Flat Head Screw (4 mm x 25 mm) (#ORDLOCAL) Qty Required For Repair: 6 Qty Required For Repair: 6	NLA
19	PROTECTOR, Transom Bottom - PVC Black (#62-899878002) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
20	END CONE CAP, PVC - Black With Flat End (120 mm x H96 mm) (#62-899877002) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$9.94 ~~$8.87~~
21	HANDLE/LIFTING, Side - PVC Black (#62-8590072) Qty Required For Repair: 6 Minimum Order Qty: 1 Qty Required For Repair: 6	NLA
22	LOGO, Side - Raised Quicksilver - PVC - Black On Red (#62-8113487) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
23	ROPE, (12.00 Feet) Black (#62-8097783) Qty Required For Repair: AR Minimum Order Qty: 1 Qty Required For Repair: AR	NLA
24	D RING, Large - Stainless Steel On Black PVC Fabric (#62-811309) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
25	RUBSTRAKE, Bottom - PVC Black With Three Ridges (L4.5 m x W8 cm) (#62-824412004) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
26	RUBSTRAKE, Side - PVC - Two Red Lines On Black (L10.8 m x W12 cm) (#62-879725001) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
27	HANDLE/LIFTING, Bow - Chrome On Black PVC Fabric (#62-8097773) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
28	LOGO, Bow - PVC - Black On Red (#62-883916) Qty Required For Repair: 1 Minimum Order Qty: 1	$12.72 ~~$11.35~~
29	LACING CUFF ASSEMBLY, PVC Black Hogging With Eyelets (L10.23 m) (#62-809784017) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-809784007, 62-809784 4 Supersedes: 62-809784007, 62-809784 4	$158.93 ~~$159.89~~
30	VALVE ASSEMBLY, Air - 8 Slots - Black (#62-879184A02) Qty Required For Repair: 6 Minimum Order Qty: 1 Supersedes: 62-809887 1 Qty Required For Repair: 6 Supersedes: 62-809887 1	$25.52 ~~$26.59~~
31	CAP ASSEMBLY, Air Valve - Black (#62-879184003) Qty Required For Repair: 6 Minimum Order Qty: 1 Supersedes: 62-809696 2 Qty Required For Repair: 6 Supersedes: 62-809696 2	$2.61 ~~$2.32~~
32	T PADDLE, (130 cm) Black (#62-8809991) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
33	SIDE JOINER, (L80 cm) Aluminum (#62-809521009) Qty Required For Repair: 6 Minimum Order Qty: 1 Qty Required For Repair: 6	NLA
34	CAP, Side Joiner - Front Port Or Rear Starboard (#62-809522004) Comment: - Front Port Or Rear Starboard Qty Required For Repair: 6 Minimum Order Qty: 1 - Front Port Or Rear Starboard Qty Required For Repair: 6	NLA
34	CAP, Side Joiner - Rear Port Or Front Starboard (#62-809522005) Comment: - Rear Port Or Front Starboard Qty Required For Repair: 6 Minimum Order Qty: 1 - Rear Port Or Front Starboard Qty Required For Repair: 6	NLA
35	FLOORBOARD #1, Fiberglass - Dark Gray (L66.5 cm x W117 cm x H15) (#62-896482T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-896482 Supersedes: 62-896482	NLA
36	H CHANNEL, Tongue Style - A Shape (L108 cm x D15 mm) Aluminum (#62-809524001) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
37	H CHANNEL, Groove Style - H Shape (L108 cm x D15 mm) (#62-809525001) Qty Required For Repair: 1 Minimum Order Qty: 1	$25.49 ~~$22.77~~
38	FLOORBOARD #2, Fiberglass - Dark Gray (L36 cm x W122/134 x H15 mm) (#62-896483T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-896483 Supersedes: 62-896483	NLA
39	H CHANNEL, Groove - M Shape (L123 cm x W24 mm x T15 mm) (#62-896478001) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
40	FLOORBOARD #3, Aluminum (L71.5 cm x W134 cm x T22 mm) (#62-896484T01) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
41	FLOORBOARD #4, Aluminum (L71.5 cm x W134 cm x T22 mm) (#62-896485T01) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
42	FLOORBOARD #5, Aluminum (L71.5 cm x W134 cm x T22 mm) (#62-896486T01) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
43	FLOORBOARD #6, Aluminum (L71.5 cm x W134 cm x T22 mm) (#62-896487T01) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
44	STRUT SET, Transom, Transom To Floorboard #6 (#62-898287T01) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
45	PUMP ASSEMBLY, Air - Double Action (#62-889345Q01) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-809631T, 62-809631, 62-889345A 1, 62-889345A02 Supersedes: 62-809631T, 62-809631, 62-889345A 1, 62-889345A02	$56.69 ~~$50.61~~
46	GAUGE, Air Pump (#62-889346) Qty Required For Repair: 1 Minimum Order Qty: 1	$23.98 ~~$21.42~~
47	HOSE, Air Pump (#62-889348) Qty Required For Repair: 1 Minimum Order Qty: 1	$15.70 ~~$14.01~~
48	ADAPTOR SET, Air Pump Hose (#62-889347) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-889347001 Supersedes: 62-889347001	$16.56 ~~$17.25~~
49	REPAIR KIT, PVC - Red/Black (#62-8113145) Qty Required For Repair: 1 Minimum Order Qty: 1	$18.30 ~~$16.35~~
-	REMOVER/INSTALLER TOOL, Air Valve - Plastic (#62-896317) Qty Required For Repair: 1 Minimum Order Qty: 1	$3.73 ~~$3.33~~
50	CEMENT, PVC (30 ml) (#92-808648) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
51	BAG, Storage/Carrying (#62-896488T01) Comment: - Flap Style - For Boat Qty Required For Repair: 1 Minimum Order Qty: 1 - Flap Style - For Boat	NLA
51	BAG, Storage/Carrying (#62-896489T01) Comment: - Zipper Style - For Floorboards Qty Required For Repair: 1 Minimum Order Qty: 1 - Zipper Style - For Floorboards	NLA

Heavy Duty 530 Model(Red/Black - Aluminum Floors)
