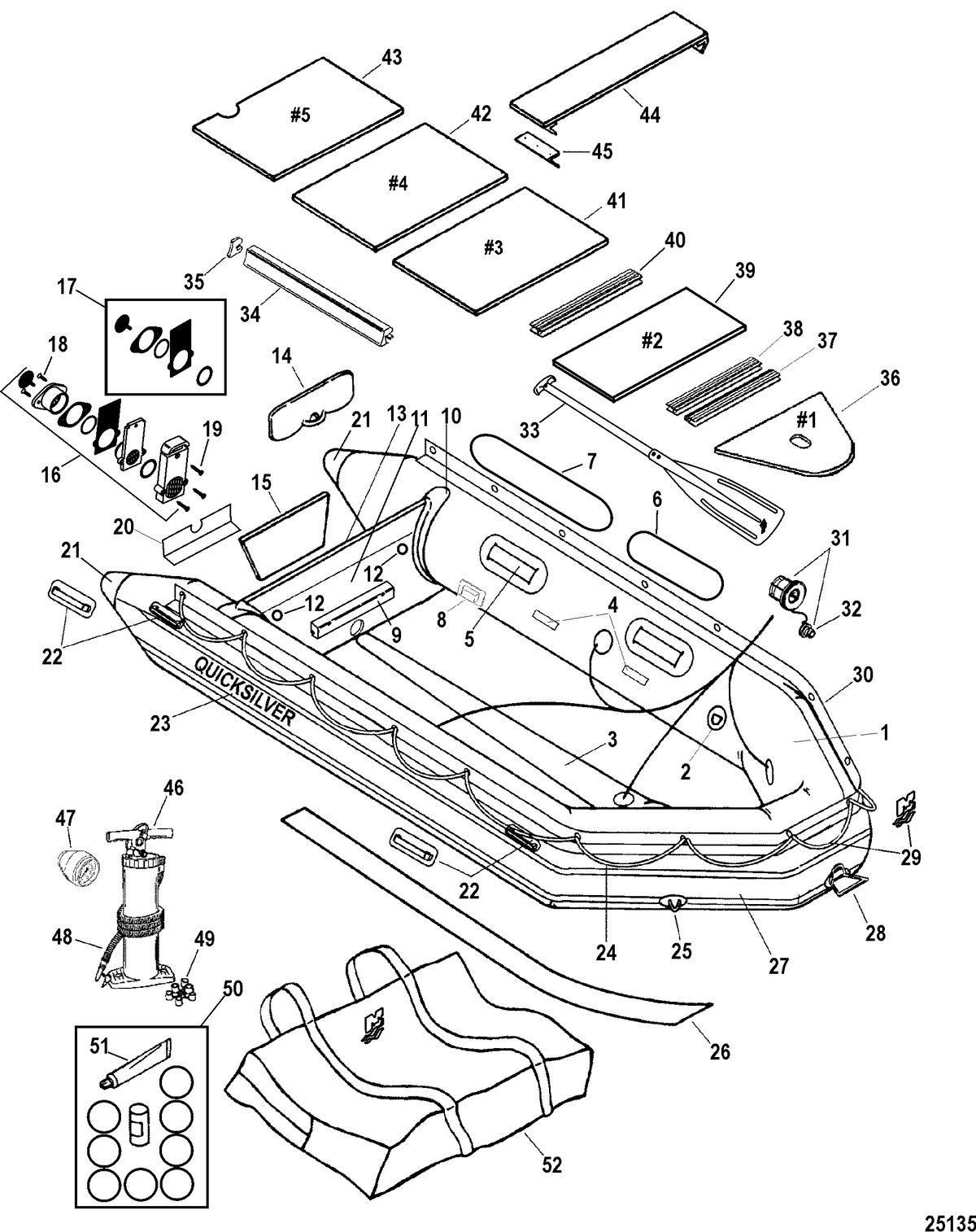

Heavy Duty 430 Model(Red/Black - Aluminum Floors)

Ref ID	Description	Price
1	SKIN ASSEMBLY, PVC (14 Feet 1 Inch) Red/Black (#62-889403003) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-889403002 Supersedes: 62-889403002	NLA
2	D RING, Medium - Stainless Steel On Red PVC Fabric (#62-8113102) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
3	KEEL, PVC (L298 cm) Black (#62-8809882) Qty Required For Repair: 1 Minimum Order Qty: 1	$162.56 ~~$163.54~~
4	STRAP, T Paddle Retainer - Red PVC Fabric With Red Velcro (#62-8097853) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
5	WEBBING, Seat - Black Web/PVC Black Fabric (#62-818701006) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	$15.30 ~~$13.65~~
6	WEAR PATCH ASSEMBLY, PVC - Black (78.3 cm x 29 cm) (#62-899715001) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
7	WEAR PATCH ASSEMBLY, PVC - Black (123.3 cm x 29 cm) (#62-899716001) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
8	STOPPER, Side Joiner - PVC Black (#62-877696) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
9	RETAINER, (L30 cm) Black (#62-896479) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
10	HOLDER, Transom - PVC Red (T36 mm) (#62-809783001) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
11	TRANSOM ASSEMBLY, ABS Coated - Black (T36 mm) (#62-899705T) Qty Required For Repair: 1 Minimum Order Qty: 1	$239.70 ~~$241.14~~
12	TOWING HOLE SET, (28 mm x T36 mm) Stainless Steel (#62-898172001) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
13	CAP, Transom Cover (W36 mm x 117 cm) PVC Black (#62-8026072) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
14	PAD, Transom - Aluminum (#62-811317) Qty Required For Repair: 1 Minimum Order Qty: 1	$33.97 ~~$30.33~~
15	PLATE, Transom - Black Wood (#62-8113362) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
16	DRAIN VALVE ASSEMBLY, Black (36 mm) (#62-899765A02) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-899675A01, 62-899675A02 Supersedes: 62-899675A01, 62-899675A02	$18.29 ~~$16.33~~
17	REPAIR KIT, Drain Valve (#62-899676A01) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
18	ORDER PART LOCAL, Flat Head Screw (4 mm x 16 mm) (#ORDLOCAL) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
19	ORDER PART LOCAL, Flat Head Screw (4 mm x 25 mm) (#ORDLOCAL) Qty Required For Repair: 3 Qty Required For Repair: 3	NLA
20	PROTECTOR, Transom Bottom - PVC Black (#62-899878001) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
21	END CONE CAP, PVC - Black With Flat End (120 mm x H96 mm) (#62-899877002) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$9.94 ~~$8.87~~
22	HANDLE/LIFTING, Side - PVC Black (#62-8590072) Qty Required For Repair: 6 Minimum Order Qty: 1 Qty Required For Repair: 6	NLA
23	LOGO, Side - Raised Quicksilver - PVC - Black On Red (#62-8113487) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
24	ROPE, (12.00 Feet) Black (#62-8097783) Qty Required For Repair: AR Minimum Order Qty: 1 Qty Required For Repair: AR	NLA
25	D RING, Large - Stainless Steel On Black PVC Fabric (#62-811309) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
26	RUBSTRAKE, Bottom - PVC Black With Three Ridges (L3.5 m x W8 cm) (#62-824412) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
27	RUBSTRAKE, Side - PVC - Two Red Lines On Black (L9.5 m x W12 cm) (#62-879725) Qty Required For Repair: 1 Minimum Order Qty: 1	$262.59 ~~$264.16~~
28	HANDLE/LIFTING, Bow - Chrome On Black PVC Fabric (#62-8097773) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
29	LOGO, Bow - PVC - Black On Red (#62-883916) Qty Required For Repair: 1 Minimum Order Qty: 1	$12.72 ~~$11.35~~
30	LACING CUFF ASSEMBLY, PVC Black Hogging With Eyelets (L8.15 m) (#62-809784014) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-809784006 Supersedes: 62-809784006	$147.84 ~~$138.94~~
31	VALVE ASSEMBLY, Air - 8 Slots - Black (#62-879184A02) Qty Required For Repair: 4 Minimum Order Qty: 1 Supersedes: 62-809887 1 Qty Required For Repair: 4 Supersedes: 62-809887 1	$25.52 ~~$26.59~~
32	CAP ASSEMBLY, Air Valve - Black (#62-879184003) Qty Required For Repair: 4 Minimum Order Qty: 1 Supersedes: 62-809696 2 Qty Required For Repair: 4 Supersedes: 62-809696 2	$2.61 ~~$2.32~~
33	T PADDLE, (130 cm) Black (#62-8809991) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
34	SIDE JOINER, (L90 cm) Aluminum (#62-809521008) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
35	CAP, Side Joiner - Front Port Or Rear Starboard (#62-809522004) Comment: - Front Port Or Rear Starboard Qty Required For Repair: 4 Minimum Order Qty: 1 - Front Port Or Rear Starboard Qty Required For Repair: 4	NLA
35	CAP, Side Joiner - Rear Port Or Front Starboard (#62-809522005) Comment: - Rear Port Or Front Starboard Qty Required For Repair: 4 Minimum Order Qty: 1 - Rear Port Or Front Starboard Qty Required For Repair: 4	NLA
36	FLOORBOARD #1, Fiberglass - Dark Gray (L59.5 cm x W99 cm x T15 mm) (#62-896467T01) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
37	H CHANNEL, Tongue Style - A Shape (L90 cm x D15 mm) Aluminum (#62-809524003) Qty Required For Repair: 1 Minimum Order Qty: 1	$26.11 ~~$23.33~~
38	H CHANNEL, Groove Style - H Shape (L90 cm x D15 mm) (#62-809525003) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
39	FLOORBOARD #2, Fiberglass - Dark Gray (L30 cm x W101/112 cm x T15 mm) (#62-896468T01) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
40	H CHANNEL, Groove - M Shape (L100 cm x W24 mm x T15 mm) (#62-896478002) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
41	FLOORBOARD #3, Aluminum (L71 cm x W110 cm x T22 mm) (#62-896469T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-896469 Supersedes: 62-896469	NLA
42	FLOORBOARD #4, Aluminum (L71 cm x W110 cm x T22 mm) (#62-896470T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-896470 Supersedes: 62-896470	NLA
43	FLOORBOARD #5, Aluminum (L71 cm x W110 cm x T22 mm) (#62-896471T01) Qty Required For Repair: 1 Minimum Order Qty: 1	$434.64 ~~$443.51~~
44	SEAT ASSEMBLY, Wood - Black (L110 cm x W20 cm x T22 mm) (#62-8095274) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
45	BRACKET, Seat - Black Plastic (#62-811313) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$9.36 ~~$8.36~~
46	PUMP ASSEMBLY, Air - Double Action (#62-889345Q01) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-809631T, 62-809631, 62-889345A 1, 62-889345A02 Supersedes: 62-809631T, 62-809631, 62-889345A 1, 62-889345A02	$56.69 ~~$50.61~~
47	GAUGE, Air Pump (#62-889346) Qty Required For Repair: 1 Minimum Order Qty: 1	$23.98 ~~$21.42~~
48	HOSE, Air Pump (#62-889348) Qty Required For Repair: 1 Minimum Order Qty: 1	$15.70 ~~$14.01~~
49	ADAPTOR SET, Air Pump Hose (#62-889347) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-889347001 Supersedes: 62-889347001	$16.56 ~~$17.25~~
50	REPAIR KIT, PVC - Red/Black (#62-8113145) Qty Required For Repair: 1 Minimum Order Qty: 1	$18.30 ~~$16.35~~
-	REMOVER/INSTALLER TOOL, Air Valve - Plastic (#62-896317) Qty Required For Repair: 1 Minimum Order Qty: 1	$3.73 ~~$3.33~~
51	CEMENT, PVC (30 ml) (#92-808648) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
52	BAG, Storage/Carrying With M Logo (#62-811826T2) Comment: - Flap Style - For Boat Qty Required For Repair: 1 Minimum Order Qty: 1 - Flap Style - For Boat	NLA
52	BAG, Storage/Carrying With M Logo (#62-811827T1) Comment: - Zipper Style - For Floorboards Qty Required For Repair: 1 Minimum Order Qty: 1 - Zipper Style - For Floorboards	NLA
