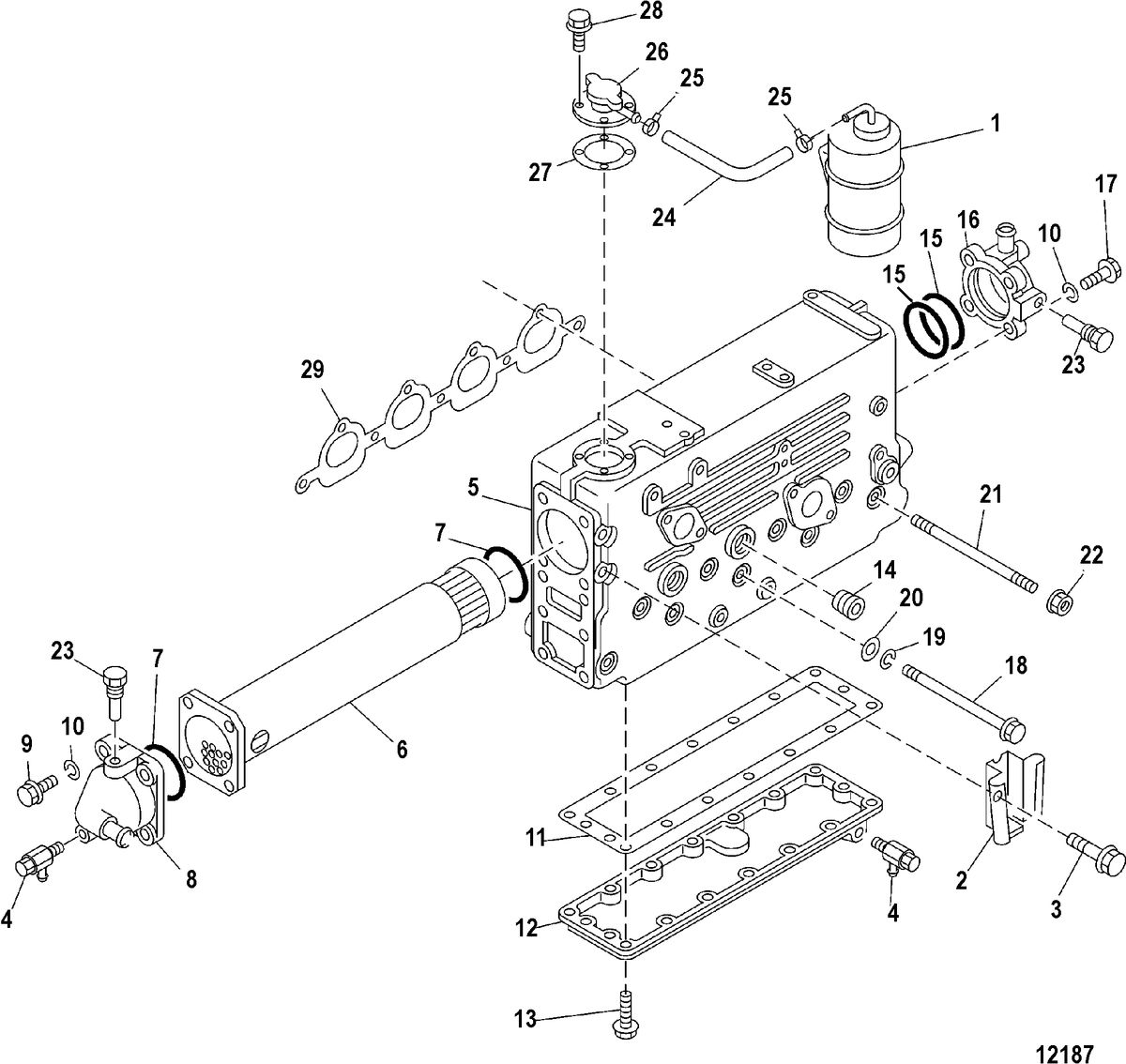

MERCRUISER - D1.7L DTI - Heat Exchanger

Ref ID	Description	Price
1	TANK, Surge, Radiator (#882408) Qty Required For Repair: 1 Minimum Order Qty: 1	$251.06 ~~$294.67~~
2	BRACKET, Reserve Tank (#882435) Qty Required For Repair: 1 Minimum Order Qty: 1	$21.44 ~~$22.33~~
3	SCREW, (M8 x 12), Flange (#10-882747) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
4	FITTING (#882656) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 20-882729 Qty Required For Repair: 2 Supersedes: 20-882729	NLA
-	EXCHANGER ASSEMBLY, Heat (#882716) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 879194057 Supersedes: 879194057	$2,189.06 ~~$2,335.00~~
5	CASE, Heat Exchanger (#882537) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
6	CORE, Heat Exchanger (#882535) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
7	GASKET, Cover to Case (#25-35029) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$2.64 ~~$3.30~~
8	COVER, Heat Exchanger (#882536) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
9	SCREW (#10-882615) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
10	LOCKWASHER (#13-882617) Qty Required For Repair: 8 Minimum Order Qty: 1 Qty Required For Repair: 8	NLA
11	GASKET, Heat Exchanger to Exhaust Manifold (#27-882538) Qty Required For Repair: 1 Minimum Order Qty: 1	$21.68 ~~$22.58~~
12	COVER, Heat Exchanger (#882695) Qty Required For Repair: 1 Minimum Order Qty: 1	$147.18 ~~$172.75~~
13	SCREW, (M6 x 12), Flange (#10-882616) Qty Required For Repair: 16 Minimum Order Qty: 1 Qty Required For Repair: 16	NLA
14	FITTING, Taper (#22-882612) Qty Required For Repair: 7 Minimum Order Qty: 1 Qty Required For Repair: 7	NLA
15	SEAL, Cover to Case (#26-882348) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$46.40 ~~$48.33~~
16	COVER, Heat Exchanger (#882581) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
17	SCREW (#10-882614) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
18	SCREW, (M8 x 138) (#10-882358) Qty Required For Repair: 7 Minimum Order Qty: 1 Qty Required For Repair: 7	NLA
19	LOCKWASHER (#13-882635) Qty Required For Repair: 7 Minimum Order Qty: 1 Qty Required For Repair: 7	NLA
20	WASHER (#12-8M0120053) Qty Required For Repair: 7 Qty Required For Repair: 7	NLA
21	STUD (#16-882359) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$10.08 ~~$12.60~~
22	NUT, (M8), Flange (#11-882330) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
23	BAR, Zinc (#882283) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$66.96 ~~$69.75~~
24	HOSE, Rubber, Reserve to Heat Exchanger, Cut to (12 Inch) (#32-882285) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
25	CLIP, Rubber Hose (#54-882391) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
26	CAP (#888749) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 882399 Supersedes: 882399	NLA
27	GASKET, Heat Exchanger to Exhaust Manifold (#27-882610) Qty Required For Repair: 1 Minimum Order Qty: 1	$20.48 ~~$21.33~~
28	SCREW, (M6 x 12) (#10-882291) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
29	GASKET, Exhaust Manifold to Cylinder Head (#27-882517) Qty Required For Repair: 1 Minimum Order Qty: 1	$35.84 ~~$37.33~~

MERCRUISER D1.7L DTI STERNDRIVE (ALPHA) Heat Exchanger

This assembly is found in these models:

MERCRUISER > D1.7L DTI
