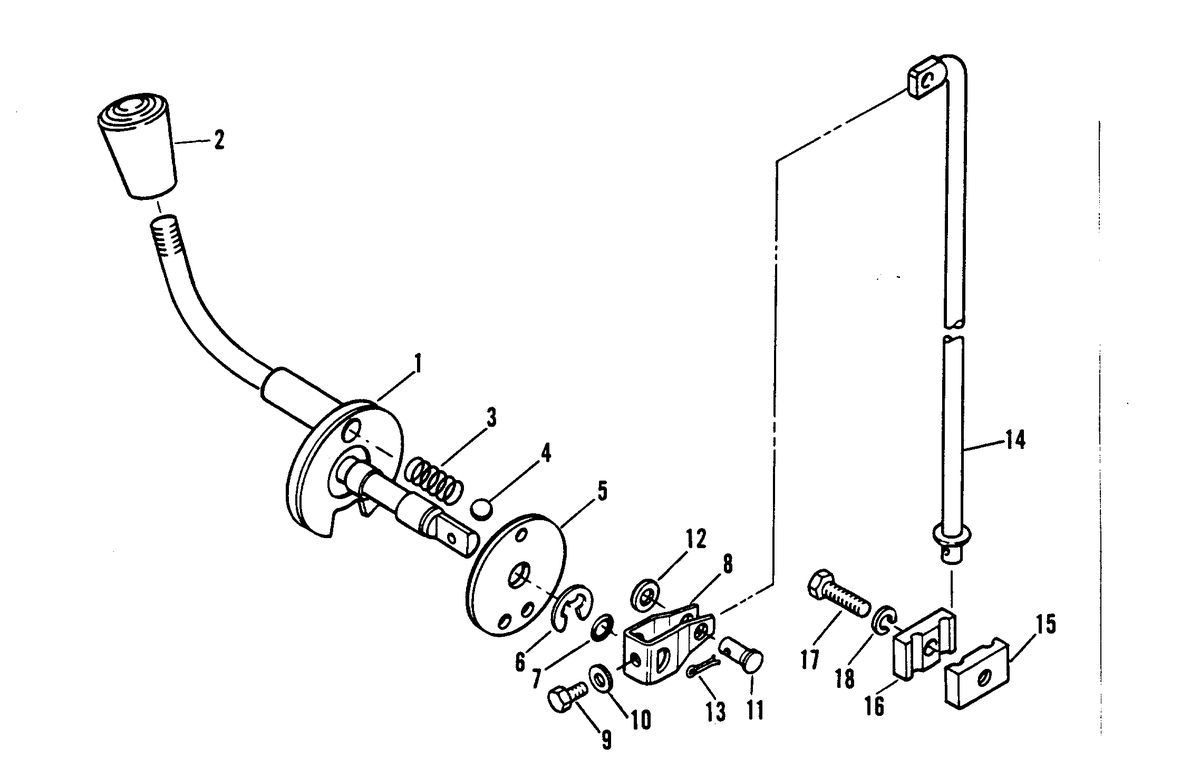

MARINER - 3.5 - GEAR SHIFT

Ref ID	Description	Price
1	HANDLE ASSEMBLY (#82842M) Comment: SERIAL 00007716-09999999 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 00007716-09999999	NLA
1	HANDLE ASSEMBLY (#80288M) Comment: SERIAL 00000000-00007715 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 00000000-00007715	NLA
2	KNOB (#80286M) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
3	SPRING (#24-82082M) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
4	STEEL BALL (#82347M) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
5	CAM PLATE (#80287M) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
6	SNAP RING (#53-82335M) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
7	O-RING (#25-82259M) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
8	ARM (#80988M) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
9	BOLT (#10-91772M) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
10	LOCKWASHER (#13-82212M) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$1.76 ~~$2.20~~
11	JOINT (#17-81879M) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
12	WASHER (#12-82211M) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	NLA
13	COTTER PIN (#18-82125M) Qty Required For Repair: 1 Minimum Order Qty: 2 Minimum Order Qty: 2	NLA
14	SHIFT ROD (SHORT) (#80989M) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
14	SHIFT ROD (LONG) (#80990M) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
15	CONNECTOR (#80050M) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
16	CONNECTOR (#80049M) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
17	BOLT (#10-84058M) Qty Required For Repair: 1 Minimum Order Qty: 1	$6.00 ~~$7.50~~
18	WASHER (#13-82212M) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$1.76 ~~$2.20~~

This assembly is found in these models:

MARINER > 3.5
