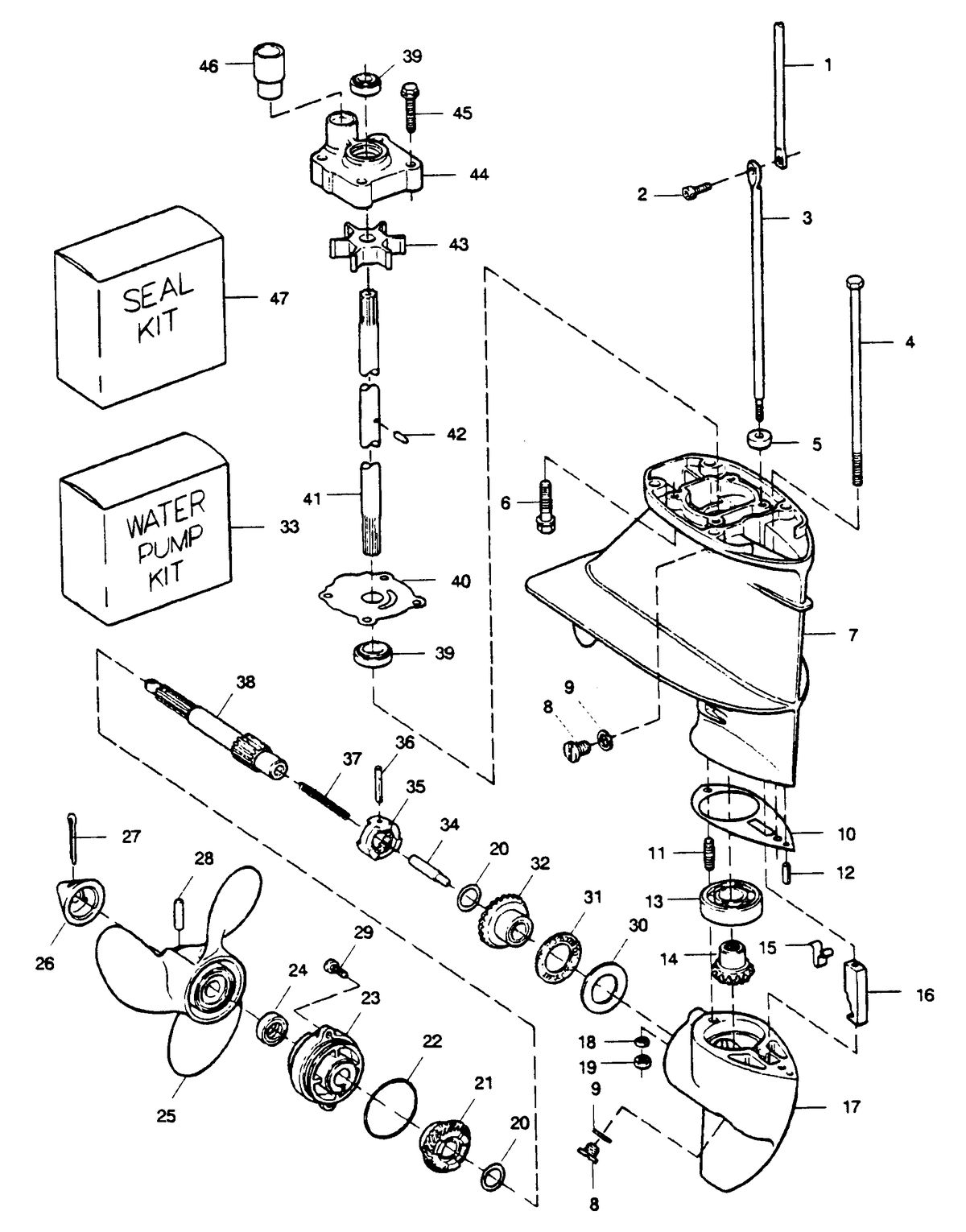

SEARS - 9.9 H.P. (1991) - GEAR HOUSING

Ref ID	Description	Price
1	GEAR SHIFT ROD, UPPER (#286615) Qty Required For Repair: 1	NLA
2	SOCKET HEAD CAP SCREW W/LOCKWASHER,10 - 24 X L/2 (#1976) Qty Required For Repair: 1	NLA
3	GEAR SHIFT ROD, LOWER (15 INCH TRANSOM MODELS) (#286705 1) Qty Required For Repair: 1	NLA
4	HEX BOLT, L/4 - 20 X 7 (#1800) Qty Required For Repair: 1	NLA
5	SEAL, SHIFT ROD LOWER (#338618 1) Qty Required For Repair: 1	NLA
6	HEX HEAD SCREW, 1/4 - 20 X 1 (#430732) Qty Required For Repair: 4 Qty Required For Repair: 4	NLA
7	GEAR HOUSING UPPER W/BEARING,PLUGS AND SEALS (#A715554) Qty Required For Repair: 1	NLA
8	PLUG, GEAR HOUSING (#50109) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
9	WASHER, OIL PLUG (#8186) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
10	GASKET, GEAR HOUSING (#286555) Qty Required For Repair: 1	NLA
11	STUD, REAR (#286008) Qty Required For Repair: 1	NLA
12	SPRING PIN (#8553) Qty Required For Repair: 1	NLA
13	BALL BEARING (#127910 2) Qty Required For Repair: 1	NLA
14	GEAR, BEVEL PINION W/BALL BEARING (#43-819251A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
15	SPRING, CAM DETENT (#286895) Qty Required For Repair: 1	NLA
16	CAM, SHIFT (#286721) Qty Required For Repair: 1	NLA
17	GEAR HOUSING LOWER (#1600-817749A2) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
17	GEAR HOUSING KIT (INCLUDES ALL ITEMS REQUIRED TO BUILD COMPLETE LOWER GEAR HOUSI (#1600-819483A2) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
18	SPRING LOCKWASHER (#1248-8083) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
19	HEX NUT, 1/4 - 20 (#1490) Qty Required For Repair: 1	NLA
20	THRUST WASHER (#456717) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
21	GEAR, BEVEI REAR W/BEARING (#43-819254A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
22	SEAL, PROP SHAFT BEARING CAGE (#455305) Qty Required For Repair: 1	NLA
23	CAGE, PROP SHAFT BEARING W/BEARING END SEALS (#31-817756A2) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
24	SEAL, PROP SHAFT (#346118) Qty Required For Repair: 1	NLA
25	PROPELLER, 8 X 9-1/4, NYION, 3 BIADE (#P6477) Qty Required For Repair: 1	NLA
26	PROPELLER NUT W/COTTER PIN (#11-817752A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
27	COTTER PIN (#1846) Qty Required For Repair: 1	NLA
28	PROPELLER PIN, PACK OF 3 W/COTTER PIN (#A324101) Qty Required For Repair: 1	NLA
29	HEAD SCREW, 1/4 - 20 X 5/8 (#1493) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
30	RACE, PROPELLER SHAFT BEARING (#286903) Qty Required For Repair: 1	NLA
31	BEARING, PROPELLER SHAFT (#286901) Qty Required For Repair: 1	NLA
32	GEAR, FRONT BEVEL W/BEARING (#43-819252A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
33	WATER PUMP KIT (#K1031 1) Qty Required For Repair: 1	NLA
34	SHIFT PIN (#286728) Qty Required For Repair: 1	NLA
35	CLUTCH (#52-819253) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: FA456521 Supersedes: FA456521	NLA
36	SPRING PIN (#8564) Qty Required For Repair: 1	NLA
37	SPRING, CLUTCH (#409719) Qty Required For Repair: 1	NLA
38	PROPELLER SHAFT (#456098) Qty Required For Repair: 1	NLA
39	SEAL, DRIVESHAFT (#901307 2) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
40	WATER PUMP BACKPLATE (#341562) Qty Required For Repair: 1	NLA
41	DRIVESHAFT (15 INCH TRANSOM MODELS) (#343128) Qty Required For Repair: 1	NLA
42	PIN, IMPELLER DRIVE (#901563) Qty Required For Repair: 1	NLA
43	IMPELLER, WATER PUMP (#436065 2) Qty Required For Repair: 1	NLA
44	WATER PUMP BODY W/DRIVESHAFT SEAL (#A715060) Qty Required For Repair: 1	NLA
45	HEX HEAD SCREW. L/4 - 20 X 1-1/4 S.S. (#2030) Qty Required For Repair: 4 Qty Required For Repair: 4	NLA
46	SEAL, WATER LINE (#A510914) Qty Required For Repair: 1	NLA
47	SEAL KIT (#K1065) Qty Required For Repair: 1	NLA

SEARS 9.9 H.P. STANDARD 15" (38.1 CM) LEG OUTBOARD MOTOR GEAR HOUSING

This assembly is found in these models:

SEARS > 9.9 H.P. (1991)
