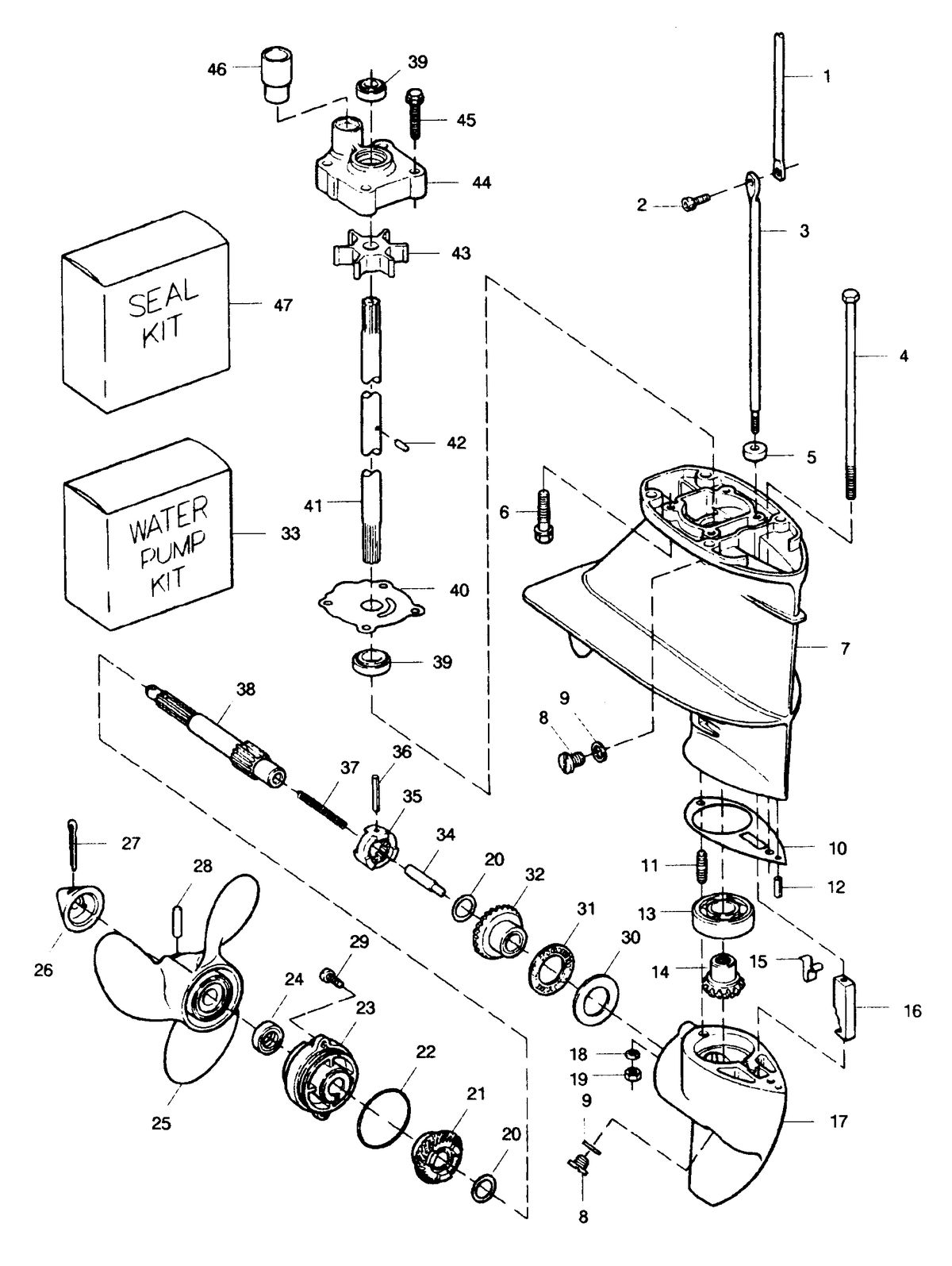

SEARS - 9.9 H.P. (1991) - Gear Housing

Ref ID	Description	Price
1	Gear shift rod, upper (#286615) Qty Required For Repair: 1	NLA
2	Socket head cap screw w/lockwasher,10 - 24 x 1/2 (#1976) Qty Required For Repair: 1	NLA
3	Gear shift rod, lower (15 inch transom models) (#286705 1) Qty Required For Repair: 1	NLA
4	Hex bolt, l/4 - 20 x 7 (#1800) Qty Required For Repair: 1	NLA
5	Seal, shift rod lower (#338618 1) Qty Required For Repair: 1	NLA
6	Hex head screw, 1/4 - 20 x l (#430732) Qty Required For Repair: 4 Qty Required For Repair: 4	NLA
7	Gear housing upper w/bearing, plugs and seals (#A715554) Qty Required For Repair: 1	NLA
8	Plug, gear housing (#50109) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
9	Washer, oil plug (#8186) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
10	Gasket, gear housing (#286555) Qty Required For Repair: 1	NLA
11	Stud, rear (#286008) Qty Required For Repair: 1	NLA
12	Spring pin (#8553) Qty Required For Repair: 1	NLA
13	Ball bearing (#127910 2) Qty Required For Repair: 1	NLA
14	Gear, bevei pinion w/ball bearing (#43-819251A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
15	Spring, cam detent (#286895) Qty Required For Repair: 1	NLA
16	Cam, shift (#286721) Qty Required For Repair: 1	NLA
17	Gear housing lower (#1600-817749A2) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
17	Gear housing kit (includes all items required to build complete lower gear housi (#1600-819483A2) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
18	Spring lockwasher (#1248-8083) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
19	Hex nut, 1/4 - 20 (#1490) Qty Required For Repair: 1	NLA
20	Thrust washer (#456717) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
21	Gear, bevel rear w/bearing (#43-819254A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
22	Seal, prop shaft bearing cage (#455305) Qty Required For Repair: 1	NLA
23	Cage, prop shaft bearing w/bearing end seals (#31-817756A2) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
24	Seal, prop shaft (#346118) Qty Required For Repair: 1	NLA
25	Propeller, 8 x 9-1/4, nylon, 3 blade (#P6477) Qty Required For Repair: 1	NLA
26	Propeller nut w/cotter pin (#11-817752A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
27	Cotter pin (#1846) Qty Required For Repair: 1	NLA
28	Propeller pin, pack of 3 w/cotter pin (#A324101) Qty Required For Repair: 1	NLA
29	head screw, 1/4 - 20 x 5/8 (#1493) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
30	Race, propeller shaft bearing (#286903) Qty Required For Repair: 1	NLA
31	Bearing, propeller shaft (#286901) Qty Required For Repair: 1	NLA
32	Gear, front bevel w/bearing (#43-819252A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
33	Water pump kit (#K1031 1) Qty Required For Repair: 1	NLA
34	Shift pin (#286728) Qty Required For Repair: 1	NLA
35	Clutch (#52-819253) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: FA456521 Supersedes: FA456521	NLA
36	Spring pin (#8564) Qty Required For Repair: 1	NLA
37	Spring, clutch (#409719) Qty Required For Repair: 1	NLA
38	Propeller shaft (#456098) Qty Required For Repair: 1	NLA
39	Seal, driveshaft (#901307 2) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
40	Water pump backplate (#341562) Qty Required For Repair: 1	NLA
41	Driveshaft (15 inch transom models) (#343128) Qty Required For Repair: 1	NLA
42	Pin, impeller drive (#901563) Qty Required For Repair: 1	NLA
43	Impeller, water pump (#436065 2) Qty Required For Repair: 1	NLA
44	Water pump body w/driveshaft seal (#A715060) Qty Required For Repair: 1	NLA
45	Hex head screw, 1/4 - 20 x 1-l/4 S.S. (#2030) Qty Required For Repair: 4 Qty Required For Repair: 4	NLA
46	Seal, water line (#A510914) Qty Required For Repair: 1	NLA
47	Seal kit (#K1065) Qty Required For Repair: 1	NLA

SEARS 9.9 H.P. 15" LEG OUTBOARD MOTOR Gear Housing

This assembly is found in these models:

SEARS > 9.9 H.P. (1991)
