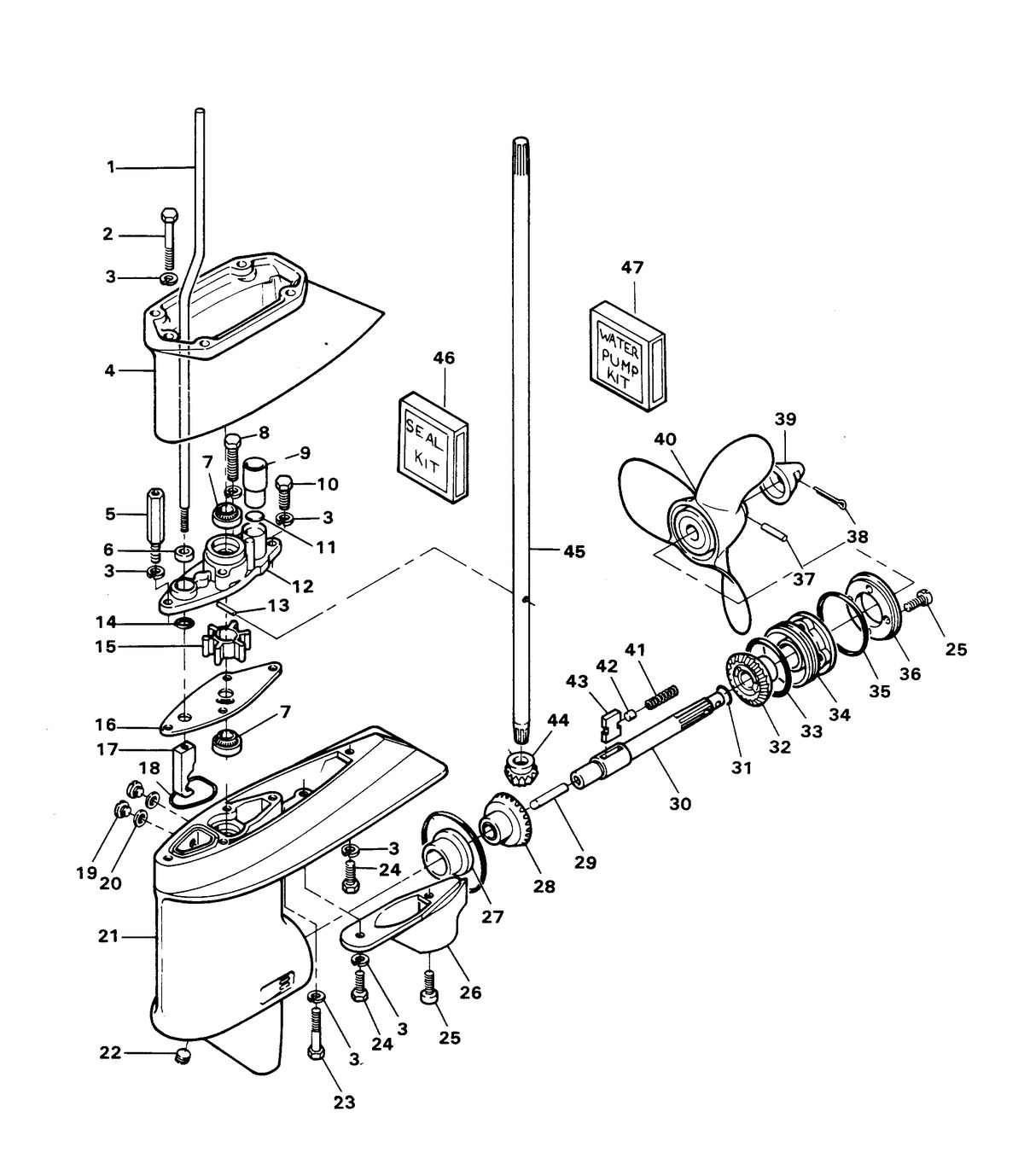

GEAR HOUSING

Ref ID	Description	Price
1	ROD, GEAR SHIFT (#F525705) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
2	HEX HD CAP SCREW, 1/4 - 20 X 1 7/8 (#10-F1175) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
3	SPRING LOCKWASHER (#13-26992) Qty Required For Repair: 8 Minimum Order Qty: 5 Qty Required For Repair: 8 Minimum Order Qty: 5	$0.96 ~~$1.20~~
4	EXTENSION MOTOR LEG (#F525845) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
5	STUD, GEAR HOUSING FRONT (#FK601006) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F521006 Supersedes: F521006	NLA
6	SEAL, GEAR SHIFT ROD LOWER (#26-817472) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F338618-1, F286618, F286618-1, F338618 Supersedes: F338618-1, F286618, F286618-1, F338618	$6.96 ~~$8.70~~
7	SEAL (#26-F318307) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: F50307 Qty Required For Repair: 2 Supersedes: F50307	$42.32 ~~$44.08~~
8	HEX HD SCREW, 1/4 - 20 X 1 1/2 (#10-F1891) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
9	SEAL, WATERLINE (#FA510914) Comment: W/LITERATURE Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 26-F510914, F55914 W/LITERATURE Supersedes: 26-F510914, F55914	NLA
10	HEX HD SCREW, 1/4 - 20 X 7/8 (#10-F2008) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F1240, F1534, 10-F1915, F1533, FO1533 Supersedes: F1240, F1534, 10-F1915, F1533, FO1533	NLA
11	DISC, WATER PUMP LOCATING (#525388) Qty Required For Repair: 1	NLA
12	WATER PUMP BODY (#FA525060) Comment: W/ILLUS. 6, 7, 9 AND 11 Qty Required For Repair: 1 Minimum Order Qty: 1 W/ILLUS. 6, 7, 9 AND 11	NLA
13	PIN, WATER PUMP IMPELLER DRIVE (#17-F390563) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
14	SEAL, WATER PUMP GEAR SHIFT ROD (#25-69756) Qty Required For Repair: 1 Minimum Order Qty: 1	$2.80 ~~$3.50~~
15	IMPELLER (#47-F525065-1) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F525065 Supersedes: F525065	NLA
16	PLATE, WATER PUMP BACK (#F525562) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
17	CLUTCH SHIFT CAM (#F459721-1) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F459721 Supersedes: F459721	NLA
18	SEAL, SHIFT ROD CAVITY (#25-F525555) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
19	PLUG, GEAR HOUSING (#10-79953Q04) Qty Required For Repair: 2 Minimum Order Qty: 2 Qty Required For Repair: 2 Minimum Order Qty: 2	$4.99 ~~$7.19~~
20	WASHER (#12-191833) Qty Required For Repair: 2 Minimum Order Qty: 15 Qty Required For Repair: 2 Minimum Order Qty: 15	$0.99 ~~$1.39~~
21	GEAR HOUSING W/DRIVESHAFT UPPER 7, 19, 20 AND 22 (#1600-FA525054) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
-	GEAR HOUSING COMPLETE (NOT SHOWN). (#FC536054) Comment: INCLUDES ALL ITEMS MARKED WITH AN ASTERISK () Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: FC525054 INCLUDES ALL ITEMS MARKED WITH AN ASTERISK () Supersedes: FC525054	NLA
22	PLUG (#22-47945) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
23	HEX HD SCREW, 1/4 - 20 X 1 5/8 (#10-8M0149604) Qty Required For Repair: 2 Qty Required For Repair: 2	$4.08 ~~$5.10~~
24	HEX CAP SCREW, 1/4 - 20 X 3/4 (#10-28636) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	$1.36 ~~$1.70~~
25	SCREW (#10-F525457) Qty Required For Repair: 5 Minimum Order Qty: 1 Qty Required For Repair: 5	NLA
26	SNOUT (#FA525116) Comment: W/LITERATURE Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F525116 W/LITERATURE Supersedes: F525116	NLA
27	PROPSHAFT SEAL (#26-F521307) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
28	BEVEL GEAR W/BEARING (#43-819249A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
29	PIN CLUTCH SHIFT (#17-F901728) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
30	PROPELLER SHAFT (#44-F536098) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
31	WASHER, BEVEL GEAR THRUST (#12-F317717) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
32	BEVEL GEAR - REAR (#43-F525662) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
33	SEAL, PROP SHAFT (#25-F525305) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
34	PROP SHAFT CAGE (#FA525298) Comment: W/PROP SHAFT THRUST BEARING, PROP SHAFT BEARING, PROP SHAFT BEARING, ILLUS. 27 Qty Required For Repair: 1 Minimum Order Qty: 1 W/PROP SHAFT THRUST BEARING, PROP SHAFT BEARING, PROP SHAFT BEARING, ILLUS. 27	NLA
35	SEAL, PROP SHAFT BEARING CAGE (#25-F521305) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
36	RETAINER, PROP SHAFT BEARING CAGE (#F521296T1) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F521296T, F521296 Supersedes: F521296T, F521296	$29.12 ~~$30.33~~
37	PROPELLER PIN (#FA324101) Comment: W/ITEM 38 (3 PROP PINS PER UNIT) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F324101, FK324101 W/ITEM 38 (3 PROP PINS PER UNIT) Supersedes: F324101, FK324101	$12.48 ~~$13.01~~
38	COTTER PIN (#18-45882) Qty Required For Repair: 1 Minimum Order Qty: 2 Minimum Order Qty: 2	$2.70 ~~$2.82~~
39	PROPELLER NUT (#11-817752A1) Comment: W/ILLUS. 38 ORIGINAL FORCE P/N A 286094-1 Qty Required For Repair: 1 Minimum Order Qty: 1 W/ILLUS. 38 ORIGINAL FORCE P/N A 286094-1	NLA
40	PROPELLER (#48-FP430) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: FP342 Supersedes: FP342	$177.19 ~~$207.96~~
41	CLUTCH SPRING (#24-F409719) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
42	CLUTCH PIN GUIDE (#17-F318372) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
43	CLUTCH SHIFT (#52-F409521) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
44	GEAR, BEVEL PINION (#43-819250) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F521266 Supersedes: F521266	NLA
45	DRIVESHAFT (#45-F525128) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
46	GEAR HOUSING SEAL KIT. (#FK1062) Comment: INCLUDES ALL ITEMS MARKED WITH A DOUBLE ASTERISK () Qty Required For Repair: 1 Minimum Order Qty: 1 INCLUDES ALL ITEMS MARKED WITH A DOUBLE ASTERISK ()	NLA
47	WATER PUMP KIT (#FK1067) Comment: (INCLUDES THE FOLLOWING) Qty Required For Repair: 1 Minimum Order Qty: 1 (INCLUDES THE FOLLOWING)	NLA
-	PIN, WATER PUMP IMPELLER (#17-F390563) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
-	IMPELLER, WATER PUMP (#47-F525065-1) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F525065 Supersedes: F525065	NLA
-	PLATE, WATER PUMP (#F525562) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
-	BODY, WATER PUMP (#FA525060) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA

This assembly is found in these models:

CHRYSLER > 6 (1981)
