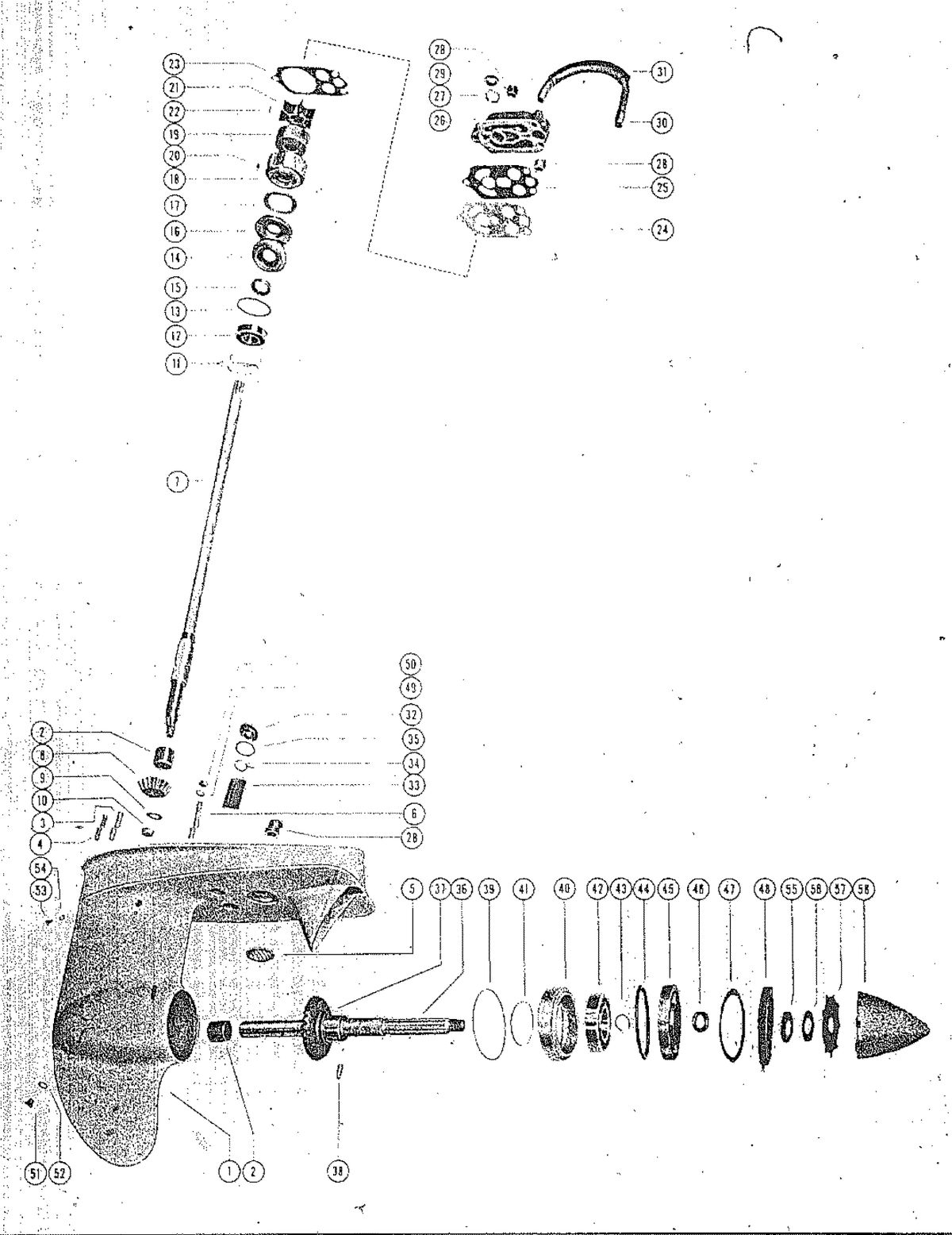

GEAR HOUSING ASSEMBLY, COMPLETE

Ref ID	Description	Price
-	GEAR HOUSING ASSEMBLY, COMPLETE (#1613-1563A2) Comment: SERIAL 00000000-01166568 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 00000000-01166568	NLA
-	GEAR HOUSING ASSEMBLY, COMPLETE (#1613-1563A2) Comment: SERIAL 01166569-09999999 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 01166569-09999999	NLA
1	GEAR HOUSING ASSEMBLY (#1613-1563A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
2	BEARING, ROLLER - PROPELLER SHAFT AND DRIVE SHAFT (#31-62091T) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$63.28 ~~$65.92~~
3	STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (#16-23071) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
4	STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (#16-20901) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
5	SCREEN, WATER INTAKE (#35-26189) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
6	STUD, WATER PUMP COVER FASTENING (#16-28771) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
7	DRIVE SHAFT (#45-26196) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
8	GEAR, PINION - SEE NOTE (#43-27891A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
8	GEAR, PINION (#43-27889) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
9	WASHER, DRIVE SHAFT (#12-22025) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
10	NUT, PINION GEAR RETAINING (#11-82671317) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$2.96 ~~$3.70~~
11	SHIM, BALL BEARING - DRIVE SHAFT (.002-3-5-10) (#15-20929) Qty Required For Repair: AR Qty Required For Repair: AR	NLA
12	BEARING, BALL - DRIVE SHAFT (#30-72961) Qty Required For Repair: 1 Minimum Order Qty: 1	$22.08 ~~$23.00~~
13	"O" RING, DRIVE SHAFT OIL SEAL CARRIER (#25-26722) Qty Required For Repair: 1 Minimum Order Qty: 3 Minimum Order Qty: 3	$2.16 ~~$2.70~~
14	OIL SEAL CARRIER ASSEMBLY, DRIVE SHAFT (#26191A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
15	OIL SEAL, CARRIER (#26-90562) Qty Required For Repair: 1 Minimum Order Qty: 2 Minimum Order Qty: 2	$17.36 ~~$18.08~~
16	COVER, OIL SEAL CARRIER RETAINER (#26192) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
17	WASHER, WAVE - RETAINER COVER TO OIL SEAL CARRIER (#13-26494) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
18	WATER PUMP CARTRIDGE ASSEMBLY (#46-26188A2) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
19	INSERT, WATER PUMP CARTRIDGE (#29104) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
20	KEY, CARTRIDGE LOCATING (#28-28657) Qty Required For Repair: 1 Minimum Order Qty: 2 Minimum Order Qty: 2	NLA
21	IMPELLER, WATER PUMP (#47-30041T) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
22	PIN, IMPELLER DRIVE (#28-8M0032837) Qty Required For Repair: 1 Minimum Order Qty: 5 Supersedes: 28-56662 Minimum Order Qty: 5 Supersedes: 28-56662	$4.40 ~~$5.50~~
23	GASKET, LOWER - WATER PUMP COVER (#27-26187) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	NLA
24	PLATE, FACE - WATER PUMP COVER (#26185) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
25	GASKET, UPPER - WATER PUMP COVER (#27-26186) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	NLA
26	WATER PUMP COVER ASSEMBLY (#26219A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
27	OIL SEAL (#26-23517) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
28	SEAL, RUBBER - WATER INLET TUBE (#26-26207) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
28	SEAL, RUBBER - WATER INELT TUBE TO GEAR HOUSING (#26-26207) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
29	RING, RUBBER - CENTRIFUGAL SLINGER (#25-20273) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$1.28 ~~$1.60~~
30	TUBE, WATER INTAKE - LOWER (#32-26489) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
31	SLEEVE, WATER INTAKE TUBE (#32-26208) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
32	WATER VALVE AND ADAPTOR ASSEMBLY (#22-26220A1) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
33	VALVE, WATER (#21-26491) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
34	CLAMP, VALVE TO ADAPTOR (#54-26492) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
35	SHIM, VALVE ADAPTOR TO GEAR HOUSING (.003-5-10) (#15-21158) Qty Required For Repair: AR Qty Required For Repair: AR	NLA
36	SHAFT, PROPELLER (#44-26213) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
37	GEAR, PROPELLER - SEE NOTE (#43-27891A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
37	GEAR, PROPELLER (#43-27891A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
37	GEAR, PROPELLER (STARTED WITH SERIAL #1166569) (#43-28443) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
38	DOWEL PIN, PROPELLER GEAR TO SHAFT (#17-26200) Qty Required For Repair: 1 Minimum Order Qty: 3 Minimum Order Qty: 3	NLA
39	SHIM, ADAPTOR RING TO GEAR HOUSING (.002-3-5) (#15-26201) Qty Required For Repair: AR Qty Required For Repair: AR	NLA
40	RING, ADAPTOR - BALL BEARING (#26202) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
41	SHIM, BALL BEARING TO PROPELLER GEAR (.003-5-10) (#15-26229) Comment: SERIAL 00000000-01166568 Qty Required For Repair: AR SERIAL 00000000-01166568 Qty Required For Repair: AR	NLA
42	BEARING, BALL - PROPELLER GEAR (#30-20840) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
43	RING, SNAP - BALL BEARING RETAINING (#53-26210) Comment: SERIAL 00000000-01166568 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 00000000-01166568	NLA
--	NUT, BALL BEARING RETAINING (#11-28444) Comment: SERIAL 01166569-09999999 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 01166569-09999999	NLA
--	TAB WASHER, BEARING RETAINING NUT (#14-28445) Comment: SERIAL 01166569-09999999 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 01166569-09999999	NLA
44	"O" RING, BEARING ADAPTOR (#25-26228) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
45	OIL SEAL CARRIER ASSEMBLY, PROPELLER SHAFT (#26195A1) Comment: SERIAL 00000000-01166568 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 00000000-01166568	NLA
45	OIL SEAL CARRIER ASSEMBLY, PROPELLER SHAFT (#28442A1) Comment: SERIAL 01166569-09999999 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 01166569-09999999	NLA
46	OIL SEAL, CARRIER (#26-26226) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
47	WASHER, GEAR HOUSING COVER (#12-26193) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
48	COVER, GEAR HOUSING (#26194) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
49	LOCKWASHER, WATER PUMP COVER STUDS (#13-8M0204647) Qty Required For Repair: 3 Qty Required For Repair: 3	$1.36 ~~$1.70~~
50	NUT, WATER PUMP COVER STUDS (#11-28770) Qty Required For Repair: 3 Minimum Order Qty: 5 Qty Required For Repair: 3 Minimum Order Qty: 5	$2.80 ~~$3.50~~
51	SCREW, GREASE FILLER AND FLUSHING HOLE (#10-79953Q04) Qty Required For Repair: 2 Minimum Order Qty: 2 Qty Required For Repair: 2 Minimum Order Qty: 2	$4.99 ~~$7.19~~
52	WASHER, GREASE FILLER AND FLUSHING HOLE SCREW (#12-191833) Qty Required For Repair: 2 Minimum Order Qty: 15 Qty Required For Repair: 2 Minimum Order Qty: 15	$0.99 ~~$1.39~~
53	SCREW, GEAR HOUSING VENT (#10-28653) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$3.04 ~~$3.80~~
54	WASHER, GEAR HOUSING VENT SCREW (#19643) Qty Required For Repair: 1 Minimum Order Qty: 15 Minimum Order Qty: 15	$1.12 ~~$1.40~~
55	WASHER, BACKING - PROPELLER SHAFT (1/8) (#12-26334) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
56	WASHER, BACKING - PROPELLER SHAFT (1/32) (#12-26331) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
57	TAB WASHER, PROPELLER NUT (#14-26333) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
58	NUT, PROPELLER (#11-26335) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA

This assembly is found in these models:

MARK > MARK 75A, 78, 78A
