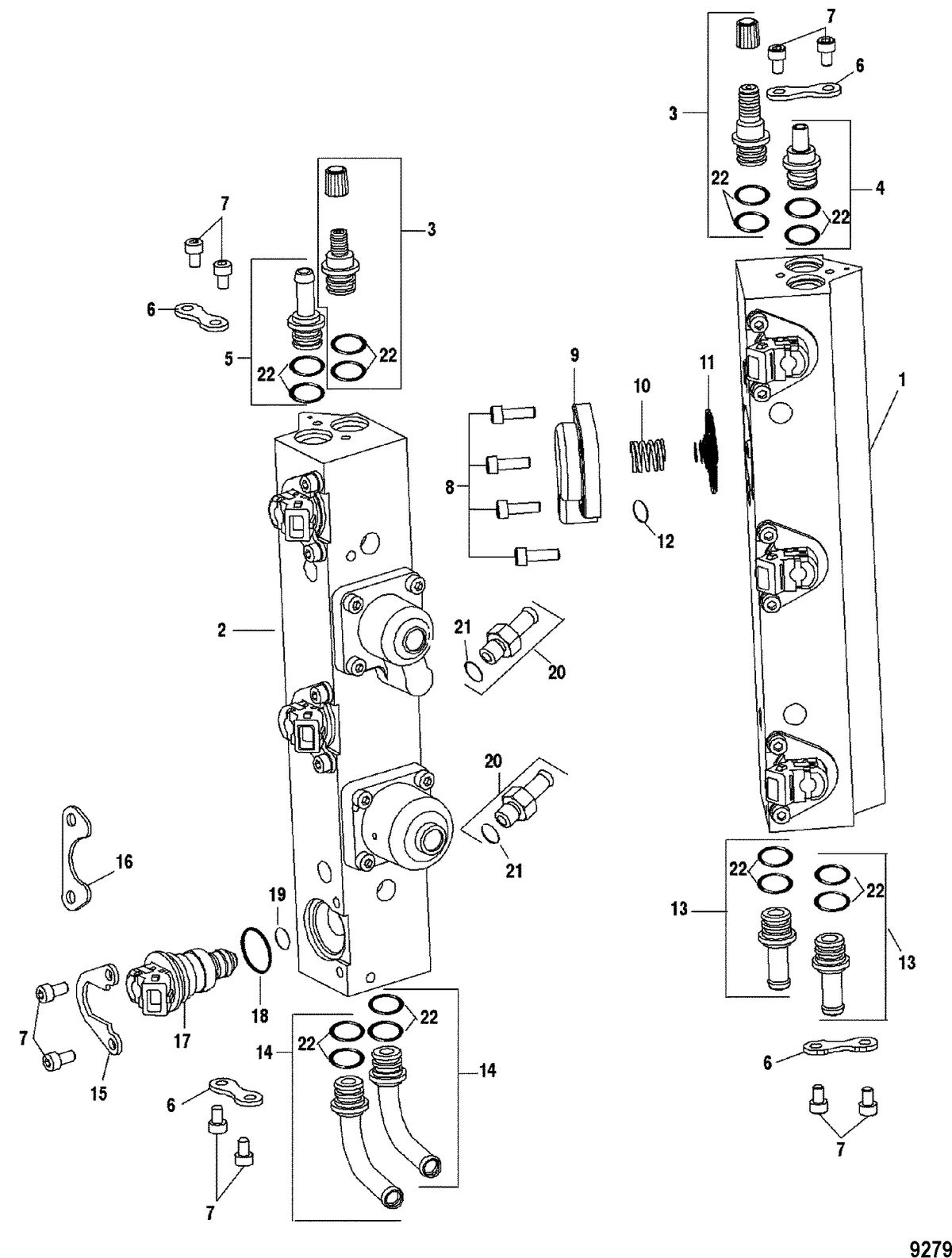

MARINER - V-135 DFI (2.5L) - Fuel Rail Components

Ref ID	Description	Price
1	FUEL RAIL, Without Injectors (Starboard) (#852379T6) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
2	FUEL RAIL, Without Injectors (Port) (#852378T6) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
3	SCHRADER VALVE KIT (AIR AND FUEL) (#804521) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
4	FITTING (AIR INLET) (#804516) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
5	FITTING (FUEL INLET) (#804515) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
6	CLAMP (FITTING RETAINER) (#804524) Qty Required For Repair: 4 Minimum Order Qty: 1 Supersedes: 54-859153 Qty Required For Repair: 4 Supersedes: 54-859153	NLA
7	SCREW PACKAGE, (M5 x 8) (2 Per) (#10-804525001) Qty Required For Repair: 10 Minimum Order Qty: 1 Supersedes: 804525 Qty Required For Repair: 10 Supersedes: 804525	NLA
8	SCREW PACKAGE, (M5 x 16) (2 Per) (#804526) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	$16.80 ~~$17.50~~
9	COVER (TRACKER VALVE) (#804535001) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 804535 Supersedes: 804535	$84.44 ~~$92.58~~
10	SPRING (TRACKER VALVE) (#24-804534) Qty Required For Repair: 1 Minimum Order Qty: 1	$12.32 ~~$15.40~~
11	DIAPHRAGM ASSEMBLY (TRACKER VALVE) (#804533) Qty Required For Repair: 1 Minimum Order Qty: 1	$155.99 ~~$183.49~~
12	O-RING (TRACKER COVER) (#25-804536) Qty Required For Repair: 1 Minimum Order Qty: 1	$9.04 ~~$11.30~~
13	FITTING (AIR/FUEL) STARBOARD (#804520) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
14	FITTING (AIR/FUEL) PORT (#804519) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
15	CLAMP (INJECTOR) DESIGN II (#804522) Qty Required For Repair: 6 Minimum Order Qty: 1 Qty Required For Repair: 6	$12.48 ~~$15.60~~
16	RETAINER (INJECTOR) DESIGN I (#804523) Qty Required For Repair: 6 Minimum Order Qty: 1 Qty Required For Repair: 6	NLA
17	INJECTOR (FUEL) (#804527) Qty Required For Repair: 6 Minimum Order Qty: 1 Qty Required For Repair: 6	$395.64 ~~$403.71~~
18	O-RING KIT (LARGE) 6 PER KIT (#25-804530) Qty Required For Repair: 1 Minimum Order Qty: 1	$52.64 ~~$54.83~~
19	O-RING KIT (SMALL) 6 PER KIT (#25-804529) Qty Required For Repair: 1 Minimum Order Qty: 1	$36.00 ~~$37.50~~
20	FITTING (#804517) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
21	O-RING (2 PER KIT) (#25-804531) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
22	O-RING KIT (16 PER KIT) (#804532) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 25-803987 Supersedes: 25-803987	$28.16 ~~$29.33~~

MERCURY/MARINER 135/150 DFI (2.5L) Fuel Rail Components

Mercury Marine Parts Catalog

MARINER - V-135 DFI (2.5L) - Fuel Rail Components

This assembly is found in these models:
