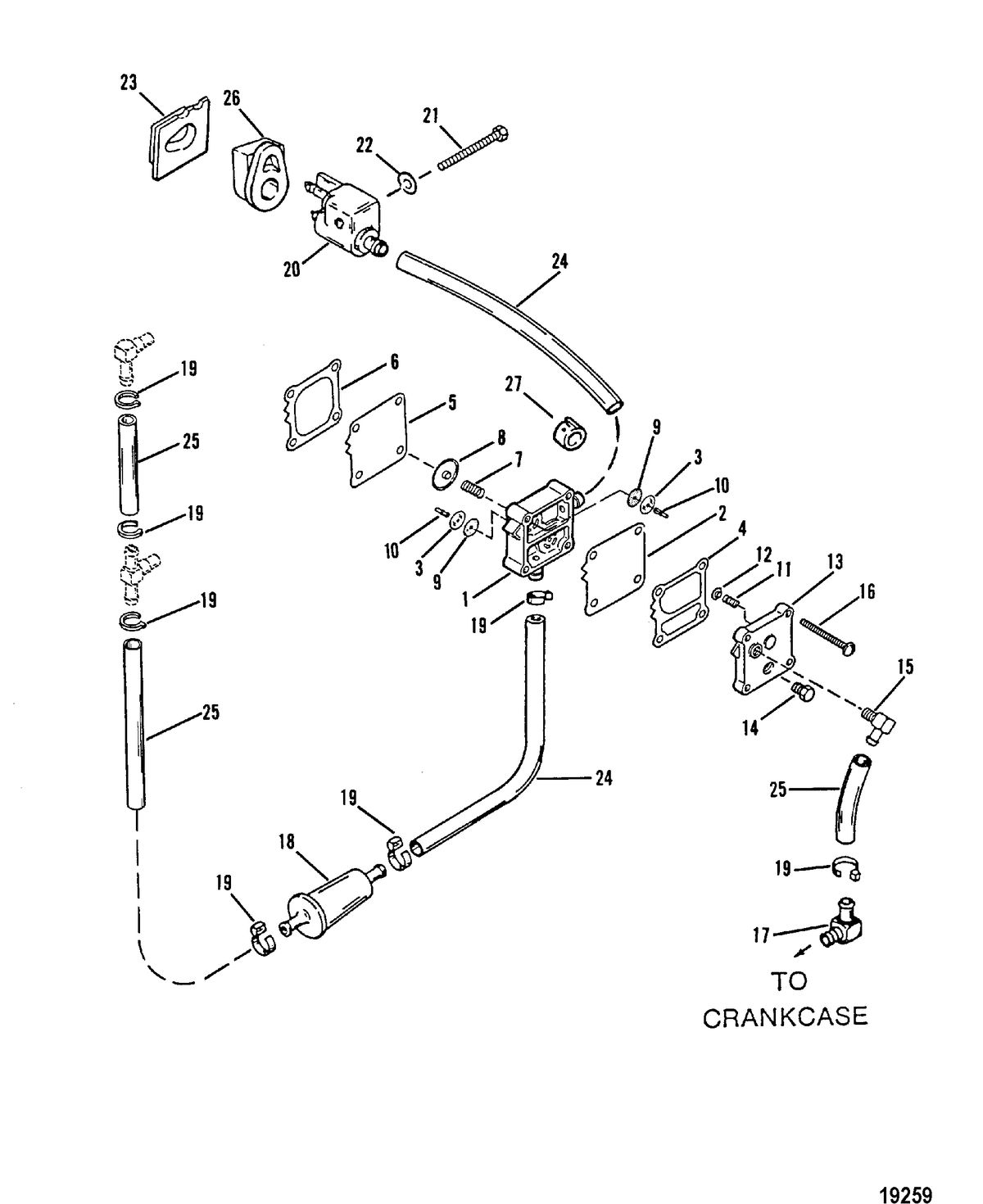

Fuel Pump

Ref ID	Description	Price
1	PUMP ASSEMBLY, Fuel (#14360A78) Qty Required For Repair: 1 Minimum Order Qty: 1	$240.99 ~~$283.49~~
2	DIAPHRAGM KIT (#21-857005A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$27.49 ~~$32.49~~
3	NOT SOLD SEPARATE, Check Valve-Rubber (#NSS) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
4	NOT SOLD SEPARATE, Gasket-Boost (#NSS) Qty Required For Repair: 1	NLA
5	NOT SOLD SEPARATE, Diaphragm (#NSS) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
6	NOT SOLD SEPARATE, Gasket-Pulse (#NSS) Qty Required For Repair: 1	NLA
7	NOT SOLD SEPARATE, Spring (#NSS) Qty Required For Repair: 1	NLA
8	NOT SOLD SEPARATE, Cap (#NSS) Qty Required For Repair: 1	NLA
9	NOT SOLD SEPARATE, Disc-Rubber (#NSS) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
10	NOT SOLD SEPARATE, Retainer (#NSS) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
11	NOT SOLD SEPARATE, Spring (#NSS) Qty Required For Repair: 1	NLA
12	NOT SOLD SEPARATE, Cap (#NSS) Qty Required For Repair: 1	NLA
13	PLATE, FUEL PUMP (#987752) Qty Required For Repair: 1 Minimum Order Qty: 1	$22.24 ~~$23.17~~
14	PLUG, Pipe (.0625-27) (#22-56800) Qty Required For Repair: 1 Minimum Order Qty: 1	$24.40 ~~$25.42~~
15	FITTING (#22-19688) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
16	SCREW, FUEL PUMP (#10-90190) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
16	SCREW, (#12-24 x 1.50), FUEL PUMP (#10-16562) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
17	FITTING, FUEL LINE (#22-64705) Qty Required For Repair: 1 Minimum Order Qty: 1	$8.96 ~~$11.20~~
18	FILTER, Fuel (#35-816296Q2) Qty Required For Repair: 1 Minimum Order Qty: 1	$6.99 ~~$9.99~~
19	TIE STRAP, FUEL TUBING (#54-816311T) Qty Required For Repair: AR Minimum Order Qty: 100 Supersedes: 54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275 Qty Required For Repair: AR Minimum Order Qty: 100 Supersedes: 54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275	$0.48 ~~$0.59~~
20	CONNECTOR, Fuel - Metal (#22-15781A10) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
20	CONNECTOR, Fuel (PLASTIC) (#22-816856Q3) Qty Required For Repair: 1 Minimum Order Qty: 2 Minimum Order Qty: 2	$20.64 ~~$21.49~~
21	SCREW, (.250-20 x 1.250), FUEL CONNECTOR (METAL) (#10-76596) Qty Required For Repair: 1 Minimum Order Qty: 1	$1.92 ~~$2.40~~
21	SCREW, (.250-20 x 1.50), FUEL CONNECTOR (PLASTIC) (#10-69093) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
22	WASHER, FUEL CONNECTOR SCREW (METAL) (#12-89302) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$1.36 ~~$1.70~~
22	WASHER, (.281 x .500 x .060) Stainless Steel, FUEL CONNECTOR SCREW (PLASTIC) (#12-8M0204649) Qty Required For Repair: 1	$0.96 ~~$1.20~~
23	GROMMET, FUEL CONNECTOR (METAL) (#25-17970) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
23	GROMMET, FUEL CONNECTOR (PLASTIC) (#25-17969) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
24	TUBING (#32-8M0108349) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 32-8M0047448, 32-830757130, 32-830757 80 Qty Required For Repair: 2 Supersedes: 32-8M0047448, 32-830757130, 32-830757 80	$59.76 ~~$62.25~~
25	LINE, (57.00 Inches Bulk) (#32-8M0108355) Qty Required For Repair: 3 Minimum Order Qty: 1 Supersedes: 32-8M0047428, 32-830756109, 32-99127109, 32-877821 Qty Required For Repair: 3 Supersedes: 32-8M0047428, 32-830756109, 32-99127109, 32-877821	$42.99 ~~$50.49~~
26	GROMMET (60 EL) (#25-815849) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
27	CLAMP, Nylon (60 EL) (#54-41582Q7) Qty Required For Repair: 2 Minimum Order Qty: 2 Qty Required For Repair: 2 Minimum Order Qty: 2	$6.48 ~~$8.09~~
-	GASKET SET (#27-43779A87) Qty Required For Repair: 1 Minimum Order Qty: 1	$95.68 ~~$104.92~~

This assembly is found in these models:

MERCURY > 50 (3 CYL.)
MERCURY > 60 (3 CYL.)
