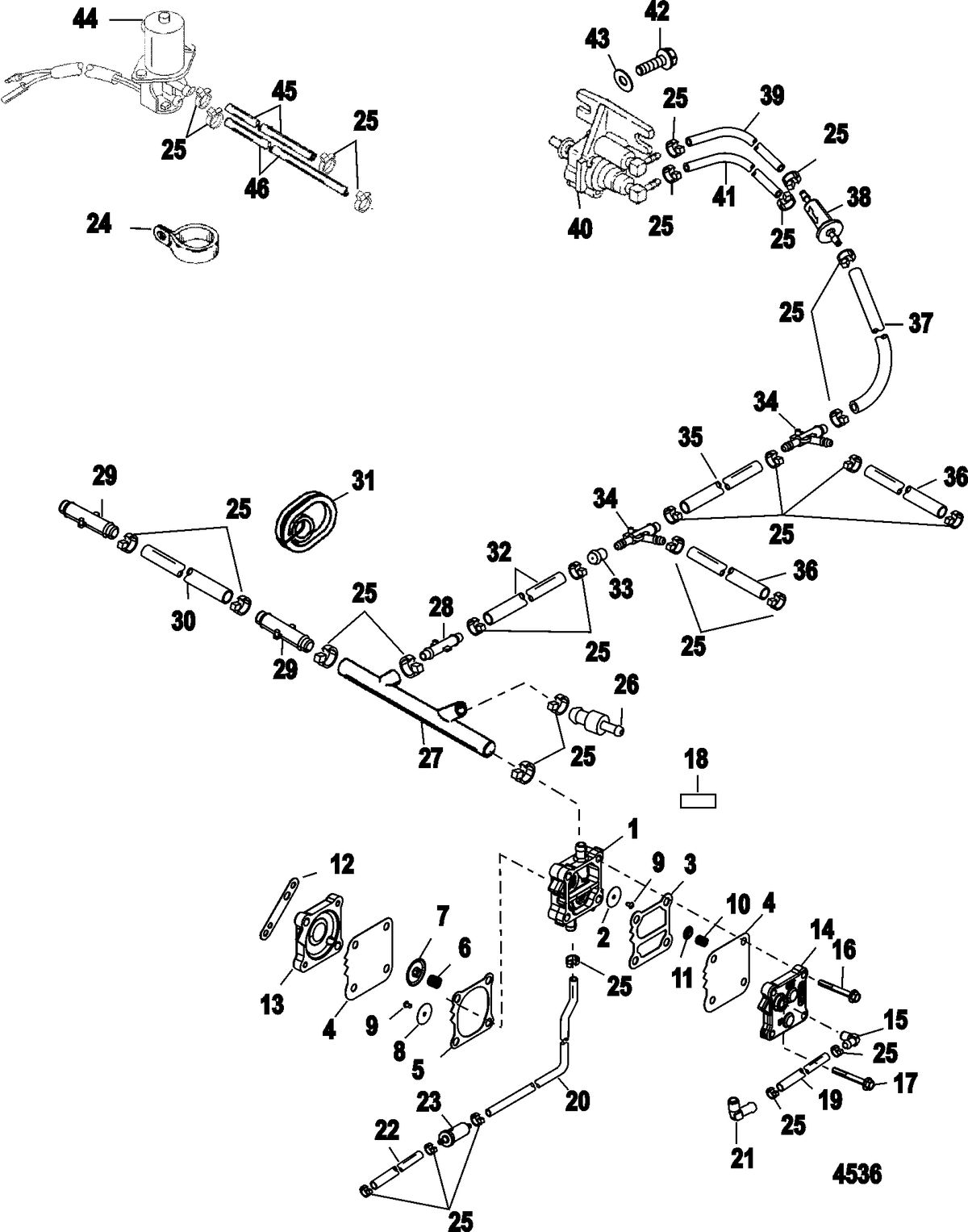

Fuel Pump

Ref ID	Description	Price
1	PUMP KIT, Fuel (#14360A78) Qty Required For Repair: 1 Minimum Order Qty: 1	$240.99 ~~$283.49~~
2	DIAPHRAGM KIT (#21-857005A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$27.49 ~~$32.49~~
3	NOT SOLD SEPARATE, Gasket-Boost (#NSS) Qty Required For Repair: 1	NLA
4	NOT SOLD SEPARATE, Diaphragm (#NSS) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
5	NOT SOLD SEPARATE, Gasket-Pulse (#NSS) Qty Required For Repair: 1	NLA
6	NOT SOLD SEPARATE, Spring (#NSS) Qty Required For Repair: 1	NLA
7	NOT SOLD SEPARATE, Cap (#NSS) Qty Required For Repair: 1	NLA
8	NOT SOLD SEPARATE, Check Valve (#NSS) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
9	NOT SOLD SEPARATE, Retainer (#NSS) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
10	NOT SOLD SEPARATE, Spring (#NSS) Qty Required For Repair: 1	NLA
11	NOT SOLD SEPARATE, Cap (#NSS) Qty Required For Repair: 1	NLA
12	GASKET (#27-8M0204705) Qty Required For Repair: 1	$2.08 ~~$2.60~~
13	BASE (#144303) Qty Required For Repair: 1 Minimum Order Qty: 1	$15.76 ~~$19.70~~
14	PLATE (#987752) Qty Required For Repair: 1 Minimum Order Qty: 1	$22.24 ~~$23.17~~
15	FITTING, Elbow 90 Degree (.125-27 x .250) Nylon (#22-996642) Qty Required For Repair: 1 Minimum Order Qty: 1	$2.08 ~~$2.60~~
16	SCREW, (M5 x 40) (#10-82104540) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$2.16 ~~$2.70~~
17	SCREW, (M6 x 50), Pump To Block (#10-82130050) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$3.44 ~~$4.30~~
18	NOT SOLD SEPARATE, Decal-Assembled in Mexico (#NSS) Qty Required For Repair: 1	NLA
19	TUBING, (.312) (70.00 Inches Bulk) (Cut to 4.00 Inch Length) (#32-8M0108349) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 32-8M0047448, 32-830757130, 32-830757 80 Supersedes: 32-8M0047448, 32-830757130, 32-830757 80	$59.76 ~~$62.25~~
20	TUBING, (.312) (70.00 Inches Bulk) (Cut to 8.50 Inch Length) (#32-8M0108349) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 32-8M0047448, 32-830757130, 32-830757 80 Supersedes: 32-8M0047448, 32-830757130, 32-830757 80	$59.76 ~~$62.25~~
21	FITTING, Elbow 90 Degree (.125-27 x .250) Nylon (To Crankcase) (#22-996642) Qty Required For Repair: 1 Minimum Order Qty: 1	$2.08 ~~$2.60~~
22	TUBING, (.312) (70.00 Inches Bulk) (Cut to 2.00 Inch Length) (#32-8M0108349) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 32-8M0047448, 32-830757130, 32-830757 80 Supersedes: 32-8M0047448, 32-830757130, 32-830757 80	$59.76 ~~$62.25~~
23	FILTER, Fuel (#35-816296Q2) Qty Required For Repair: 1 Minimum Order Qty: 1	$6.99 ~~$9.99~~
24	CLAMP (#54-188871) Qty Required For Repair: 1 Minimum Order Qty: 1	$7.92 ~~$9.90~~
25	TIE STRAP, (8.00 Inches) (#54-816311T) Qty Required For Repair: AR Minimum Order Qty: 100 Supersedes: 54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275 Qty Required For Repair: AR Minimum Order Qty: 100 Supersedes: 54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275	$0.48 ~~$0.59~~
25	TIE STRAP, (5.50 Inches) (#8M0214940) Qty Required For Repair: AR Qty Required For Repair: AR	$0.64 ~~$0.80~~
26	CHECK VALVE (To Oil Pump) (#22-8189941) Qty Required For Repair: 1 Minimum Order Qty: 1	$34.48 ~~$35.99~~
27	MOLDED HOSE (#32-822554) Qty Required For Repair: 1 Minimum Order Qty: 1	$13.99 ~~$16.69~~
28	CONNECTOR (#22-822771) Qty Required For Repair: 1 Minimum Order Qty: 1	$2.96 ~~$3.70~~
29	CONNECTOR (#22-822769) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$0.96 ~~$1.20~~
30	TUBING, (26.00 Inches Bulk) (Cut to 4.00 Inch Length) (#32-85682257) Qty Required For Repair: 1 Minimum Order Qty: 1	$23.28 ~~$24.25~~
31	GROMMET (#25-145093) Qty Required For Repair: 1 Minimum Order Qty: 1	$9.04 ~~$11.30~~
32	TUBING, (38.00 Inches Bulk) (Cut to 15.00 Inch Length) (#32-1430165) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
33	FLOW RESTRICTOR (#19-17608) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
34	FITTING, Tee (#22-830570) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 22-17768 Qty Required For Repair: 2 Supersedes: 22-17768	NLA
35	TUBING, (240.00 Inches Bulk) (Cut to 4.50 Inch Length) (#32-892024122) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 32-99130122 Supersedes: 32-99130122	$44.48 ~~$46.33~~
36	TUBING, (240.00 Inches Bulk) (Cut to 2.50 Inch Length) (#32-892024122) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 32-99130122 Qty Required For Repair: 2 Supersedes: 32-99130122	$44.48 ~~$46.33~~
37	TUBING, (38.00 Inches Bulk) (Cut to 1.25 Inch Length) (#32-1430165) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
38	FILTER (#35-8M0207786) Qty Required For Repair: 1	$12.99 ~~$18.49~~
39	TUBING, (38.00 Inches Bulk) (Cut to 13.00 Inch Length) (#32-1430165) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
40	PUMP ASSEMBLY, Accelerator (#14687A4) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
41	TUBING, (36.00 Inches Bulk) (Cut to 5.25 Inch Length) (To Lower Tee) (#32-9912688) Qty Required For Repair: 1 Minimum Order Qty: 1	$27.76 ~~$28.92~~
42	SCREW, (M6 x 16) (#10-4009416) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$2.88 ~~$3.60~~
43	WASHER, (.255 x .620 x .030) Stainless Steel (#12-69056) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$1.36 ~~$1.70~~
44	SOLENOID ASSEMBLY, Enrichner Valve (#89-819503A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$123.12 ~~$135.00~~
45	TUBING, (38.00 Inches Bulk) (Cut to 15.00 Inch Length) (#32-1430165) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
46	TUBING, (36.00 Inches Bulk) (Cut to 11.50 Inch Length) (To Upper Tee) (#32-9912688) Qty Required For Repair: 1 Minimum Order Qty: 1	$27.76 ~~$28.92~~
-	GASKET SET (#27-13461A99) Qty Required For Repair: 1 Minimum Order Qty: 1	$230.32 ~~$270.33~~
-	POWERHEAD ASSEMBLY (#17791T97) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA

Fuel Pump

This assembly is found in these models:
