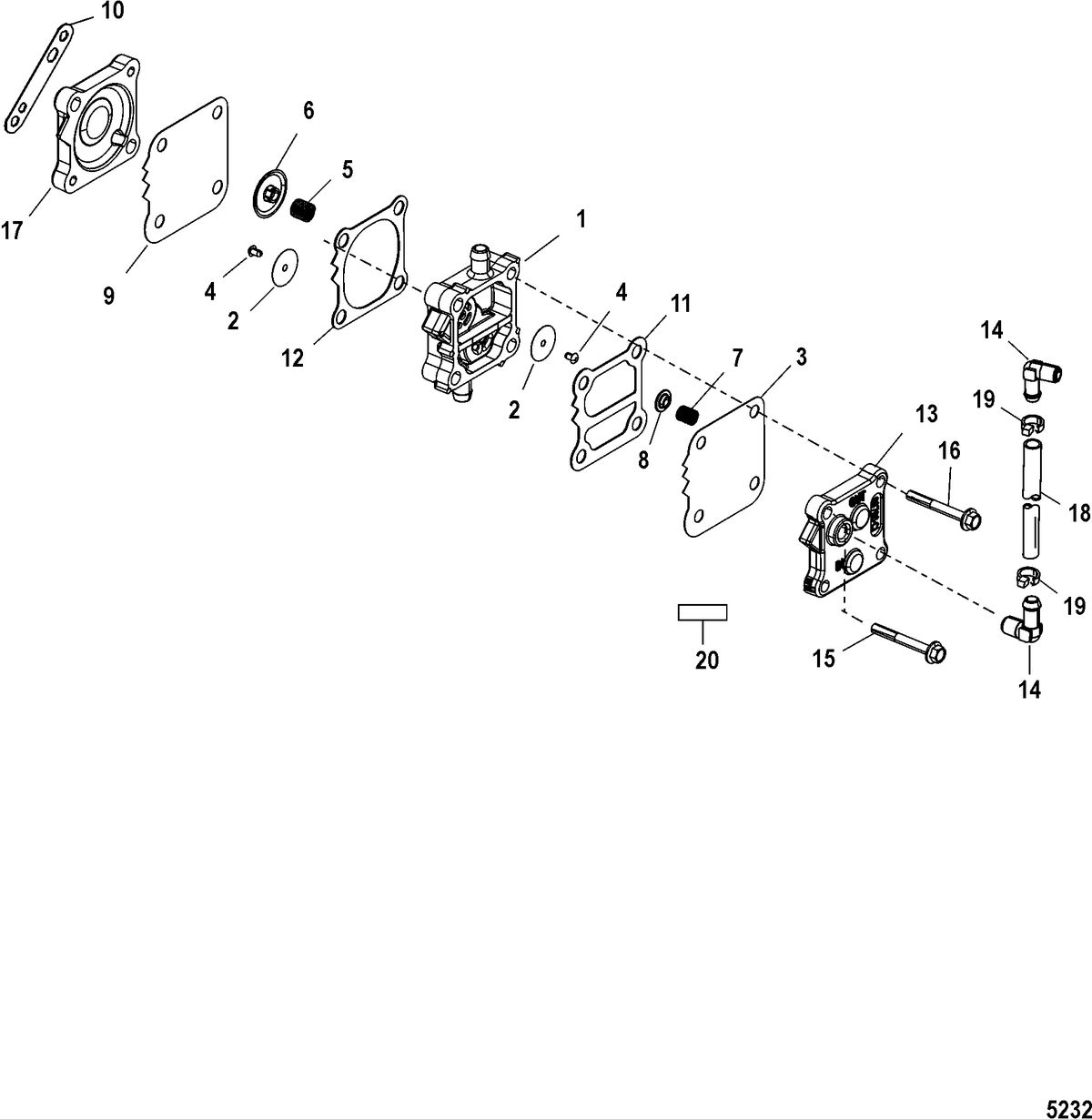

Fuel Pump

Ref ID	Description	Price
-	PUMP KIT, Fuel (#14360A78) Qty Required For Repair: 1 Minimum Order Qty: 1	$240.99 ~~$283.49~~
1	NOT SOLD SEPARATE, Fuel Pump (#NSS) Qty Required For Repair: 1	NLA
-	DIAPHRAGM KIT (#21-857005A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$27.49 ~~$32.49~~
2	NOT SOLD SEPARATE, Disc Check Valve (#NSS) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
3	NOT SOLD SEPARATE, Diaphragm (#NSS) Qty Required For Repair: 1	NLA
4	NOT SOLD SEPARATE, Retainer (#NSS) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
5	NOT SOLD SEPARATE, Spring (#NSS) Qty Required For Repair: 1	NLA
6	NOT SOLD SEPARATE, Cap (#NSS) Qty Required For Repair: 1	NLA
7	NOT SOLD SEPARATE, Spring (#NSS) Qty Required For Repair: 1	NLA
8	NOT SOLD SEPARATE, Cap (#NSS) Qty Required For Repair: 1	NLA
9	NOT SOLD SEPARATE, Diaphragm (#NSS) Qty Required For Repair: 1	NLA
10	GASKET, Base (#27-8M0204705) Qty Required For Repair: 1	$2.08 ~~$2.60~~
11	NOT SOLD SEPARATE, Gasket-Boost (#NSS) Qty Required For Repair: 1	NLA
12	NOT SOLD SEPARATE, Gasket-Pulse (#NSS) Qty Required For Repair: 1	NLA
13	PLATE (#987752) Qty Required For Repair: 1 Minimum Order Qty: 1	$22.24 ~~$23.17~~
14	FITTING, Elbow 90 Degree (.125-27 x .250) Nylon (#22-996642) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$2.08 ~~$2.60~~
15	SCREW, (M6 x 50), Pump to Crankcase (#10-82130050) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$3.44 ~~$4.30~~
16	SCREW, (M5 x 40), Fuel Pump (#10-82104540) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$2.16 ~~$2.70~~
17	BASE (#144303) Qty Required For Repair: 1 Minimum Order Qty: 1	$15.76 ~~$19.70~~
18	TUBING, (.312) (70.00 Inches Bulk) (Cut to 6 Inches) (#32-8M0108349) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 32-8M0047448, 32-830757130, 32-830757 80 Supersedes: 32-8M0047448, 32-830757130, 32-830757 80	$59.76 ~~$62.25~~
19	TIE STRAP, (8.00 Inches) (#54-816311T) Qty Required For Repair: 2 Minimum Order Qty: 100 Supersedes: 54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275 Qty Required For Repair: 2 Minimum Order Qty: 100 Supersedes: 54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275	$0.48 ~~$0.59~~
20	NOT SOLD SEPARATE, Decal-Assembled in Mexico (#NSS) Qty Required For Repair: 1	NLA
-	GASKET SET, Engine, Cylinder head o-rings and seal not included (#27-815791A00) Qty Required For Repair: 1 Minimum Order Qty: 1	$199.94 ~~$234.67~~
-	POWERHEAD ASSEMBLY (#878365T00) Comment: (135) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 812815T00, 812815T97, 812815A97, 812815A96, 812815A92, 812815A90 (135) Supersedes: 812815T00, 812815T97, 812815A97, 812815A96, 812815A92, 812815A90	NLA
-	POWERHEAD ASSEMBLY (#823434T00) Comment: (140/150/XR6/MAGNUM III) Qty Required For Repair: 1 Minimum Order Qty: 1 (140/150/XR6/MAGNUM III)	NLA
-	POWERHEAD ASSEMBLY (#813043T00) Comment: (200) Qty Required For Repair: 1 Minimum Order Qty: 1 (200)	NLA

Mercury Marine Parts Catalog

Fuel Pump

This assembly is found in these models:
