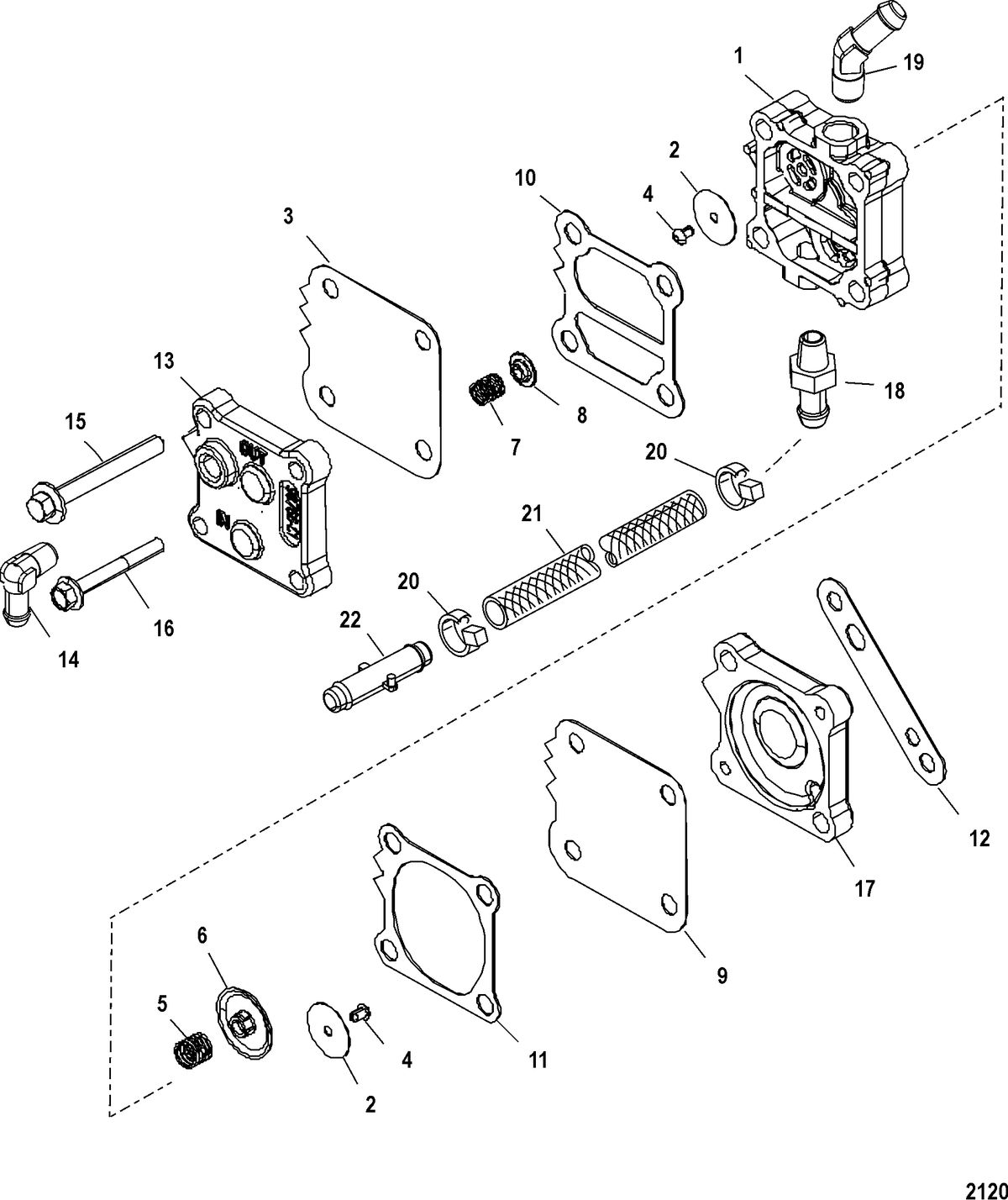

Fuel Pump

Ref ID	Description	Price
-	PUMP ASSEMBLY, Fuel (#14360T75) Qty Required For Repair: 1 Minimum Order Qty: 1	$124.56 ~~$136.58~~
1	NOT SOLD SEPARATE, Body-Fuel Pump (#NSS) Qty Required For Repair: 1	NLA
2	DIAPHRAGM KIT (#21-857005A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$27.49 ~~$32.49~~
3	NOT SOLD SEPARATE, Diaphragm (#NSS) Qty Required For Repair: 1	NLA
4	NOT SOLD SEPARATE, Retainer (#NSS) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
5	NOT SOLD SEPARATE, Spring (#NSS) Qty Required For Repair: 1	NLA
6	NOT SOLD SEPARATE, Cap (#NSS) Qty Required For Repair: 1	NLA
7	NOT SOLD SEPARATE, Spring (#NSS) Qty Required For Repair: 1	NLA
8	NOT SOLD SEPARATE, Cap (#NSS) Qty Required For Repair: 1	NLA
9	NOT SOLD SEPARATE, Diaphragm (#NSS) Qty Required For Repair: 1	NLA
10	NOT SOLD SEPARATE, Gasket-Boost (#NSS) Qty Required For Repair: 1	NLA
11	NOT SOLD SEPARATE, Gasket-Pulse (#NSS) Qty Required For Repair: 1	NLA
12	GASKET (#27-8M0204705) Qty Required For Repair: 1	$2.08 ~~$2.60~~
13	PLATE (#987752) Qty Required For Repair: 1 Minimum Order Qty: 1	$22.24 ~~$23.17~~
14	FITTING, Elbow 90 Degree (.125-27 x .250) Nylon (#22-996642) Qty Required For Repair: 1 Minimum Order Qty: 1	$2.08 ~~$2.60~~
15	SCREW, (M5 x 40) (#10-82104540) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$2.16 ~~$2.70~~
16	SCREW, (M6 x 50), Pump to Crankcase (#10-82130050) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$3.44 ~~$4.30~~
17	BASE (#144303) Qty Required For Repair: 1 Minimum Order Qty: 1	$15.76 ~~$19.70~~
18	FITTING (#22-291112) Qty Required For Repair: 1 Minimum Order Qty: 1	$7.36 ~~$9.20~~
19	FITTING, Elbow 45 Degree (1.25) (#22-782792) Qty Required For Repair: 1 Minimum Order Qty: 1	$5.44 ~~$6.80~~
20	TIE STRAP, (8.00 Inches) (#54-816311T) Qty Required For Repair: 2 Minimum Order Qty: 100 Supersedes: 54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275 Qty Required For Repair: 2 Minimum Order Qty: 100 Supersedes: 54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275	$0.48 ~~$0.59~~
21	HOSE AND SLEEVE ASSEMBLY, (18.00 Inches) (#32-8M0043979) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 32-856822A 2 Supersedes: 32-856822A 2	$34.72 ~~$36.17~~
22	CONNECTOR (#22-822769) Qty Required For Repair: 1 Minimum Order Qty: 1	$0.96 ~~$1.20~~
-	GASKET SET, Engine (#27-8M0046714) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 27-814754A00, 27-814754A98 Supersedes: 27-814754A00, 27-814754A98	$177.15 ~~$207.92~~
-	POWERHEAD ASSEMBLY (#879808T07) Comment: (135/150) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 879808T04, 879808T01 (135/150) Supersedes: 879808T04, 879808T01	$7,793.90 ~~$9,435.70~~
-	POWERHEAD ASSEMBLY (#879809T07) Comment: (175) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 879809T01 (175) Supersedes: 879809T01	$7,941.40 ~~$9,614.30~~

Mercury Marine Parts Catalog

Fuel Pump

This assembly is found in these models:
