FUEL PUMP, LINES AND FILTER

Ref ID	Description	Price
1	FUEL CONNECTOR (#8M0121326) Qty Required For Repair: 1	NLA
2	BOLT (#10-84058M) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	$6.38 ~~$7.50~~
3	WASHER (#12-82214M) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	$4.17 ~~$4.90~~
4	HOSE (#32-82012M) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
5	CLAMP (#54-82047M) Qty Required For Repair: 10 Minimum Order Qty: 5 Qty Required For Repair: 10 Minimum Order Qty: 5	NLA
6	FILTER ASSEMBLY (#35-826964T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 35-826964M, 35-11931M Supersedes: 35-826964M, 35-11931M	$88.77 ~~$89.67~~
7	ELEMENT (#35-826965T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 35-826965M, 35-11934M Supersedes: 35-826965M, 35-11934M	NLA
8	O-RING (#25-84957M) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$5.53 ~~$6.50~~
9	CUP (#11935M) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
6	FILTER ASSEMBLY (#35-826964T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 35-826964M, 35-11931M Supersedes: 35-826964M, 35-11931M	$88.77 ~~$89.67~~
7	ELEMENT (#35-826965T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 35-826965M, 35-11934M Supersedes: 35-826965M, 35-11934M	NLA
8	O-RING (#25-826966T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 25-826966M Supersedes: 25-826966M	NLA
9	CUP (#826967M) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
10	BRACKET (#814568M) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
11	BOLT (#10-826957M) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 10-91725M Supersedes: 10-91725M	NLA
12	HOSE (#32-82012M) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
13	NUT (#11-82382M) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$6.12 ~~$7.20~~
14	HOSE (#32-82012M) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
14	HOSE (#32-82012M) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
15	CONNECTOR (#22-97083M) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
16	BRACKET (#814569M) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
17	HOSE (#32-82012M) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
18	WASHER (#12-82214M) Qty Required For Repair: 4 Minimum Order Qty: 5 Qty Required For Repair: 4 Minimum Order Qty: 5	$4.17 ~~$4.90~~
19	FUEL PUMP ASSEMBLY (#43113T) Qty Required For Repair: 1 Minimum Order Qty: 1	$142.15 ~~$143.58~~
20	DIAPHRAGM (#80606M) Qty Required For Repair: 1 Minimum Order Qty: 1	$45.14 ~~$44.25~~
21	PLATE (#80611M) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
22	SPRING (#24-80610M) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	NLA
23	GASKET (#27-80613) Qty Required For Repair: 1 Minimum Order Qty: 2 Minimum Order Qty: 2	$11.39 ~~$13.40~~
24	CHECK VALVE (#21-41888M) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$20.57 ~~$20.17~~
25	SCREW (#10-41889M) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
26	NUT (#11-82537M) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	NLA
27	GASKET (#27-80614) Qty Required For Repair: 1 Minimum Order Qty: 1	$18.02 ~~$17.67~~
28	DIAPHRAGM (#84141M) Qty Required For Repair: 1 Minimum Order Qty: 1	$12.75 ~~$15.00~~
29	BODY (#80607M) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
30	SCREW (#10-82522M) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
31	LOCKWASHER (#13-82186M) Qty Required For Repair: 3 Minimum Order Qty: 5 Qty Required For Repair: 3 Minimum Order Qty: 5	NLA
32	GASKET (#27-80757) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	$2.98 ~~$3.50~~
33	BOLT (#10-827043M) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 10-82428M Qty Required For Repair: 2 Supersedes: 10-82428M	NLA
-	POWERHEAD GASKET SET (#27-814556M) Comment: CONTENTS INDICATED BY FOOTNOTE 2 Qty Required For Repair: 1 Minimum Order Qty: 1 CONTENTS INDICATED BY FOOTNOTE 2	NLA

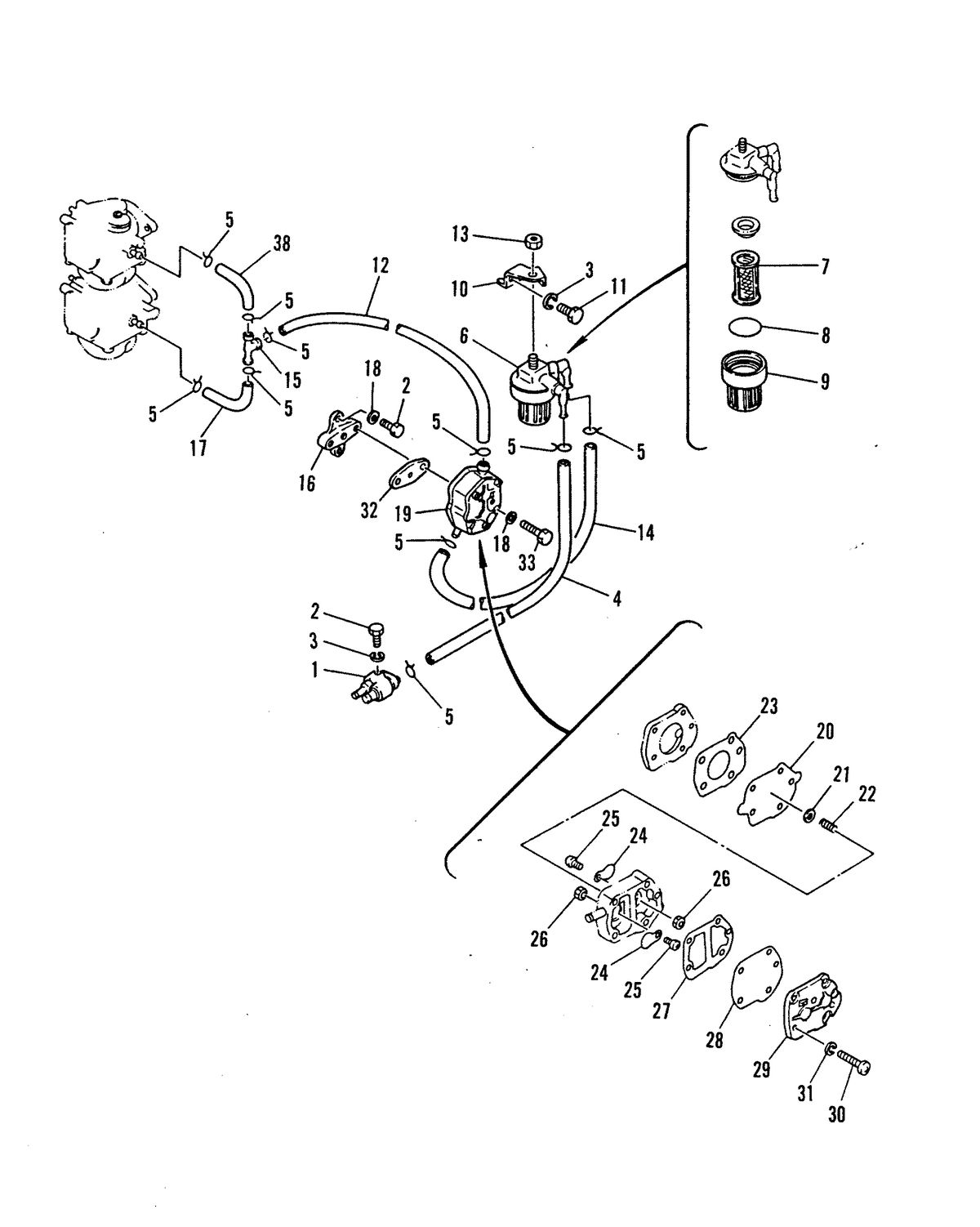

To zoom in, move your mouse over the diagram.

MARINER 40 HP MARINER FUEL PUMP, LINES AND FILTER

This assembly is found in these models:

MARINER > 40 (TWIN CARB) (W/OIL INJECTION)
