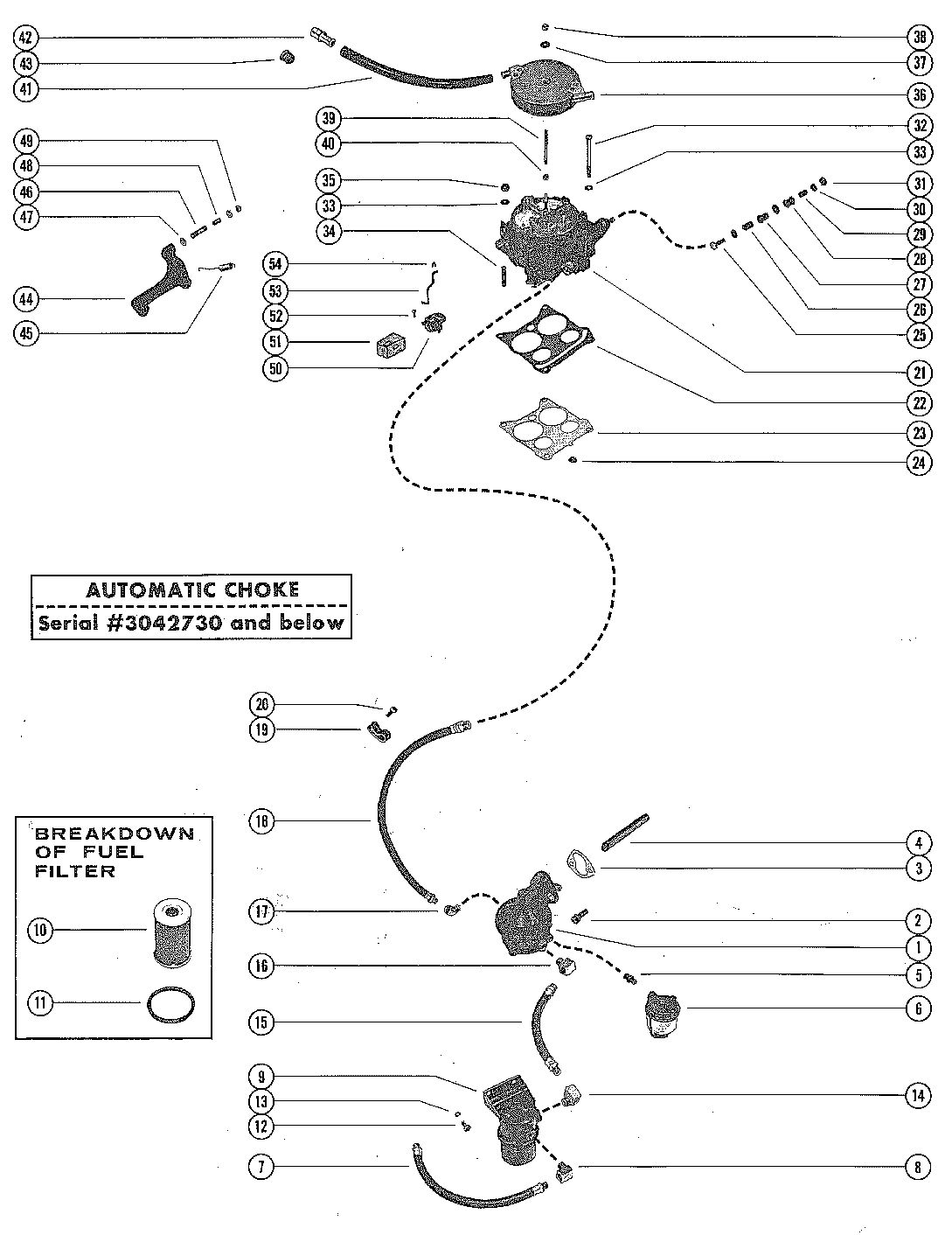

FUEL PUMP, FUEL FILTER AND CARBURETOR

Ref ID	Description	Price
1	FUEL PUMP ASSEMBLY (#86247T) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
2	SCREW, FUEL PUMP TO CYLINDER BLOCK (1 1/8") (#10-49287) Comment: SERIAL 00000000-02313964 Qty Required For Repair: 2 Minimum Order Qty: 1 SERIAL 00000000-02313964 Qty Required For Repair: 2	NLA
2	SCREW, FUEL PUMP TO CYLINDER BLOCK (1") (#10-11976) Comment: SERIAL 02313965-09999999 Qty Required For Repair: 2 Minimum Order Qty: 1 SERIAL 02313965-09999999 Qty Required For Repair: 2	$6.48 ~~$8.10~~
3	GASKET, FUEL PUMP (#27-34213) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$3.20 ~~$4.00~~
4	ROD, PUSH - FUEL PUMP (#35377) Qty Required For Repair: 1 Minimum Order Qty: 1	$47.60 ~~$49.58~~
5	NIPPLE, SIGHT GLASS TO FUEL PUMP (#22-32876) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
6	SLIGHT GLASS (#22-39072A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
7	FUEL LINE, FUEL TANK TO FUEL FILTER (12") (#32-47721) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
8	ELBOW, FUEL LINE TO FUEL FILTER (INLET) (#22-33755) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
9	FUEL FILTER ASSEMBLY (#35-47817) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
10	ELEMENT, FUEL FILTER (#48441) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
11	RING, SEALING - FUEL FILTER (#25-48440) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
12	SCREW, FUEL FILTER TO END/CONNECTOR (1/2") (#10-98256) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
13	LOCKWASHER, FUEL FILTER SCREW (#13-22773) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
14	ELBOW, FUEL LINE TO FUEL FILTER (OUTLET) (#22-33755) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
15	FUEL LINE, FUEL FILTER TO FUEL PUMP (8 1/2") (#32-48136) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
16	ELBOW, FUEL LINE TO FUEL PUMP (INTEL) (#22-47716) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
17	ELBOW, FUEL LINE TO FUEL PUMP (OUTLET) (#22-33755) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
18	FUEL LINE, PUMP TO CARBURETOR (27") (#32-47718) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
19	CLIP, FUEL LINE TO TAB (#54-47729) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
20	SCREW, FUEL LINE CLIP TO TAB (#10-28635) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$1.44 ~~$1.80~~
21	CARBURETOR ASS'Y(SEE B8 FOR BREAKDOWN) (#1347-3342) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
22	GASKET, CARBURETOR (#27-48399) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
23	BAFFLE, CARBURETOR (#48459) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
24	PLUG, INTAKE MANIFOLD VACUUM HOLE (#22-12524) Qty Required For Repair: 1 Minimum Order Qty: 1	$4.08 ~~$5.10~~
25	SCREW, THROTTLE CABLE TO CARBURETOR (1 1/8") (#10-98509) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
26	BUSHINTG, THROTTLE CABLE SCREW (#23-32818) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
27	SLEEVE, THROTTLE CABLE SCREW (#23-35040) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
28	GROMMET, THROTTLE CABLE SCREW (#25-35039) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
29	BUSHING, THROTTLE CABLE SCREW (#23-32818) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
30	WASHER, THROTTLE CABLE SCREW (#12-847883) Qty Required For Repair: 3 Minimum Order Qty: 1 Supersedes: 12-20128 Qty Required For Repair: 3 Supersedes: 12-20128	NLA
31	NUT, THROTTLE CABLE SCREW (#11-8267086) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$1.36 ~~$1.70~~
32	SCREW, CARBURETOR TO INTAKE MANIFORD (3 1/2") (#10-74822) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$1.36 ~~$1.70~~
33	WASHER, CARBURETOR SCREW AND STUD (#12-20084) Qty Required For Repair: 4 Minimum Order Qty: 5 Qty Required For Repair: 4 Minimum Order Qty: 5	$2.72 ~~$2.83~~
34	STUD, CARBURETOR TO INTAKE MANIFORD (1 7/8") (#16-46857) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$27.28 ~~$28.42~~
35	NUT, CARBURETOR STUD (#11-29250) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	$2.32 ~~$2.90~~
36	FLAME ARRESTOR, CARBURETOR (#805298A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$244.45 ~~$286.92~~
37	WASHER, FLAME ARRESTOR STUD (#12-22937) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$3.04 ~~$3.80~~
38	NUT, FLAME ARRESTOR STUD (#11-826709109) Qty Required For Repair: 1 Minimum Order Qty: 5 Supersedes: 11-33825, 11-35045 Minimum Order Qty: 5 Supersedes: 11-33825, 11-35045	$2.88 ~~$3.60~~
39	STUD, FLAME ARRESTOR TO CARBURETOR (#16-91842) Qty Required For Repair: 1 Minimum Order Qty: 1	$4.56 ~~$5.70~~
40	NUT, JAM - FLAME ARRESTOR STUD (#11-8267139) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$2.08 ~~$2.60~~
41	HOSE, VENT - FLAME ARESTOR (9 3/4") (#32-8M0062669) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 32-8M2012906, 32-8M2001709, 32-807498240, 32-93315 12 Qty Required For Repair: 2 Supersedes: 32-8M2012906, 32-8M2001709, 32-807498240, 32-93315 12	$27.28 ~~$28.42~~
42	CONNECTOR, VENT HOSE TO ROCKER COVER (#47957) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
43	GRAOMMET, ROCKER COVER TO VENT HOSE CONNECTOR (#25-59987) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$16.56 ~~$17.25~~
44	BRACKET, MOUNT, - THROTTLE CABLE (#47502A2) Comment: SERIAL 00000000-02313964 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 00000000-02313964	NLA
44	BRACKET, MOUNTING - THROTTLE CABLE (#49929) Comment: SERIAL 02313965-09999999 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 02313965-09999999	NLA
45	SPRING, THROTTLE RETURN (#24-897454) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 24-32817 Supersedes: 24-32817	$9.84 ~~$12.30~~
46	STUD, THROTTLE CABLE TO MOUNTING BRACKET (1 11/16") (#16-35897) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
47	WASHER, TROTTLE CABLE STUD (#12-69056) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$1.44 ~~$1.80~~
48	SPACERL, THROTTLE CABLE STUD (#23-31866) Qty Required For Repair: 1 Minimum Order Qty: 3 Minimum Order Qty: 3	$4.56 ~~$5.70~~
49	NUT, THROTTLE CABLE STUD (#11-826709109) Qty Required For Repair: 1 Minimum Order Qty: 5 Supersedes: 11-33825, 11-35045 Minimum Order Qty: 5 Supersedes: 11-33825, 11-35045	$2.88 ~~$3.60~~
50	CHOKE, AUTOMATIC - CARBURETOR (#49291) Comment: SERIAL 00000000-02313964 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 00000000-02313964	NLA
51	COVER, AUTOMATIC CHOKE (#48379) Comment: SERIAL 00000000-02313964 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 00000000-02313964	NLA
52	SCREW, AUTOMATIC CHOKE TO INTAKE MANIFORD (#10-48360) Comment: SERIAL 00000000-02313964 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 00000000-02313964	NLA
53	CHOKE ROD, AUTOMATIC CHOKE TO CARBURETOR (#49292) Comment: SERIAL 00000000-02313964 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 00000000-02313964	NLA
54	CLIP, CHOKE ROD TO CARBURETOR (#54-49290) Comment: SERIAL 00000000-02313964 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 00000000-02313964	NLA
50	CHOKE, AUTOMATIC - CARBURETOR (#52186) Comment: SERIAL 02313965-09999999 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 02313965-09999999	NLA
51	COVER, AUTOMATIC CHOKE (#48379) Comment: SERIAL 02313965-09999999 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 02313965-09999999	NLA
52	SCREW, AUTOMATIC CHOKE TO INTAKE MANIFOLD (#10-48360) Comment: SERIAL 02313965-09999999 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 02313965-09999999	NLA
53	CHOKE ROD, AUTOMATIC CHOKE TO CARBURETOR (#52187) Comment: SERIAL 02313965-09999999 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 02313965-09999999	NLA
54	CLIP, CHOKE ROD TO CARBURTOR (#54-48376) Comment: SERIAL 02313965-09999999 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 02313965-09999999	NLA

FUEL PUMP, FUEL FILTER AND CARBURETOR

This assembly is found in these models:
