Mercury Marine Parts Catalog

Find the Parts You're Looking For

FUEL LINES AND FILTER

	Ref ID	Description	Price
	1	FUEL LINE CONNECTOR ASS'Y (#14187M) Qty Required For Repair: 1 Minimum Order Qty: 1	$41.82 ~~$49.20~~
	2	BOLT (#10-84058M) Comment: SERIAL 00010711-09999999 Qty Required For Repair: 1 Minimum Order Qty: 1 SERIAL 00010711-09999999	$6.38 ~~$7.50~~
	2	BOLT (#10-82423M) Comment: SERIAL 00000000-00010710 Qty Required For Repair: 1 Minimum Order Qty: 5 SERIAL 00000000-00010710 Minimum Order Qty: 5	NLA
	3	WASHER, LOCK (#13-82212M) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$2.38 ~~$2.80~~
	4	FILTER ASS'Y (#35-826964T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 35-826964M, 35-11931M Supersedes: 35-826964M, 35-11931M	$88.77 ~~$89.67~~
	5	PACKING (#27-82790M) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	NLA
	6	ELEMENT, FILTER (#35-826965T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 35-826965M, 35-11934M Supersedes: 35-826965M, 35-11934M	NLA
	7	CUP, FILTER (#11935M) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	8	O-RING (#25-84957M) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$5.53 ~~$6.50~~
	9	BRACKET, FUEL FILTER (#80620M) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	10	NUT (#11-82382M) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$6.12 ~~$7.20~~
	11	WASHER, LOCK (#13-82215M) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$1.96 ~~$2.30~~
	12	BOLT (#10-826957M) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 10-91725M Supersedes: 10-91725M	NLA
	13	WASHER, LOCK (#13-82212M) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$2.38 ~~$2.80~~
	14	FUEL LINE, CONNECTOR TO FILTER (#32-82012M) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	15	FUEL LINE, FUEL FIILTER TO FUEL PUMP (#32-81112M) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	16	FUEL LINE, FUEL PUMP TO CARBURETOR (#32-81324M) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	17	CLAMP (#54-82047M) Qty Required For Repair: 6 Minimum Order Qty: 5 Qty Required For Repair: 6 Minimum Order Qty: 5	NLA
	18	CLAMP (#54-96348M) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA

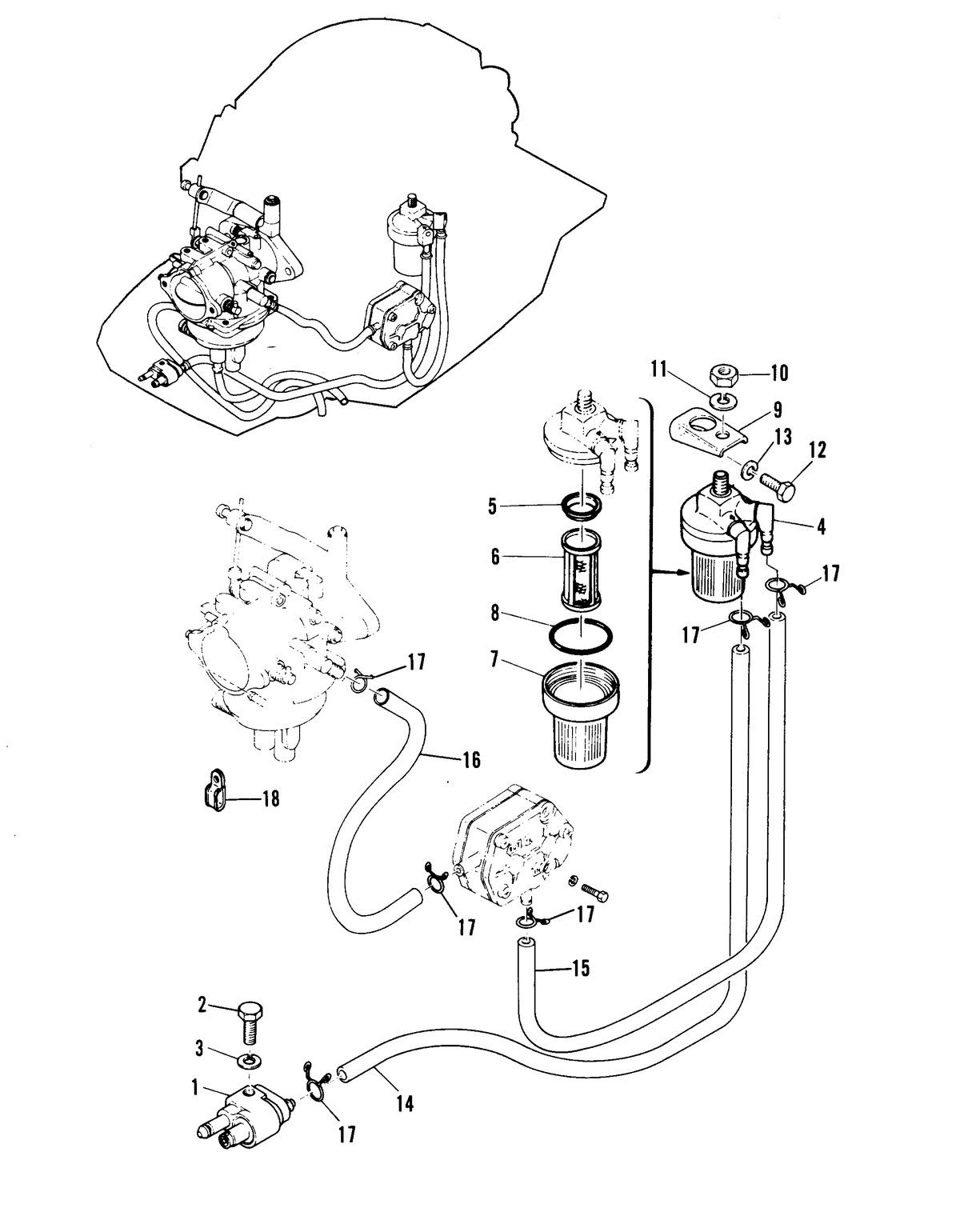

To zoom in, move your mouse over the diagram.

MARINER 28 HORSEPOWER FUEL LINES AND FILTER

This assembly is found in these models:

MARINER > 28
