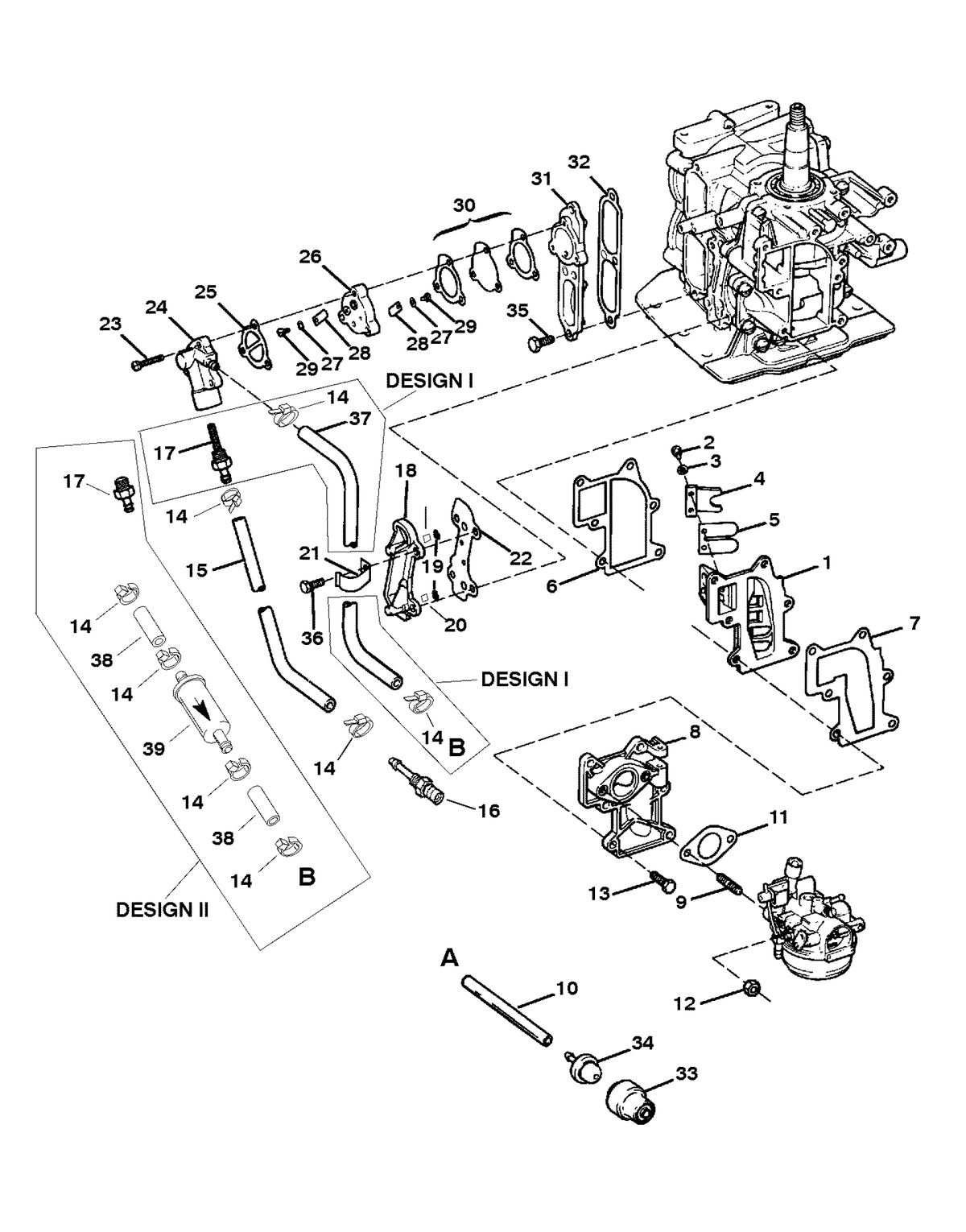

FUEL AND RECIRCULATION SYSTEM

Ref ID	Description	Price
1	PLATE ASSEMBLY-REED (#34-FA715158T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 34-FA715158 Supersedes: 34-FA715158	NLA
2	SCREW (#6-32 X .250) (#10-28430) Qty Required For Repair: 8 Minimum Order Qty: 1 Qty Required For Repair: 8	$0.88 ~~$1.10~~
3	LOCKWASHER (#6 INTERNAL) (#13-F1704) Qty Required For Repair: 8 Minimum Order Qty: 1 Qty Required For Repair: 8	NLA
4	STOP-REED (#34-F715161) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
5	REED (#34-F31160 2) Qty Required For Repair: 4 Qty Required For Repair: 4	NLA
6	GASKET-REED PLATE (#27-F286159 1) Qty Required For Repair: 1	NLA
7	GASKET-MANIFOLD (#27-F715168) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F424168, F424168-1 Supersedes: F424168, F424168-1	NLA
8	MANIFOLD KIT-CARBURETOR (#854241A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
9	STUD (.250-20 X .910) WITH DRI LOC (#16-826622) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 16-F2788004, 16-F19209-2, F19209-1, F19209 Qty Required For Repair: 2 Supersedes: 16-F2788004, 16-F19209-2, F19209-1, F19209	NLA
10	HOSE (18.00 IN. BULK) (CUT 5.750 IN.)-PRIMER BULB TO CARB (#32-819398T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 32-819398 53 Supersedes: 32-819398 53	$155.70 ~~$182.75~~
11	GASKET-CARBURETOR (#27-F715906) Qty Required For Repair: 1 Minimum Order Qty: 1	$5.04 ~~$6.30~~
12	NUT (.250-20) (#11-20890) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	$1.28 ~~$1.60~~
13	SCREW (.250-20 X .875) (#10-28668) Qty Required For Repair: 6 Minimum Order Qty: 5 Qty Required For Repair: 6 Minimum Order Qty: 5	$1.28 ~~$1.60~~
14	CABLE TIE (4.00 IN.) (#56762) Qty Required For Repair: 6 Minimum Order Qty: 5 Qty Required For Repair: 6 Minimum Order Qty: 5	$0.40 ~~$0.50~~
15	HOSE-FUEL (18.00 IN. BULK) (CUT 13.380 IN.) (#32-819398T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 32-819398 53 Supersedes: 32-819398 53	$155.70 ~~$182.75~~
16	BUSHING-FUEL (#22-F197767 2) Qty Required For Repair: 1	NLA
17	FILTER-FUEL PUMP (DESIGN I) (#22-F901811) Qty Required For Repair: 1 Minimum Order Qty: 1	$11.04 ~~$13.80~~
17	FITTING-FUEL PUMP (DESIGN II) (#22-850314) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
18	COVER ASSEMBLY-CYLINDER DRAIN (PAINTED) (#820070A3) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
19	SCREEN (#F429811) Qty Required For Repair: 2 Minimum Order Qty: 2 Qty Required For Repair: 2 Minimum Order Qty: 2	$0.88 ~~$1.10~~
20	VALVE KIT (#21-817741A1) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
21	CLAMP (#54-F286772 1) Qty Required For Repair: 1	NLA
22	GASKET-CYLINDER DRAIN COVER (#27-825188) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 27-F429472, F492472 Supersedes: 27-F429472, F492472	NLA
23	SCREW (#10-24 X 1.062) (#10-F1069) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
24	COVER-FUEL PUMP (PAINTED) (#819993T2) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
25	GASKET-FUEL PUMP (#27-F24748 2) Qty Required For Repair: 1	NLA
26	PLATE ASSEMBLY-FUEL PUMP (#F2A24757) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: FA24757-1, FA24757-3, FFF000830 Supersedes: FA24757-1, FA24757-3, FFF000830	NLA
27	WASHER (#12-18552) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$2.32 ~~$2.90~~
28	REED (#34-F18160 3) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
29	SCREW (#4-40 X .187) (#10-F1286) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: F18197 Qty Required For Repair: 2 Supersedes: F18197	NLA
30	GASKET/DIAPHRAGM SET (#27-818043A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$9.60 ~~$12.00~~
31	COVER-TRANSFER PORT (#820116T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 820116T 2 Supersedes: 820116T 2	NLA
32	GASKET-TRANSFER PORT COVER (#27-825183) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 27-F286223 Supersedes: 27-F286223	$5.28 ~~$6.60~~
33	COVER-PRIMER BULB (#F681954 1) Qty Required For Repair: 1	NLA
34	BULB-PRIMER (#F681046) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F681066 Supersedes: F681066	$28.00 ~~$29.17~~
35	SCREW (.250-20 X .625) (#10-98254) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	$0.48 ~~$0.60~~
36	SCREW (.250-20 X .625) (#10-F1922) Qty Required For Repair: 4 Minimum Order Qty: 1 Supersedes: F1239, F1540 Qty Required For Repair: 4 Supersedes: F1239, F1540	NLA
37	HOSE-FUEL (18.00 IN. BULK) (CUT 8.250 IN.) (#32-819398T) Comment: (NO FILTER) (DESIGN I) (SERIAL # E163468 AND BELOW) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 32-819398 53 (NO FILTER) (DESIGN I) (SERIAL # E163468 AND BELOW) Supersedes: 32-819398 53	$155.70 ~~$182.75~~
38	HOSE-FUEL (18.00 IN. BULK) (CUT 4.00 IN.) (#32-819398T) Comment: (WITH FILTER) (DESIGN II) (SERIAL # E163469 AND UP) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 32-819398 53 (WITH FILTER) (DESIGN II) (SERIAL # E163469 AND UP) Qty Required For Repair: 2 Supersedes: 32-819398 53	$155.70 ~~$182.75~~
39	FILTER-FUEL (#35-828998) Comment: (DESIGN II) (SERIAL # E163469 AND UP) Qty Required For Repair: 1 Minimum Order Qty: 1 (DESIGN II) (SERIAL # E163469 AND UP)	NLA
-	CARBURETOR GASKET SET (#FK10352) Qty Required For Repair: - Minimum Order Qty: 1	$6.16 ~~$7.70~~
-	SHORT BLOCK GASKET SET (#FG1035) Qty Required For Repair: - Minimum Order Qty: 1	NLA
-	CYLINDER BLOCK ASSY (#800-819553A1) Qty Required For Repair: - Minimum Order Qty: 1	NLA
-	SHORT BLOCK ASSEMBLY (#800-819553A15) Qty Required For Repair: - Minimum Order Qty: 1 Supersedes: 800-819553A14, FC710010T, 800-819090A 1, FC710010, FC709010, FS709010 Supersedes: 800-819553A14, FC710010T, 800-819090A 1, FC710010, FC709010, FS709010	NLA

Notes

6: A = TO CARB TOP FITTING, B = TO CARB SIDE ELBOW

This assembly is found in these models:

SEARS > 15 H. P. (1996-1997)
