Exhaust Manifold, Elbow and Riser

Ref ID	Description	Price
1	MANIFOLD ASSEMBLY, Exhaust (#866178T01) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 863127T02, 863127T 1 Qty Required For Repair: 2 Supersedes: 863127T02, 863127T 1	$566.08 ~~$666.58~~
2	FITTING, Pipe - Brass (.750-14) (#22-428611) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$6.64 ~~$7.30~~
3	FITTING, Port Exhaust Manifold (#22-865341A03) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 22-865341A01 Supersedes: 22-865341A01	$50.72 ~~$57.00~~
3	FITTING, Starboard Exhaust Manifold (#22-865828A02) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 22-865828A01 Supersedes: 22-865828A01	$47.76 ~~$55.00~~
4	GASKET, Exhaust Manifold to Cylinder Head (#27-46820) Qty Required For Repair: 2 Minimum Order Qty: 2 Qty Required For Repair: 2 Minimum Order Qty: 2	$17.36 ~~$19.60~~
5	SCREW, (M8 x 35) Stainless Steel (#10-4008935) Qty Required For Repair: 8 Minimum Order Qty: 1 Qty Required For Repair: 8	$2.16 ~~$2.40~~
6	SCREW, (M8 x 70) Stainless Steel (#10-4008970) Qty Required For Repair: 8 Minimum Order Qty: 1 Qty Required For Repair: 8	$3.60 ~~$4.20~~
7	WASHER (#12-12038) Qty Required For Repair: 16 Minimum Order Qty: 5 Qty Required For Repair: 16 Minimum Order Qty: 5	$1.28 ~~$1.50~~
8	ELBOW, Exhaust (#865331A02) Comment: (Standard Rise) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 865331A01, 862354A 2 (Standard Rise) Qty Required For Repair: 2 Supersedes: 865331A01, 862354A 2	$656.24 ~~$756.67~~
8	ELBOW, Exhaust (#865332A02) Comment: (2 Inch Rise) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 865332A01 (2 Inch Rise) Qty Required For Repair: 2 Supersedes: 865332A01	$593.80 ~~$643.25~~
9	HOSE, Elbow to Manifold (#32-863095) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	$29.44 ~~$33.10~~
10	CLAMP, Worm Gear (1.56 Diameter), Hose (#54-815504216) Qty Required For Repair: 8 Minimum Order Qty: 1 Supersedes: 803347, 54-8M2001487 Qty Required For Repair: 8 Supersedes: 803347, 54-8M2001487	$10.96 ~~$12.80~~
11	STUD, (M8 x 55) (#16-8204511) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	$5.36 ~~$6.20~~
12	STUD, (M8 x 37.1) (#16-424632) Qty Required For Repair: 9 Minimum Order Qty: 1 Qty Required For Repair: 9	$10.00 ~~$11.20~~
13	WASHER (#12-12038) Qty Required For Repair: 8 Minimum Order Qty: 5 Qty Required For Repair: 8 Minimum Order Qty: 5	$1.28 ~~$1.50~~
14	NUT, (M8) (#11-4002030) Qty Required For Repair: 8 Minimum Order Qty: 1 Qty Required For Repair: 8	$4.64 ~~$5.40~~
15	GASKET, Elbow to Manifold (#27-862356) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	$7.76 ~~$8.70~~
16	TURBULATOR, Exhaust (#8M2000433) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 863122 Qty Required For Repair: 2 Supersedes: 863122	$59.04 ~~$54.92~~
17	SENSOR ASSEMBLY, Temperature (#889575) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 858535, 855967 Qty Required For Repair: 2 Supersedes: 858535, 855967	$43.92 ~~$41.67~~
18	O-RING, (.301 x .070) (#25-627021) Qty Required For Repair: 1 Minimum Order Qty: 2 Minimum Order Qty: 2	$1.04 ~~$1.20~~
19	SCREW, (M8 x 16) (#10-4010716) Qty Required For Repair: 1 Minimum Order Qty: 1	$2.56 ~~$2.90~~
20	STUD, (M8 x 37.1) (#16-424632) Qty Required For Repair: 1 Minimum Order Qty: 1	$10.00 ~~$11.20~~
21	RISER, (6 Inch) (#8M0124066) Qty Required For Repair: 2 Qty Required For Repair: 2	$368.35
22	HOSE (#32-863102) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	$22.96 ~~$21.58~~
23	STUD, (M8 x 194) (#16-863121) Qty Required For Repair: 8 Minimum Order Qty: 1 Qty Required For Repair: 8	$8.24 ~~$9.40~~
NS	COVER, Hose Clamp End (#19-8M0074364) Qty Required For Repair: 8 Minimum Order Qty: 20 Supersedes: 19-8M6500037, 19-807992 3 Qty Required For Repair: 8 Minimum Order Qty: 20 Supersedes: 19-8M6500037, 19-807992 3	$1.92 ~~$2.10~~
24	PLATE KIT, Exhaust Block Off (#861776A2) Qty Required For Repair: 1 Minimum Order Qty: 1	$70.72 ~~$66.33~~
25	SCREW, (.375-16 x 1.00) (#10-8M0113180) Qty Required For Repair: 4 Qty Required For Repair: 4	$2.72
26	LOCKWASHER, (.375) (#13-41471) Qty Required For Repair: 4 Minimum Order Qty: 5 Qty Required For Repair: 4 Minimum Order Qty: 5	$1.20 ~~$1.40~~
27	RESONATOR, Exhaust (#860222A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$51.92 ~~$48.75~~
28	BALL, Check (#30-863129) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$1.68 ~~$1.90~~
29	CONNECTOR (#864182T) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 864182 Qty Required For Repair: 2 Supersedes: 864182	$41.52 ~~$39.92~~

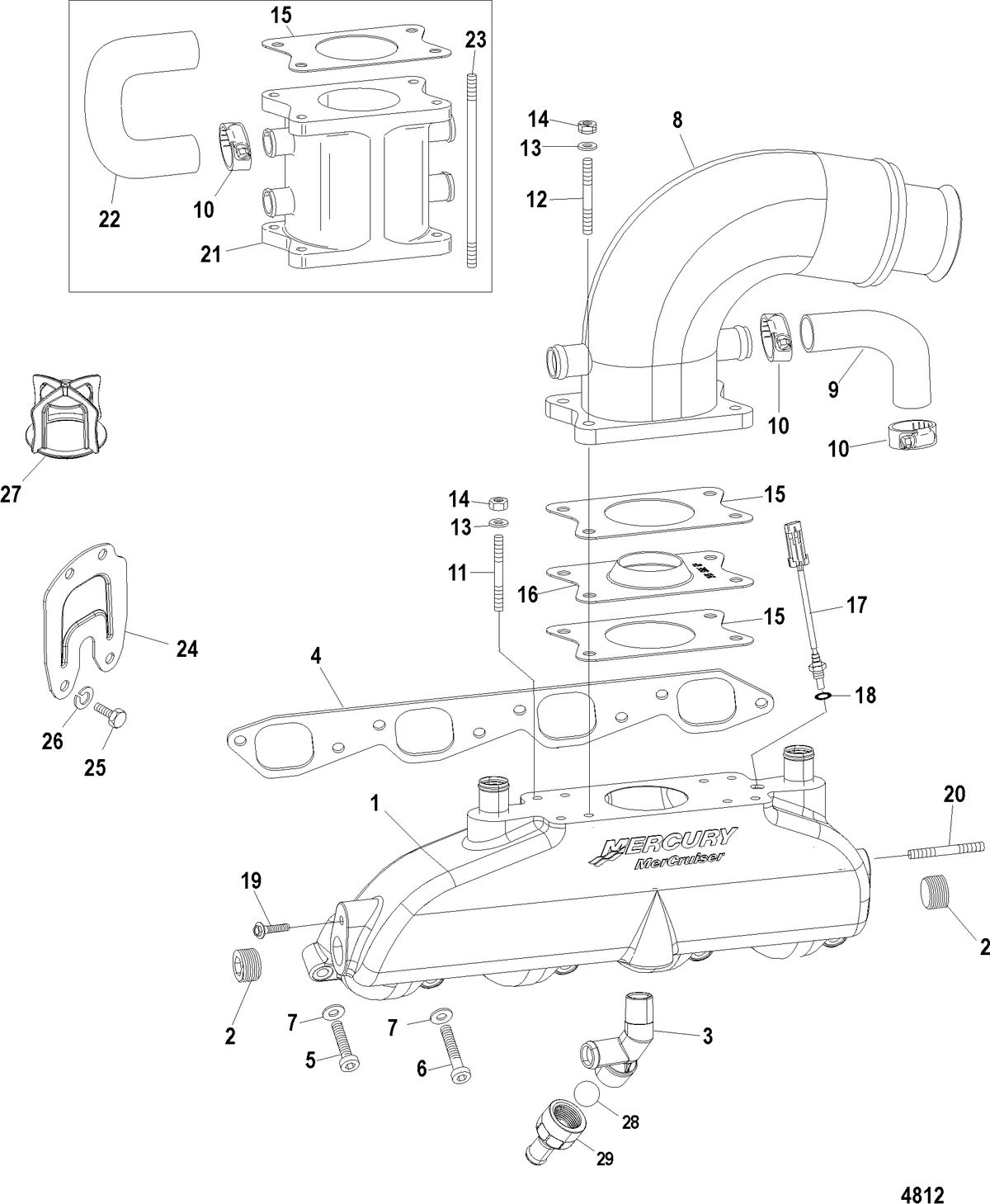

To zoom in, move your mouse over the diagram.

MERCRUISER 496 MAG STERNDRIVE Exhaust Manifold, Elbow and Riser

Mercury Marine Parts Catalog

Exhaust Manifold, Elbow and Riser

This assembly is found in these models:
