MERCRUISER - 7.4LX BRAVO (MPI)(GEN. V) GM 454 V-8 1996 - ENGINE MOUNTING

Ref ID	Description	Price
1	BRACKET (FRONT) (#79550A1) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$166.68 ~~$169.17~~
2	SCREW, (.375-16 x 1.375) (1-3/8 IN.) (#10-68101) Qty Required For Repair: 6 Minimum Order Qty: 1 Qty Required For Repair: 6	$1.57 ~~$1.80~~
3	LOCKWASHER, (.375) (#13-35048) Qty Required For Repair: 6 Minimum Order Qty: 5 Qty Required For Repair: 6 Minimum Order Qty: 5	$0.74 ~~$0.90~~
4	BASE ASSEMBLY (#814263A1) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$99.12 ~~$87.67~~
5	NUT, (.750-16) (#11-816331) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$4.95 ~~$5.40~~
6	TAB WASHER (#14-12657) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$2.81 ~~$2.90~~
7	NUT (#11-859126) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 11-49252 Qty Required For Repair: 2 Supersedes: 11-49252	$13.70 ~~$14.70~~

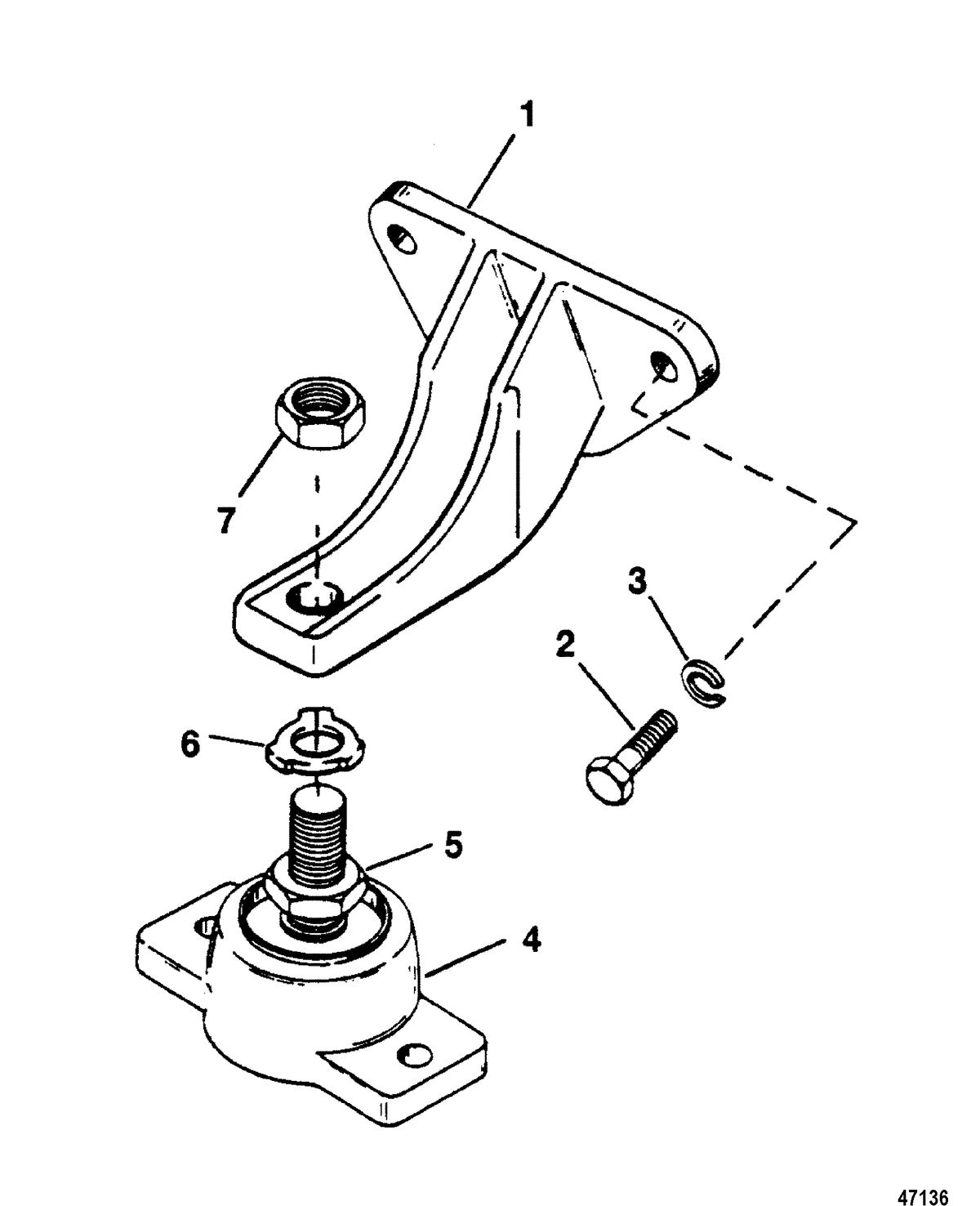

To zoom in, move your mouse over the diagram.
