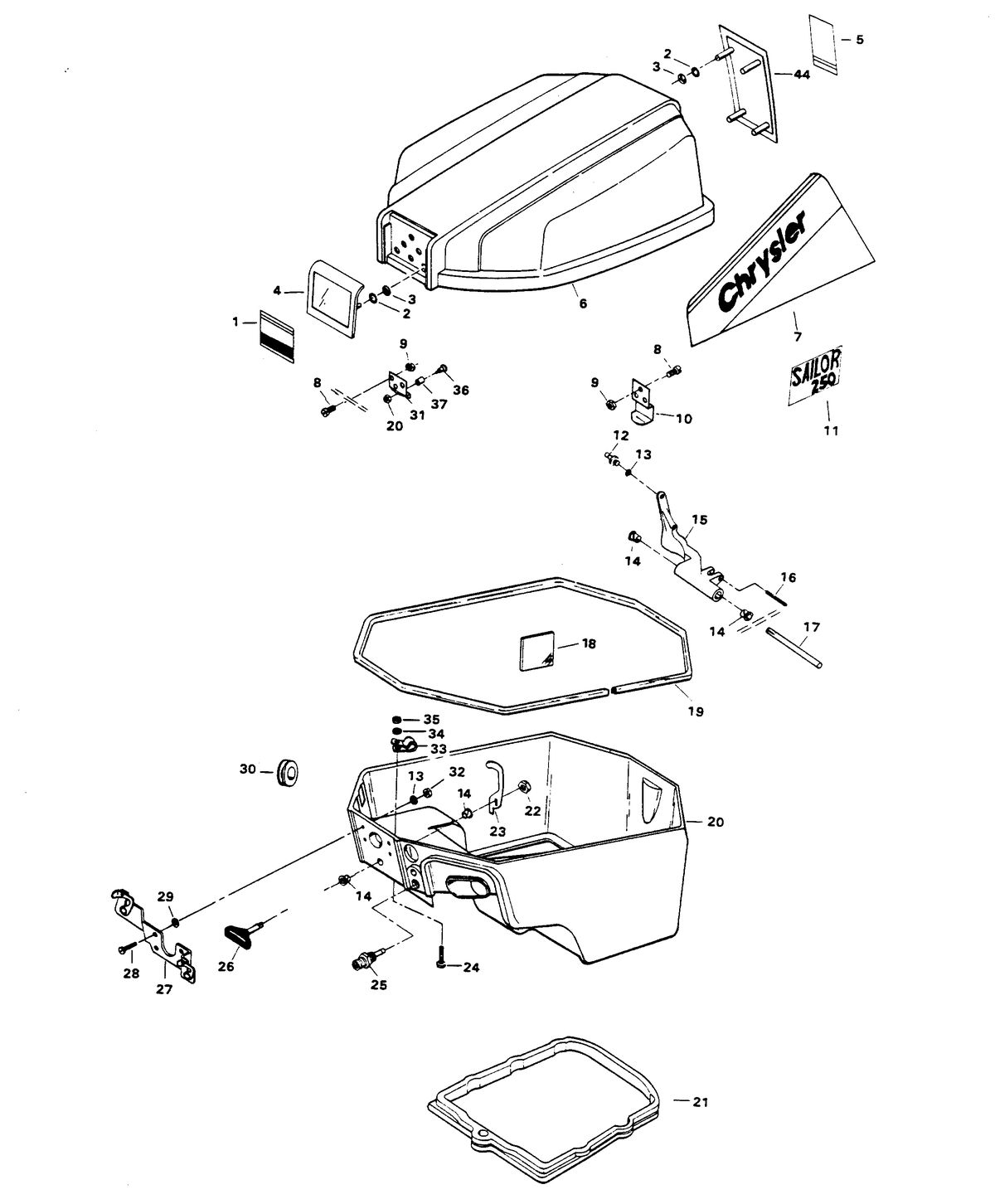

CHRYSLER - 9.9 (1981) - ENGINE COVER AND SUPPORT PLATE
| Ref ID | Description | Price | ||
|---|---|---|---|---|
| 1 |
W/LITERATURE
|
NLA
|
||
| 2 |
Qty Required For Repair: 3
Supersedes: F85735, F85731-1 |
NLA
|
||
| 3 |
Qty Required For Repair: 3
|
NLA
|
||
| 4 |
Supersedes: F487711, F610711
|
NLA
|
||
| 6 |
W/ILLUS. 9, 10, 11, 20, 40, 41 AND 42 THIS ENG. COVER IS USED IF YOUR COVER HAS ILLUS. 43 AND 44
Supersedes: FS666712, FFF000804, FS472712, FS541712 |
NLA
|
||
| - |
INCLUDES ALL ITEMS MARKED WITH AN ASTERISK (*) THIS ENGINE COVER HAS TRIM PLATE REAR HOLES AND USES 286480 RETAINER. ORDER NUMERAL SEPARATE
|
NLA
|
||
| - |
W/ILLUS. 9, 10, 11, 20, 40, 41 AND 42 THIS ENGINE COVER IS USED IF YOUR COVER HAS NO REAR TRIM PLATE. ORIGINAL FORCE P/N S 541712-1
Supersedes: FS666712, FFF000804, FS472712, FS541712 |
NLA
|
||
| - |
INCLUDES ITEMS MARKED WITH AN ASTERISK (*) THIS ENGINE COVER HAS NO TRIM REAR AND USES 610480 RETAINER. ORDER NUMERAL SEPARATE
|
NLA
|
||
| 7 |
W/LITERATURE
|
NLA
|
||
| - |
W/LITERATURE
|
NLA
|
||
| 8 |
Supersedes: FA343612, F343612
|
NLA
|
||
| 9 |
INCLUDES ILLUS. 10 AND 11. (USED WITH S541712 ONLY)
|
NLA
|
||
| - |
INCLUDES ILLUS 10 AND 11. (USED WITH S541712-1 ONLY)
|
NLA
|
||
| 10 |
Qty Required For Repair: 6
|
NLA
|
||
| 11 |
Qty Required For Repair: 7
Supersedes: 11-F7011, 11-F7070, FI151625 |
$2.64
|
|
|
| 12 |
Supersedes: F98278, F695531, F695531-1, F9873
|
NLA
|
||
| 13 |
Supersedes: F17028, F17089, FE4296238
|
NLA
|
||
| 14 |
Qty Required For Repair: 4
Minimum Order Qty: 3 |
$5.84
|
|
|
| 15 |
Supersedes: 819508T 1
|
NLA
|
||
| 16 |
|
NLA
|
||
| 17 |
Supersedes: F286871
|
NLA
|
||
| 18 |
Supersedes: F318756, F286756, F459756
|
NLA
|
||
| 19 |
|
NLA
|
||
| 21 |
Supersedes: F1660
|
NLA
|
||
| 22 |
Supersedes: F715989, F286989-2, F286989, F286989-1
|
NLA
|
||
| 23 |
Supersedes: F40446, F404466
|
NLA
|
||
| 24 |
Supersedes: 21-F197767-1, F197767
|
$29.76
|
|
|
| 25 |
|
$0.96
|
|
|
| 26 |
|
NLA
|
||
| 27 |
Minimum Order Qty: 3
|
$2.16
|
|
|
| 28 |
Qty Required For Repair: 4
Minimum Order Qty: 5 |
$1.36
|
|
|
| 29 |
|
NLA
|
||
| 30 |
|
$3.84
|
|
|
| 31 |
Supersedes: 10-F1733
|
$1.12
|
|
|
| 34 |
Qty Required For Repair: 4
|
$2.16
|
|
|
| 40 |
|
NLA
|
||
| 41 |
Supersedes: F92759
|
NLA
|
||
| 42 |
INCLUDES ILLUS. 11, 40 AND 41. ORIGINAL FORCE P/N A 286774-1
|
NLA
|
||
| 44 |
(THIS TRIM IS USED WITH S541712 AND FIRST VERSION 2C610712 COVERS ONLY)
Supersedes: F487180, F569180, F510180, F540180 |
NLA
|
||
| 47 |
|
NLA
|
||
| 48 |
|
NLA
|
||
| 49 |
W/LITERATURE
|
NLA
|
||
| - |
W/LITERATURE
|
NLA
|
