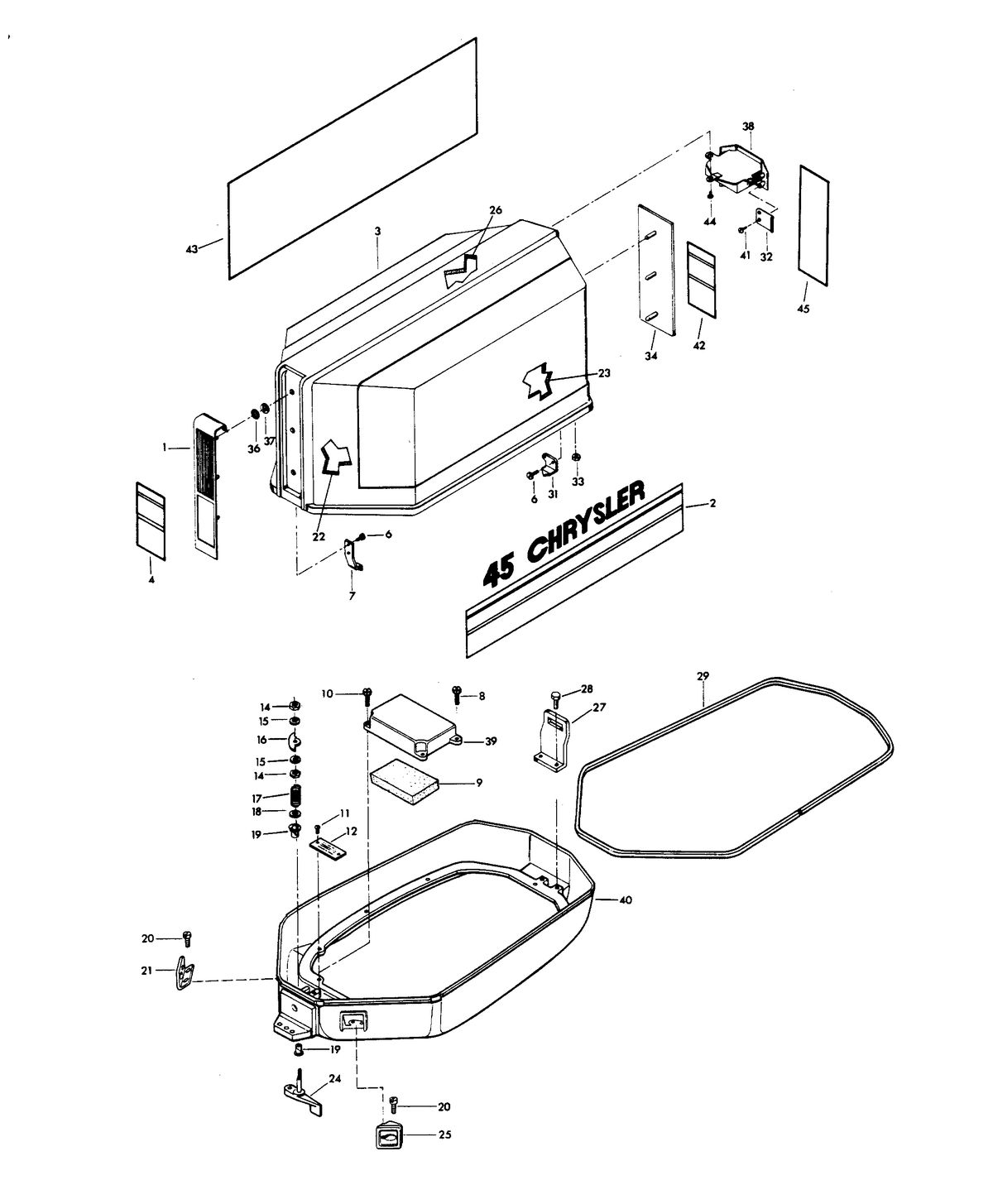

CHRYSLER - 45 (1980) - ENGINE COVER AND SUPPORT PLATE (MODEL 459HOJ AND 459BOJ)

Ref ID	Description	Price
1	PLATE, FRONT (#FK606711) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F605711, F463711, F463711-1, F475711, F486711, F545711, F575711 Supersedes: F605711, F463711, F463711-1, F475711, F486711, F545711, F575711	NLA
2	DECAL, ENGINE COVER - PORT (#FA576397) Comment: W/LITERATURE Qty Required For Repair: 1 Minimum Order Qty: 1 W/LITERATURE	NLA
3	ENGINE COVER W/RETAINERS (#FS606712) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 100-FA575712, F4C575712, F6C575712, 100-FS662712, FFF000788, FS486712, FS546712 Supersedes: 100-FA575712, F4C575712, F6C575712, 100-FS662712, FFF000788, FS486712, FS546712	NLA
	ENGINE COVER COMPLETE. (#2C 576712) Comment: INCLUDES ALL ITEMS MARKED WITH AN ASTERISK () Qty Required For Repair: 1 INCLUDES ALL ITEMS MARKED WITH AN ASTERISK ()	NLA
4	DECAL, ENGINE COVER FRONT (#A 546892) Comment: W/LITERATURE Qty Required For Repair: 1 W/LITERATURE	NLA
6	FILL HD SCREW, 10 - 24 X 1/2 (#10-F1475) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
7	ENGINE COVER RETAINER - FORWARD W/SCREWS AND NUTS (#FA366778) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: FA366788 Supersedes: FA366788	NLA
8	HEX HD SCREW, 1/4 - 20 X 3/4 (#10-F1535) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
9	INTAKE SILENCER (#F307860) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
10	HEX HD SCREW, 1/4 - 20 X 1 (#10-819110100) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 10-F1532, F1187, F1198, 10-F1833, 10-F1953 Qty Required For Repair: 2 Supersedes: 10-F1532, F1187, F1198, 10-F1833, 10-F1953	$0.40 ~~$0.50~~
11	RD HD SCREW, 2 X 3/16 (#10-20314) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
12	IDENTIFICATION PLATE W/SCREWS (#FA538395) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
14	HEX NUT, 5/16 - 18 (#11-8M0204668) Qty Required For Repair: 2 Qty Required For Repair: 2	$2.96 ~~$3.70~~
15	SPRING LOCKWASHER (#13-53166) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	$1.36 ~~$1.70~~
16	LATCH CAM (#F89777-1) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F89777, F98777-1 Supersedes: F89777, F98777-1	NLA
17	SPRING (#24-F183300) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
18	PLAIN WASHER (#12-34437) Qty Required For Repair: 1 Minimum Order Qty: 2 Minimum Order Qty: 2	$2.24 ~~$2.80~~
19	BEARING, LATCH SHAFT (#23-26841) Qty Required For Repair: 2 Minimum Order Qty: 3 Qty Required For Repair: 2 Minimum Order Qty: 3	$5.84 ~~$7.30~~
20	PAN HD SCREW, 10 - 24 X 9/16 (#10-852453) Qty Required For Repair: 3 Minimum Order Qty: 1 Supersedes: 10-F1733 Qty Required For Repair: 3 Supersedes: 10-F1733	$1.12 ~~$1.40~~
21	BUSHING, CABLE ENTRY (#23-8190062) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
22	BLANKET, SILENCER - FRONT (#F474992) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
23	BLANKET, SILENCER - SIDE (#F465985) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: F435985, F435985-1, F465986 Qty Required For Repair: 2 Supersedes: F435985, F435985-1, F465986	NLA
24	COVER LATCH HANDLE W/SHAFT (#FA328763) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: FA338763 Supersedes: FA338763	NLA
25	BUSHING - ELECTRIC CABLE ENTRY (#23-828763) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 23-F549189-2, F549189-1, F549189, F310189 Supersedes: 23-F549189-2, F549189-1, F549189, F310189	NLA
26	BLANKET, SILENCER - TOP (#F311984-1) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F311984 Supersedes: F311984	NLA
27	BRACKET, RETAINER - REAR (#F458774) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
28	HEX CAP SCREW, 1/4 - 20 X 3/4 (#10-F1535) Qty Required For Repair: 8 Minimum Order Qty: 1 Qty Required For Repair: 8	NLA
29	SUPPORT PLATE PACKING (#F85756) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F191756-3, F197756-3, F307756, F324756 Supersedes: F191756-3, F197756-3, F307756, F324756	NLA
31	ENGINE COVER RETAINER W/SCREWS AND NUTS (#FA458480) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
32	RETAINER, TILT HANDLE (#F463864) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
33	HEX NUT, 10 - 24 (#11-F7009) Qty Required For Repair: 4 Minimum Order Qty: 1 Supersedes: 11-F7011, 11-F7070, FI151625 Qty Required For Repair: 4 Supersedes: 11-F7011, 11-F7070, FI151625	$2.64 ~~$3.30~~
34	TRIM, REAR (#F545180) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
36	SEAL (#26-F85735-1) Qty Required For Repair: 6 Minimum Order Qty: 1 Supersedes: F85735, F85731-1 Qty Required For Repair: 6 Supersedes: F85735, F85731-1	NLA
37	FASTENER (#F1753) Qty Required For Repair: 6 Minimum Order Qty: 1 Qty Required For Repair: 6	NLA
38	TILT HANDLE (#817814A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
39	BAFFLE, AIR INTAKE W/SILENCER (#FA307779) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
40	SUPPORT PLATE (#100-F307038) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F307308 Supersedes: F307308	NLA
41	PAN HD SELF-TAPPING SCREW (#F2066) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
42	DECAL, ENGINE COVER - REAR (#A 546528) Comment: W/LITERATURE (FOR ENGINE COVERS WITH REAR TRIM PLATE) Qty Required For Repair: 1 W/LITERATURE (FOR ENGINE COVERS WITH REAR TRIM PLATE)	NLA
43	DECAL, ENGINE COVER - STARBOARD (#FA576396) Comment: W/LITERATURE Qty Required For Repair: 1 Minimum Order Qty: 1 W/LITERATURE	NLA
44	PAN HD. SCREW, 10 X 5/8 (#10-F2025) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
45	DECAL, TRIM REAR (FOR ENGINE COVERS WITHOUT REAR TRIM PLATE) (#A 576528) Qty Required For Repair: 1	NLA

CHRYSLER 45 H.P ENGINE COVER AND SUPPORT PLATE (MODEL 459HOJ AND 459BOJ)

This assembly is found in these models:

CHRYSLER > 45 (1980)
