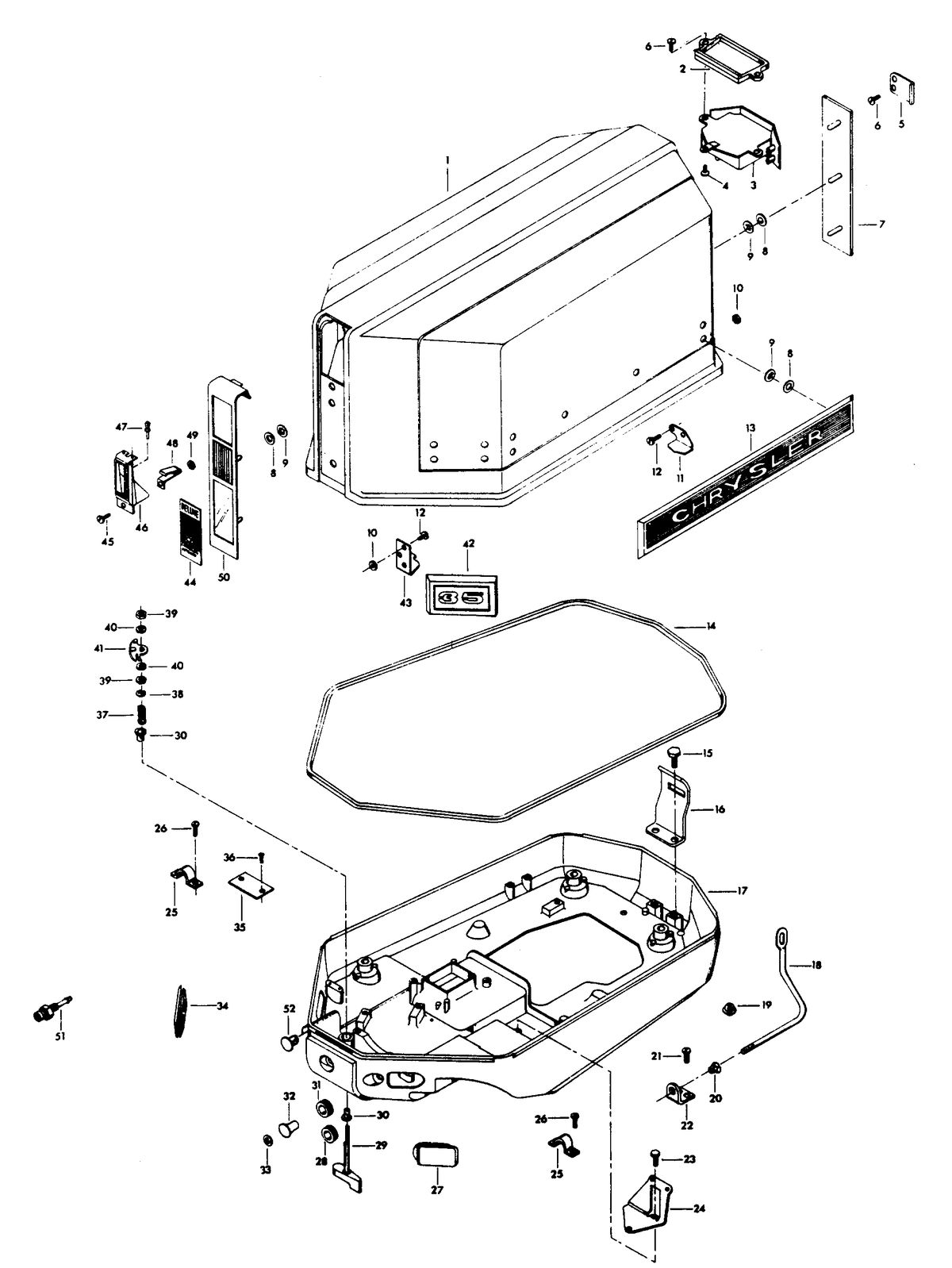

CHRYSLER - 35 (1976) - ENGINE COVER AND SUPPORT PLATE (HAND START MODELS)

Ref ID	Description	Price
1	ENGINE COVER W/FRONT AND REAR RETAINERS (#FA458712) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
2	BAFFLE, TILT HANDLE (#F458245-1) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F458245 Supersedes: F458245	NLA
3	TILT HANDLE (#817842A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
4	PAN HD SCREW, 10 X 5/8 (#10-F2025) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
5	RETAINER, TILT HANDLE (#F463864) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
6	PAN HD SCREW, 10 X 3/8 (#10-F1728) Qty Required For Repair: 6 Minimum Order Qty: 1 Qty Required For Repair: 6	NLA
7	TRIM, REAR (#513180) Qty Required For Repair: 1	NLA
8	SEAL (#26-F85735-1) Qty Required For Repair: 23 Minimum Order Qty: 1 Supersedes: F85735, F85731-1 Qty Required For Repair: 23 Supersedes: F85735, F85731-1	NLA
9	FASTENER (#F1753) Qty Required For Repair: 23 Minimum Order Qty: 1 Qty Required For Repair: 23	NLA
10	HEX NUT, 10 - 24 (#11-F7009) Qty Required For Repair: 4 Minimum Order Qty: 1 Supersedes: 11-F7011, 11-F7070, FI151625 Qty Required For Repair: 4 Supersedes: 11-F7011, 11-F7070, FI151625	$2.64 ~~$3.30~~
11	RETAINER, ENGINE COVER REAR W/SCREWS AND NUTS (#FA458480) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
12	FILL HD SCREW, 10 - 24 X 1/2 (#10-F1475) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
13	PLATE, NAME "CHRYSLER" (#458366 1) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
14	PACKING, ENGINE COVER (#F85756) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F191756-3, F197756-3, F307756, F324756 Supersedes: F191756-3, F197756-3, F307756, F324756	NLA
15	HEX HD MACHINE SCREW, 1/4 - 20 X 5/8 (#10-F1922) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: F1239, F1540 Qty Required For Repair: 2 Supersedes: F1239, F1540	NLA
16	BRACKET, RETAINER REAR (#F461774) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
17	SUPPORT PLATE (#100-F458038-2) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F458038-1, F458038 Supersedes: F458038-1, F458038	NLA
18	CHOKE ROD (#F458503) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
19	PLASTI-PLUG (#19-F1632) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
20	BEARING, CHOKE ROD (#F183818) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
21	PAN HD SCREW, 10 - 24 X 3/8 (#10-F1760) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: F17027, FE4296230 Qty Required For Repair: 2 Supersedes: F17027, FE4296230	NLA
22	BRACKET, CHOKE ROD BEARING (#F324993) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
23	HEX CAP SCREW, 1/4 - 20 X 1/2 (#10-98253) Qty Required For Repair: 2 Minimum Order Qty: 2 Qty Required For Repair: 2 Minimum Order Qty: 2	$0.88 ~~$1.10~~
24	BRACKET, REMOTE THROTTLE CABLE (#F458371) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
25	CLAMP, REMOTE CABLE (#54-F154317) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: F15431, F17024, FA32010 Qty Required For Repair: 2 Supersedes: F15431, F17024, FA32010	NLA
26	SLOTTED FILL HD SCREW W/SPRING LOCKWASHER, 10 - 24 X 5/8 (#10-F1090) Qty Required For Repair: 4 Minimum Order Qty: 1 Supersedes: F1075, F1094, 10-F2107, F1085 Qty Required For Repair: 4 Supersedes: F1075, F1094, 10-F2107, F1085	NLA
27	GROMMET, REMOTE THROTTLE CABLE (#F324840-1) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F324840, 25-F462840-1, F462840 Supersedes: F324840, 25-F462840-1, F462840	NLA
28	GROMMET, MAGNETO CONTROL SHAFT (#25-F53504) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
29	COVER LATCH HANDLE W/SHAFT (#FA413469) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
30	BEARING, LATCH SHAFT (#23-26841) Qty Required For Repair: 2 Minimum Order Qty: 3 Qty Required For Repair: 2 Minimum Order Qty: 3	$5.84 ~~$7.30~~
31	GROMMET, CHOKE ROD (#F53840-2) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
32	CHOKE KNOB (#F286547) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
33	INSERT, CHOKE KNOB (#F458677) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F286677 Supersedes: F286677	NLA
34	GROMMET, REMOTE SHIFT CABLE (#F324840-1) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F324840, 25-F462840-1, F462840 Supersedes: F324840, 25-F462840-1, F462840	NLA
35	PLATE, IDENTIFICATION W/SCREWS, U.S.A. (#FA77395-5) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	PLATE, IDENTIFICATION W/SCREWS, CANADA (#AC16395 7) Qty Required For Repair: 1	NLA
36	DRIVE SCREWS (#10-20314) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
37	SPRING, LATCH SHAFT (#24-F183300) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
38	RETAINING RING (#53-13194) Qty Required For Repair: 1 Minimum Order Qty: 2 Minimum Order Qty: 2	$1.12 ~~$1.16~~
39	HEX JAM NUT, 5/16 - 18 (#11-8M0204668) Qty Required For Repair: 2 Qty Required For Repair: 2	$2.96 ~~$3.70~~
40	SPRING LOCKWASHER (#13-53166) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	$1.36 ~~$1.70~~
41	CAM, ENGINE COVER LATCH (#F89777-1) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F89777, F98777-1 Supersedes: F89777, F98777-1	NLA
42	PLATE, NUMERAL (#F513512) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
43	RETAINER, ENGINE COVER FRONT W/SCREWS AND NUTS (#817807A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
44	INSERT, PLATE FRONT, U.S.A. (#FA458892) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	INSERT, PLATE FRONT, CANADA (#A458893) Qty Required For Repair: 1	NLA
45	PAN HD SCREW, 10 - 24 X 3/8 (#10-F1760) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F17027, FE4296230 Supersedes: F17027, FE4296230	NLA
46	TRIM, STARTER HANDLE GUIDE (#F458888-1) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F458888 Supersedes: F458888	NLA
47	PLASTIC RIVET (#17-F2026) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
48	CLIP, STARTER GUIDE (#54-F458880) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: FA458880 Supersedes: FA458880	NLA
49	HEX NUT, 10 - 24 (#11-79989) Qty Required For Repair: 1 Minimum Order Qty: 1	$2.16 ~~$2.70~~
50	PLATE, FRONT (#F602711) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F542711, F458711, F505711, F572711 Supersedes: F542711, F458711, F505711, F572711	NLA
51	BUSHING, FUEL LINE (#F434767) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F43467 Supersedes: F43467	$26.32 ~~$27.42~~
52	PLASTIC PLUG BUTTON (#19-F9066) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA

CHRYSLER 35 H.P. ENGINE COVER AND SUPPORT PLATE (HAND START MODELS)

This assembly is found in these models:

CHRYSLER > 35 (1976)
CHRYSLER > 35 (1977)
