END CAP, MANIFOLD AND EXHAUST COVERS

Ref ID	Description	Price
1	CYLINDER BLOCK ASSEMBLY (#852-8311A4) Comment: (90) Qty Required For Repair: 1 Minimum Order Qty: 1 (90)	NLA
1	CYLINDER BLOCK ASSEMBLY (#852-8310A4) Comment: (115) Qty Required For Repair: 1 Minimum Order Qty: 1 (115)	NLA
2	END CAP ASSEMBLY (#1161-7616A2) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
3	SEAL, END CAP (#26-41953) Qty Required For Repair: 1 Minimum Order Qty: 2 Minimum Order Qty: 2	$12.96 ~~$14.90~~
4	O-RING (#25-47254) Qty Required For Repair: 1 Minimum Order Qty: 2 Minimum Order Qty: 2	$3.76 ~~$4.20~~
5	SHIM, END CAP (.006-10) (#15-73644A1) Qty Required For Repair: AR Minimum Order Qty: 1	NLA
6	SCREW, END CAP (1") (#10-812618) Qty Required For Repair: 4 Minimum Order Qty: 1 Supersedes: 10-73169, 10-847568 Qty Required For Repair: 4 Supersedes: 10-73169, 10-847568	$2.56 ~~$2.90~~
7	END CAP ASSEMBLY, LOWER (#1148-5410T1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
8	SEAL, END CAP (#26-41953) Qty Required For Repair: 2 Minimum Order Qty: 2 Qty Required For Repair: 2 Minimum Order Qty: 2	$12.96 ~~$14.90~~
9	O-RING, END CAP (#25-32546) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$2.48 ~~$2.70~~
10	SHIM SET, END CAP (.005-10) (#15-20085A1) Qty Required For Repair: AR Minimum Order Qty: 1	$49.44 ~~$48.33~~
11	SCREW AND LOCKWASHER, (.312-18 x 1.00), END CAP (#10-30225) Qty Required For Repair: 3 Minimum Order Qty: 5 Qty Required For Repair: 3 Minimum Order Qty: 5	$0.48 ~~$0.60~~
12	COVER, WATER JACKET (#71808) Qty Required For Repair: 1 Minimum Order Qty: 1	$146.09 ~~$160.33~~
13	GASKET, WATER JACKET COVER (#27-721421) Qty Required For Repair: 1 Minimum Order Qty: 1	$8.24 ~~$9.60~~
14	SCREW, (.312-18 x .880), WATER JACKET COVER (#10-53167T) Qty Required For Repair: 23 Minimum Order Qty: 16 Qty Required For Repair: 23 Minimum Order Qty: 16	$0.72 ~~$0.84~~
15	WASHER, (.323 x .563 x .063) Stainless Steel (#12-8M0042642) Qty Required For Repair: 23 Minimum Order Qty: 5 Supersedes: 12-70132 Qty Required For Repair: 23 Minimum Order Qty: 5 Supersedes: 12-70132	$1.12 ~~$1.40~~
16	GASKET, CYLINDER BLOCK TO BAFFLE PLATE (#27-854952) Qty Required For Repair: 1 Minimum Order Qty: 1	$9.92 ~~$10.90~~
17	PLATE, Baffle, EXHAUST MANIFOLD (#757781) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
18	GASKET (#27-854972) Qty Required For Repair: 1 Minimum Order Qty: 1	$12.16 ~~$14.10~~
19	COVER, EXHAUST MANIFOLD (#99896A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$164.50 ~~$180.51~~
20	SCREW, (.312-18 x 1.125), MANIFOLD COVER (#10-53576) Qty Required For Repair: 24 Minimum Order Qty: 5 Qty Required For Repair: 24 Minimum Order Qty: 5	$1.12 ~~$1.40~~
21	COVER, CYLINDER BLOCK (#1023-8368A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$150.92 ~~$165.67~~
22	GASKET, CYLINDER BLOCK COVER (#27-981853) Qty Required For Repair: 1 Minimum Order Qty: 1	$14.80 ~~$14.30~~
23	SCREW, COVER (1") (#10-76630) Qty Required For Repair: 16 Minimum Order Qty: 5 Qty Required For Repair: 16 Minimum Order Qty: 5	$1.12 ~~$1.40~~
24	STRAP ASEMBLY, Ground (#46933A3) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
25	SCREW, (#10-16 x .375), GROUND STRAP (#10-62568) Qty Required For Repair: 2 Minimum Order Qty: 4 Qty Required For Repair: 2 Minimum Order Qty: 4	$0.64 ~~$0.80~~
26	SWITCH ASSEMBLY, Temperature (#87-96829A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$278.60 ~~$360.75~~
27	BRACKET, MOUNT SUPPORT (#37440) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
28	SCREW, (.312-18 x 1.00), BRACKET TO CYLINDER BLOCK (#10-35386) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$0.64 ~~$0.80~~
29	COVER, TRANSFER PORT (#87872) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
30	GASKET, TRANSFER PORT COVER (#27-856730) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 27-85653 1 Supersedes: 27-85653 1	$8.48 ~~$9.90~~
31	SCREW, (.250-20 x .750), TRANSFER PORT COVER (#10-28636) Qty Required For Repair: 24 Minimum Order Qty: 5 Qty Required For Repair: 24 Minimum Order Qty: 5	$1.12 ~~$1.40~~
-	GASKET SET (#27-85653A87) Qty Required For Repair: 1 Minimum Order Qty: 1	$95.03 ~~$95.58~~

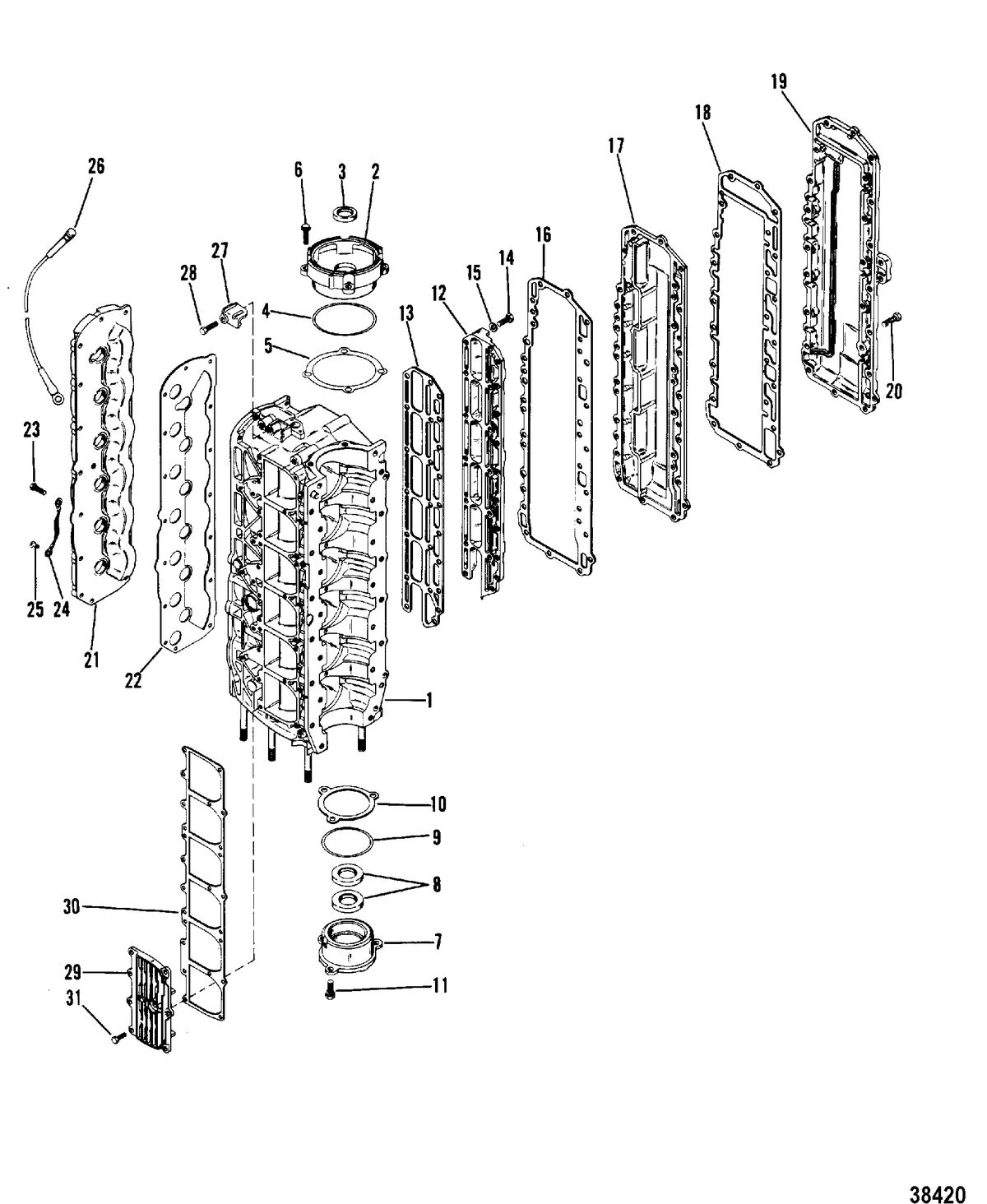

To zoom in, move your mouse over the diagram.

MERCURY/MARINER 90/115 H.P. (INLINE) END CAP, MANIFOLD AND EXHAUST COVERS

This assembly is found in these models:

MARINER > 115 (6 CYL.)
MARINER > 90 (6 CYL.)
