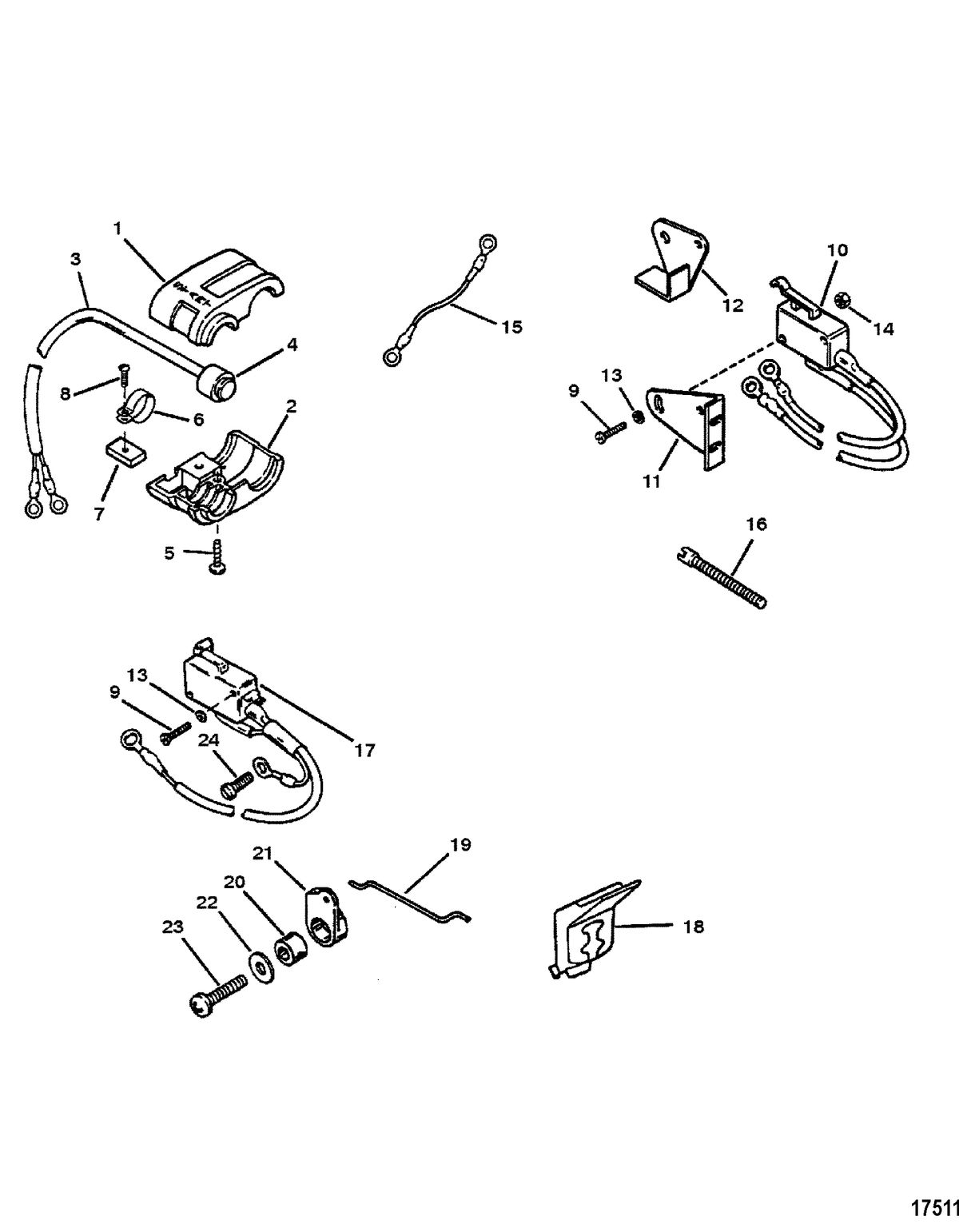

ACCESSORIES - Electrical - Electric Start Conversion Kit(87-95810A6-A8-A9)

Ref ID	Description	Price
-	CONVERSION KIT, Electric Start (#87-95810A6) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
-	CONVERSION KIT, Electric Start (#87-95810A8) Qty Required For Repair: 1 Minimum Order Qty: 1	$298.13 ~~$349.92~~
-	CONVERSION KIT, Electric Start (#87-95810A9) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
1	COVER, Top (#95815) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
2	COVER, Bottom (#95828) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
3	SWITCH ASSEMBLY, Start (#87-95810A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$79.92 ~~$83.25~~
4	BOOT (#55741001) Qty Required For Repair: 1 Minimum Order Qty: 1	$2.24 ~~$2.80~~
5	SCREW, (#10-16 x .750) (#10-69570) Qty Required For Repair: 1 Minimum Order Qty: 1	$1.36 ~~$1.70~~
6	STRAP (#95814) Qty Required For Repair: 1 Minimum Order Qty: 1	$6.32 ~~$7.90~~
7	FASTENER (#95813) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
8	SCREW, (M5 x 20) (#10-40019108) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
9	SCREW (87-95810A6 and 87-95810A8) (#10-4005727) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
9	SCREW, (#4-40 x .630) (87-95810A9) (#10-90342) Qty Required For Repair: 1 Minimum Order Qty: 2 Minimum Order Qty: 2	NLA
10	SWITCH ASSEMBLY, Neutral Start (87-95810A9) (#87-93479A4) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
11	BRACKET (87-95810A9) (#110361) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
12	CAM, Switch Actuating (87-95810A9) (#12001) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
13	LOCKWASHER, #4 Internal (87-95810A9) (#13-11052) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
13	WASHER (87-95810A6 and 87-95810A8) (#12-45771) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
14	NUT, (.112-40) (87-95810A9) (#11-63683) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
15	CABLE ASSEMBLY, Red (#84-79139A20) Qty Required For Repair: 1 Minimum Order Qty: 1	$11.92 ~~$14.90~~
16	SCREW, (.190-32 x 1.750) (87-95810A8) (#10-118591) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
17	SWITCH ASSEMBLY (87-95810A6 and 87-95810A8) (#87-88890A2) Qty Required For Repair: 1 Minimum Order Qty: 1	$125.17 ~~$137.25~~
18	GROMMET, Bottom Cowl (87-95810A6 and 87-95810A8) (#121532) Qty Required For Repair: 1 Minimum Order Qty: 1	$11.20 ~~$14.00~~
19	LINK (87-95810A6) (#42184) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
20	BUSHING (87-95810A6) (#23-421821) Qty Required For Repair: 1 Minimum Order Qty: 1	$18.48 ~~$19.25~~
21	ACTUATOR (87-95810A6) (#42183) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
22	WASHER (87-95810A6) (#12-8M0214930) Qty Required For Repair: 1	$0.80 ~~$1.00~~
23	SCREW, (M6 x 20) Stainless Steel (87-95810A6) (#10-8M0204741) Qty Required For Repair: 1	$3.52 ~~$4.40~~
24	SCREW, (#10-16 x .375) (87-95810A6 and 87-95810A8) (#10-62568) Qty Required For Repair: 1 Minimum Order Qty: 4 Minimum Order Qty: 4	$0.88 ~~$1.10~~
25	TIE STRAP, (8.00 Inches) (#54-816311T) Qty Required For Repair: 2/3 Minimum Order Qty: 100 Supersedes: 54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275 Qty Required For Repair: 2/3 Minimum Order Qty: 100 Supersedes: 54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275	$0.48 ~~$0.59~~
