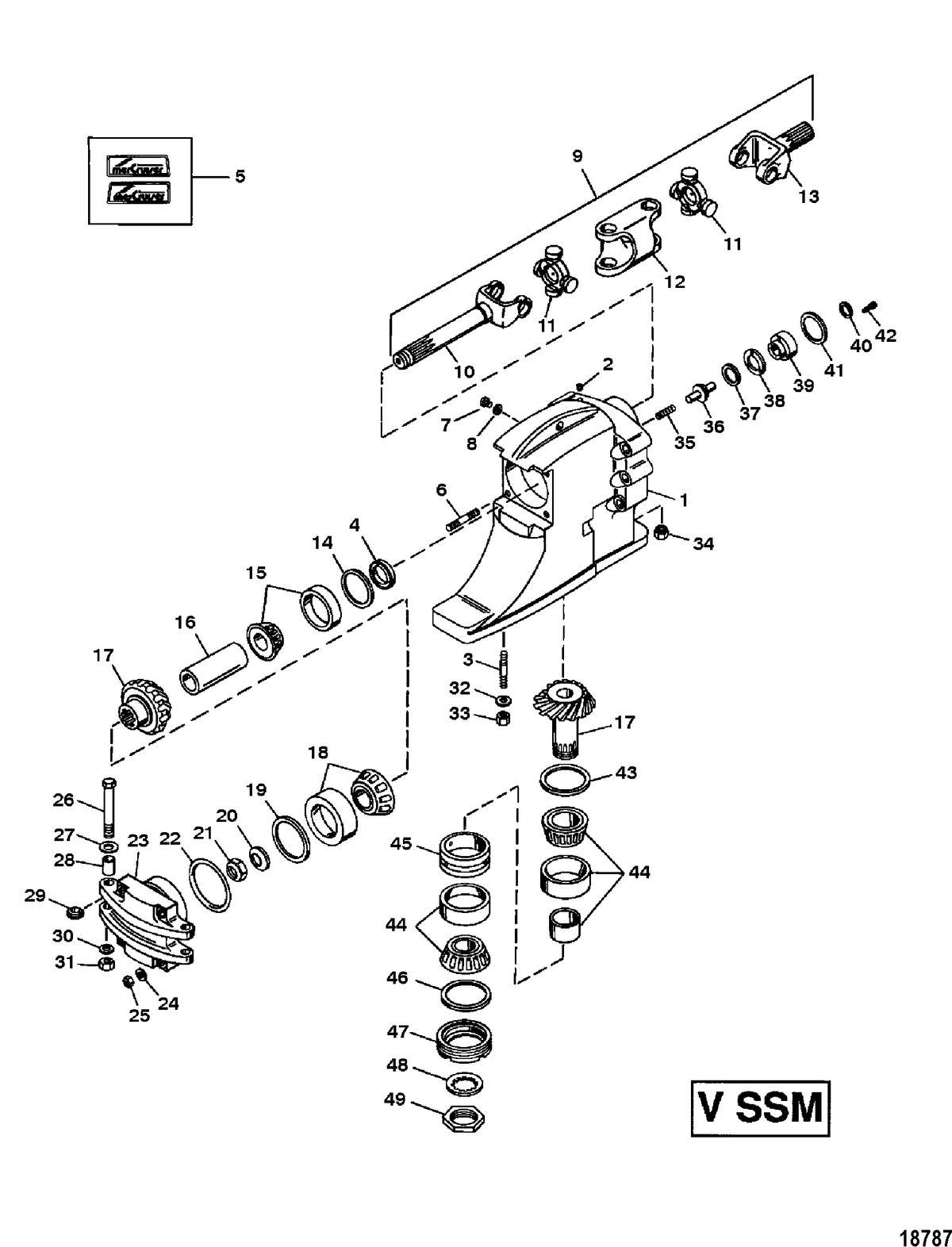

DRIVESHAFT HOUSING AND GEAR ASSY(V SSM)
| Ref ID | Description | Price | ||
|---|---|---|---|---|
| 1 |
|
NLA
|
||
| 2 |
|
$24.40
|
|
|
| 3 |
Qty Required For Repair: 6
|
$37.46
|
|
|
| 4 |
|
NLA
|
||
| 5 |
|
NLA
|
||
| 6 |
Qty Required For Repair: 4
|
NLA
|
||
| 7 |
Minimum Order Qty: 2
Supersedes: 22-67892A06 |
$8.24
|
|
|
| 8 |
Minimum Order Qty: 15
|
$0.99
|
|
|
| 9 |
|
NLA
|
||
| 10 |
|
NLA
|
||
| 11 |
Qty Required For Repair: 2
Supersedes: 48153 |
NLA
|
||
| 12 |
|
NLA
|
||
| 13 |
|
NLA
|
||
| 14 |
Qty Required For Repair: AR
|
$13.84
|
|
|
| 15 |
|
$74.08
|
|
|
| 16 |
Supersedes: 23-47305
|
$196.29
|
|
|
| 17 |
(1.00:1 RATIO) (POLYGON DRIVESHAFT)
|
NLA
|
||
| 17 |
(1.18:1 RATIO) (POLYGON DRIVESHAFT)
|
NLA
|
||
| 17 |
(1.25:1 RATIO) (POLYGON DRIVESHAFT)
|
NLA
|
||
| 17 |
(1.33:1 RATIO) (POLYGON DRIVESHAFT)
|
NLA
|
||
| 17 |
(1.40:1 RATIO) (POLYGON DRIVESHAFT)
|
NLA
|
||
| 17 |
(1.50:1 RATIO) (POLYGON DRIVESHAFT)
|
NLA
|
||
| 17 |
(1.00:1 RATIO) (SPLINED DRIVESHAFT)
|
NLA
|
||
| 17 |
(1.18:1 RATIO) (SPLINED DRIVESHAFT)
|
NLA
|
||
| 17 |
(1.25:1 RATIO) (SPLINED DRIVESHAFT)
|
NLA
|
||
| 17 |
(1.31:1 RATIO) (SPLINED DRIVESHAFT)
|
NLA
|
||
| 17 |
(1.33:1 RATIO) (SPLINED DRIVESHAFT)
|
NLA
|
||
| 17 |
(1.40:1 RATIO) (SPLINED DRIVESHAFT)
|
NLA
|
||
| 17 |
(1.44:1 RATIO) (SPLINED DRIVESHAFT)
|
NLA
|
||
| 17 |
(1.50:1 RATIO) (SPLINED DRIVESHAFT)
|
NLA
|
||
| 18 |
|
$150.70
|
|
|
| 19 |
Qty Required For Repair: AR
|
$17.66
|
|
|
| 20 |
|
NLA
|
||
| 21 |
Supersedes: 11-34862, 11-90068F 3, 11-90068F 4
|
NLA
|
||
| 22 |
|
$6.45
|
|
|
| 23 |
|
NLA
|
||
| 24 |
Qty Required For Repair: 4
|
$25.02
|
|
|
| 25 |
Qty Required For Repair: 4
Minimum Order Qty: 2 |
$11.20
|
|
|
| 26 |
Qty Required For Repair: 2
|
$14.00
|
|
|
| 27 |
Qty Required For Repair: 2
|
$25.02
|
|
|
| 28 |
Qty Required For Repair: 2
|
NLA
|
||
| 29 |
Qty Required For Repair: 2
Supersedes: 23-85321 |
$21.38
|
|
|
| 30 |
Qty Required For Repair: 2
|
NLA
|
||
| 31 |
Qty Required For Repair: 2
Minimum Order Qty: 2 |
$11.20
|
|
|
| 32 |
Qty Required For Repair: 6
|
$21.44
|
|
|
| 33 |
Qty Required For Repair: 6
|
$15.97
|
|
|
| 34 |
|
$15.97
|
|
|
| 35 |
|
NLA
|
||
| 36 |
|
$67.20
|
|
|
| 37 |
|
$5.12
|
|
|
| 38 |
|
NLA
|
||
| 39 |
|
NLA
|
||
| 40 |
Minimum Order Qty: 2
|
$18.96
|
|
|
| 41 |
|
$2.96
|
|
|
| 42 |
Qty Required For Repair: 2
|
NLA
|
||
| 43 |
(.002 THRU .035 THICK)
Qty Required For Repair: AR |
$110.14
|
|
|
| 43 |
(.036 THRU .048 THICK)
Qty Required For Repair: AR |
$89.15
|
|
|
| 44 |
|
NLA
|
||
| 45 |
|
NLA
|
||
| 46 |
|
NLA
|
||
| 47 |
Supersedes: 18992
|
NLA
|
||
| 48 |
Supersedes: 12-19066
|
NLA
|
||
| 49 |
|
NLA
|
