DRIVE SHAFT HOUSING ASSEMBLY

Ref ID	Description	Price
1	DRIVE SHAFT HOUSING ASSEMBLY(SHORT SHAFT) (#1552-3911A3) Qty Required For Repair: 1,1 Minimum Order Qty: 1	NLA
1	DRIVE SHAFT HOUSING ASSEMBLY(LONG SHAFT) (#1551-3918A3) Qty Required For Repair: 1,1 Minimum Order Qty: 1	NLA
2	STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (#16-56295) Qty Required For Repair: 2,2 Minimum Order Qty: 2 Qty Required For Repair: 2,2 Minimum Order Qty: 2	$4.25 ~~$5.00~~
3	PLUG, PLASTIC - TRIM TAB SCREW HOLE (#19-32298) Qty Required For Repair: 1,1 Minimum Order Qty: 5 Minimum Order Qty: 5	NLA
4	ROD, PUSH - REVERSE LOCK(SHORT SHAFT) (#47591A1) Qty Required For Repair: 1,1 Minimum Order Qty: 1	NLA
4	ROD, PUSH - REVERSE LOCK(LONG SHAFT) (#47558A2) Qty Required For Repair: 1,1 Minimum Order Qty: 1	NLA
5	NUT, JAM - PUSH ROD (#11-60049) Qty Required For Repair: 1,1 Minimum Order Qty: 1	NLA
6	YOKE, PUSH ROD (#39022) Qty Required For Repair: 1,1 Minimum Order Qty: 1	NLA
7	PIN, PUSH ROD TO REVERSE LOCK (#24-78203A2) Qty Required For Repair: 1,1 Minimum Order Qty: 1	NLA
8	COTTER PIN, PUSH ROD PIN (#18-25191) Qty Required For Repair: 1,1 Minimum Order Qty: 2 Minimum Order Qty: 2	$3.91 ~~$4.60~~
9	COVER, TRIM - DRIVE SHAFT HOUSING (#37417) Qty Required For Repair: 1,1 Minimum Order Qty: 1	NLA
10	SCREW, TRIM COVER TO BOTTOM COWL (#10-37571) Qty Required For Repair: 4,4 Minimum Order Qty: 5 Qty Required For Repair: 4,4 Minimum Order Qty: 5	NLA
11	SEAL, TRIM COVER TO DRIVE SHAFT HOUSING (#37919) Qty Required For Repair: 1,1 Minimum Order Qty: 1	NLA
12	STRIP, RETAINING - TRIM COVER SEAL (SIDE) (#37665) Qty Required For Repair: 2,2 Minimum Order Qty: 1 Qty Required For Repair: 2,2	NLA
13	STRIP, RETAINING - TRIM COVER SEAL (REAR) (#38052) Qty Required For Repair: 1,1 Minimum Order Qty: 1	NLA
14	SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (5/8") (#10-38055) Qty Required For Repair: 2,2 Minimum Order Qty: 2 Qty Required For Repair: 2,2 Minimum Order Qty: 2	NLA
15	SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (1/2") (#10-37571) Qty Required For Repair: 6,6 Minimum Order Qty: 5 Qty Required For Repair: 6,6 Minimum Order Qty: 5	NLA
16	WASHER, RETAINING STRIP SCREW (#12-30164) Qty Required For Repair: 8,8 Minimum Order Qty: 3 Qty Required For Repair: 8,8 Minimum Order Qty: 3	$2.04 ~~$2.40~~
17	TUBE, WATER INLET(SHORT SHAFT) (#32-37446) Qty Required For Repair: 1,1 Minimum Order Qty: 1	NLA
17	TUBE, WATER INLET(LONG SHAFT) (#32-37438) Qty Required For Repair: 1,1 Minimum Order Qty: 1	NLA
18	SLEEVE, RUBBER - WATER INLET TUBE (#23-29591) Qty Required For Repair: 1,1 Minimum Order Qty: 1	NLA
19	TUBE, EXHAUST (SHORT SHAFT) (#38469) Qty Required For Repair: 1,1 Minimum Order Qty: 1	NLA
19	TUBE, EXHAUST (LONG SHAFT) (#38470) Qty Required For Repair: 1,1 Minimum Order Qty: 1	NLA
20	SCREW, EXHAUST TUBE TO EXHAUST EXTENSION PLATE (#10-38601) Qty Required For Repair: 3,3 Minimum Order Qty: 5 Qty Required For Repair: 3,3 Minimum Order Qty: 5	$1.45 ~~$1.70~~
21	NUT, EXHAUST TUBE SCREW (#11-35888) Qty Required For Repair: 3,3 Minimum Order Qty: 5 Qty Required For Repair: 3,3 Minimum Order Qty: 5	$5.61 ~~$6.60~~
22	NUT, POWERHEAD STUDS (#11-23161) Qty Required For Repair: 6,6 Minimum Order Qty: 5 Qty Required For Repair: 6,6 Minimum Order Qty: 5	$2.38 ~~$2.80~~
23	NUT, POWERHEAD STUDS (#11-8M0204726) Qty Required For Repair: 2,2 Qty Required For Repair: 2,2	$1.45 ~~$1.70~~
24	WASHER, POWERHEAD STUDS (#12-20086) Qty Required For Repair: 2,2 Minimum Order Qty: 5 Qty Required For Repair: 2,2 Minimum Order Qty: 5	$1.36 ~~$1.60~~
25	GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING (#27-38471) Qty Required For Repair: 1,1 Minimum Order Qty: 1	NLA
26	MOUNT, RUBBER - UPPER (#37396) Qty Required For Repair: 2,2 Minimum Order Qty: 1 Qty Required For Repair: 2,2	NLA
27	COVER, UPPER MOUNT - OUTSIDE HALF (#26218) Qty Required For Repair: 2,2 Minimum Order Qty: 1 Qty Required For Repair: 2,2	NLA
28	COVER, UPPER MOUNT - INSIDE HALF (#26217) Qty Required For Repair: 2,2 Minimum Order Qty: 1 Qty Required For Repair: 2,2	NLA
29	PACKING, "U" CUP (#24929) Qty Required For Repair: 2,2 Minimum Order Qty: 5 Qty Required For Repair: 2,2 Minimum Order Qty: 5	NLA
30	SCREW, UPPER MOUNT COVER (1 5/8") (#10-20012) Qty Required For Repair: 4,4 Minimum Order Qty: 2 Qty Required For Repair: 4,4 Minimum Order Qty: 2	NLA
31	SCREW, UPPER MOUNT COVER (2 1/8") (#10-28775) Qty Required For Repair: 4,4 Minimum Order Qty: 1 Qty Required For Repair: 4,4	NLA
32	WASHER, UPPER MOUNT COVER SCREW (#12-29245) Qty Required For Repair: AR,AR Minimum Order Qty: 10 Minimum Order Qty: 10	$1.02 ~~$1.20~~
33	NUT, UPPER MOUNT COVER SCREW (#11-35888) Qty Required For Repair: 8,8 Minimum Order Qty: 5 Qty Required For Repair: 8,8 Minimum Order Qty: 5	$5.61 ~~$6.60~~
34	WASHER, UPPER MOUNT BOLT (#12-30515) Qty Required For Repair: 2,2 Minimum Order Qty: 1 Qty Required For Repair: 2,2	NLA
35	WASHER, RUBBER - UPPER MOUNT BOLT (#12-30516) Qty Required For Repair: 2,2 Minimum Order Qty: 1 Qty Required For Repair: 2,2	NLA
36	WASHER, UPPER MOUNT BOLT (#12-30514) Qty Required For Repair: 2,2 Minimum Order Qty: 1 Qty Required For Repair: 2,2	NLA
37	NUT, UPPER MOUNT BOLT (#11-8M0204653) Qty Required For Repair: 2,2 Qty Required For Repair: 2,2	$4.34 ~~$5.10~~
38	MOUNT, RUBBER - LOWER (#37397) Qty Required For Repair: 2,2 Minimum Order Qty: 1 Qty Required For Repair: 2,2	NLA
39	SCREW, UPPER MOUNT (5 1/2") (#10-75284) Qty Required For Repair: 2,2 Minimum Order Qty: 1 Qty Required For Repair: 2,2	$12.84 ~~$15.10~~
40	NUT, MOUNT SCREW (#11-25096) Qty Required For Repair: 2,2 Minimum Order Qty: 5 Qty Required For Repair: 2,2 Minimum Order Qty: 5	NLA
41	BUMPER, RUBBER - MOUNTING SCREW (#25067) Qty Required For Repair: 2,2 Minimum Order Qty: 1 Qty Required For Repair: 2,2	NLA
42	NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS (#11-8M0204653) Qty Required For Repair: 2,2 Qty Required For Repair: 2,2	$4.34 ~~$5.10~~
43	WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS (#12-45176) Qty Required For Repair: 2,2 Minimum Order Qty: 5 Qty Required For Repair: 2,2 Minimum Order Qty: 5	$1.19 ~~$1.40~~
44	NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS (#11-29489) Qty Required For Repair: 1,1 Minimum Order Qty: 1	NLA
45	WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS (#12-45176) Qty Required For Repair: 1,1 Minimum Order Qty: 5 Minimum Order Qty: 5	$1.19 ~~$1.40~~
46	CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING (#35608) Qty Required For Repair: 2,2 Minimum Order Qty: 1 Qty Required For Repair: 2,2	NLA
47	SPRING, TENSION - LOWER MOUNT CLAMP (#24-35522) Qty Required For Repair: 4,4 Minimum Order Qty: 3 Qty Required For Repair: 4,4 Minimum Order Qty: 3	NLA
48	SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING (#10-29256) Qty Required For Repair: 4,4 Minimum Order Qty: 5 Qty Required For Repair: 4,4 Minimum Order Qty: 5	NLA
49	COVER, LOWER MOUNT CLAMP (#35474T) Qty Required For Repair: 2,2 Minimum Order Qty: 1 Qty Required For Repair: 2,2	NLA
50	NUT, LOWER MOUNT CLAMP COVER (#11-35521) Qty Required For Repair: 2,2 Minimum Order Qty: 5 Qty Required For Repair: 2,2 Minimum Order Qty: 5	$2.30 ~~$2.70~~
51	SCREW, COVER TO LOWER CLAMP MOUNT (#10-29722) Qty Required For Repair: 2,2 Minimum Order Qty: 5 Qty Required For Repair: 2,2 Minimum Order Qty: 5	NLA

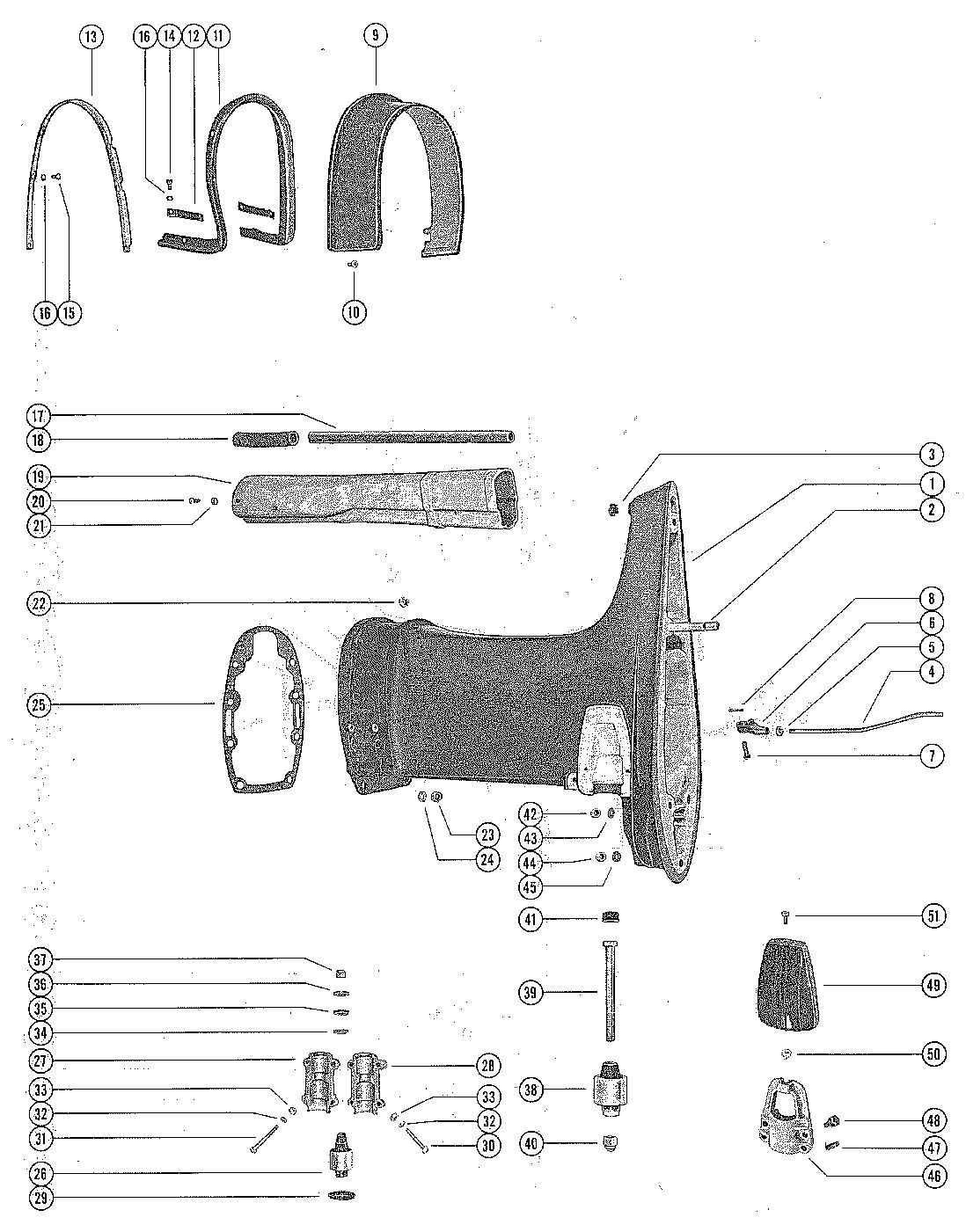

To zoom in, move your mouse over the diagram.

MERCURY 650-4 ENGINE DRIVE SHAFT HOUSING ASSEMBLY

This assembly is found in these models:

MERCURY > 650 (4 CYL.)
