DISTRIBUTOR HOUSING AND ROTOR

Ref ID	Description	Price
1	BALL BEARING< DISTRIBUTOR HOUSING (UPPER) (#30-20066) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
2	NUT, ROTOR SHAFT TO DISTRIBUTOR HOUSING (#11-54209) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
3	SLEEVE, ROTOR SHAFT (#23-53539) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
4	HOUSING ASSEMBLY, DISTRIBUTOR (#393-3736A79) Qty Required For Repair: 1 Minimum Order Qty: 1	$613.00 ~~$634.57~~
5	GROUND STRAP ASSEMBLY, DISTRIBUTOR TO CRANKCASE (#53417) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
6	SCREW, GROUND STRAP ATTACHING (3/8") (#10-62568) Qty Required For Repair: 1 Minimum Order Qty: 4 Minimum Order Qty: 4	$0.94 ~~$1.10~~
7	FLAME ARRESTOR ASSEMBLY, DISTRIBUTOR HOUSING (#58807A1) Qty Required For Repair: 1 Minimum Order Qty: 2 Minimum Order Qty: 2	NLA
8	SHIM, ROTOR (#15-21148A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
9	SHIM, ROTOR (#15-55853) Qty Required For Repair: AR Minimum Order Qty: 3 Minimum Order Qty: 3	NLA
10	SPACER, ROTOR SHAFT (#23-53538) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
11	DISC, ROTOR (#393-3236) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
12	BALL BEARING, DISTRIBUTOR HOUSING (LOWER) (#30-26379) Qty Required For Repair: 1 Minimum Order Qty: 1	$20.49 ~~$20.08~~
13	RING, RETAINING - BALL BEARING TO DISTRIBUTOR HOUSING (#53-26406) Qty Required For Repair: 1 Minimum Order Qty: 2 Minimum Order Qty: 2	$3.15 ~~$3.70~~
14	ROTOR, DISTRIBUTOR (#393-4371) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
15	CLAMP, DISTRIBUTOR CAP TO DISTRIBUTOR HOUSING (#54-60768) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
16	SCREW, DISTRIBUTOR CAP CLAMP (1 1/8") (#10-65774) Qty Required For Repair: 1 Minimum Order Qty: 2 Minimum Order Qty: 2	NLA
17	NUT, DISTRIBUTOR CAP CLAMP SCREW (#11-26768) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$2.55 ~~$3.00~~
18	CABLE ASSEMBLY, CAP TO COIL (#84-821945A4) Comment: UNITED STATES 3865694 AND BELOW AUSTRALIA 8017139 AND BELOW BELGIUM 9053363 AND BELOW CANADA 7033027 AND BELOW Qty Required For Repair: 1 Minimum Order Qty: 1 UNITED STATES 3865694 AND BELOW AUSTRALIA 8017139 AND BELOW BELGIUM 9053363 AND BELOW CANADA 7033027 AND BELOW	NLA
18	CABLE ASSEMBLY, CAP TO COIL (#84-821945A9) Comment: UNITED STATES 3865695 AND UP AUSTRALIA 8017140 AND UP BELGIUM 9053364 AND UP CANADA 7033028 AND UP Qty Required For Repair: 1 Minimum Order Qty: 1 UNITED STATES 3865695 AND UP AUSTRALIA 8017140 AND UP BELGIUM 9053364 AND UP CANADA 7033028 AND UP	$30.94 ~~$30.33~~
19	GROMMET, CABLE (5/16") (#25-26547) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
19	GROMMET, CABLE (7/8") (#25-56474) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
20	BOOT, CABLE TO COIL (#332-2854T01) Qty Required For Repair: 1 Minimum Order Qty: 3 Minimum Order Qty: 3	$2.47 ~~$2.90~~
21	SLEEVE, CABLE (#85-94589) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
22	SLEEVE, (LEADS 1, 2, 3, 4) - 3/4") (#32-46398) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
23	GASKET, DISTRIBUTOR CAP TO DISTRIBUTOR HOUSING (#27-55896) Qty Required For Repair: 1 Minimum Order Qty: 3 Minimum Order Qty: 3	$11.14 ~~$13.10~~
24	DISTRIBUTOR CAP ASSEMBLY (#393-3726A10) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
25	BRUSH AND SPRING ASSEMBLY (#393-1293A1) Qty Required For Repair: 1 Minimum Order Qty: 2 Minimum Order Qty: 2	$9.18 ~~$10.80~~
26	FLAME ARRESTOR ASSEMBLY (#58807A1) Qty Required For Repair: 1 Minimum Order Qty: 2 Minimum Order Qty: 2	NLA
27	RETAINER, LEADS (#63319) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
28	SCREW, LEAD RETAINER (1") (#10-46378) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
29	NUT, RETAINER SCREW (#11-20013) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	$0.34 ~~$0.40~~
30	SPARK PLUG (CHAMP L-77V) (#33-896329827) Qty Required For Repair: 4 Minimum Order Qty: 4 Supersedes: 33-827C Qty Required For Repair: 4 Minimum Order Qty: 4 Supersedes: 33-827C	$12.75 ~~$15.00~~
31	SPARK PLUG LEAD ASSEMBLY #1, #2, #3, #4 (#84-813715A1) Comment: ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MARKERS Qty Required For Repair: 4 Minimum Order Qty: 1 ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MARKERS Qty Required For Repair: 4	$26.14 ~~$30.50~~
32	PROTECTOR, SPARK PLUG LEAD (#85-63709A1) Qty Required For Repair: 4 Minimum Order Qty: 10 Qty Required For Repair: 4 Minimum Order Qty: 10	$6.72 ~~$7.90~~
33	SLEEVE, SPARK PLUG LEAD (LEADS 1, 2, 3, 4) (#32-46768) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
34	SLEEVE, SPARK PLUG LEAD TO DISTRIBUTOR (#85-94589) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA

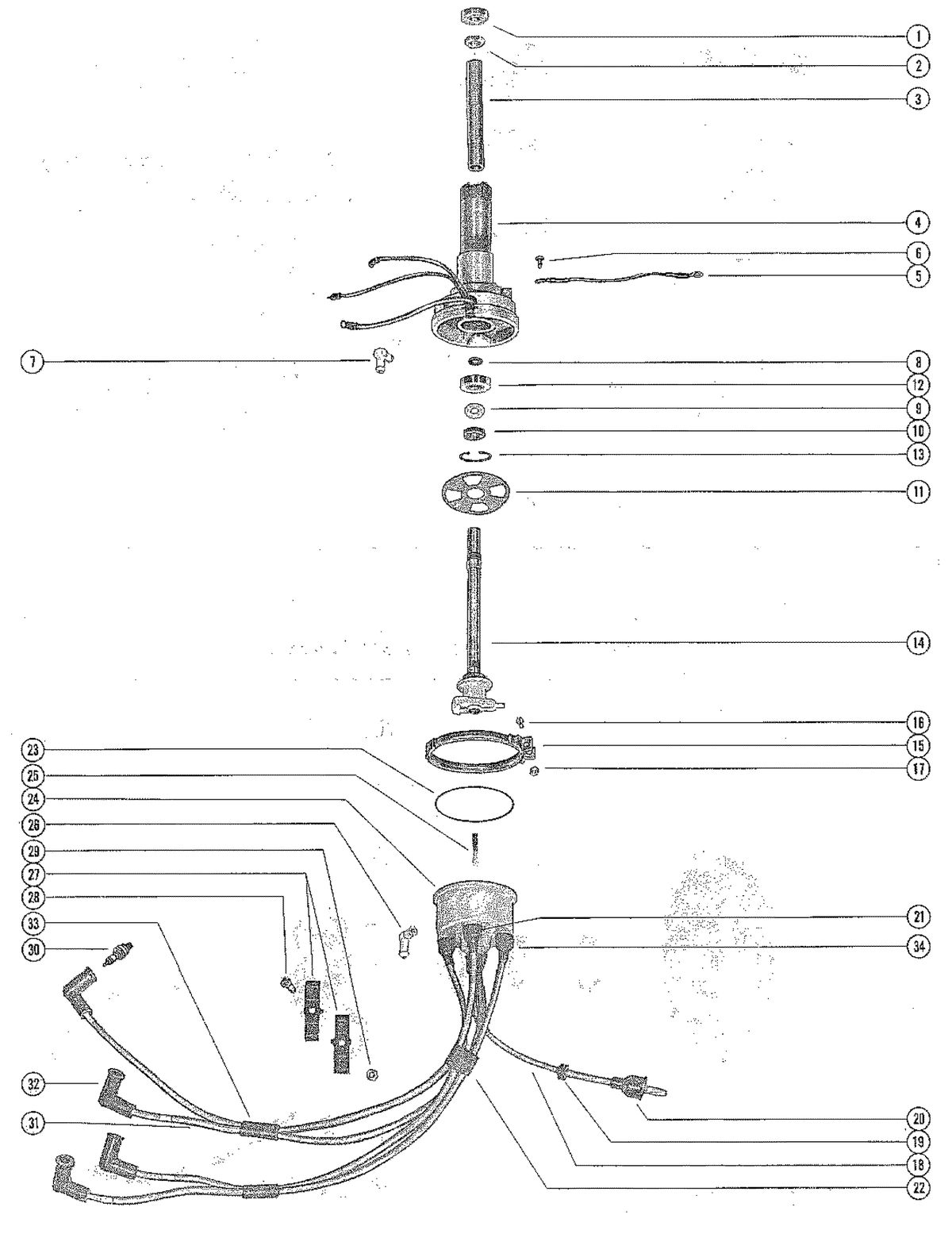

To zoom in, move your mouse over the diagram.

MERCURY MERC 850 (4 CYLINDER) DISTRIBUTOR HOUSING AND ROTOR
