DISTRIBUTOR HOUSING AND ROTOR

Ref ID	Description	Price
1	BALL BEARING, DISTRIBUTOR HOUSING (UPPER) (#30-20066) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
2	NUT, ROTOR SHAFT TO DISTRIBUTOR HOUSING (#11-54209) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
3	SLEEVE, ROTOR SHAFT (#23-53539) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
4	HOUSING ASSEMBLY, DISTRIBUTOR (#393-3736A79) Qty Required For Repair: 1 Minimum Order Qty: 1	$613.00 ~~$634.57~~
5	GROUND STRAP ASSEMBLY, DISTRIBUTOR TO CRANKCASE (#53417) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
6	SCREW, GROUND STRAP ATTACHING (3/8") (#10-62568) Qty Required For Repair: 1 Minimum Order Qty: 4 Minimum Order Qty: 4	$0.94 ~~$1.10~~
7	ELBOW, VENT - DISTRIBUTOR HOUSING (#22-55262) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
8	BALL BEARING, DISTRIBUTOR HOUSING (LOWER) (#30-26379) Qty Required For Repair: 1 Minimum Order Qty: 1	$20.49 ~~$20.08~~
9	SPACER, ROTOR SHAFT (#23-53538) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
10	RING, RETAINING - HALL BEARING TO DISTRIBUTOR HOUSING (#53-26406) Qty Required For Repair: 1 Minimum Order Qty: 2 Minimum Order Qty: 2	$3.15 ~~$3.70~~
11	DISC, ROTOR (#393-4248) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
12	ROTOR, DISTRIBUTOR (#393-4371) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
13	CLAMP, DISTRIBUTOR CAP TO DISTRIBUTOR HOUSING (#54-59588) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
14	SCREW, DISTRIBUTOR CAP CLAMP (1 1/4") (#10-55943) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
15	NUT, DISTRIBUTOR CAP CLAMP SCREW (#11-26768) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$2.55 ~~$3.00~~
16	HOSE, VENT - DISTRIBUTOR TO ELBOW (11 1/2") (#32-8M0108355) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 32-8M0047428, 32-830756109, 32-99127109, 32-877821 Supersedes: 32-8M0047428, 32-830756109, 32-99127109, 32-877821	$43.14 ~~$50.33~~
16	HOSE, VENT - DISTRIBUTOR TO ELBOW (13 1/2") (#32-8M0108355) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 32-8M0047428, 32-830756109, 32-99127109, 32-877821 Supersedes: 32-8M0047428, 32-830756109, 32-99127109, 32-877821	$43.14 ~~$50.33~~
17	ELBOW, VENT HOSE TO BOTTOM COWL (#22-31521) Qty Required For Repair: 2 Minimum Order Qty: 2 Qty Required For Repair: 2 Minimum Order Qty: 2	NLA
18	HIGH TENSION CABLE ASSEMBLY, DISTRIBUTOR CAP TO COIL (#84-821945A5) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
19	GROMMET, HIGH TENSION CABLE (#25-26547) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
20	BOOT, HIGH TENSION CABLE TO COIL (#332-2854T01) Qty Required For Repair: 1 Minimum Order Qty: 3 Minimum Order Qty: 3	$2.47 ~~$2.90~~
21	SLEEVE, HIGH TENSION CABLE (#85-94589) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
22	DISTRIBUTOR CAP ASSEMBLY (#393-4841A2) Comment: A-27-55896 GASKET, DISTRIBUTOR CAP Qty Required For Repair: 1 Minimum Order Qty: 1 A-27-55896 GASKET, DISTRIBUTOR CAP	NLA
--	BRUSH AND SPRING ASSEMBLY (#393-1293A1) Qty Required For Repair: 1 Minimum Order Qty: 2 Minimum Order Qty: 2	$9.18 ~~$10.80~~
23	ELBOW, VENT - DISTRIBUTOR CAP (#22-31521) Qty Required For Repair: 1 Minimum Order Qty: 2 Minimum Order Qty: 2	NLA
24	SPARK PLUG (CHAMPION - L19V) (#33-896329827) Qty Required For Repair: 6 Minimum Order Qty: 4 Supersedes: 33-827C Qty Required For Repair: 6 Minimum Order Qty: 4 Supersedes: 33-827C	$12.75 ~~$15.00~~
25	SPARK PLUG LEAD ASSEMBLY #1,#2,#3,#4,#5 AND #6 (#84-813715A1) Qty Required For Repair: 6 Minimum Order Qty: 1 Qty Required For Repair: 6	$26.14 ~~$30.50~~
--	CONNECTOR, SPARK PLUG LEAD (#8M0084600) Qty Required For Repair: 6 Minimum Order Qty: 5 Supersedes: 20121 Qty Required For Repair: 6 Minimum Order Qty: 5 Supersedes: 20121	$2.21 ~~$2.60~~
26	PROTECTOR, SPARK PLUG LEAD (#85-63709A1) Qty Required For Repair: 6 Minimum Order Qty: 10 Qty Required For Repair: 6 Minimum Order Qty: 10	$6.72 ~~$7.90~~
27	SLEEVE, SPARK PLUG LEAD TO DISTRIBUTOR (#85-94589) Qty Required For Repair: 6 Minimum Order Qty: 1 Qty Required For Repair: 6	NLA
28	GROMMET, SPARK PLUG LEADS (#25-26547) Qty Required For Repair: 12 Minimum Order Qty: 1 Qty Required For Repair: 12	NLA
29	WIRE RETAINER, HIGH TENSION LEADS (#45409) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
30	BRACKET, FRONT - WIRE RETAINER (#45392) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
31	BRACKET, REAR - WIRE RETAINER (#47398) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
32	SCREW, FRONT AND REAR BRACKET ATTACHING (#10-62568) Qty Required For Repair: 4 Minimum Order Qty: 4 Qty Required For Repair: 4 Minimum Order Qty: 4	$0.94 ~~$1.10~~
33	SPACER, RUBBER - HIGH TENSION LEADS (#45391) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
34	IGNITION COIL ASSEMBLY, COMPLETE (#332-4895A5) Qty Required For Repair: 1 Minimum Order Qty: 1	$344.33 ~~$382.58~~
35	SCREW, COIL MOUNTING BRACKET (7/8") (#10-69026) Qty Required For Repair: 1 Minimum Order Qty: 1	$1.45 ~~$1.70~~
36	LOCKWASHER, COIL MOUNTING BRACKET (#13-26992) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$1.02 ~~$1.20~~
37	SCREW, COIL MOUNTING BRACKET (2 1/2") (#10-37561) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
38	NUT, COIL MOUNTING BRACKET SCREW (#11-8M0207775) Qty Required For Repair: 2 Qty Required For Repair: 2	$7.91 ~~$9.30~~

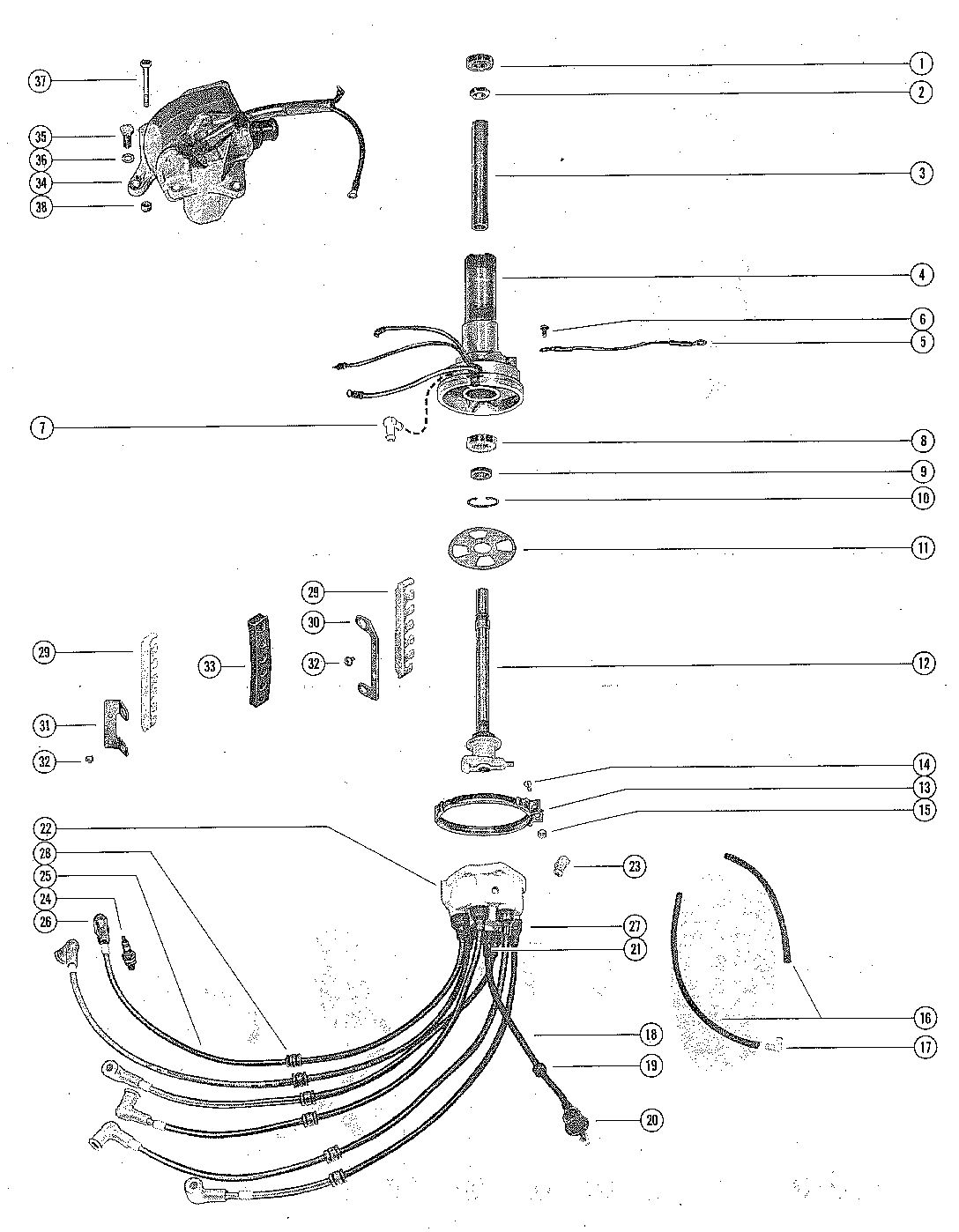

To zoom in, move your mouse over the diagram.

MERCURY MERC 1000BP /1250BP DISTRIBUTOR HOUSING AND ROTOR

This assembly is found in these models:

MERCURY > 1000BP
MERCURY > 1250BP
