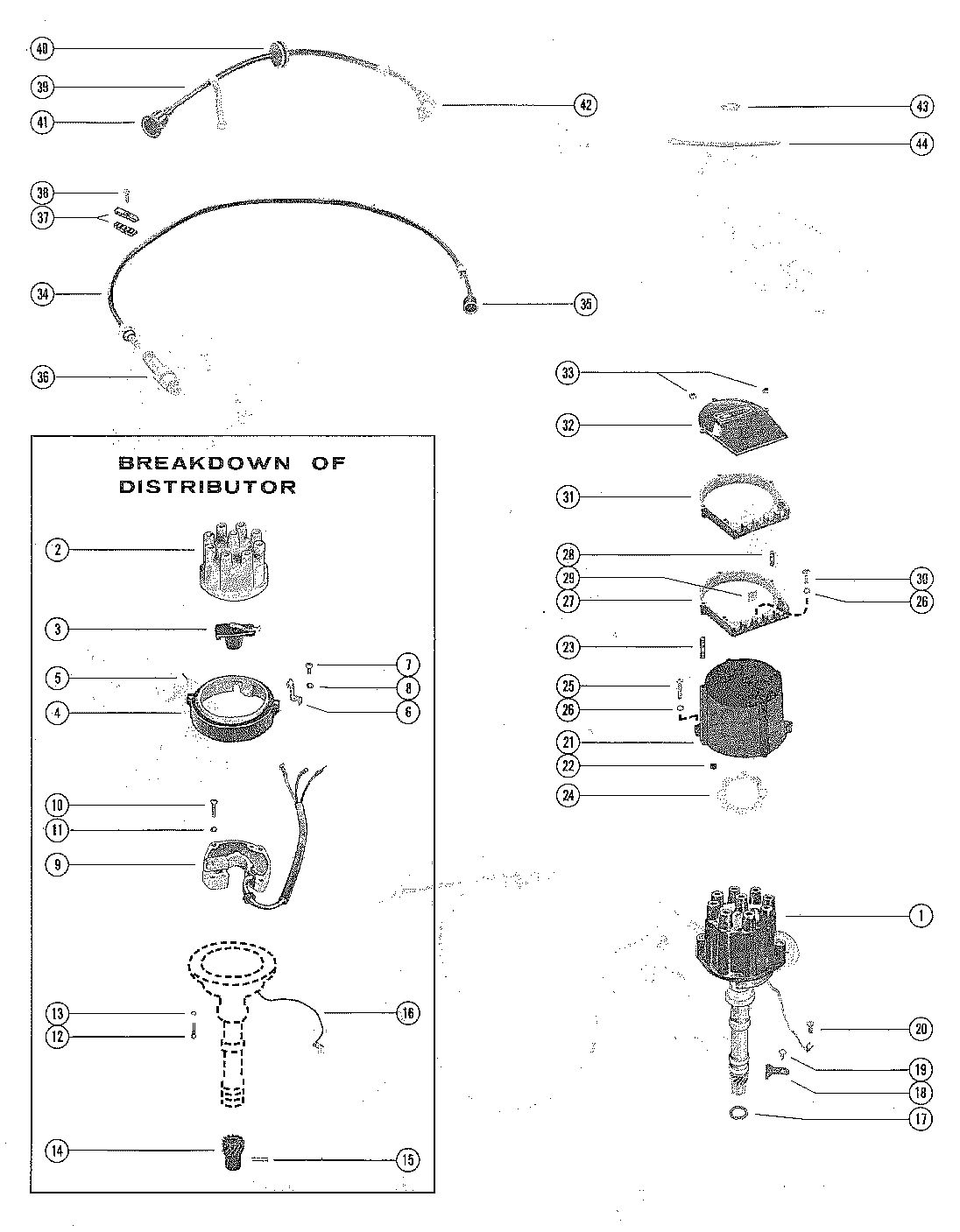

MERCRUISER - 390 MIE GM 482 V-8 1969-1970 - DISTRIBUTOR ASSEMBLY, COMPLETE

Ref ID	Description	Price
1	DISTRIBUTOR ASSEMBLY, COMPLETE (STANDARD ROTATION) (#47493A7) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
1	DISTRIBUTOR ASSEMBLY, COMPLETE (OPPISITE ROTATION) (#47493A6) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
2	CAP, DISTRIBUTOR (#393-4988T2) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
3	ROTOR, DISTRIBUTOR (#65864) Qty Required For Repair: 1 Minimum Order Qty: 1	$11.20 ~~$14.00~~
4	HOUSING ASSEMBLY, ADAPTOR (#59754A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
5	PIN, DOWEL - ADAPTOR HOUSING (#17-20032) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	$1.84 ~~$2.30~~
6	CLAMP, CAP TO ADAPTOR HOUSING (#54-65783A2) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
7	SCREW, DISTRIBUTOR CLAMP TO ADAPTOR HOUSING (3/8") (#10-37572) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$0.88 ~~$1.10~~
8	LOCKWASHER, DISTRIBUTOR CLAMP FASTENING SCREW (#13-26996) Qty Required For Repair: 2 Minimum Order Qty: 15 Qty Required For Repair: 2 Minimum Order Qty: 15	$0.96 ~~$1.20~~
9	TRIGGER ASSEMBLY (#393-2918A6) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
10	SCREW, TRIGGER ATTACHING (1") (#10-47618) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
11	LOCKWASHER, TRIGGER ATTATCHING SCREW (#13-26996) Qty Required For Repair: 4 Minimum Order Qty: 15 Qty Required For Repair: 4 Minimum Order Qty: 15	$0.96 ~~$1.20~~
12	SCREW, ADAPTOR HOUSING FASTENING (3/4") (#10-26595) Qty Required For Repair: 4 Minimum Order Qty: 5 Qty Required For Repair: 4 Minimum Order Qty: 5	NLA
13	LOCKWASHER, ADAPTOR HOUSING SCREW (#13-26995) Qty Required For Repair: 4 Minimum Order Qty: 5 Qty Required For Repair: 4 Minimum Order Qty: 5	$0.88 ~~$1.10~~
14	GEAR, DISTRIBUTOR (STANDARD ROTATION) (#43-47649) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
14	GEAR, DISTRIBUTOR (OPPISITE ROTATION) (#43-8M0115498) Qty Required For Repair: 1	$78.74 ~~$86.33~~
15	ROLL PIN, GEAR TO DISTRIBUTOR (#17-47617) Qty Required For Repair: 1 Minimum Order Qty: 1	$3.12 ~~$3.90~~
16	JUMPER WIRE, DISTRIBUTOR GROUND (#52618) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
17	GASKET, DISTRIBUTOR (#27-344863) Qty Required For Repair: 1 Minimum Order Qty: 1	$2.08 ~~$2.60~~
18	CLAMP, DISTRIBUTOR TO INTAKE MANIFOLD (#54-88731) Qty Required For Repair: 1 Minimum Order Qty: 1	$7.68 ~~$9.60~~
19	SCREW, DISTRIBUTOR CLAMP ATTACHING (#10-54528) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
20	SCREW, DISTRIBUTOR GROUND TO MANIFOLD (#10-98257) Qty Required For Repair: 1 Minimum Order Qty: 1	$0.88 ~~$1.10~~
21	ADAPTOR HOUSING ASSEMBLY, DISTRIBUTOR CAP (#54094A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
22	BUMPER, ADAPTOR HOUSING (#54205) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
23	STUD, ADAPTOR HOUSING TO RETAINER AND COVER (#16-54204) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
24	DECAL, DISTRIBUTOR CAP (#37-54347) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
25	SCREW, ADAPTOR HOUSING TO DISTRIBUTOR (7/8") (#10-69011) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
26	LOCKWASHER, HOUSING AND RETAINER SCREW (#13-26996) Qty Required For Repair: 3 Minimum Order Qty: 15 Qty Required For Repair: 3 Minimum Order Qty: 15	$0.96 ~~$1.20~~
27	RETAINER ASSEMBLY, SPARK PLUG CABLE (LOWER) - STANDARD ROTAT (#54986A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
27	RETAINER ASSEMBLY, SPARK PLUG CABLE (LOWER) - OPPOSITE ROTAT (#54986A2) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
28	STUD, RETAINER TO COVER (#16-54459) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
29	INSERT, LOWER RETAINER (#54206) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
30	SCREW, LOWER RETAINER TO ADAPTOR HOUSING (1/2") (#10-48591) Qty Required For Repair: 1 Minimum Order Qty: 2 Minimum Order Qty: 2	NLA
31	RETAINER ASSEMBLY, SPARK PLUG CABLE (UPPER) - STANDARD ROTAT (#54987A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
31	RETAINER ASSEMBLY, SPARK PLUG CABLE (UPPER) - OPPOSITE ROTAT (#54987A2) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
32	COVER ASSEMBLY, DISTRIBUTOR (#54095A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
33	NUT, ADAPTOR HOUSING AND RETAINER STUD (#11-859124) Qty Required For Repair: 5 Minimum Order Qty: 2 Supersedes: 11-45812 Qty Required For Repair: 5 Minimum Order Qty: 2 Supersedes: 11-45812	$17.20 ~~$17.92~~
34	CABLE ASSEMBLY, HIGH TENSION (#1) STANDARD ROTATION (#54380A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
34	CABLE ASSEMBLY, HIGH TENSION (#2) a STANDARD ROTATION (#54381A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
34	CABLE ASSEMBLY, HIGH TENSION (#3) STANDARD ROTATION (#54380A4) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
34	CABLE ASSEMBLY, HIGH TENSION (#4) STANDARD ROTATION (#54380A3) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
34	CABLE ASSEMBLY, HIGH TENSION (#5) STANDARD ROTATION (#54381A3) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
34	CABLE ASSEMBLY, HIGH TENSION (#6) STANDARD ROTATION (#54381A4) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
34	CABLE ASSEMBLY, HIGH TENSION (#7) STANDARD ROTATION (#54381A2) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
34	CABLE ASSEMBLY, HIGH TENSION (#8) STANDARD ROTATION (#54380A2) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
34	CABLE ASSEMBLY, HIGH TENSION (#1) OPPOSITE ROTATION (#55231A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
34	CABLE ASSEMBLY, HIGH TENSION (#2) OPPOSITE ROTATION (#55231A4) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
34	CABLE ASSEMBLY, HIGH TENSION (#3) OPPOSITE ROTATION (#55228A2) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
34	CABLE ASSEMBLY, HIGH TENSION (#4) OPPOSITE ROTATION (#55228A3) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
34	CABLE ASSEMBLY, HIGH TENSION (#5) OPPOSITE ROTATION (#55231A2) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
34	CABLE ASSEMBLY, HIGH TENSION (#6) OPPOSITE ROTATION (#55228A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
34	CABLE ASSEMBLY, HIGH TENSION (#7) OPPOSITE ROTATION (#55231A3) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
34	CABLE ASSEMBLY, HIGH TENSION (#8) OPPOSITE ROTATION (#55228A4) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
35	BOOT, HIGH TENSION CABLE (#54836) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
35	BOOT, HIGH TENSION CABLE (#54837) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
36	SPARK PLUG (AC #WR-41N) (#33-54842) Qty Required For Repair: 8 Minimum Order Qty: 1 Qty Required For Repair: 8	NLA
37	RETAINER, HIGH TENSION LEADS (#63319) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
38	SCREW, HIGH TENSION LEAD RETINER TO INTAKE MANIFOLD (#10-64278) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
39	CABLE ASSEMBLY, COIL TO DISTRIBUTOR (#54379A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
40	GROMMET, CABLE TO RETINER (#25-47623) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
41	BOOT, COIL (#332-2854T01) Qty Required For Repair: 1 Minimum Order Qty: 3 Minimum Order Qty: 3	$2.32 ~~$2.90~~
42	BOOT, DISTRIBUTOR (#54837) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
43	BRACKET, NYLON STRAP (#53-78201) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
44	STRAP, NYLON - HIGH TENSION CABLE (#8M0214940) Qty Required For Repair: 6 Qty Required For Repair: 6	$0.64 ~~$0.80~~

MERCRUISER 390 ENGINE DISTRIBUTOR ASSEMBLY, COMPLETE

Mercury Marine Parts Catalog

MERCRUISER - 390 MIE GM 482 V-8 1969-1970 - DISTRIBUTOR ASSEMBLY, COMPLETE

This assembly is found in these models:
