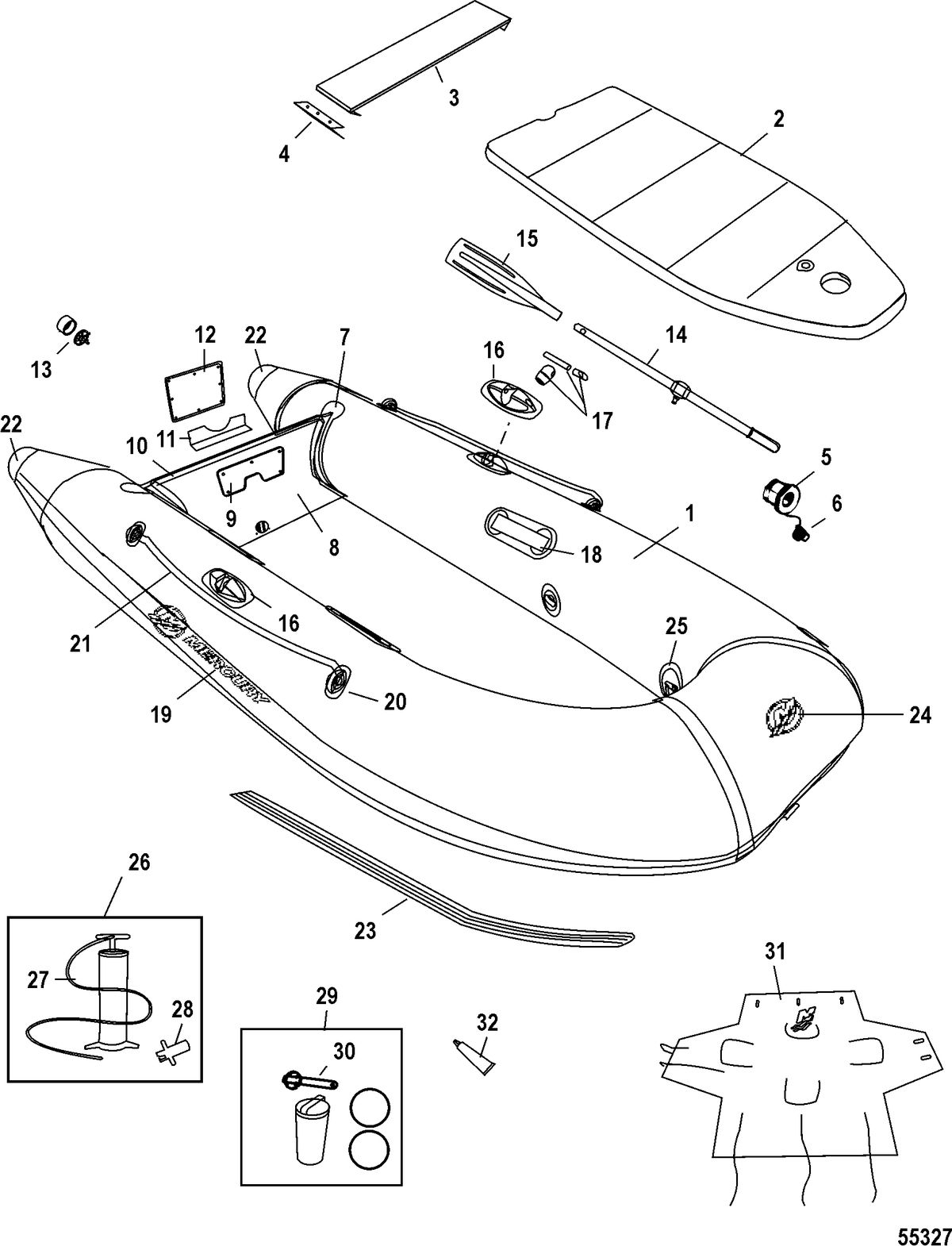

INFLATABLES - Mercury PVCSoft Bottom 2014-and UP - Dinghy Models(200 / 240) Without Keel

Ref ID	Description	Price
1	NOT SOLD SEPARATE, SKIN ASSEMBLY -200 / 240 Models (#NSS) Qty Required For Repair: 1	NLA
2	AIR MAT ASSEMBLY, PVC (L118 cm x WF69 cm x WF22 cm) - Light Gray (#8M0092358) Comment: - 200 Model Qty Required For Repair: 1 - 200 Model	NLA
2	AIR MAT ASSEMBLY, PVC (L158 cm x WF76 cm x WF22 cm) - Light Gray (#8M0092359) Comment: - 240 Model Qty Required For Repair: 1 - 240 Model	NLA
3	SEAT, Wood, Light Gray (L70 cm x W20 cm x T18 mm) Bolt Rope System (#62-8M0046027) Qty Required For Repair: 1 Minimum Order Qty: 1	$69.87 ~~$62.38~~
4	HOLDER, Seat Support (#62-8M0050686) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
5	VALVE ASSEMBLY, Air - Light Gray - M Logo (#62-879184A01) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	$20.14 ~~$17.99~~
6	CAP ASSEMBLY, Air Valve - Light Gray - M Logo (#62-879184004) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
7	HOLDER, Transom - PVC Light Gray (T18 mm) (#62-809782006) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 63-8M0006494 Qty Required For Repair: 2 Supersedes: 63-8M0006494	NLA
8	TRANSOM ASSEMBLY, Wood, Light Gray (L73 cm x H36 cm x T18 mm) (#62-8M0057635) Comment: - 200 Model Qty Required For Repair: 1 Minimum Order Qty: 1 - 200 Model	NLA
8	TRANSOM ASSEMBLY, Wood, Light Gray (L80 cm x H36 cm x T18 mm) (#62-8M0057636) Comment: - 240 Model Qty Required For Repair: 1 Minimum Order Qty: 1 - 240 Model	NLA
9	PAD, Transom - Plastic, Dark Gray (#62-8M0068684) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-811317001 Supersedes: 62-811317001	NLA
10	CAP, Transom Cover (W18 mm x 90 cm) PVC Light Gray (#62-855403010) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
11	RETAINER, Transom (L10 cm x H3 cm x T2 mm) Light Gray (#8M0092028) Qty Required For Repair: 1	NLA
12	PLATE, Transom - Gray Plastic (#62-8M0068685) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-811336004 Supersedes: 62-811336004	$12.46 ~~$11.13~~
13	PLUG ASSEMBLY, Drain (#62-8M0092101) Qty Required For Repair: 1 Minimum Order Qty: 1	$11.12 ~~$9.95~~
14	OAR HANDLE ASSEMBLY, Black (for 120 cm oar) (#62-8M0068687) Comment: - 200 Model Qty Required For Repair: 2 Minimum Order Qty: 1 - 200 Model Qty Required For Repair: 2	$26.45 ~~$23.60~~
14	OAR HANDLE ASSEMBLY, (38.39 in./97.5 cm) Black (#62-885156007) Comment: - 240 Model Qty Required For Repair: 2 Minimum Order Qty: 1 - 240 Model Qty Required For Repair: 2	$29.68 ~~$26.50~~
15	OAR BLADE, Black - M Logo (#62-883899T04) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$18.29 ~~$16.33~~
16	OARLOCK ASSEMBLY, PVC Black (#62-811311006) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$11.28 ~~$14.10~~
17	HOLDER/PIN/CAP SET, PVC Black (#62-824410005) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$11.12 ~~$9.95~~
18	BOLT ROPE, Seat (#62-8M0050687) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$2.54 ~~$2.27~~
19	LOGO, Side (Raised Circle Mercury M Logo) 40 cm x 5.5 cm (White on Black) (#8M0092103) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
20	HOLDER, Rope - PVC Black - Oval (#62-859008006) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
21	ROPE, Black (8mm) (#8M0050659) Qty Required For Repair: AR Qty Required For Repair: AR	NLA
22	END CONE CAP, PVC, Light Gray With Rounded End (150 mm x H105 mm) (#63-895562) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
23	RUBSTRAKE, Bottom, Black-PVC (W6 cm) (#62-8M0050680) Qty Required For Repair: AR Minimum Order Qty: 1 Qty Required For Repair: AR	NLA
24	LOGO, Bow (Raised Circle M Logo)(White M on Black Base) (#8M0092102) Qty Required For Repair: 1	NLA
25	D RING, Medium - Stainless Steel On Light Gray PVC Fabric (#62-899644001) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 62-899644 Supersedes: 62-899644	NLA
26	PUMP ASSEMBLY, Air, Double Action (#62-8M0050681) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
27	HOSE, Air Pump (#62-889348) Qty Required For Repair: 1 Minimum Order Qty: 1	$15.70 ~~$14.01~~
28	ADAPTOR, Air Pump Hose (#62-8M0050682) Qty Required For Repair: 1 Minimum Order Qty: 1	$1.76 ~~$1.56~~
29	PVC REPAIR KIT, Without Cement (#8M0101362) Qty Required For Repair: 1	NLA
29	REPAIR KIT, With Cement (#8M0050683) Qty Required For Repair: AR Qty Required For Repair: AR	NLA
30	REMOVER/INSTALLER TOOL, Air Valve - Plastic (#62-896317) Qty Required For Repair: 1 Minimum Order Qty: 1	$3.73 ~~$3.33~~
31	BAG, Storage/Carrying - Flap Style - M Logo (#62-811327T2) Qty Required For Repair: 1 Minimum Order Qty: 1	$136.59 ~~$128.37~~
32	CEMENT, PVC (30 ml) (#92-808648) Qty Required For Repair: 1 Minimum Order Qty: 1	$7.81 ~~$6.97~~
NS	BOAT COVER, With Bag (L2.9 m x W2.3 m) Gray (#62-899772) Comment: Dinghy 200 Qty Required For Repair: AR Minimum Order Qty: 1 Dinghy 200 Qty Required For Repair: AR	NLA
NS	BOAT COVER, With Bag (L3.1 m x W2.3 m) Gray (#62-899773) Comment: Dinghy 240 Qty Required For Repair: AR Minimum Order Qty: 1 Dinghy 240 Qty Required For Repair: AR	NLA
-	FABRIC, PVC (24 in x 30 in X 0.6 mm) Light Gray (#62-8M0092104) Qty Required For Repair: AR Minimum Order Qty: 1 Qty Required For Repair: AR	$12.30 ~~$10.98~~
-	FABRIC, PVC (60 Inches x 10 Meters X 0.6 mm) Light Gray (#8M0092105) Qty Required For Repair: AR Qty Required For Repair: AR	NLA
