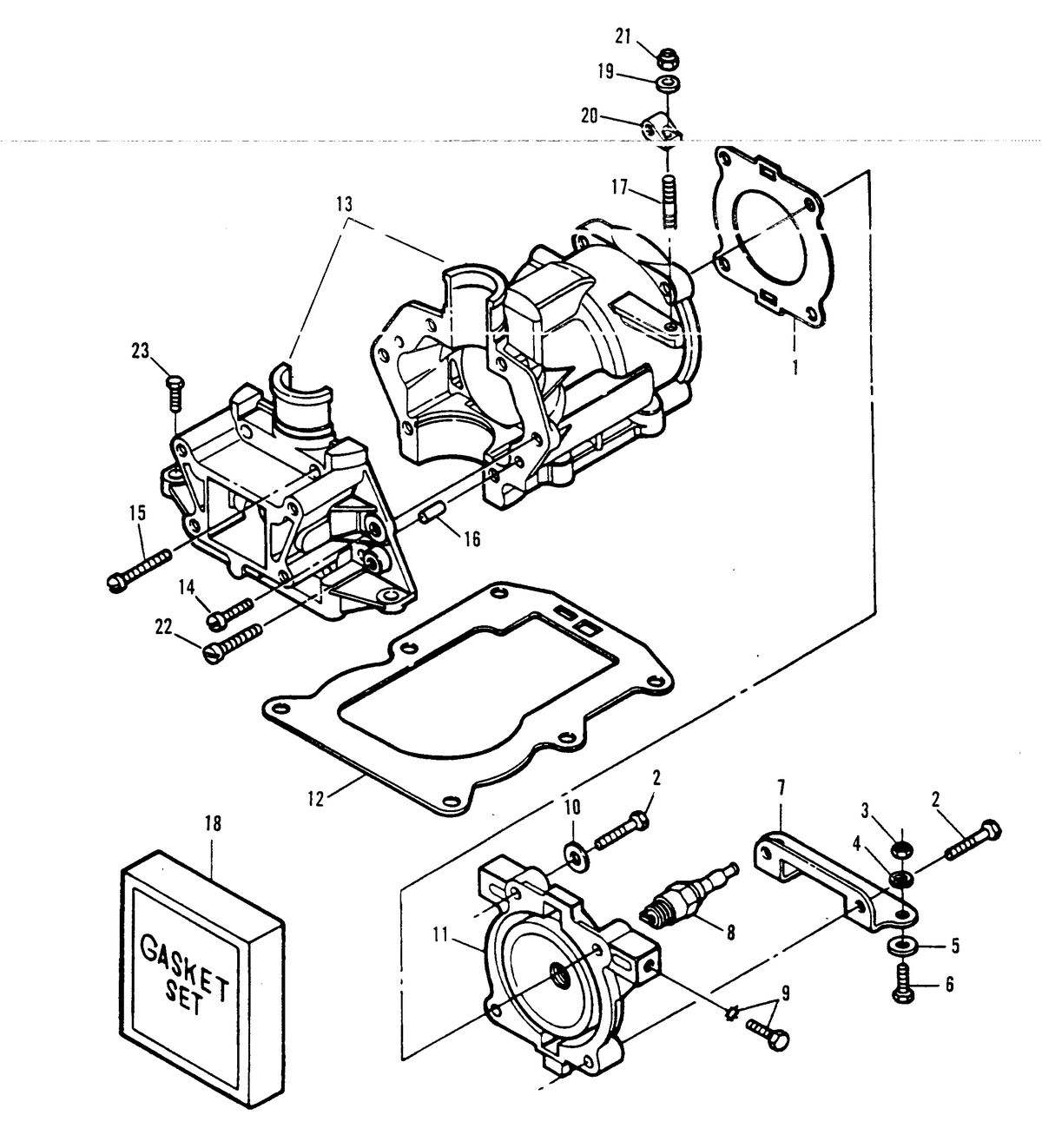

CYLINDER BLOCK

Ref ID	Description	Price
-	POWERHEAD ASSEMBLY (Painted) (#800-819854A5) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
1	GASKET, Cylinder Head (#27-F712529) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F521529, F521529-1 Supersedes: F521529, F521529-1	$25.92 ~~$27.00~~
2	SCREW, Cylinder Head (#10-F901938-1) Qty Required For Repair: 4 Minimum Order Qty: 1 Supersedes: F901938, F9019381 Qty Required For Repair: 4 Supersedes: F901938, F9019381	NLA
3	NUT (1/4-20) (#11-64015) Qty Required For Repair: 2 Minimum Order Qty: 3 Qty Required For Repair: 2 Minimum Order Qty: 3	$2.16 ~~$2.70~~
4	LOCKWASHER (1/4"). (#13-26992) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	$0.96 ~~$1.20~~
5	WASHER (#12-35044) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$1.92 ~~$2.40~~
6	SCREW (1/4-20 x 3/4") (#10-28636) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	$1.36 ~~$1.70~~
7	BRACKET, Lower (#F521774T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F521774 Supersedes: F521774	NLA
8	SPARK PLUG (#33-8M0182857) Qty Required For Repair: 1	$5.52 ~~$6.90~~
8	SPARK PLUG (RFI) (#33-19796) Qty Required For Repair: OPT. Minimum Order Qty: 10 Qty Required For Repair: OPT. Minimum Order Qty: 10	$5.04 ~~$6.29~~
9	SCREW With Lockwasher (1/4-20 x 7/16") (#10-F1426) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
10	WASHER (#1235044) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
11	HEAD, Cylinder (#900-819367T1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
12	GASKET, Cylinder Exhaust (#27-F521279-1) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 27-F521279 Supersedes: 27-F521279	NLA
13	CYLINDER BLOCK KIT (#800-819854A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
14	SCREW (1/4-20 x 3/4") (#10-F1107) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: F1007, F2048, FI3240003, FI3040001 Qty Required For Repair: 2 Supersedes: F1007, F2048, FI3240003, FI3040001	NLA
15	SCREW (1/4-20 x 1-1/4") (#10-F1504) Qty Required For Repair: 4 Minimum Order Qty: 1 Supersedes: F1099 Qty Required For Repair: 4 Supersedes: F1099	$2.16 ~~$2.70~~
16	PIN, Dowel (#17-F8559) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: F136372 Qty Required For Repair: 2 Supersedes: F136372	NLA
17	STUD, Speed Control Cable Retainer (#16-F433209-1) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 16-826389, F433209 Supersedes: 16-826389, F433209	NLA
18	GASKET SET (#FG1034-1) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: FG1034 Supersedes: FG1034	NLA
19	WASHER (#12-8M0204649) Qty Required For Repair: 1	$0.96 ~~$1.20~~
20	RETAINER, Speed Control Cable (#F702668) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
21	NUT (1/4-20) (#11-8M0207776) Qty Required For Repair: 1	$5.44 ~~$6.80~~
22	SCREW (1/4-20 x 5/8") (#10-F2040) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
23	SCREW (1/4-20 x 3/4") (#10-28636) Qty Required For Repair: 6 Minimum Order Qty: 5 Qty Required For Repair: 6 Minimum Order Qty: 5	$1.36 ~~$1.70~~

This assembly is found in these models:

SEARS > 5 H.P. (1993 1/2-1995)
