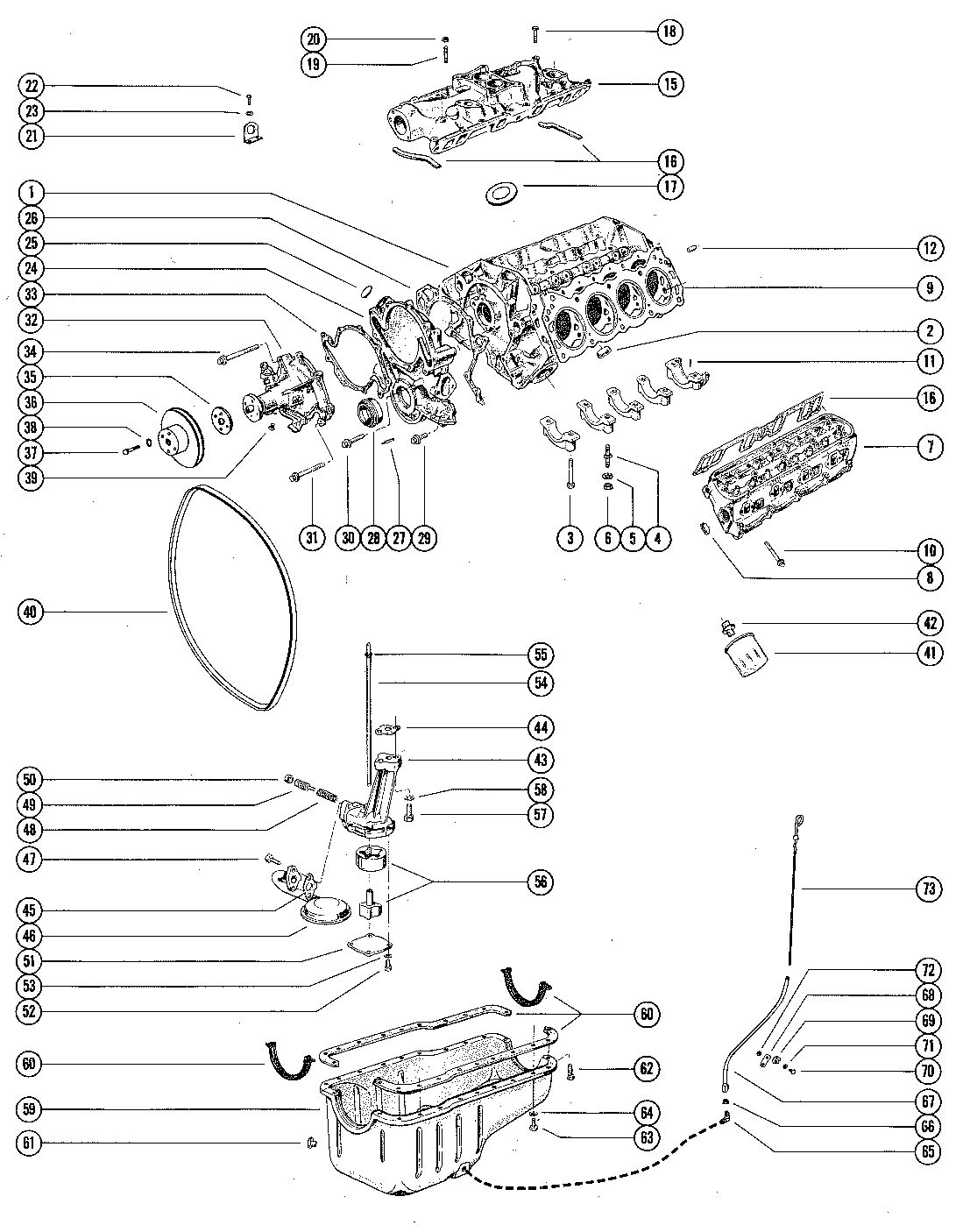

CYLINDER BLOCK, CYLINDER HEAD AND OIL PAN

Ref ID	Description	Price
1	CYLINDER BLOCK ASSEMBLY (INCLUDES BEARING CAPS) (#853-4056) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
2	PLUG, EXPANSION - CYLINDER BLOCK (#19-56102) Qty Required For Repair: 6 Minimum Order Qty: 1 Qty Required For Repair: 6	NLA
2	PETCOCK, WATER DRAIN - CYLINDER BLOCK (#22-16951Q1) Qty Required For Repair: 2 Minimum Order Qty: 2 Qty Required For Repair: 2 Minimum Order Qty: 2	$29.28 ~~$30.49~~
2	ELBOW, STARBOARD - WATER DRAIN PETCOCK (#22-37682) Qty Required For Repair: 1 Minimum Order Qty: 1	$16.16 ~~$16.83~~
2	PLUG, CYLINDER BLOCK (1/4") (#22-8M0204652) Qty Required For Repair: 3 Qty Required For Repair: 3	$5.20 ~~$6.50~~
2	PLUG, EXPANSION - CYLINDER BLOCK (3/4") (#19-60668) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
2	PLUG, EXPANSION - CYLINDER BLOCK (1/2") (#19-45670) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
2	PIN, DOWEL - CYLINDER HEAD TO CYLINDER BLOCK (#17-60670) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
3	BOLT, BEARING CAP TO CYLINDER BLOCK (3 5/32") (#10-56146) Qty Required For Repair: 9 Minimum Order Qty: 1 Qty Required For Repair: 9	NLA
4	STUD, BEARING CAP TO CYLINDER BLOCK (OIL PUMP SCREEN) (#16-56147) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
5	LOCKWASHER, OIL PUMP SCREEN STUD (#13-56177) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
6	NUT, OIL PUMP SCREEN STUD (#11-32219) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$2.16 ~~$2.70~~
7	CYLINDER HEAD ASSEMBLY (#949-4057) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
8	PLUG, EXPANSION - CYLINDER HEAD (#19-56102) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
9	GASKET, CYLINDER HEAD (#27-75647) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
10	BOLT, CYLINDER HEAD TO CYLINDER BLOCK (3 7/8") (#10-56112) Qty Required For Repair: 10 Minimum Order Qty: 1 Qty Required For Repair: 10	NLA
10	BOLT, CYLINDER HEAD TO CYLINDER BLOCK (2 1/4") (#10-56113) Qty Required For Repair: 10 Minimum Order Qty: 1 Qty Required For Repair: 10	NLA
11	PIN, REAR BEARING CAP - REAR SEAL RETAINING (#17-56139) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
12	PIN, DOWEL - CYLINDER BLOCK TO FLYWHEEL HOUSING (1") (#17-56151) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
15	INTAKE MANIFOLD (#56887) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
16	GASKET SET, INTAKE MANIFOLD (#27-73042) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
17	BAFFLE, INTAKE MANIFOLD (#56163) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
18	BOLT, INTAKE MANIFOLD TO CYLINDER HEAD (2") (#10-58261) Qty Required For Repair: 8 Minimum Order Qty: 1 Qty Required For Repair: 8	NLA
19	STUD, INTAKE MANIFOLD TO CYLINDER HEAD (2 3/8") (#16-58262) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
20	NUT, INTAKE MANIFOLD STUD (#11-58263) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
21	LIFTING EYE, INTAKE MANIFOLD (#54-54555) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
22	SCREW, LIFTING EYE TO INTAKE MANIFOLD (5/8") (#10-47258) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
23	WASHER, LIFTING EYE SCREW (#12-34437) Qty Required For Repair: 2 Minimum Order Qty: 2 Qty Required For Repair: 2 Minimum Order Qty: 2	$2.24 ~~$2.80~~
24	COVER, TIMING (#56103) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
25	WELCH PLUG, TIMING COVER (#19-21688) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
26	GASKET, TIMING COVER (#27-56108) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
27	POINTER, TIMING COVER (#56109) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
28	OIL SEAL, TIMING COVER (STANDARD ROTATION) (#26-56866) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
28	OIL SEAL, TIMING COVER (OPPOSITE ROTATION) (#26-56867) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
29	SCREW, TIMING COVER TO CYLINDER BLOCK (1 1/2") (#10-55511) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
30	SCREW, TIMING COVER TO CYLINDER BLOCK (2") (#10-815549) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: 10-25503, 10-77065 Qty Required For Repair: 2 Supersedes: 10-25503, 10-77065	$4.16 ~~$5.20~~
31	SCREW, WATER PUMP AND TIMING COVER ATTACHING (3 3/4") (#10-52743) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
32	WATER PUMP ASSEMBLY (STANDARD ROTATION) (#883885) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 71683 Supersedes: 71683	NLA
32	WATER PUMP ASSEMBLY (OPPOSITE ROTATION) (#883885) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 71683 Supersedes: 71683	NLA
33	GASKET, WATER PUMP (#27-56880) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
34	SCREW, WATER PUMP AND TIMING COVER ATTACHING (5 1/4") (#10-55300) Qty Required For Repair: 1 Minimum Order Qty: 1	$13.20 ~~$16.50~~
35	REINFORCEENT, WATER PUMP PULLEY (#58265) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
36	PULLEY, WATER PUMP (#56881) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
37	SCREW, PULLEY TO WATER PUMP (5/8") (#10-54630) Qty Required For Repair: 4 Minimum Order Qty: 5 Qty Required For Repair: 4 Minimum Order Qty: 5	NLA
38	LOCKWASER, PULLEY SCREW (#13-39107) Qty Required For Repair: 4 Minimum Order Qty: 5 Qty Required For Repair: 4 Minimum Order Qty: 5	$1.12 ~~$1.40~~
39	PLUG, PIPE - WATER PUMP (3/8-14) (#22-8M0204657) Qty Required For Repair: 1	$4.40 ~~$5.50~~
40	BELT, DRIVE - ALTERNATOR AND WATER PUMP (#57-93658Q) Qty Required For Repair: 1 Minimum Order Qty: 1	$28.72 ~~$29.92~~
41	OIL FILTER (#35-8M0116378) Qty Required For Repair: 1	$13.99 ~~$19.89~~
42	CONNECTOR, OIL FILTER TO CYLINDER BLOCK (#22-56876) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
43	OIL PUMP ASSEMBLY (#56174) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
44	GASKET, OIL PUMP (#27-56861) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
45	GASKET, OIL PUMP SCREEN (#27-56859) Qty Required For Repair: Minimum Order Qty: 1	NLA
46	SCREEN, OIL PUMP (#56856) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
47	SCREW, SCREEN TO OIL PUMP (7/8") (#10-56858) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	NLA
48	SRPING, OIL PUMP RELIEF VALVE (#24-56864) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
49	PLUNGER, OIL PUMP RELIEF VALVE (#56865) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
50	PLUG, OIL PUMP RELIEF VALVE (#19-56854) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
51	PLATE, OIL PUMP (#56179) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
52	SCREW, PLATE TO OIL PUMP (5/8") (#10-56133) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
53	LOCKWASHER, PLATE SCREW (#13-26992) Qty Required For Repair: 4 Minimum Order Qty: 5 Qty Required For Repair: 4 Minimum Order Qty: 5	$0.96 ~~$1.20~~
54	SHAFT ASSEMBLY, OIL PUMP (#56855) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
55	RING, RETAINING - OIL PUMP SHAFT (#53-56860) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
56	ROTOR AND SHAFT, OIL PUMP (#56178) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
57	SCREW, OIL PUMP TO CYLINDER BLOCK (1 1/4") (#10-56176) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
58	LOCKWASHER, OIL PUMP SCREW (#13-56177) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
59	OIL PAN (#61566) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
60	GASKET SET, OIL PAN (#27-64798) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
61	PLUG, PIPE - OIL PAN DRAIN (#22-8M0204657) Qty Required For Repair: 1	$4.40 ~~$5.50~~
62	SCREW, OIL PAN TO CYLINDER BLOCK (5/16-18 X 7/8") (#10-55714) Qty Required For Repair: 4 Minimum Order Qty: 2 Qty Required For Repair: 4 Minimum Order Qty: 2	NLA
63	SCREW, OIL PAN TO CYLINDER BLOCK (1/4-20 X 7/8") (#10-55715) Qty Required For Repair: 8 Minimum Order Qty: 2 Qty Required For Repair: 8 Minimum Order Qty: 2	$2.16 ~~$2.70~~
64	WASHER, OIL PAN SCREW (#12-46897) Qty Required For Repair: 8 Minimum Order Qty: 1 Qty Required For Repair: 8	NLA
65	ELBOW, OIL LEVEL GAUGE TUBE TO OIL PAN (#22-47625) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
66	NUT, OIL LEVEL GAUGE TUBE (#11-47626) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
67	TUBE, OIL LEVEL GAUGE (#86890A2) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
68	BRACKET, OIL LEVEL GAUGE TUBE CLIP (#47404) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
69	CLIP, OIL LEVEL GAUGE TUBE (#54-475451) Qty Required For Repair: 1 Minimum Order Qty: 1	$5.84 ~~$7.30~~
70	SCREW, OIL LEVEL GAUGE TUBE CLIP TO BRACKET (5/8") (#10-33524) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$0.24 ~~$0.30~~
71	LOCKWASHER, OIL LEVEL GAUGE TUBE CLIP SCREW (#13-39107) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$1.12 ~~$1.40~~
72	NUT, OIL LEVEL GAUGE TUBE CLIP SCREW (#11-22053) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$0.16 ~~$0.20~~
73	GAUGE, OIL LEVEL (DIPSTICK) STERN DRIVE (#55241T) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
73	GAUGE, OIL LEVEL (DIPSTICK) - INBOARD (#86194220) Qty Required For Repair: 1 Minimum Order Qty: 1	$71.76 ~~$74.75~~
-	HYDRAULIC SHIFT (STANDARD ROTATION) (#853-6088) Comment: MARINE 215 SHORT-BLOCK SERIAL 00000000-03040410 Qty Required For Repair: 1 Minimum Order Qty: 1 MARINE 215 SHORT-BLOCK SERIAL 00000000-03040410	NLA
-	HYDRAULIC SHIFT (OPPOSITE ROATION) (#853-6089) Comment: MARINE 215 SHORT-BLOCK SERIAL 00000000-03040410 Qty Required For Repair: 1 Minimum Order Qty: 1 MARINE 215 SHORT-BLOCK SERIAL 00000000-03040410	NLA
-	ELECTRIC SHIFT (STANDARD ROTATION) (#853-6088) Comment: MARINE 215 SHORT-BLOCK SERIAL 00000000-03040410 Qty Required For Repair: 1 Minimum Order Qty: 1 MARINE 215 SHORT-BLOCK SERIAL 00000000-03040410	NLA
-	MIE STANDARD ROTATION (#853-6088) Comment: MARINE 215 SHORT-BLOCK SERIAL 03040411-03085036 Qty Required For Repair: 1 Minimum Order Qty: 1 MARINE 215 SHORT-BLOCK SERIAL 03040411-03085036	NLA
-	MIE OPPOSITE ROTATION (#853-6089) Comment: MARINE 215 SHORT-BLOCK SERIAL 03040411-03085036 Qty Required For Repair: 1 Minimum Order Qty: 1 MARINE 215 SHORT-BLOCK SERIAL 03040411-03085036	NLA
-	MIE STANDARD ROTATION (#853-6088) Comment: MARINE 215 SHORT-BLOCK SERIAL 03258182-09999999 Qty Required For Repair: 1 Minimum Order Qty: 1 MARINE 215 SHORT-BLOCK SERIAL 03258182-09999999	NLA
-	MIE OPPOSITE ROTATION (#853-6089) Comment: MARINE 215 SHORT-BLOCK SERIAL 03258182-09999999 Qty Required For Repair: 1 Minimum Order Qty: 1 MARINE 215 SHORT-BLOCK SERIAL 03258182-09999999	NLA

Mercury Marine Parts Catalog

CYLINDER BLOCK, CYLINDER HEAD AND OIL PAN

This assembly is found in these models:
