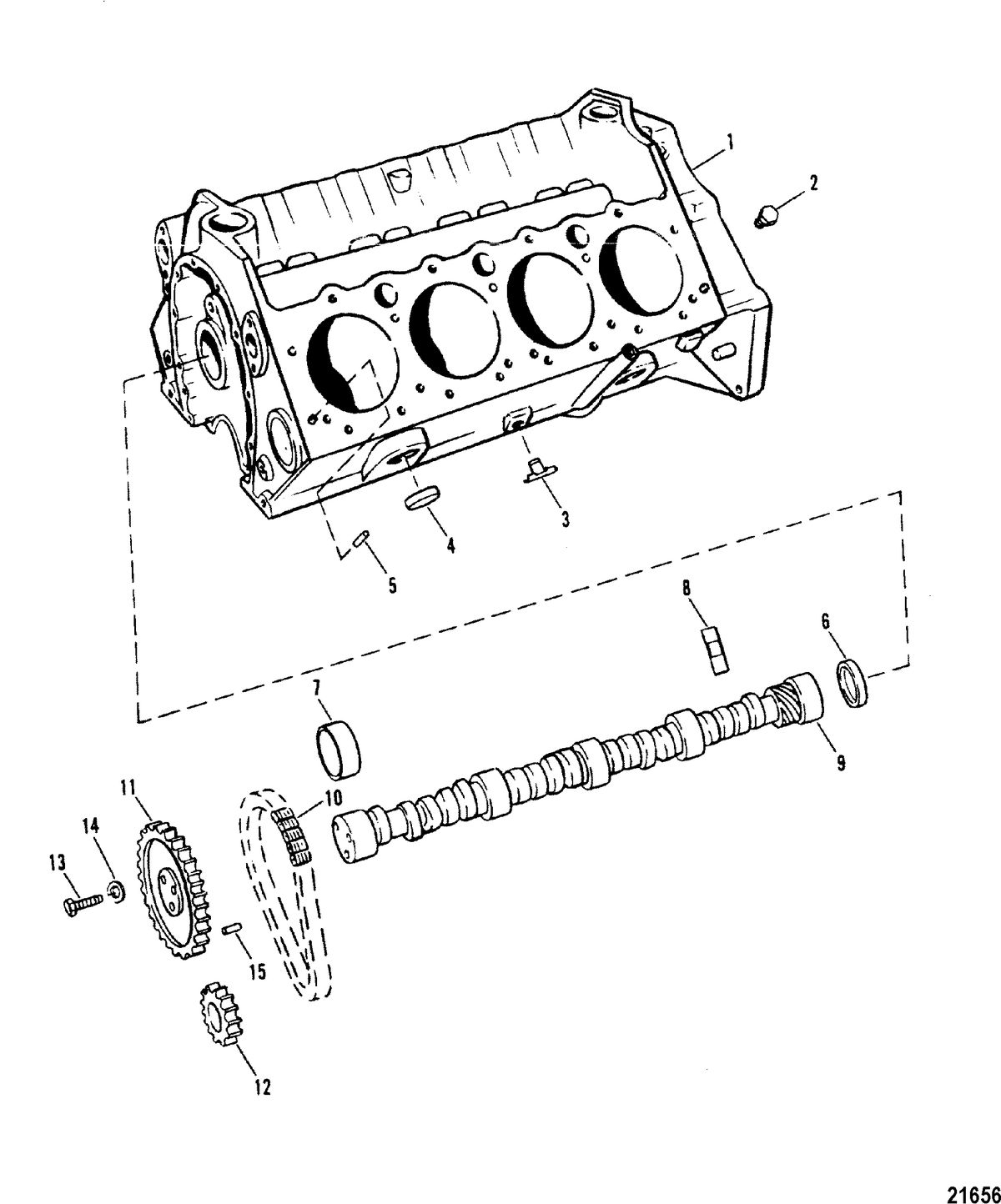

RACE STERNDRIVE - 425 GM 454 V-8 1990-1992 - Cylinder Block And Camshaft
| Ref ID | Description | Price | ||
|---|---|---|---|---|
| 1 |
420 And 425 Models - See Note 1 SN# 0A398941 THRU 0D725499
Supersedes: 14989A32 |
NLA
|
||
| 1 |
425 Models - See Note 1 SN# 0D725500 THRU 0D937011
Supersedes: 847705A13 |
NLA
|
||
| 1 |
420 And 425 Models - See Note 2 SN# 0A398941 THRU 0D725499
|
NLA
|
||
| 1 |
425 Models - See Note 2 SN# 0D725500 THRU 0D937011
|
NLA
|
||
| 2 |
Qty Required For Repair: 4
|
$5.20
|
|
|
| 2 |
Qty Required For Repair: 2
|
$3.92
|
|
|
| 3 |
Qty Required For Repair: 2
|
$4.24
|
|
|
| 4 |
Qty Required For Repair: 8
|
$19.28
|
|
|
| 5 |
Qty Required For Repair: 4
|
$8.40
|
|
|
| 6 |
|
$3.84
|
|
|
| 7 |
|
$109.21
|
|
|
| 8 |
Qty Required For Repair: 16
|
$133.88
|
|
|
| 9 |
|
NLA
|
||
| 10 |
SN# 0A398941 THRU 0D725499
|
NLA
|
||
| 10 |
SN# 0D725500 THRU 0D937011
Supersedes: 811580T, 811580 |
$230.25
|
|
|
| 11 |
SN# 0A398941 THRU 0D725499
|
NLA
|
||
| 11 |
SN# 0D725500 THRU 0D937011
|
NLA
|
||
| 12 |
SN# 0A398941 THRU 0D725499
|
NLA
|
||
| 12 |
SN# 0D725500 THRU 0D937011
Supersedes: 43-811579 |
$130.48
|
|
|
| 13 |
Qty Required For Repair: 3
|
$1.28
|
|
|
| 14 |
Qty Required For Repair: 3
Supersedes: 12-39167 |
$22.88
|
|
|
| 15 |
Supersedes: 17-35312
|
$12.32
|
|
|
| - |
SN# 0A398941 THRU 0D725499
|
NLA
|
||
| - |
SN# 0D725500 THRU 0D937011
Supersedes: 27-808730A92 |
NLA
|
Notes
1: Long Block Includes Internal Parts and Cylinder Heads. If Changing From Mark IV Style Engine To Generation V Style, An Update Kit Part Number 847818A4 Will Be Required.
2: Gasket Sets Required For Complete Overhaul. Partial Engine Includes Only Standard Pistons, Piston Rings, Crankshaft Bearings And Camshaft Bearings.
