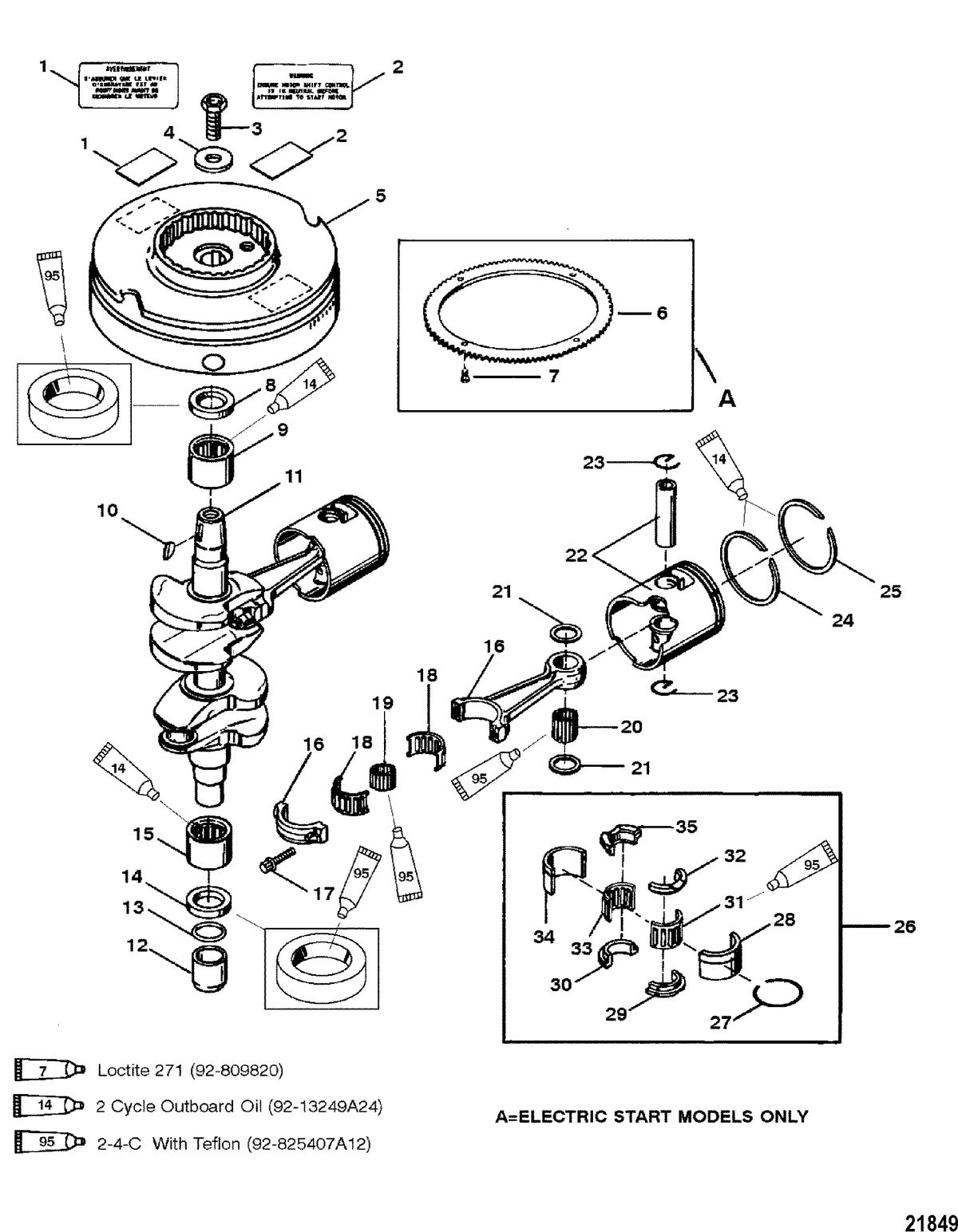

MERCURY - 20 JET - Crankshaft, Pistons and Flywheel

Ref ID	Description	Price
1	NOT SOLD SEPARATE, Decal-Warning (#NSS) Qty Required For Repair: 1	NLA
2	NOT SOLD SEPARATE, Decal-Warning (#NSS) Qty Required For Repair: 1	NLA
3	SCREW ASSEMBLY (#10-97359A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
4	WASHER (#12-86496) Qty Required For Repair: 1 Minimum Order Qty: 1	$3.20 ~~$4.00~~
5	FLYWHEEL (#258-859232T15) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 258-859232T 6 Supersedes: 258-859232T 6	$568.63 ~~$588.64~~
6	RING GEAR (#43-99301) Comment: ELECTRIC Qty Required For Repair: 1 Minimum Order Qty: 1 ELECTRIC	$303.53 ~~$356.25~~
7	SCREW, (M5 x 13) (#10-88190313) Comment: ELECTRIC Qty Required For Repair: 4 Minimum Order Qty: 1 ELECTRIC Qty Required For Repair: 4	$1.44 ~~$1.80~~
8	SEAL, Oil (QTY. OF 2 USED ON ELECTRIC RC) (#26-859741) Qty Required For Repair: 1 Minimum Order Qty: 1	$18.08 ~~$18.83~~
9	BEARING, Roller - Upper (#31-85114T) Qty Required For Repair: 1 Minimum Order Qty: 1	$29.28 ~~$30.50~~
10	KEY, Woodruff (#28-20094) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$1.44 ~~$1.80~~
11	CRANKSHAFT ASSEMBLY (#464-8978T2) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
12	WEAR SLEEVE (#822445A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$18.40 ~~$19.17~~
13	NOT SOLD SEPARATE, O-Ring (#NSS) Qty Required For Repair: 1	NLA
14	SEAL, Oil, LOWER (#26-85107) Qty Required For Repair: 1 Minimum Order Qty: 1	$16.08 ~~$16.75~~
15	BEARING, Roller (#31-85113T) Qty Required For Repair: 1 Minimum Order Qty: 1	$26.56 ~~$27.67~~
16	CONNECTING ROD ASSEMBLY (#630-8835A4) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
17	SCREW, (.250-28 Special) (#10-91012) Qty Required For Repair: 4 Minimum Order Qty: 5 Qty Required For Repair: 4 Minimum Order Qty: 5	$6.32 ~~$7.90~~
18	BEARING ASSEMBLY, Roller (#31-879877A1) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$41.68 ~~$43.42~~
19	NOT SOLD SEPARATE, Roller (#NSS) Qty Required For Repair: 24 Qty Required For Repair: 24	NLA
20	BEARING, Needle (#29-98295) Qty Required For Repair: 54 Minimum Order Qty: 200 Qty Required For Repair: 54 Minimum Order Qty: 200	$0.32 ~~$0.40~~
21	BEARING (#12-8M0012294) Qty Required For Repair: 4 Minimum Order Qty: 1 Supersedes: 42025 Qty Required For Repair: 4 Supersedes: 42025	$4.88 ~~$6.10~~
22	PISTON ASSEMBLY (#767-9104T19) Comment: SN# USA-0G202749/BEL-9855586 & Below Qty Required For Repair: 2 Minimum Order Qty: 1 SN# USA-0G202749/BEL-9855586 & Below Qty Required For Repair: 2	NLA
22	PISTON ASSEMBLY (#767-879878T5) Comment: (Standard) SN# USA-0G202750/BEL-9855587 & Up Qty Required For Repair: 2 Minimum Order Qty: 1 (Standard) SN# USA-0G202750/BEL-9855587 & Up Qty Required For Repair: 2	$151.85 ~~$166.50~~
22	PISTON ASSEMBLY (#767-879878A6) Comment: (.030 Oversize) SN# USA-0G202750/BEL-9855587 & Up Qty Required For Repair: 2 Minimum Order Qty: 1 (.030 Oversize) SN# USA-0G202750/BEL-9855587 & Up Qty Required For Repair: 2	$172.53 ~~$202.50~~
23	LOCK RING, Piston Pin (#40-828119) Comment: SN# USA-0G202749/BEL-9855586 & Below Qty Required For Repair: 4 Minimum Order Qty: 1 Supersedes: 40-47276 SN# USA-0G202749/BEL-9855586 & Below Qty Required For Repair: 4 Supersedes: 40-47276	$2.56 ~~$3.20~~
23	LOCK RING, Piston Pin (#40-828119) Comment: SN# USA-0G202750/BEL-9855587 & Up Qty Required For Repair: 4 Minimum Order Qty: 1 Supersedes: 40-47276 SN# USA-0G202750/BEL-9855587 & Up Qty Required For Repair: 4 Supersedes: 40-47276	$2.56 ~~$3.20~~
24	RING SET, Piston (#39-827491A12) Comment: SN# USA-0G202749/BEL-9855586 & Below Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 39-18652A12 SN# USA-0G202749/BEL-9855586 & Below Supersedes: 39-18652A12	$221.59 ~~$260.08~~
24	RING SET, Piston (#39-827491A12) Comment: (Standard) SN# USA-0G202750/BEL-9855587 & Up Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 39-18652A12 (Standard) SN# USA-0G202750/BEL-9855587 & Up Supersedes: 39-18652A12	$221.59 ~~$260.08~~
24	RING SET, Piston (#39-18652A2) Comment: (.030 Oversize) SN# USA-0G202750/BEL-9855587 & Up Qty Required For Repair: 1 Minimum Order Qty: 1 (.030 Oversize) SN# USA-0G202750/BEL-9855587 & Up	$143.49 ~~$168.42~~
25	NOT SOLD SEPARATE, Piston Ring (#NSS) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
26	BEARING ASSEMBLY, Center Main (#86992A5) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
27	NOT SOLD SEPARATE, Bearing (#NSS) Qty Required For Repair: 1	NLA
28	NOT SOLD SEPARATE, Bearing (#NSS) Qty Required For Repair: 1	NLA
29	NOT SOLD SEPARATE, Thrust Washer (#NSS) Qty Required For Repair: 1	NLA
30	NOT SOLD SEPARATE, Thrust Washer (#NSS) Qty Required For Repair: 1	NLA
31	NOT SOLD SEPARATE, Needle Roller (#NSS) Qty Required For Repair: 1	NLA
32	NOT SOLD SEPARATE, Thrust Washer (#NSS) Qty Required For Repair: 1	NLA
33	NOT SOLD SEPARATE, Needle Roller (#NSS) Qty Required For Repair: 1	NLA
34	NOT SOLD SEPARATE, Bearing (#NSS) Qty Required For Repair: 1	NLA
35	NOT SOLD SEPARATE, Thrust Washer (#NSS) Qty Required For Repair: 1	NLA
-	GASKET SET (#27-41499A88) Qty Required For Repair: 1 Minimum Order Qty: 1	$130.42 ~~$143.00~~
-	POWERHEAD ASSEMBLY (#804946T01) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 804946T00, 804350T99, 90885T99 Supersedes: 804946T00, 804350T99, 90885T99	NLA

MERCURY/MARINER 20/25/JET 20/SUPER 15/15XD/25 SEAPRO/MARATHON 2 CYLINDER Crankshaft, Pistons and Flywheel

Notes

1: FOR REPLACEMENT OF POWERHEAD ASSEMBLY, COMPLETE, WHICH INCLUDES CYLINDER BLOCK AND CRANKCASE, PISTONS, CONNECTING RODS AND BEARINGS, ETC., ORDER THE PART NUMBER LISTED ABOVE.

This assembly is found in these models:

MARINER > 15 MARATHON XD
MERCURY > 15 SEA PRO (XD)
MARINER > 20 (2 CYL.)
MERCURY > 20 JET
MARINER > 25, 25 MARATHON, SUPER 15 (2 CYL.)
MERCURY > 25, 25 SEA PRO, SUPER 15 (2 CYL.)
