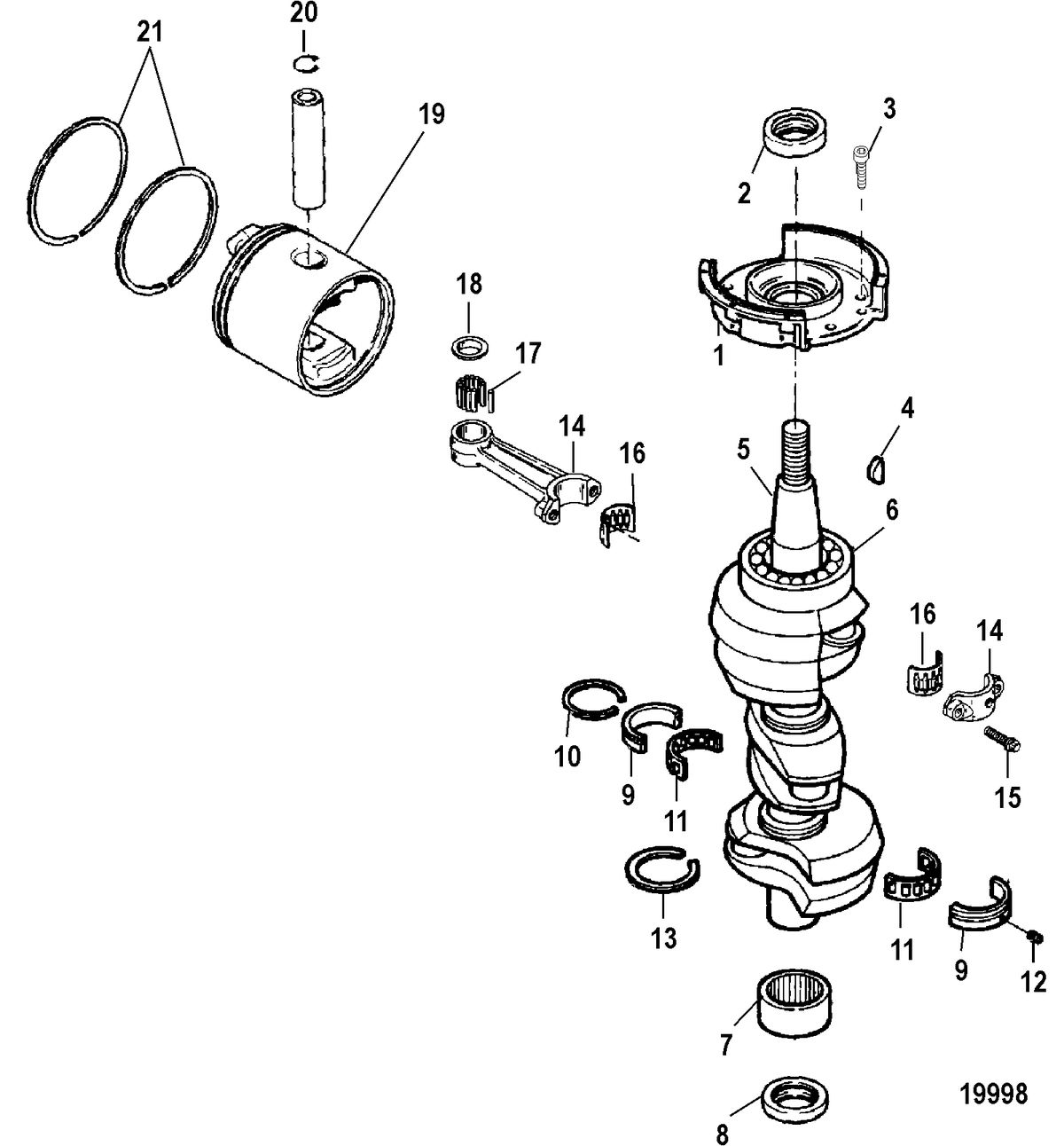

FORCE - 75 H.P. (1999) - Crankshaft, Pistons and Connecting Rods
| Ref ID | Description | Price | ||
|---|---|---|---|---|
| 1 |
|
NLA
|
||
| 2 |
Supersedes: 26-F474146
|
$23.84
|
|
|
| 3 |
Qty Required For Repair: 5
|
$2.16
|
|
|
| 4 |
Minimum Order Qty: 2
|
$2.69
|
|
|
| 5 |
|
NLA
|
||
| 6 |
|
NLA
|
||
| 7 |
|
$218.61
|
|
|
| 8 |
(SEE NOTE #1)
Supersedes: 26-F523146-1, F523146, F532146, 26-F84146-2, F84146-1, F84146 |
$22.00
|
|
|
| 9 |
Qty Required For Repair: 2
|
NLA
|
||
| 10 |
Qty Required For Repair: 2
|
NLA
|
||
| 11 |
Qty Required For Repair: 2
Supersedes: F85571, F85871 |
NLA
|
||
| 12 |
(INCLUDED AND PRESSED INTO CYLINDER ASSEMBLY 800-818153A55)
Qty Required For Repair: 3 Supersedes: 17-F85909-1, F85909 |
NLA
|
||
| 13 |
Qty Required For Repair: 2
Supersedes: FA316579 |
$13.92
|
|
|
| 14 |
Qty Required For Repair: 3
|
$438.55
|
|
|
| 15 |
SEE NOTE #2
Qty Required For Repair: 6 Minimum Order Qty: 5 |
$6.08
|
|
|
| 16 |
Qty Required For Repair: 3
|
$64.88
|
|
|
| 17 |
Qty Required For Repair: 87
|
$0.32
|
|
|
| 18 |
Qty Required For Repair: 6
Minimum Order Qty: 6 Supersedes: 12-812876 |
$4.08
|
|
|
| 19 |
(STANDARD)
Qty Required For Repair: 3 Supersedes: 700-828304A10, 700-828304A 6 |
NLA
|
||
| 19 |
(.015 OVERSIZE)
Qty Required For Repair: OPT Supersedes: 700-828304A11, 700-828304A 7 |
NLA
|
||
| 19 |
(.030 OVERSIZE)
Qty Required For Repair: OPT Supersedes: 700-828304A12, 700-828304A 8 |
NLA
|
||
| 20 |
Qty Required For Repair: 6
Minimum Order Qty: 15 Supersedes: 40-52035 |
$2.64
|
|
|
| 21 |
(STANDARD)
Qty Required For Repair: 3 |
$14.32
|
|
|
| 21 |
(.015 OVERSIZE)
Qty Required For Repair: OPT |
NLA
|
||
| 21 |
(.030 OVERSIZE)
Qty Required For Repair: OPT |
NLA
|
||
| - |
|
$153.15
|
|
|
| - |
Supersedes: 800-818153A57, 800-818153A41
|
NLA
|
Notes
2: NOTE #1: GARTER SPRING TO BE DOWN AND CLOSED END OF SEAL AWAY FROM BEARING.
3: NOTE #2: APPLY LIGHT COAT OF 2-CYCLE OIL TO BOLT HEAD AND THREADS. ALWAYS USE NEW SCREWS. 120 LB. IN. (13.5 N[M) THEN TURN AN ADDITIONAL 90 DEGREES.
