Crankshaft, Pistons And Connecting Rods (646-818846)

Ref ID	Description	Price
1	CRANKSHAFT ASSEMBLY (#473-9193T3) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
2	BEARING, Ball, Lower (#30-43011T) Qty Required For Repair: 1 Minimum Order Qty: 1	$84.49 ~~$76.33~~
3	WEAR SLEEVE (#786611) Qty Required For Repair: 1 Minimum Order Qty: 1	$15.05 ~~$16.30~~
4	O-RING, (.859 x .139) (#25-35126) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$1.87 ~~$2.00~~
5	RING ASSEMBLY (#39-818412A4) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$53.21 ~~$50.42~~
6	KEY, Woodruff (#28-91800) Qty Required For Repair: 2 Minimum Order Qty: 2 Qty Required For Repair: 2 Minimum Order Qty: 2	$2.19 ~~$1.63~~
7	GEAR ASSEMBLY (#43-43019A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$60.78 ~~$52.25~~
8	BEARING ASSEMBLY, Roller (#42943A1) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	$92.30 ~~$109.90~~
9	PISTON ASSEMBLY (#777-815965T4) Comment: (Standard) Qty Required For Repair: 4 Minimum Order Qty: 1 (Standard) Qty Required For Repair: 4	NLA
9	PISTON ASSEMBLY (#777-815965A5) Comment: (.015 Oversize) Qty Required For Repair: AR Minimum Order Qty: 1 (.015 Oversize)	$154.54 ~~$192.50~~
9	PISTON ASSEMBLY (#777-815965A6) Comment: (.030 Oversize) Qty Required For Repair: AR Minimum Order Qty: 1 (.030 Oversize)	NLA
10	RING, Lock (#53-857196) Qty Required For Repair: 8 Minimum Order Qty: 15 Supersedes: 40-52035 Qty Required For Repair: 8 Minimum Order Qty: 15 Supersedes: 40-52035	$2.21 ~~$2.30~~
11	RING SET, Piston (#39-96170A12) Qty Required For Repair: 1 Minimum Order Qty: 1	$223.80 ~~$229.17~~
11	RING SET, Piston (#39-96170A3) Comment: (.015 Oversize) Qty Required For Repair: AR Minimum Order Qty: 1 (.015 Oversize)	NLA
11	RING SET, Piston (#39-96170A4) Comment: (.030 Oversize) Qty Required For Repair: AR Minimum Order Qty: 1 (.030 Oversize)	$159.45 ~~$163.33~~
12	CONNECTING ROD ASSEMBLY (#646-818846T6) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	$332.25 ~~$287.42~~
13	WASHER (#12-8M0012298) Qty Required For Repair: 8 Minimum Order Qty: 6 Supersedes: 12-812876 Qty Required For Repair: 8 Minimum Order Qty: 6 Supersedes: 12-812876	$3.40 ~~$3.70~~
14	BEARING, Needle (#29-818391001) Qty Required For Repair: 116 Minimum Order Qty: 200 Supersedes: 29-818391 Qty Required For Repair: 116 Minimum Order Qty: 200 Supersedes: 29-818391	$0.34 ~~$0.36~~
15	SCREW, (.375-24 x 1.250) (#10-94320) Qty Required For Repair: 8 Minimum Order Qty: 1 Qty Required For Repair: 8	$6.21 ~~$6.70~~
16	BEARING ASSEMBLY, Roller (#31-844338A01) Qty Required For Repair: 4 Minimum Order Qty: 1 Supersedes: 31-43012A04 Qty Required For Repair: 4 Supersedes: 31-43012A04	$77.27 ~~$81.40~~
17	BEARING ASSEMBLY, Roller, Upper (#31-43013T3) Qty Required For Repair: 1 Minimum Order Qty: 1	$82.15 ~~$81.50~~
18	SEAL, Oil (#26-43993) Qty Required For Repair: 1 Minimum Order Qty: 1	$19.81 ~~$21.50~~
19	O-RING (#25-823683) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 25-64067 Supersedes: 25-64067	$2.04 ~~$2.10~~
-	POWERHEAD ASSEMBLY (#17791T92) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA

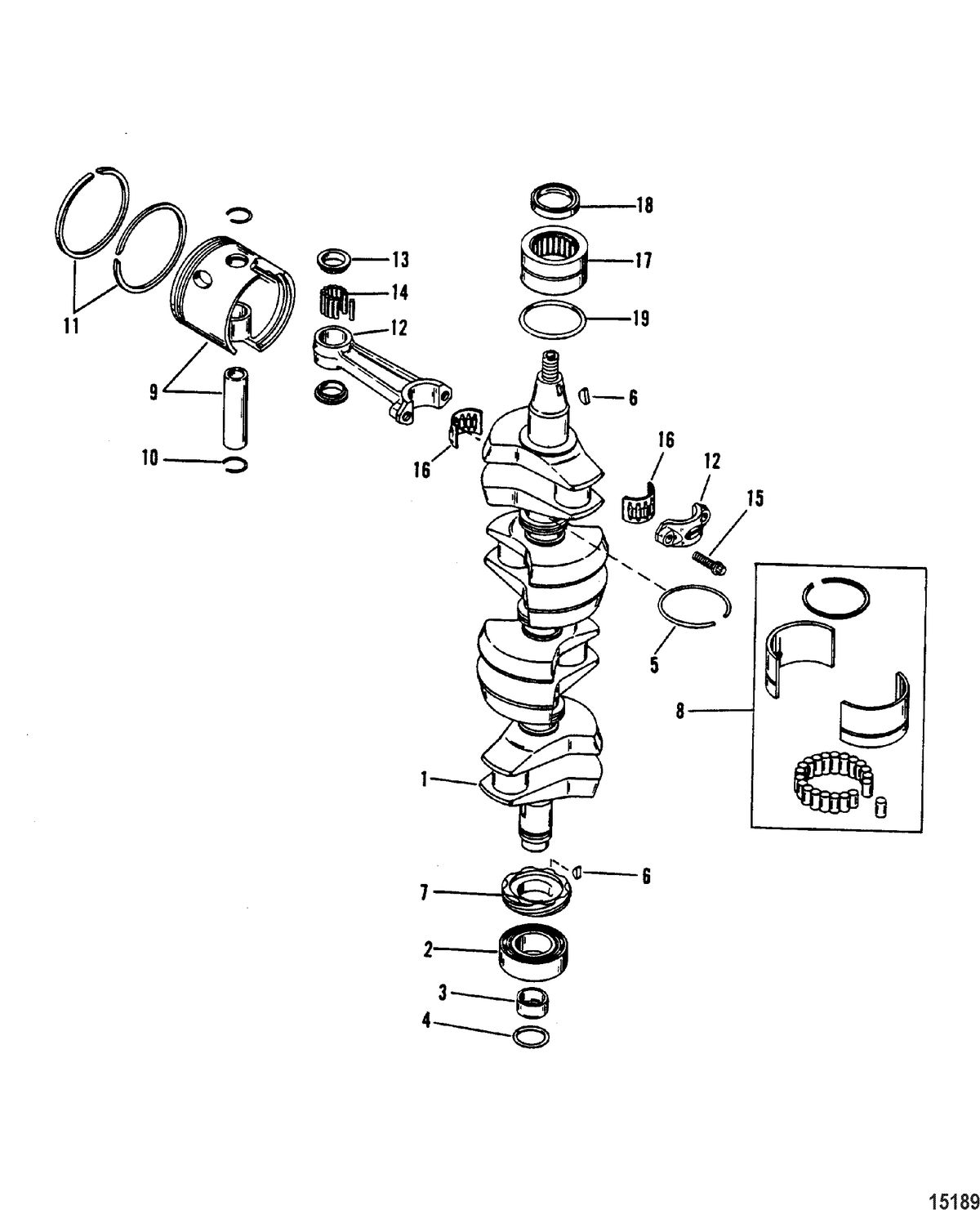

To zoom in, move your mouse over the diagram.

MERCURY/MARINER 100 / 115 HP (4 CYLINDER) Crankshaft, Pistons And Connecting Rods (646-818846)

Notes

1: For Replacement Of Powerhead Assembly, Complete, Which Includes Cylinder Block And Crankcase,
2: Pistons, Connecting Rods And Bearings, Etc., Order Powerhead Assembly 17791A92
3: Use THis Page If Your Connecting Rod Forging Number Is 646-818846

This assembly is found in these models:

MARINER > 100 (4 CYL.)
MARINER > 115 (4 CYL.)
