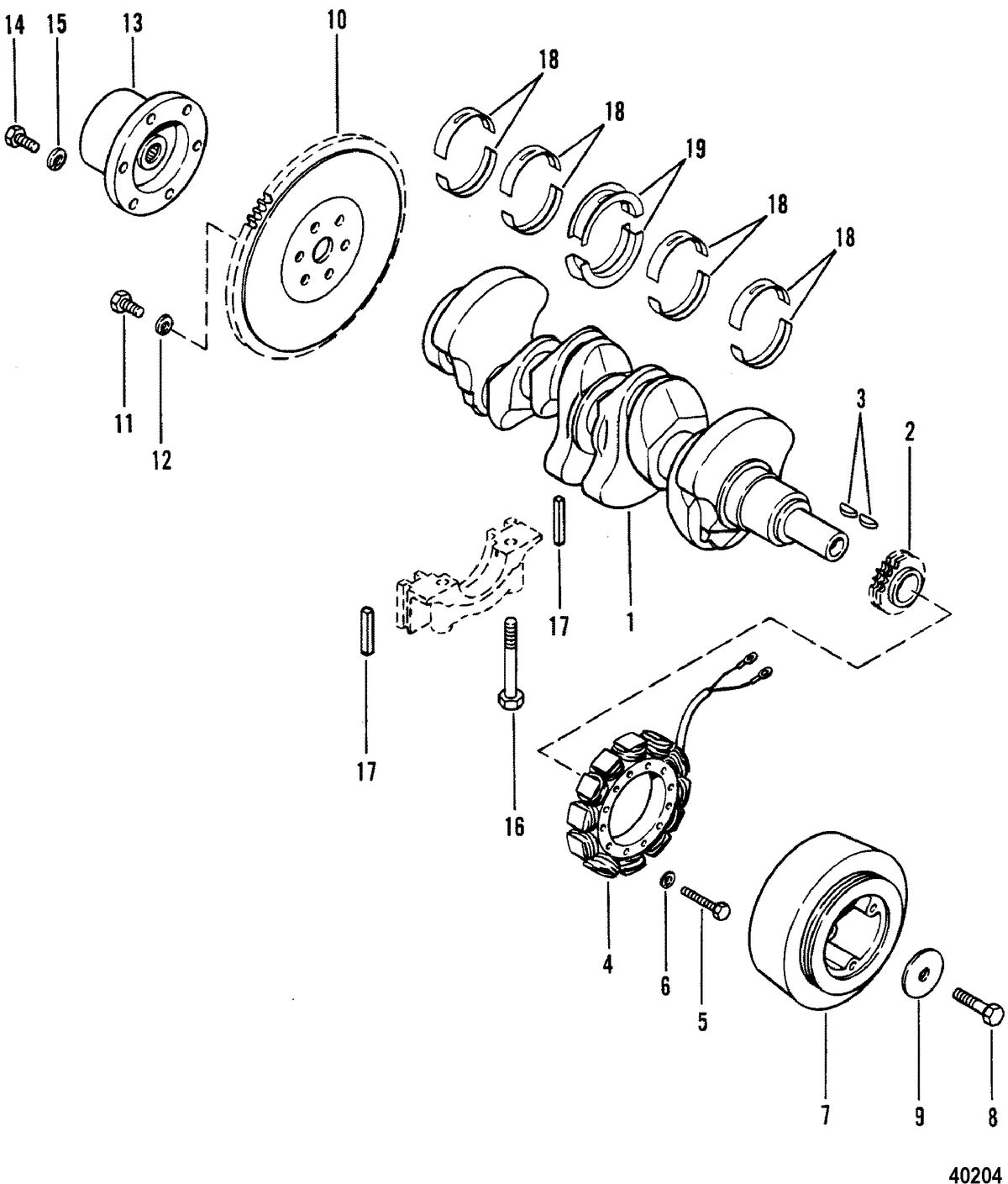

CRANKSHAFT, FLYWHEEL AND ALTERNATOR

Ref ID	Description	Price
1	CRANKSHAFT (#456-6092A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
2	SPROCKET, CRANKSHAFT (#68700) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
3	KEY, SPROCKET AND ALTERNATOR (#28-67382) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
4	STATOR ASSEMBLY, ALTERNATOR (#398-6231A10) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
5	SCREW, (#10-24 x 1.50), STRATOR TO FRONT COVER (#10-77363) Qty Required For Repair: 5 Minimum Order Qty: 5 Qty Required For Repair: 5 Minimum Order Qty: 5	NLA
6	LOCKWASHER, (#10) Stainless Steel (#13-26996) Qty Required For Repair: 5 Minimum Order Qty: 15 Qty Required For Repair: 5 Minimum Order Qty: 15	$0.96 ~~$1.20~~
7	ALTERNATOR ASSEMBLY, Flywheel, FLYWHEEL (#93009A06) Qty Required For Repair: 1 Minimum Order Qty: 1	$578.98 ~~$599.36~~
8	SCREW, (.500-20 x 1.380), ALTERNATOR (#10-59644) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
9	WASHER, (Steel, 1.75 Inch Outside Diameter), ALTERNATOR SCREW (#12-36103) Qty Required For Repair: 1 Minimum Order Qty: 2 Minimum Order Qty: 2	$3.04 ~~$3.80~~
10	FLYWHEEL (#251-9741A2) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
11	SCREW, (.437-20 x 1.00), FLYWHEEL TO CRANKSHAFT (#10-8M0214958) Qty Required For Repair: 6 Qty Required For Repair: 6	$4.56 ~~$5.70~~
12	LOCKWASHER, (.437), FLYWHEEL SCREW (#13-39131) Qty Required For Repair: 6 Minimum Order Qty: 2 Qty Required For Repair: 6 Minimum Order Qty: 2	$0.80 ~~$1.00~~
13	COUPLING ASSEMBLY, ENGINE (#97432A2) Qty Required For Repair: 1 Minimum Order Qty: 1	$670.61 ~~$694.21~~
14	SCREW, (.375-16 x 1.250), COUPLING TO FLYWHEEL (#10-37612) Qty Required For Repair: 6 Minimum Order Qty: 5 Qty Required For Repair: 6 Minimum Order Qty: 5	$1.92 ~~$2.40~~
15	LOCKWASHER, (.375), COUPLING SCREW (#13-35048) Qty Required For Repair: 6 Minimum Order Qty: 5 Qty Required For Repair: 6 Minimum Order Qty: 5	$0.96 ~~$1.20~~
16	SCREW, (.500-13 x 4.00), MAIN BEARING CAPS (#10-74335) Qty Required For Repair: 10 Minimum Order Qty: 1 Qty Required For Repair: 10	NLA
17	SEAL, REAR BEARING CAP (#26-98421A1) Qty Required For Repair: 1 Minimum Order Qty: 1	$26.96 ~~$28.08~~
18	BEARING ASSEMBLY, Main (STANDARD) (#74313A1) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
18	BEARING ASSEMBLY, Main (.002 U.S.) (#74313A2) Qty Required For Repair: AR Minimum Order Qty: 1 Qty Required For Repair: AR	NLA
18	BEARING ASSEMBLY, Main (.010 U.S. (#74313A4) Qty Required For Repair: AR Minimum Order Qty: 1 Qty Required For Repair: AR	NLA
18	BEARING ASSEMBLY, Main (.020 U.S.) (#74313A3) Qty Required For Repair: AR Minimum Order Qty: 1 Qty Required For Repair: AR	NLA
19	BEARING ASSEMBLY, Center Main (STANDARD) (#23-853849) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 15103A 1 Supersedes: 15103A 1	NLA
19	BEARING ASSEMBLY, Center Main (.002 U.S.) (#15103A2) Qty Required For Repair: AR Minimum Order Qty: 1 Qty Required For Repair: AR	NLA
19	BEARING ASSEMBLY, Center Main (.010 U.S.) (#23-853851) Qty Required For Repair: AR Minimum Order Qty: 1 Supersedes: 15103A 4 Qty Required For Repair: AR Supersedes: 15103A 4	NLA
19	BEARING ASSEMBLY, Center Main (.020 U.S.) (#23-853852) Qty Required For Repair: AR Minimum Order Qty: 1 Supersedes: 15103A 3 Qty Required For Repair: AR Supersedes: 15103A 3	NLA

Notes

1: WHEN ORDERING REPLACEMENT BEARINGS REFER TO M/C SERVICE MANUAL 90-71707 SEC. 5 PART D.

This assembly is found in these models:

MERCRUISER > 470 (2 BBL.) MERCURY 224 I/L4 1983-1984
