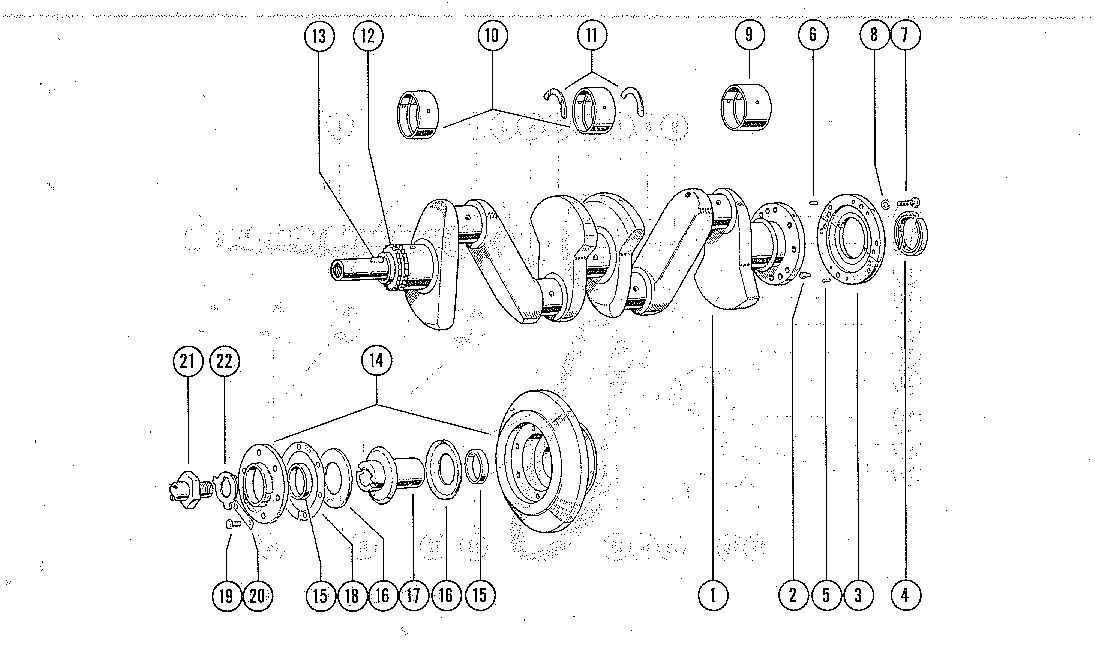

CRANKSHAFT AND VIBRATION DAMPER

Ref ID	Description	Price
1	CRANKSHAFT (#432-2435) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
2	PIN, DOWEL - CRANKSHAFT (#17-36623) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
3	CARRIER ASSEMBLY, OIL SEAL - REAR (#36635) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
4	OIL SEAL, CARRIER - REAR (#26-36636) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
5	PIN, DOWEL - CRANKSHAFT (LOWER) (#17-36638) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
6	PIN, DOWEL - CRANKSHAFT (UPPER) (#17-36639) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
7	BOLT, OIL SEAL CARRIER TO CRANKSHAFT (7/8") (#10-36641) Qty Required For Repair: 10 Minimum Order Qty: 1 Qty Required For Repair: 10	NLA
8	LOCKWASHER, OIL SEAL CARRIER BOLT (#13-36640) Qty Required For Repair: 10 Minimum Order Qty: 1 Qty Required For Repair: 10	NLA
9	BEARING UNIT (1 PAIR), CRANKSHAFT (REAR) - STANDARD (#23-36627) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
9	BEARING UNIT (1 PAIR), CRANKSHAFT (REAR) - .010 U.S. (#23-36628) Qty Required For Repair: AR Minimum Order Qty: 1 Qty Required For Repair: AR	NLA
9	BEARING UNIT (1 PAIR), CRANKSHAFT (REAR) - .020 U.S. (#23-36629) Qty Required For Repair: AR Minimum Order Qty: 1 Qty Required For Repair: AR	NLA
10	BEARING UNIT(1 PAIR),CRANKSHAFT(FRONT AND CENTER)-STANDARD (#23-36624) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
10	BEARING UNIT(1 PAIR),CRANKSHAFT(FRONT AND CENTER)-.010 U.S. (#23-36625) Qty Required For Repair: AR Minimum Order Qty: 1 Qty Required For Repair: AR	NLA
10	BEARING UNIT(1 PAIR),CRANKSHAFT(FRONT AND CENTER)-.020 U.S. (#23-36626) Qty Required For Repair: AR Minimum Order Qty: 1 Qty Required For Repair: AR	NLA
11	WASHER, THRUST - CRANKSHAFT (STANDARD) (#12-36630) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
11	WASHER, THRUST - CRANKSHAFT (.0025 O.S.) (#12-36631) Qty Required For Repair: AR Minimum Order Qty: 1 Qty Required For Repair: AR	NLA
11	WASHER, THRUST - CRANKSHAFT (.005 O.S.) (#12-36632) Qty Required For Repair: AR Minimum Order Qty: 1 Qty Required For Repair: AR	NLA
11	WASHER, THRUST - CRANKSHAFT (.0075 O.S.) (#12-36633) Qty Required For Repair: AR Minimum Order Qty: 1 Qty Required For Repair: AR	NLA
11	WASHER, THRUST - CRANKSHAFT (.010 O.S.) (#12-36634) Qty Required For Repair: AR Minimum Order Qty: 1 Qty Required For Repair: AR	NLA
12	GEAR, CRANKSHAFT TIMING (#43-36642) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
13	KEY, CRNAKSHAFT GEAR AND VIBRATION DAMPER (#28-36643) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
14	VIBRATION DAMPER ASSEMBLY, CRANKSHAFT (#36644) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
15	BUSHING, VIBRATION DAMPER (#23-36645) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
16	DISC, RUBBER - VIBRATION DAMPER (#36647) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
17	FLANGE, DRIVING - VIBRATION DAMPER (#36646) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
18	SHIM, VIBRATION DAMPER (#15-36648) Qty Required For Repair: AR Minimum Order Qty: 1 Qty Required For Repair: AR	NLA
19	BOLT, VIBRATION DAMPER CLAMPING (5/8") (#10-36649) Qty Required For Repair: 6 Minimum Order Qty: 1 Qty Required For Repair: 6	NLA
20	TAB WASHER, VIBRATION DAMPER CLAMPING BOLT (#14-36650) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	NLA
21	DOG, STARTING - VIBRATION DAMPER (#36651) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
22	TAB WASHER, STARTING DOG (#14-36652) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA

CRANKSHAFT AND VIBRATION DAMPER

This assembly is found in these models:
