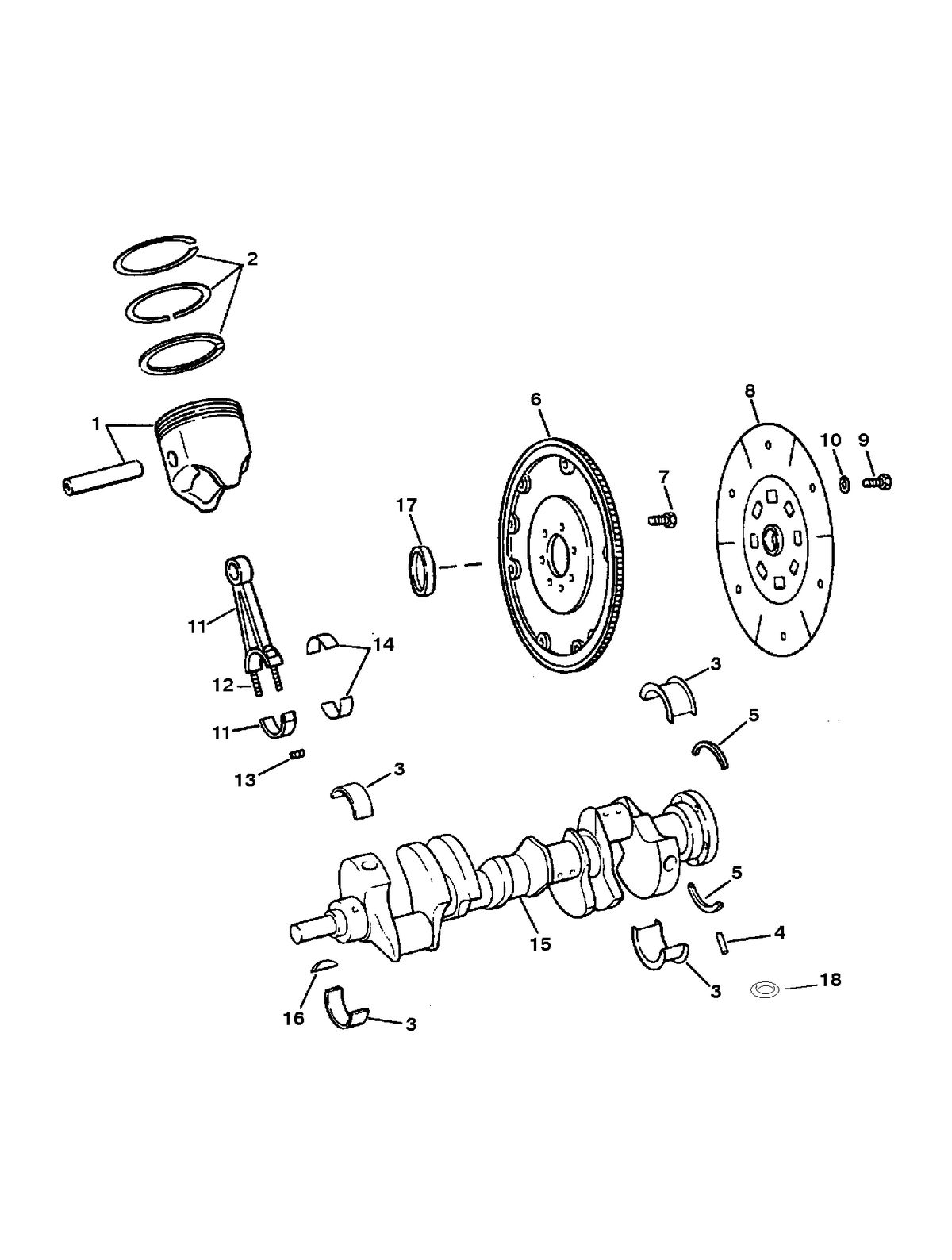

RACE STERNDRIVE - 600 SC GEN IV & V GM 502 V-8 1991-1996 - CRANKSHAFT AND PISTONS AND CONNECTING RODS
| Ref ID | Description | Price | ||
|---|---|---|---|---|
| 1 |
Qty Required For Repair: 8
Supersedes: 2701-821003 |
NLA
|
||
| 1 |
(SEE NOTE #1)
Qty Required For Repair: 8 |
NLA
|
||
| 2 |
(SEE NOTE #1)
|
NLA
|
||
| 2 |
Supersedes: 39-818874034
|
NLA
|
||
| 3 |
Supersedes: 23-818473, 23-85686, FI1100912, F347013
|
NLA
|
||
| 3 |
Qty Required For Repair: AR
Supersedes: 23-85687 |
NLA
|
||
| 3 |
Qty Required For Repair: AR
Supersedes: 23-85688 |
NLA
|
||
| 3 |
Qty Required For Repair: AR
Supersedes: 23-818476, 23-85689, FI1100915, F347016 |
$177.43
|
|
|
| 3 |
Qty Required For Repair: AR
Supersedes: 23-85690, FI1100916, F347017 |
$154.85
|
|
|
| 4 |
Supersedes: 17-35312
|
$12.32
|
|
|
| 5 |
(SERIAL # 0D456489 THRU 0D456768)
Supersedes: 26-14756 |
$122.28
|
|
|
| 5 |
(SERIAL # 0D725676 THRU 0F877642)
|
$101.31
|
|
|
| 6 |
(GEN V DRIVELINE OR TRANSMISSION MODELS)
|
NLA
|
||
| 6 |
(MARK IV DRIVELINE OR TRANSMISSION MODELS)
|
NLA
|
||
| 7 |
Qty Required For Repair: 6
|
$4.56
|
|
|
| 8 |
Supersedes: 816618, 74816
|
$1,084.08
|
|
|
| 9 |
Qty Required For Repair: AR
Minimum Order Qty: 5 |
$12.80
|
|
|
| 10 |
Qty Required For Repair: AR
Minimum Order Qty: 5 |
$0.96
|
|
|
| 11 |
Qty Required For Repair: 8
Supersedes: 614-9641T |
$356.58
|
|
|
| 12 |
Qty Required For Repair: 16
|
NLA
|
||
| 13 |
Qty Required For Repair: 16
|
$3.92
|
|
|
| 14 |
Qty Required For Repair: 8
|
$26.00
|
|
|
| 14 |
Qty Required For Repair: AR
|
NLA
|
||
| 14 |
Qty Required For Repair: AR
|
NLA
|
||
| 14 |
Qty Required For Repair: AR
|
$22.00
|
|
|
| 14 |
Qty Required For Repair: AR
|
$19.92
|
|
|
| 15 |
(SERIAL # 0D456489 THRU 0D456768)
|
NLA
|
||
| 15 |
(SERIAL # 0D725676 THRU 0F877642)
Supersedes: 429-845597T, 429-811550 |
NLA
|
||
| 16 |
(MARK IV) (SERIAL # 0D456489 THRU 0D456768)
|
$2.88
|
|
|
| 16 |
(GEN V) (SERIAL # 0D725676 THRU 0F877642)
Supersedes: 28-811558 |
$5.76
|
|
|
| 17 |
(DRIVELINE MODELS ONLY)
Supersedes: 23-62075 |
$139.43
|
|
|
| 18 |
|
$2.80
|
|
|
| - |
(SER. # 0D456489 THRU 0D456768)
|
NLA
|
||
| - |
(SER. # 0D725676 THRU 0F877642)
Supersedes: 27-818188A96, 27-818188A93 |
NLA
|
Notes
2: NOTE #1: WHEN ORDERING OVERSIZE PISTONS FOR THIS ENGINE, IT IS RECOMMENDED THAT THE CRANKSHAFT, ROD AND PISTON ASSEMBLY BE REBALANCED BEFORE ENGINE IS REBUILT.
