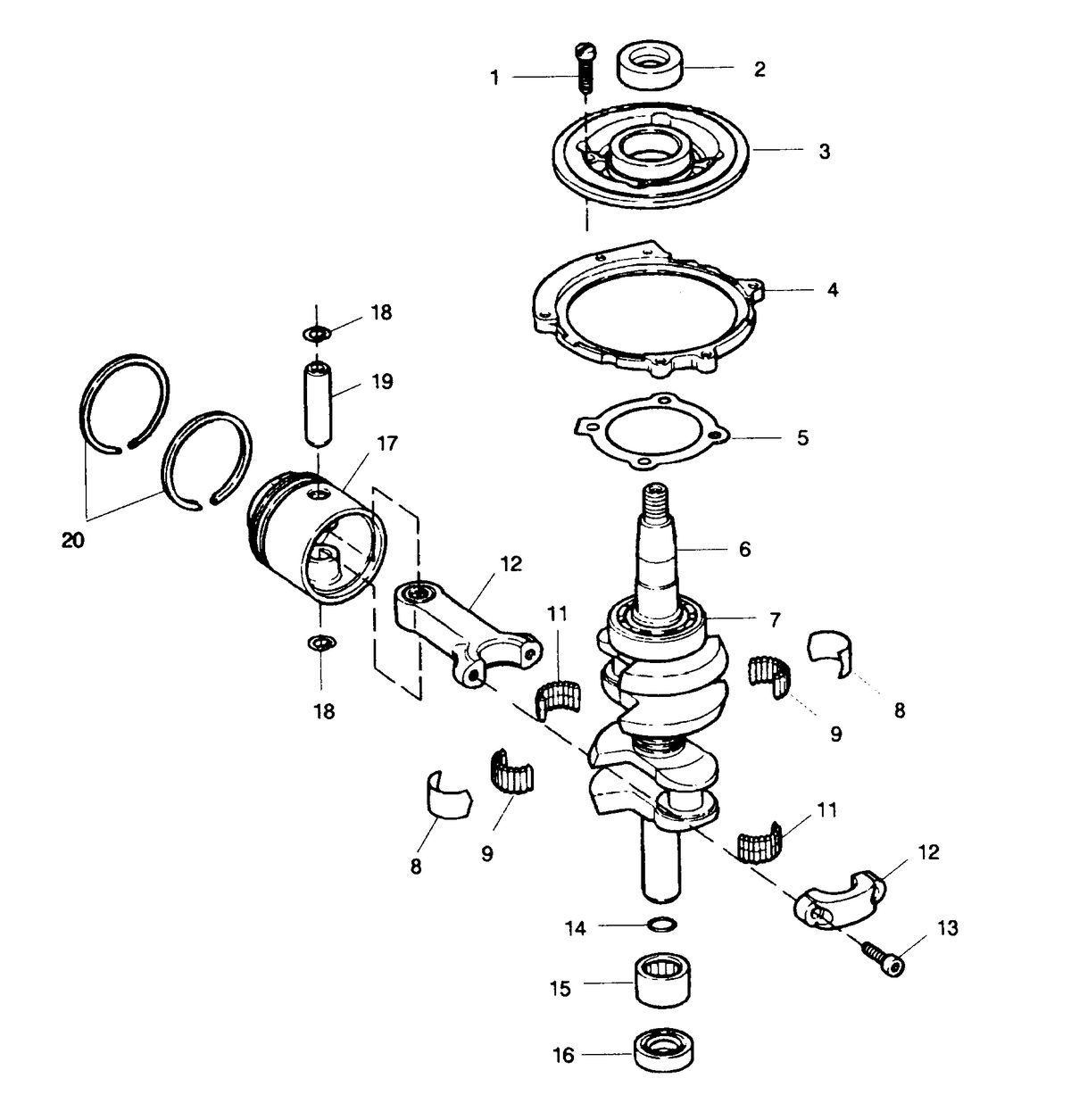

Crankshaft and Piston

Ref ID	Description	Price
1	head screw, 1/4 - 20 x 7/8 (#1111) Qty Required For Repair: 4 Qty Required For Repair: 4	NLA
2	Seal, crankshaft upper (#346146) Qty Required For Repair: 1	NLA
3	Cage, crankshaft w/seal (#1100-817753A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
4	Ring, magneto stator (#90-73082) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
5	Gasket, crankshaft bearing cage (#286277) Qty Required For Repair: 1	NLA
6	Crankshaft w/upper main bearing (#2A681018) Qty Required For Repair: 1	NLA
7	Bearing, crankshaft upper (#286028) Qty Required For Repair: 1	NLA
8	Center main bearing liner set (2 per set) (#A286155) Qty Required For Repair: 1	NLA
9	Center main bearing roller set (26 per set) (#286571) Qty Required For Repair: 1	NLA
11	Connecting rod roller set (2 per set) (#A712228) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
12	Rod, connecting w/cap and screws (#S715016) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
13	Screw, connecting rod (#175634) Qty Required For Repair: 4 Qty Required For Repair: 4	NLA
14	Seal, driveshaft spline (#461342) Qty Required For Repair: 1	NLA
15	Bearing, crankshaft lower main (#343014) Qty Required For Repair: 1	NLA
16	Seal, crankshaft lower (#141118) Qty Required For Repair: 1	NLA
17	Piston (#710015) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
18	Retaining ring, piston pin (#31-31410) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	NLA
19	Pin, piston (#712017) Qty Required For Repair: 2 Qty Required For Repair: 2	NLA
20	Ring set, piston (4 per set) (#A472260) Qty Required For Repair: 1	NLA

This assembly is found in these models:

SEARS > 15 H.P. (1992-93)
