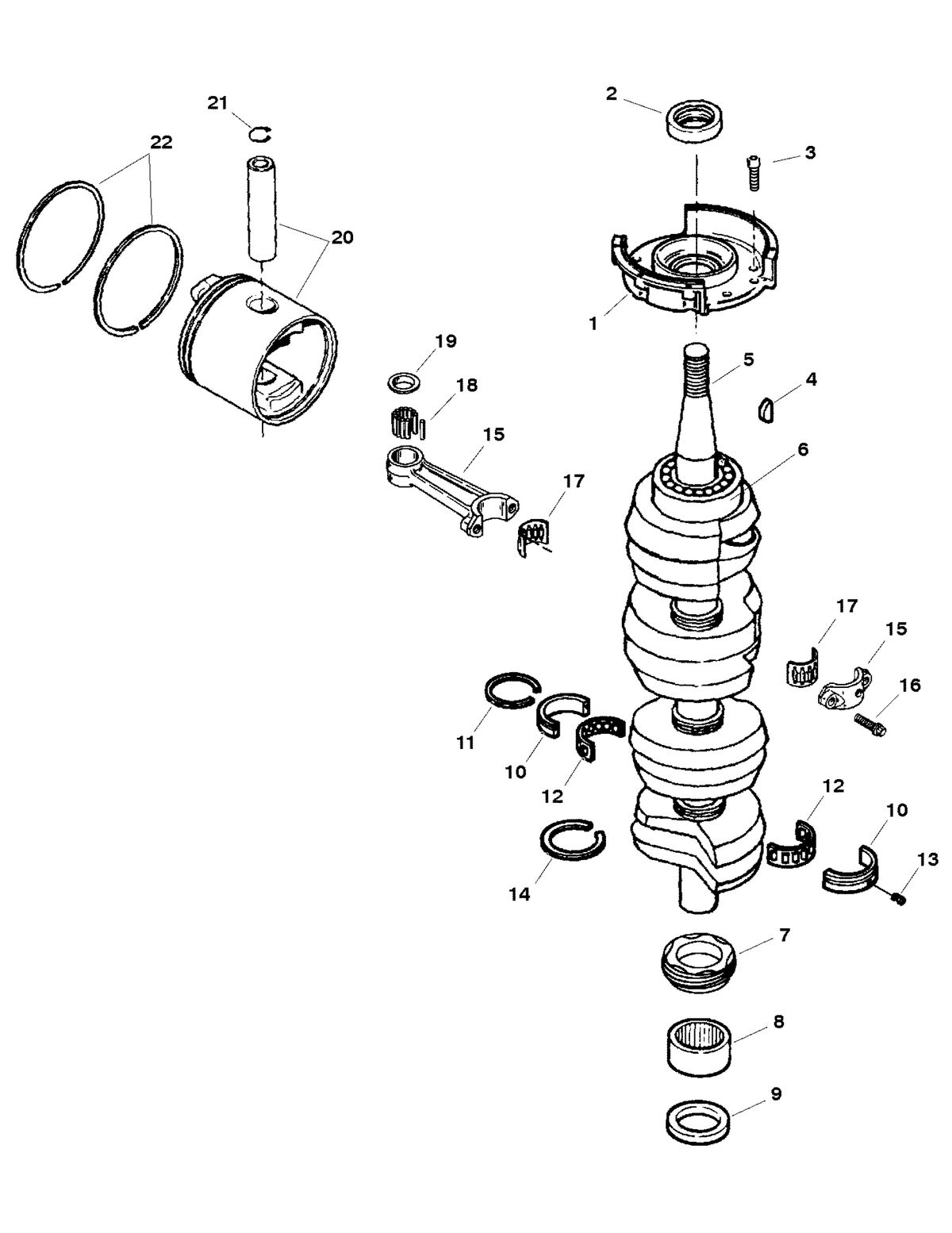

SPORTJET - 120XR (POWERHEAD) 1998 - CRANKSHAFT AND PISTON
| Ref ID | Description | Price | ||
|---|---|---|---|---|
| 1 |
|
NLA
|
||
| 2 |
Supersedes: 26-F474146
|
$23.84
|
|
|
| 3 |
Qty Required For Repair: 5
|
$2.16
|
|
|
| 4 |
Minimum Order Qty: 2
|
$2.69
|
|
|
| 5 |
|
NLA
|
||
| 6 |
Supersedes: 30-F284659-2, F284659, F284659-1, F691659, FA284659, FFF000068
|
$93.63
|
|
|
| 7 |
|
NLA
|
||
| 8 |
|
$218.61
|
|
|
| 9 |
(See NOTE #1)
Supersedes: 26-F523146-1, F523146, F532146, 26-F84146-2, F84146-1, F84146 |
$22.00
|
|
|
| 10 |
Qty Required For Repair: 3
Supersedes: 31-FA85655-1, FA85655 |
$99.33
|
|
|
| 11 |
Qty Required For Repair: 3
|
NLA
|
||
| 12 |
Qty Required For Repair: 3
Supersedes: F85571, F85871 |
NLA
|
||
| 13 |
(Pressed Into Cylinder Assembly)
Qty Required For Repair: 4 Supersedes: 17-F85909-1, F85909 |
NLA
|
||
| 14 |
Qty Required For Repair: 3
Supersedes: FA316579 |
$13.92
|
|
|
| 15 |
(Design I - Without Oil Slot)
Qty Required For Repair: 4 |
$438.55
|
|
|
| 15 |
(Design II And III - With Oil Slot)
Qty Required For Repair: 4 |
$438.55
|
|
|
| 16 |
Qty Required For Repair: 8
Minimum Order Qty: 5 |
$6.08
|
|
|
| 17 |
Qty Required For Repair: 4
|
$64.88
|
|
|
| 18 |
Qty Required For Repair: 116
|
$0.32
|
|
|
| 19 |
Qty Required For Repair: 8
Minimum Order Qty: 6 Supersedes: 12-812876 |
$4.08
|
|
|
| 20 |
(Standard) (Design I) (See NOTE #2)
Qty Required For Repair: 4 Supersedes: 700-828304A10, 700-828304A 6 |
NLA
|
||
| 20 |
(.015 Oversize) (Design I) (See NOTE #2)
Qty Required For Repair: OPT Supersedes: 700-828304A11, 700-828304A 7 |
NLA
|
||
| 20 |
(.030 Oversize) (Design I) (See NOTE #2)
Qty Required For Repair: OPT Supersedes: 700-828304A12, 700-828304A 8 |
NLA
|
||
| 20 |
(Standard) (Design II) (See NOTE #3)
Qty Required For Repair: 4 Supersedes: 700-828304A10, 700-828304A 6 |
NLA
|
||
| 20 |
(.015 Oversize) (Design II) (See NOTE #3)
Qty Required For Repair: OPT Supersedes: 700-828304A11, 700-828304A 7 |
NLA
|
||
| 20 |
(.030 Oversize) (Design II) (See NOTE #3)
Qty Required For Repair: OPT Supersedes: 700-828304A12, 700-828304A 8 |
NLA
|
||
| 20 |
(Standard) (Design III) (See NOTE #4)
Qty Required For Repair: 4 Supersedes: 700-828304A10, 700-828304A 6 |
NLA
|
||
| 20 |
(.015 Oversize) (Design III) (See NOTE #4)
Qty Required For Repair: OPT Supersedes: 700-828304A11, 700-828304A 7 |
NLA
|
||
| 20 |
(.030 Oversize) (Design III) (See NOTE #4)
Qty Required For Repair: OPT Supersedes: 700-828304A12, 700-828304A 8 |
NLA
|
||
| 21 |
Qty Required For Repair: 8
Minimum Order Qty: 15 Supersedes: 40-52035 |
$2.64
|
|
|
| 22 |
(Standard) (Design I) (See NOTE #2)
Qty Required For Repair: 4 |
$14.32
|
|
|
| 22 |
(.015 Oversize)(Design I)(See NOTE #2)
Qty Required For Repair: OPT |
NLA
|
||
| 22 |
(.030 Oversize)(Design I)(See NOTE #2)
Qty Required For Repair: OPT |
NLA
|
||
| 22 |
(Standard) (Design II) (See NOTE #3)
Qty Required For Repair: 4 |
$14.32
|
|
|
| 22 |
(.015 Oversize)(Design II)(See NOTE #3)
Qty Required For Repair: OPT |
NLA
|
||
| 22 |
(.030 Oversize)(Design II)(See NOTE #3)
Qty Required For Repair: OPT |
NLA
|
||
| 22 |
(Standard) (Design III) (See NOTE #4)
Qty Required For Repair: 4 |
$14.32
|
|
|
| 22 |
(.015 Oversize)(Design III)(See NOTE#4)
Qty Required For Repair: OPT |
NLA
|
||
| 22 |
(.030 Oversize)(Design III)(See NOTE#4)
Qty Required For Repair: OPT |
NLA
|
||
| - |
|
$273.28
|
|
|
| - |
(Design I - Reference Crankshaft/Piston Section)
Supersedes: 800-818154A50, 800-818154A35 |
NLA
|
||
| - |
(Design II - Reference Crankshaft/Piston Section)
Supersedes: 800-818154A50, 800-818154A35 |
NLA
|
||
| - |
(Design III - Reference Crankshaft/Piston Section)
Supersedes: 800-818154A50, 800-818154A35 |
NLA
|
Notes
4: NOTE # 1: GARTER SPRING TO BE DOWN AND CLOSED END OF SEAL AWAY FROM BEARING.
6: NOTE # 2: (DESIGN I) PISTON RING SET-TOP RING MARKED WITH ONE CIRCLE. BOTTOM RING MARKED WITH TWO CIRCLES AND WHITE STRIPE.
7: NOTE # 3: (DESIGN II) PISTON RING SET-BOTH RINGS MARKED WITH ONE CIRCLE & NOTCH GAP (.126/.138)
8: NOTE # 4: (DESIGN III) PISTON RING SET-BOTH RINGS MARKED WITH ONE CIRCLE & NOTCH GAP (.114/.126)
9: OPT = Optional
