MARINER - 3.3 - Crankshaft and Piston

  Ref ID Description Price
1
2 Horsepower
Supersedes: 474-879147T14, 474-9153 1
$233.66
$274.25
1
2.5 Horsepower
Supersedes: 474-879147T14, 474-9153 1
$233.66
$274.25
1
3.3 Horsepower
Supersedes: 474-822892T01, 474-822892
$222.09
$260.67
2
NLA
3
NLA
4
Supersedes: 16342
$51.76
$53.92
5
Supersedes: 16343
$20.72
$21.58
6
Supersedes: 813271, 16344
$13.04
$16.30
7
$23.12
$24.08
8
$5.12
$6.40
9
Supersedes: 30-95228
$46.72
$48.67
10
$3.12
$3.90
11
$17.20
$17.92
12
2 Horsepower
$50.56
$52.67
12
2.5 Horsepower
$50.56
$52.67
12
3.3 Horsepower
$43.92
$45.75
13
2 Horsepower
$18.96
$19.75
13
2.5 Horsepower
$18.96
$19.75
13
3.3 Horsepower
$19.04
$19.83
14
$3.52
$4.40
15
Standard
$112.86
$123.75
15
.5MM Oversize
Supersedes: 779-9183A01
$107.39
$117.75
15
Standard-Bare Piston
NLA
15
.5MM Oversize-Bare Piston
Qty Required For Repair: AR
$33.68
$35.08
16
Standard
Minimum Order Qty: 2
$20.24
$21.08
16
.5MM Oversize
Qty Required For Repair: AR
$25.12
$26.17
17
Supersedes: 41-95235
$14.08
$17.60
18
Qty Required For Repair: 2
$2.48
$3.10
-
2 Horsepower
Supersedes: 27-95220A 5
$68.16
$71.00
-
2.5 Horsepower
Supersedes: 27-95220A 5
$68.16
$71.00
-
3.3 Horsepower
$78.28
$85.83

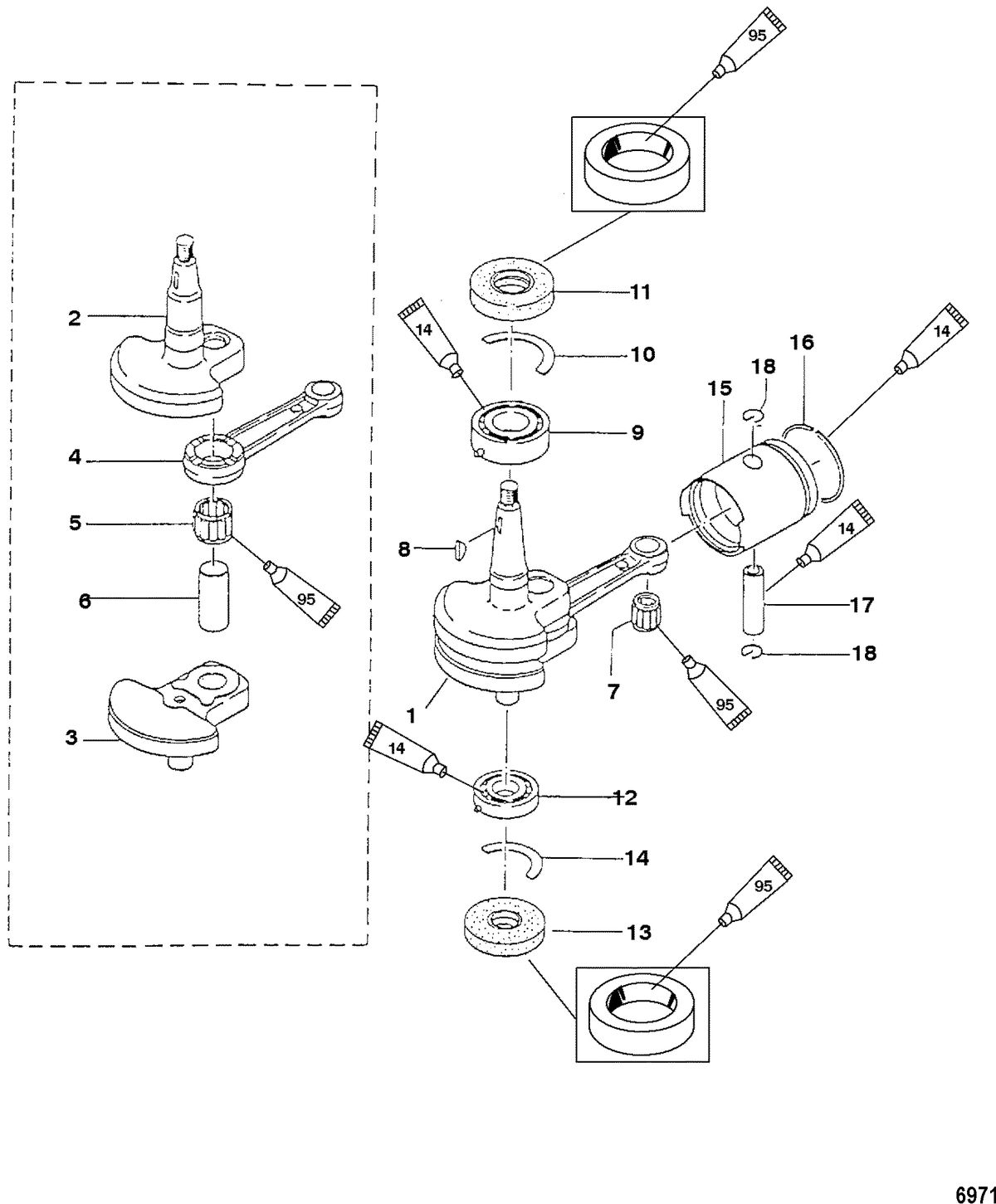

MERCURY/MARINER 2/2.5/3.3 HP 2-STROKE Crankshaft and Piston
MERCURY/MARINER 2/2.5/3.3 HP 2-STROKE Crankshaft and Piston

This assembly is found in these models:
