Mercury Marine Parts Catalog

Find the Parts You're Looking For

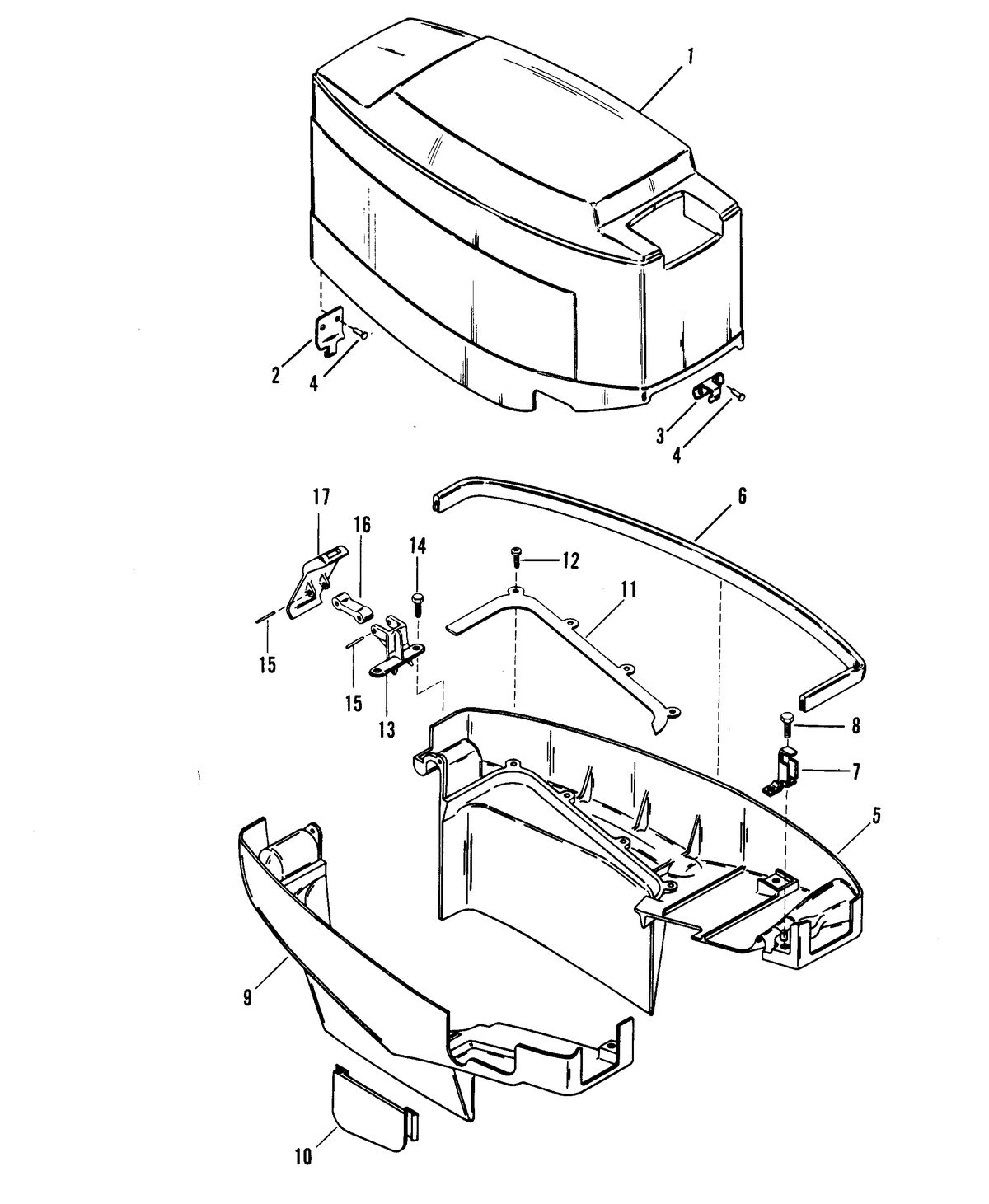

MERCURY - 18 - COWLS (HINGE ATTACHED W/2 SCREWS)

	Ref ID	Description	Price
	1	TOP COWL ASSEMBLY (#2190-9163A22) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	2	HINGE, COWL LATCH (#43515) Qty Required For Repair: 1 Minimum Order Qty: 1	$76.30 ~~$83.67~~
	3	BRACKET, TOP COWL (#43555) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	4	SCREW, HINGE TO TOP COWL (#10-400018) Qty Required For Repair: 4 Minimum Order Qty: 2 Qty Required For Repair: 4 Minimum Order Qty: 2	$0.88 ~~$1.10~~
	5	BOTTOM COWL ASSEMBLY, PORT (#2176-9107A2) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	6	SEAL, BOTTOM COWL (#42274) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
	7	LATCH, BOTTOM COWL (#43514) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	8	SCREW, LATCH TO BOTTOM COWL (#10-400018) Qty Required For Repair: 2 Minimum Order Qty: 2 Qty Required For Repair: 2 Minimum Order Qty: 2	$0.88 ~~$1.10~~
	9	BOTTOM COWL ASSEMBLY, STARBOARD (#2176-9108A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	10	GROMMET, BOTTOM COWL (#25-41604) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	11	PLATE, BOTTOM COWL (#15865) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
	12	SCREW, PLATE TO BOTTOM COWL (1/2") (#10-95700) Qty Required For Repair: 8 Minimum Order Qty: 1 Qty Required For Repair: 8	$6.00 ~~$6.25~~
	13	BRACKET, COWL LATCH (#43554A5) Qty Required For Repair: 1 Minimum Order Qty: 1	$115.98 ~~$127.17~~
	14	SCREW, BRACKET TO BOTTOM COWL (12MM) (#10-400018) Qty Required For Repair: 2 Minimum Order Qty: 2 Qty Required For Repair: 2 Minimum Order Qty: 2	$0.88 ~~$1.10~~
	15	ROLL PIN, LINK (#17-25870) Qty Required For Repair: 2 Minimum Order Qty: 5 Qty Required For Repair: 2 Minimum Order Qty: 5	$0.16 ~~$0.20~~
	16	LINK, COWL LATCH (#43554A5) Qty Required For Repair: 1 Minimum Order Qty: 1	$115.98 ~~$127.17~~
	17	LATCH, COWL - REAR (#43554A5) Qty Required For Repair: 1 Minimum Order Qty: 1	$115.98 ~~$127.17~~
	--	DECAL SET (MERC 18) (#37-43170A84) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
	--	DECAL SET (MERC 25) (#37-13239A86) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA

MERCURY MERCURY 18/25 COWLS (HINGE ATTACHED W/2 SCREWS)

MERCURY MERCURY 18/25 COWLS (HINGE ATTACHED W/2 SCREWS)

Notes

1: Order parts from this page if HINGE (Reference #2) is attached with 2 SCREWS.

This assembly is found in these models:

MERCURY > 18
MERCURY > 25
