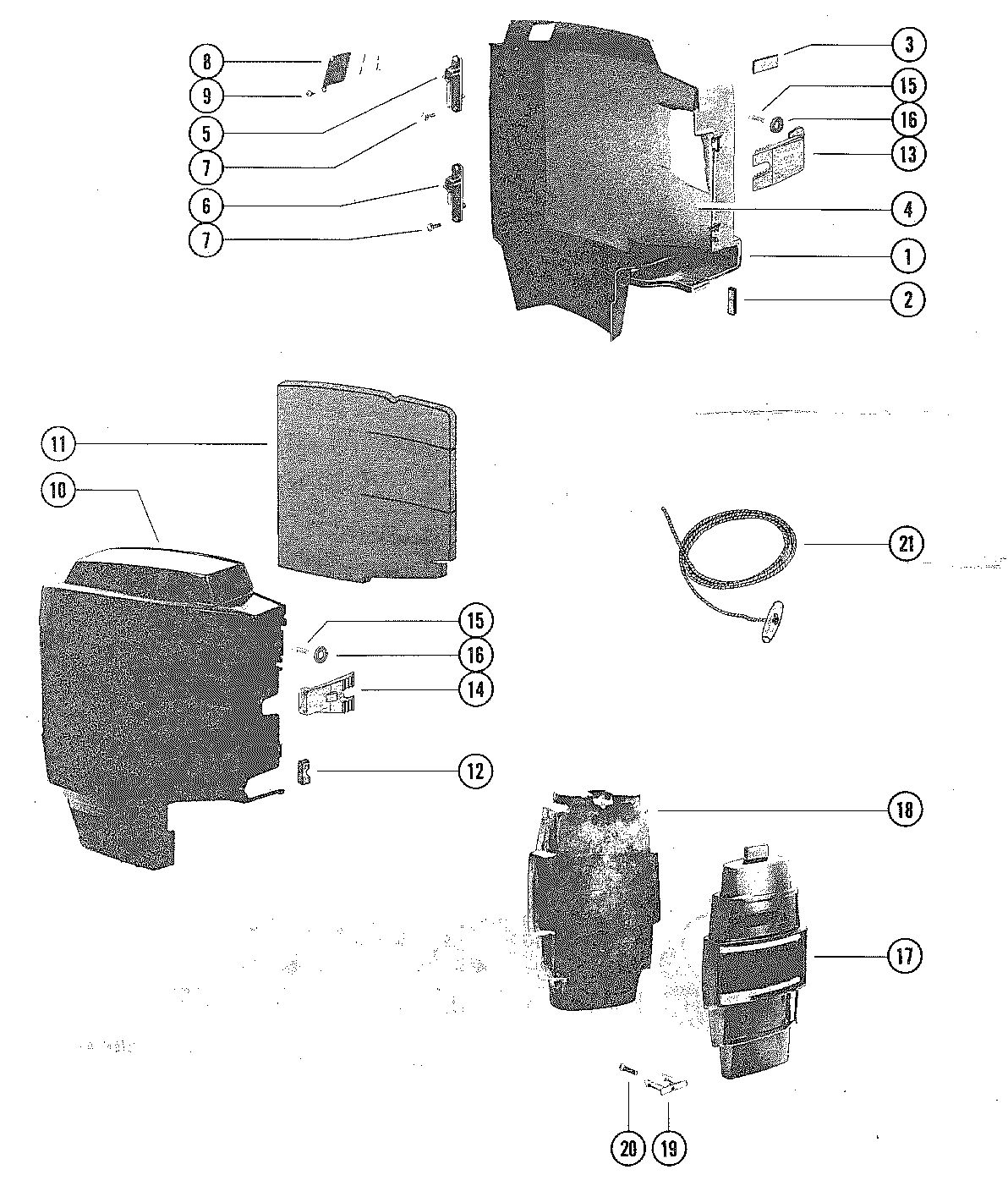

MERCURY - V-225 - COWLS AND FRONT COVER

Ref ID	Description	Price
1	COWL ASSEMBLY, PORT (WITHOUT DECALS) (#2151-7523A2) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
2	SEAL, CONTROL CABLE (#67260) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
3	PAD, COWL ASSEMBLY TO FRONT COVER (#67258) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
4	BLANKET, SOUND-COWL (PORT) (#88227) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
5	BRACKET, COWL ATTACHING - UPPER (#879871) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
6	BRACKET, COWL ATTACHING - LOWER (#87985) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
7	SCREW, UPPER AND LOWER BRACKETS (#10-35386) Qty Required For Repair: 8 Minimum Order Qty: 5 Qty Required For Repair: 8 Minimum Order Qty: 5	$0.88 ~~$1.10~~
8	SHIELD INLET - COWL (STARBOARD) (#68049) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
8	SHIELD, INLET - COWL (PORT) (#68048) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
9	SCREW, SHIELD TO COWL (#10-57807) Qty Required For Repair: 4 Minimum Order Qty: 5 Qty Required For Repair: 4 Minimum Order Qty: 5	$5.68 ~~$7.10~~
10	COWL ASSEMBLY, STARBOARD (WITHOUT DECALS) (#2150-7524A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
11	BLANKET, SOUND - COWL (STARBOARD) (#88227) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
12	SEAL, HARNESS (#90274) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
13	LATCH, COWL - PORT (#97461A2) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
14	LATCH, COWL - STARBOARD (#87899) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
15	SCREW, COWL LATCH (#10-95700) Qty Required For Repair: 6 Minimum Order Qty: 1 Qty Required For Repair: 6	$6.00 ~~$6.25~~
16	WASHER, COWL LATCH SCREW (#12-22887) Qty Required For Repair: 6 Minimum Order Qty: 1 Qty Required For Repair: 6	$1.92 ~~$2.40~~
17	COWL FRONT COVER ASSEMBLY (WITHOUT DECALS) (#2149-7532A2) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
18	BLANKET, SOUND - COWL FRONT COVER (#90984) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
19	HOOK, COWL FRONT COVER ATTACHING (#87907) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
20	SCREW, HOOK TO COWL FRONT COVER (#10-95700) Qty Required For Repair: 1 Minimum Order Qty: 1	$6.00 ~~$6.25~~
21	STARTER ROPE ASSEMBLY (#47341A11) Comment: (FOR MANUAL STARTING) Qty Required For Repair: 1 Minimum Order Qty: 1 (FOR MANUAL STARTING)	$16.80 ~~$17.50~~

MERCURY MERC V-225 COWLS AND FRONT COVER

This assembly is found in these models:

MERCURY > V-225
