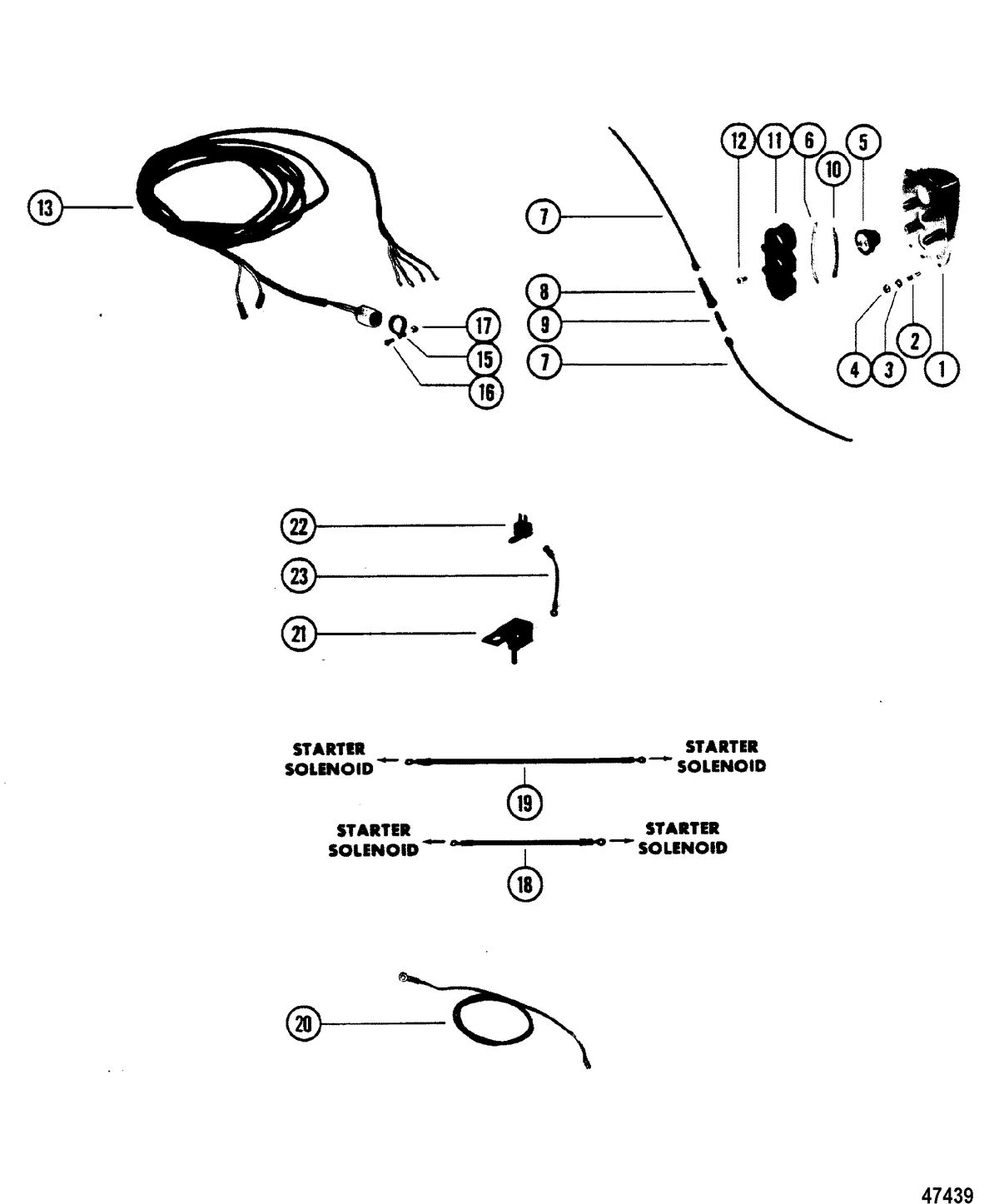

CONTROL PANEL(PRESTOLITE PUMP USE WITH ERL)

Ref ID	Description	Price
--	CONTROL PANEL ASSEMBLY, COMPLETE (#55642A13) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
1	PANEL, CONTROL (#55642A17) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
2	STUD, (#10-32 x 2.00), CONTROL PANEL TO BOAT (2") (#16-55422) Qty Required For Repair: 4 Minimum Order Qty: 5 Qty Required For Repair: 4 Minimum Order Qty: 5	$5.20 ~~$6.50~~
3	WASHER, (.200 x .440 x .032), CONTROL PANEL STUD (#12-24676) Qty Required For Repair: 4 Minimum Order Qty: 1 Qty Required For Repair: 4	$1.12 ~~$1.40~~
4	NUT AND LOCKWASHER, (#10-32), CONTROL PANEL STUD (#11-27164) Qty Required For Repair: 4 Minimum Order Qty: 5 Qty Required For Repair: 4 Minimum Order Qty: 5	$0.80 ~~$1.00~~
5	SWITCH ASSEMBLY, PUSH BUTTON - CONTROL PANEL (#55738A1) Qty Required For Repair: 3 Minimum Order Qty: 1 Qty Required For Repair: 3	$24.64 ~~$25.67~~
6	WIRE, Jumper (RED - 3-1/4") - USE WITHOUT FUSE (#48078) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
7	WIRE, (24.00 Inches) (RED - 24") (#84-69174A2) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
8	CAP ASSEMBLY, FUSE HOLDER (#88-69358A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
9	FUSE, 20 Ampere (20 AMP) (#88-8M0207796) Qty Required For Repair: 1	$6.32 ~~$7.90~~
10	WIRE, Jumper (3.00 Inches) (PURPLE - 3") (#53107) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
11	RETAINER, PUSH BUTTON SWITCH (#55641) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
12	SCREW, (#10-16 x .375), SWITCH RETAINER (1/2") (#10-62568) Qty Required For Repair: 4 Minimum Order Qty: 4 Qty Required For Repair: 4 Minimum Order Qty: 4	$0.88 ~~$1.10~~
13	HARNESS ASSEMBLY, CONTROL PANEL (#84-87394A20) Qty Required For Repair: 1 Minimum Order Qty: 1	$149.42 ~~$163.83~~
15	CLAMP, HARNESS (#95814) Qty Required For Repair: 1 Minimum Order Qty: 1	$6.32 ~~$7.90~~
16	SCREW, (#8-32 x 0.50), HARNESS CLAMP (1/2") (#10-29227) Qty Required For Repair: 1 Minimum Order Qty: 1	$2.64 ~~$3.30~~
17	NUT, HARNESS CLAMP SCREW (#11-34388) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
18	WIRE ASSEMBLY, Jumper, SOLENOID (RED - 7-1/2") (#84-79139A2) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
19	WIRE, Jumper, SOLENOID (BLACK - 11-1/2") (#55992) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
20	CABLE ASSEMBLY, Battery (POSITIVE) (#84-79139A9) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
20	CABLE ASSEMBLY (NEGATIVE) (#84-79138A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
21	FUSE ASSEMBLY, 90 Ampere (90 AMP) (#88-79023T90) Qty Required For Repair: 1 Minimum Order Qty: 1	$31.99 ~~$37.49~~
22	BREAKER, Circuit (#88-79137) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
23	WIRE ASSEMBLY, Jumper (RED) (#84-79148A1) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA

This assembly is found in these models:

MERCRUISER > TR/TRS 1977-1993
