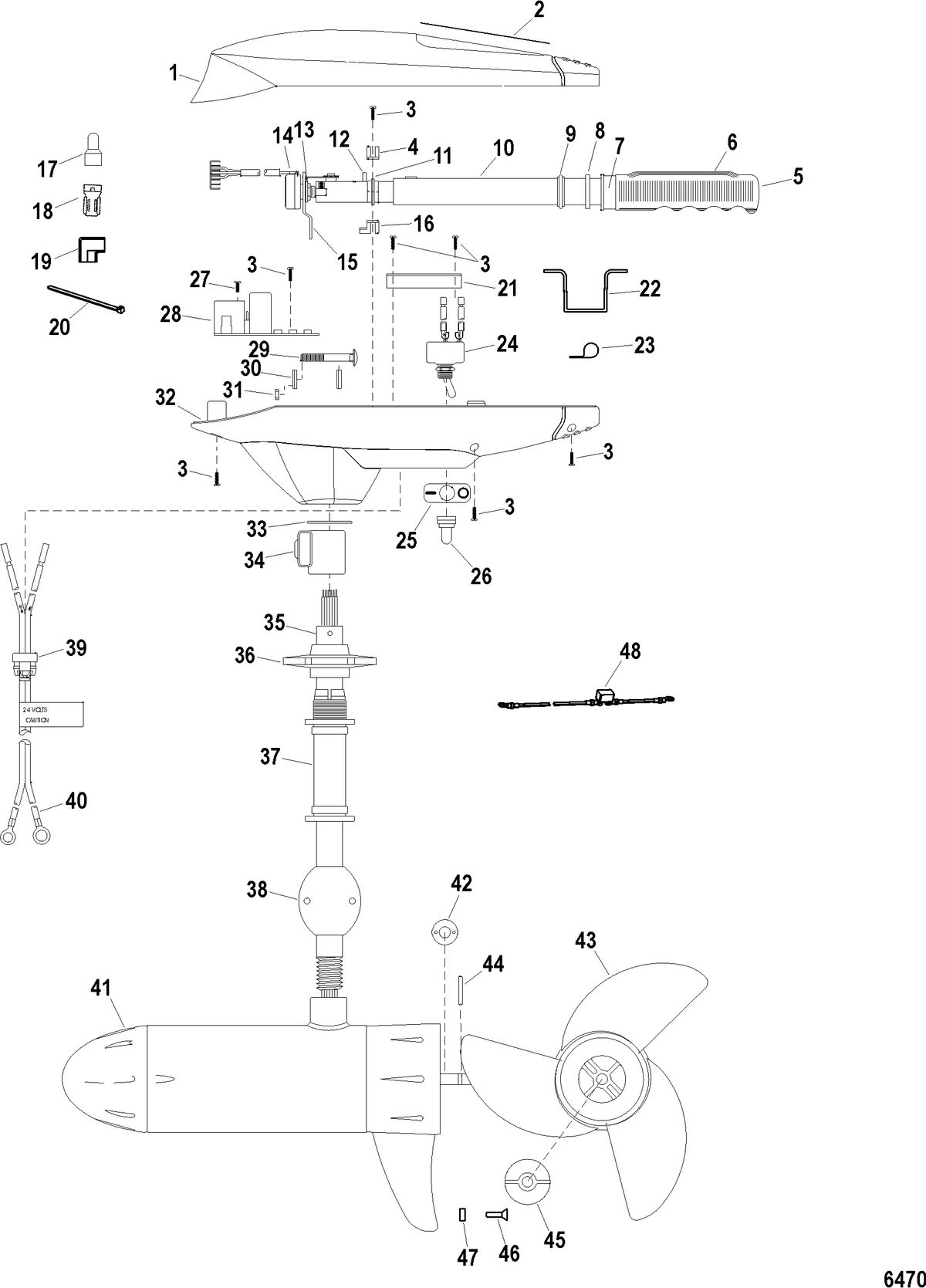

Complete Trolling Motor(Model SW109HBD / SW109HBV) (36 Volt)
| Ref ID | Description | Price | ||
|---|---|---|---|---|
| 1 |
- Design I - Part Number Marked Inside - NOTE: Use Only With Design I Bottom Cover - NOTE: If Part No Longer Available - Order Kit M899342A1
Supersedes: MET05318H |
NLA
|
||
| 1 |
- Design II - No Part Number Marked Inside - NOTE: Use Only With Design II Bottom Cover
|
NLA
|
||
| 1 |
- NOTE: Includes Design II Parts
|
NLA
|
||
| 2 |
- Design I
Supersedes: 37-MSF19001 |
NLA
|
||
| 2 |
- Design II
Minimum Order Qty: 2 Supersedes: 37-MST19004 |
NLA
|
||
| 2 |
- Design III
Minimum Order Qty: 2 Supersedes: 37-MST19012 |
NLA
|
||
| 3 |
SN# 9B167577 & Below
Qty Required For Repair: 11 Minimum Order Qty: 10 Supersedes: 10-MAT14101 |
$0.40
|
|
|
| 3 |
SN# 9B167578 & Up
Qty Required For Repair: 9 Minimum Order Qty: 10 Supersedes: 10-MAT14101 |
$0.40
|
|
|
| 4 |
Minimum Order Qty: 2
Supersedes: MAR03604 |
$11.44
|
|
|
| 5 |
SN# 9B167577 & Below
Supersedes: MET372062 |
NLA
|
||
| 5 |
SN# 9B167578 & Up
Supersedes: MET372072 |
$156.00
|
|
|
| 6 |
Minimum Order Qty: 2
Supersedes: MBT07002, MAR07003 |
$9.68
|
|
|
| 7 |
- Design I - Turtles - Arrows - Rabbits
Minimum Order Qty: 2 Supersedes: 37-MAT05905, 37-MAT05903 |
NLA
|
||
| 7 |
- Design II - Indicator Marks - Rabbits
Minimum Order Qty: 2 Supersedes: 37-MAT05905, 37-MAT05903 |
NLA
|
||
| 8 |
Minimum Order Qty: 2
Supersedes: 26-MBT07901 |
$6.16
|
|
|
| 9 |
Minimum Order Qty: 5
Supersedes: 23-MBT02202 |
NLA
|
||
| 10 |
Supersedes: 32-MAT16504
|
$51.04
|
|
|
| 11 |
Minimum Order Qty: 5
Supersedes: 23-MBT02201, 833463E |
NLA
|
||
| 12 |
Minimum Order Qty: 10
Supersedes: 17-MAT11001 |
NLA
|
||
| 13 |
Minimum Order Qty: 5
Supersedes: 10-MAF14201B, 10-MAF14201, 10-MXF14201, 834331E, 10-MXF14301T, 10-MXF14301, 10-MAF14301 |
$0.53
|
|
|
| 14 |
- NOTE: For MET372062 Handle Assembly SN# 9B167577 & Below
Supersedes: MAT316822 |
NLA
|
||
| 14 |
- NOTE: For MET372072 Handle Assembly SN# 9B167578 & Up
Supersedes: MAT316832 |
$45.76
|
|
|
| 15 |
Supersedes: MAT15505
|
$7.04
|
|
|
| 16 |
Minimum Order Qty: 2
Supersedes: 54-MAR03602 |
$12.32
|
|
|
| 17 |
SN# 9B167577 & Below
Qty Required For Repair: 8 Minimum Order Qty: 5 Supersedes: 22-MBF02901 |
NLA
|
||
| 17 |
SN# 9B167578 & Up
Qty Required For Repair: 3 Minimum Order Qty: 5 Supersedes: 22-MBF02901 |
NLA
|
||
| 17 |
SN# 9B167578 & Up
Qty Required For Repair: 3 Minimum Order Qty: 5 Supersedes: MBF02902 |
$0.62
|
|
|
| 18 |
SN# 9B167577 & Below
Minimum Order Qty: 10 Supersedes: 86-MBR16102, 833458E |
$1.12
|
|
|
| 19 |
SN# 9B167577 & Below
Minimum Order Qty: 10 Supersedes: MAT08001, 833383E |
NLA
|
||
| 20 |
SN# 9B167578 & Up
Minimum Order Qty: 100 Supersedes: 54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275 |
$0.48
|
|
|
| 21 |
- Design I - Replaced With MAT15504
Supersedes: MAT15506 |
NLA
|
||
| 22 |
- Design II - Replaces MAT15506 Cable Plate
Minimum Order Qty: 2 Supersedes: MAT15504 |
$7.04
|
|
|
| 23 |
- Design II - Used With MAT15504
Minimum Order Qty: 10 Supersedes: MKP03604 |
NLA
|
||
| 24 |
Supersedes: 87-MFP15307, 87-MAP15303, 833305E
|
$52.80
|
|
|
| 25 |
Minimum Order Qty: 2
Supersedes: 37-MAT05714 |
NLA
|
||
| 26 |
Supersedes: MFP17701, 833689E
|
NLA
|
||
| 27 |
SN# 9B167577 & Below
Minimum Order Qty: 5 |
NLA
|
||
| 28 |
- NOTE: Part No Longer Available - Reference Service Bulletin 2004-02 SN# 9B167577 & Below
Supersedes: MAT15703E, MAT15703D, MAT15703 |
NLA
|
||
| 29 |
Minimum Order Qty: 2
Supersedes: 10-MTT13402, 10-MTT13401, 834706E |
NLA
|
||
| 30 |
Qty Required For Repair: 2
Minimum Order Qty: 10 Supersedes: 12-MTT17108, 12-MTT17104, 834708E |
$2.08
|
|
|
| 31 |
Minimum Order Qty: 10
Supersedes: 11-MXT09802, 834373E |
$2.46
|
|
|
| 32 |
- Design I - Part Number Marked Inside - NOTE: Use Only With Design I Top Cover - NOTE: If Part No Longer Available - Order Kit M899342A1
Supersedes: MAT004201, MAT004181 |
NLA
|
||
| 32 |
- Design II - No Part Number Marked Inside - NOTE: Use Only With Design II Top Cover
|
NLA
|
||
| 32 |
- NOTE: Includes Design II Parts
|
NLA
|
||
| 33 |
Minimum Order Qty: 10
Supersedes: 26-MAT07901 |
NLA
|
||
| 34 |
Supersedes: MTM15804, MTM15802, 823324A 2, MXT15802, MAR05102, 833347E, MAR15802, MAR15801, 833364E, MAR05101, 833346E, MXT15801, 834386E, MXT158012, 11-MAR09801, 833359E, MTM15803
|
$12.80
|
|
|
| 35 |
Supersedes: MFR04913, 833710E, MFM04908, MFM04908A, MFM049085, MFM04916, MFR04906, 833707E, MFR049065, MFR04906A, MFR04921A, 834743E, MFR04917, 833713E, MFR049175, MFR04917A, MFR04920, 834742E, MFR049205, MFR04920A, MFR04920E, MFR04929, MFR04905, 833706E, MFR04905A, MFR049055, MFR04905E, MFR049135, MFR04913A
|
NLA
|
||
| 35 |
Supersedes: MFR04925, MFM04917, MFM04918, MFR04922, 834744E, MFR049225, MFR04922A, MFR04922E, MFR049255, MFR04925E
|
NLA
|
||
| 36 |
Minimum Order Qty: 10
Supersedes: MKM08205, 76938 1 |
$9.68
|
|
|
| 37 |
Supersedes: M899662A1, MRK02112T, MRK02102
|
$9.68
|
|
|
| 38 |
- Design I
Supersedes: MAR00203T, MAR00203, 823341, 85538, 833338E |
$19.36
|
|
|
| 38 |
- Design II
Supersedes: MAR00203T, MAR00203, 823341, 85538, 833338E |
$19.36
|
|
|
| 39 |
Minimum Order Qty: 2
Supersedes: 23-MGR01901, 23-823336, 833760E, 23-824268, 833761E, 23-MGR019021 |
$4.40
|
|
|
| 40 |
Supersedes: 84-MXT328062
|
NLA
|
||
| 41 |
- NOTE: See Lower Unit Assembly Section For Service Parts Breakdown SN# 9B167577 & Below
|
NLA
|
||
| 41 |
- NOTE: See Lower Unit Assembly Section For Service Parts Breakdown SN# 9B167578 & Up
Supersedes: M899346T, MXC397032 |
NLA
|
||
| 42 |
Minimum Order Qty: 10
Supersedes: 12-MAR17501, 12-823322, 833367E |
$1.94
|
|
|
| 43 |
- Design I - With Nylon Prop Nut
Supersedes: 48-MAF174475, 48-MAF174295 |
NLA
|
||
| 43 |
- Design II - With Nylon Prop Nut
Supersedes: MAF174755, 48-MAF174555, 48-MAF174346, 48-MAF174245, 48-MAF174345, 48-MAF174505, 48-MAF174425, 48-MAF174545, 48-MAF174465 |
NLA
|
||
| 43 |
- Design III - With Brass Insert Prop Nut
Supersedes: MAF174755, 48-MAF174555, 48-MAF174346, 48-MAF174245, 48-MAF174345, 48-MAF174505, 48-MAF174425, 48-MAF174545, 48-MAF174465 |
NLA
|
||
| 43 |
Supersedes: 48-MAF12415, 48-MAF12412, 48-MAF12410, 48-MAF12414
|
$48.40
|
|
|
| 43 |
Supersedes: 48-MAF12415, 48-MAF12412, 48-MAF12410, 48-MAF12414
|
$48.40
|
|
|
| 44 |
Minimum Order Qty: 5
Supersedes: 17-MBR10202 |
NLA
|
||
| 45 |
- Design I - All Nylon
Minimum Order Qty: 5 Supersedes: MAR09902, 11-MAR09901, 11-824255, 11-823317, 833360E, 11-M00052, 11-MAR09903, 833174E |
$4.45
|
|
|
| 45 |
- Design II - Nylon With Brass Insert
Minimum Order Qty: 5 Supersedes: MAR09902, 11-MAR09901, 11-824255, 11-823317, 833360E, 11-M00052, 11-MAR09903, 833174E |
$4.45
|
|
|
| 46 |
Minimum Order Qty: 5
Supersedes: 10-MDK13301 |
NLA
|
||
| 47 |
- Design I
Minimum Order Qty: 2 Supersedes: MAR00202T, MAR00202, 823318, 833337E |
NLA
|
||
| 47 |
- Design II
Minimum Order Qty: 2 Supersedes: MAR00202T, MAR00202, 823318, 833337E |
NLA
|
||
| 48 |
Supersedes: MM309922
|
$30.40
|
|
|
| - |
- NOTE: See Mount Assembly Section For Service Parts Breakdown
Supersedes: 75-8M4000309, MST9360SW, MST9205SW, MST925XBF, MST920WF, MRK300022, 834167E, MRK300029, MST920WR, MST920WFR, MST920WW |
NLA
|
||
| - |
- NOTE: See Mount Assembly Section For Service Parts Breakdown
Supersedes: MST921SW |
$466.20
|
|
|
| - |
- NOTE: See Mount Assembly Section For Service Parts Breakdown
Supersedes: MST924SW |
NLA
|
