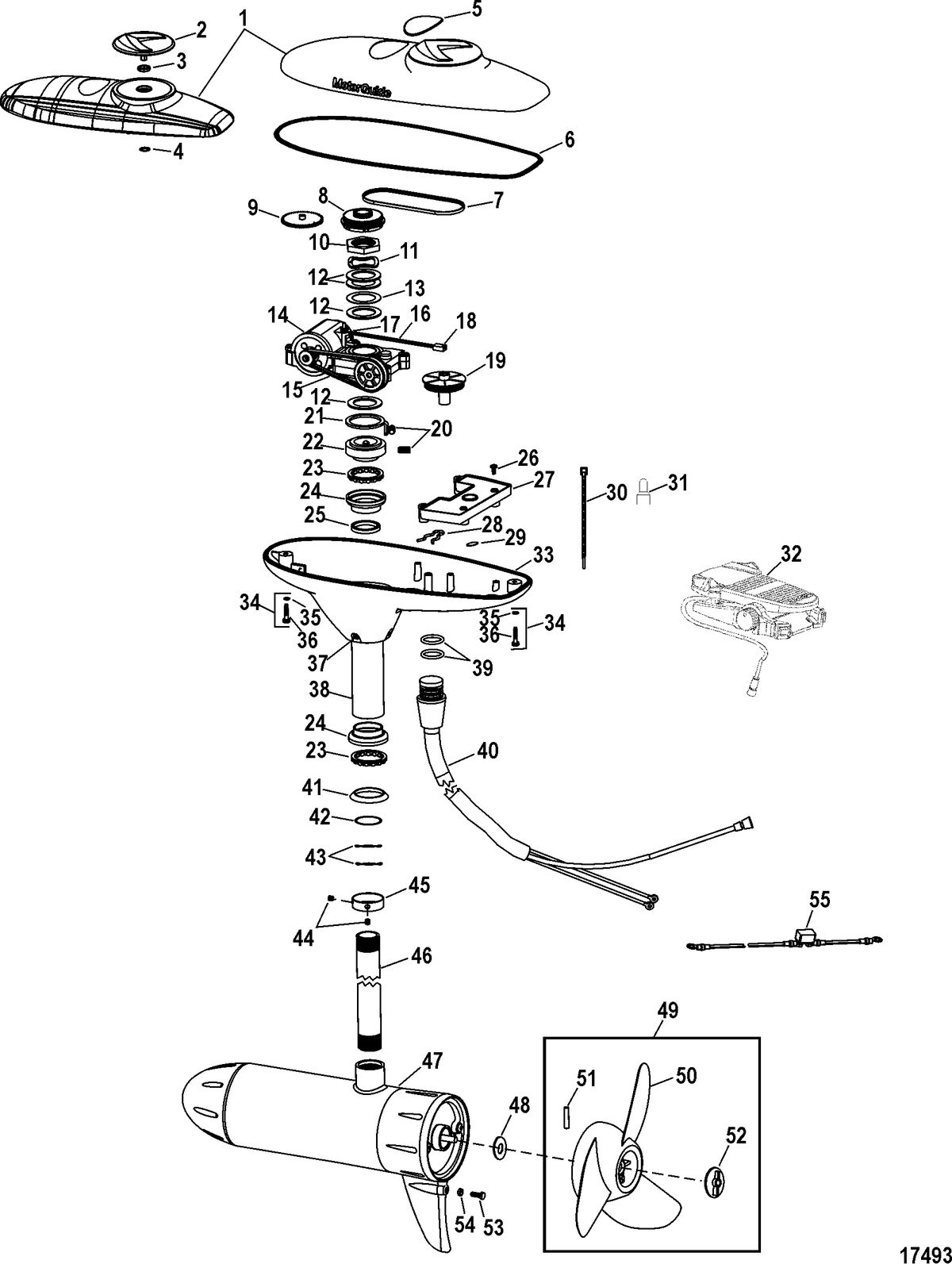

TROLLING MOTOR - MotorGuide Digital Steering Series - Complete Trolling Motor(Model DS109FB) (36 Volt)
| Ref ID | Description | Price | ||
|---|---|---|---|---|
| 1 |
- Design I - Three Screw Mounted - NOTE: Part No Longer Available - Order Kit M898106A1
Supersedes: M00992 |
NLA
|
||
| 1 |
- Design I - Three Screw Mounted - NOTE: Part No Longer Available - Order Kit M898106A1
Supersedes: M00992 |
NLA
|
||
| 1 |
- NOTE: Includes Top And Bottom Cover Plus Mounting Hardware - Five Screw Mounted
|
NLA
|
||
| 1 |
- Design II - Five Screw Mounted
Supersedes: MEX05304 |
NLA
|
||
| 2 |
- Design I - Ruby Red
Supersedes: M0094004, M0094010, M0094002 |
$12.32
|
|
|
| 2 |
- Design II - Ruby Red With Silver Arrow
Supersedes: M0094004, M0094010, M0094002 |
$12.32
|
|
|
| 3 |
Minimum Order Qty: 2
|
NLA
|
||
| 4 |
Supersedes: 54-M00943
|
NLA
|
||
| 5 |
Minimum Order Qty: 2
Supersedes: 37-MAF19036 |
NLA
|
||
| 6 |
- Design I - Used With Three Screw Style Covers
Supersedes: 26-M00937 |
$4.00
|
|
|
| 6 |
- Design II - Used With Five Screw Style Covers
Supersedes: M00948 |
NLA
|
||
| 7 |
Supersedes: 57-M00941
|
NLA
|
||
| 8 |
Minimum Order Qty: 2
Supersedes: M00939 |
NLA
|
||
| 9 |
Supersedes: M00949
|
NLA
|
||
| 10 |
- Design I - Without Nylon Patch
Supersedes: M0094702, 11-M00947 |
NLA
|
||
| 10 |
- Design II - With Nylon Patch
Supersedes: M0094702, 11-M00947 |
NLA
|
||
| 11 |
Supersedes: 13-M00936
|
NLA
|
||
| 12 |
Qty Required For Repair: 4
Supersedes: 12-M00946 |
NLA
|
||
| 13 |
Minimum Order Qty: 10
Supersedes: 12-M00952 |
NLA
|
||
| 14 |
Supersedes: M0093402
|
NLA
|
||
| 15 |
Supersedes: 57-M00136
|
NLA
|
||
| 16 |
Supersedes: 84-M01128
|
NLA
|
||
| 17 |
Qty Required For Repair: 3
Minimum Order Qty: 10 Supersedes: 86-M00588 |
NLA
|
||
| 18 |
Minimum Order Qty: 10
Supersedes: M0051903 |
NLA
|
||
| 19 |
Supersedes: M0094202
|
NLA
|
||
| 20 |
- Design I - Used With Bottom Cover MEX00401
Qty Required For Repair: 2 Minimum Order Qty: 10 |
NLA
|
||
| 20 |
- Design II - Used With Bottom Cover MEX004039 And MEX00405
Qty Required For Repair: 2 Minimum Order Qty: 5 Supersedes: 10-MAF14202 |
NLA
|
||
| 21 |
- NOTE: Design I - Used With Bottom Cover MEX00401
Supersedes: M0094502, 12-M00945 |
NLA
|
||
| 21 |
- Design II - Used With Bottom Cover MEX004039 And MEX00405
Supersedes: M0094502, 12-M00945 |
NLA
|
||
| 22 |
Supersedes: 54-M00944
|
NLA
|
||
| 23 |
- Design I - Upper And Lower Column
Qty Required For Repair: 2 Minimum Order Qty: 2 Supersedes: MFM00501, MXF00501, 834321E |
$3.14
|
|
|
| 23 |
- Design II - Upper Column Only
Minimum Order Qty: 2 Supersedes: MFM00501, MXF00501, 834321E |
$3.14
|
|
|
| 23 |
- Design II - Lower Column Only
Minimum Order Qty: 2 Supersedes: MFM00502 |
NLA
|
||
| 24 |
- Design I - Upper And Lower Column
Qty Required For Repair: 2 Supersedes: MFM00703, MFM00701 |
NLA
|
||
| 24 |
- Design II - Upper Column Only
Supersedes: MFM00703, MFM00701 |
NLA
|
||
| 24 |
- Design II - Lower Column Only
Minimum Order Qty: 2 Supersedes: MFM00702T, MFM00702 |
$11.44
|
|
|
| 25 |
Minimum Order Qty: 5
Supersedes: 26-M00951 |
NLA
|
||
| 26 |
Qty Required For Repair: 4
Minimum Order Qty: 6 Supersedes: 10-M0100008 |
NLA
|
||
| 27 |
- Design I - Marked On Back MES15702
Supersedes: MES15702, MES15701 |
NLA
|
||
| 27 |
- Design II - Marked On Back MES15703
Supersedes: MES15702, MES15701 |
NLA
|
||
| 28 |
Minimum Order Qty: 5
Supersedes: 54-M00954 |
NLA
|
||
| 29 |
Supersedes: M01261, M00282
|
NLA
|
||
| 30 |
Qty Required For Repair: 2
Supersedes: 54-MR22001 |
NLA
|
||
| 30 |
Minimum Order Qty: 100
Supersedes: 54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275 |
$0.48
|
|
|
| 31 |
Qty Required For Repair: 2
Minimum Order Qty: 5 Supersedes: 22-MBF02901 |
NLA
|
||
| 31 |
Qty Required For Repair: 3
Minimum Order Qty: 5 Supersedes: MBF02902 |
$0.62
|
|
|
| 32 |
- NOTE: See Foot Pedal Assembly Section For Service Parts Breakdown
Supersedes: M0099101 |
NLA
|
||
| 33 |
- Design I - Used With Ref No 20 And 21 - Three Screw Mounted - NOTE: Part No Longer Available - Order Kit M898106A1
Supersedes: MEX00401, M00935, MEX00403 |
NLA
|
||
| 33 |
- Design II - Used With Ref No 20 And 21 - Three Screw Mounted - NOTE: Part No Longer Available - Order Kit M898106A1
Supersedes: MEX00401, M00935, MEX00403 |
NLA
|
||
| 33 |
- Design III - Five Screw Mounted
Supersedes: MEX00405 |
NLA
|
||
| 34 |
- NOTE: Used With Three Screw Mounted Covers
Qty Required For Repair: 3 Supersedes: 10-M00603 |
NLA
|
||
| 34 |
- NOTE: Used With Five Screw Mounted Covers
Qty Required For Repair: 5 Supersedes: 10-M00603 |
NLA
|
||
| 35 |
Qty Required For Repair: 3/5
Minimum Order Qty: 10 Supersedes: 25-M0044501 |
NLA
|
||
| 36 |
Qty Required For Repair: 3/5
Minimum Order Qty: 10 |
NLA
|
||
| 37 |
Qty Required For Repair: 3
Minimum Order Qty: 5 Supersedes: MLF11104, MLF11103 |
$2.64
|
|
|
| 38 |
Supersedes: MBF16506, MAF16506, 833222E, 32-MAF16502, MAF165061
|
NLA
|
||
| 38 |
Supersedes: MBF16510, 32-MAF16510, MAF165101
|
$77.75
|
|
|
| 38 |
Supersedes: MBF16517, MAF16517
|
NLA
|
||
| 39 |
Qty Required For Repair: 2
Minimum Order Qty: 10 Supersedes: 25-M00955 |
NLA
|
||
| 40 |
Supersedes: M0092802
|
NLA
|
||
| 41 |
- Design I - Used With Open Style Bearing
Supersedes: 31-MAF00603, 833184E |
NLA
|
||
| 42 |
- Design I - Used With Open Style Bearing
Minimum Order Qty: 5 Supersedes: 25-MAF06301, 833199E |
NLA
|
||
| 43 |
- Design I - Used With Open Style Bearing
Qty Required For Repair: 2 Minimum Order Qty: 2 Supersedes: 12-MAF17101, 833223E |
NLA
|
||
| 44 |
Qty Required For Repair: 2
Minimum Order Qty: 5 Supersedes: 10-MAF14201B, 10-MAF14201, 10-MXF14201, 834331E, 10-MXF14301T, 10-MXF14301, 10-MAF14301 |
$0.53
|
|
|
| 45 |
- Design I - Used With Open Style Ball Bearing
Supersedes: 23-MXF00601, 834322E |
NLA
|
||
| 45 |
- NOTE: Includes Design II Parts - MAF14201B And MFM00502 And MFM00702 And MSS00602
|
NLA
|
||
| 45 |
- Design II - Used With Sealed Style Ball Bearing
Supersedes: MSS00602 |
NLA
|
||
| 46 |
Supersedes: MAF04912, 834736E, MAF04916, MAF049165, MAF04916E, MAF04911, MAF049115, MAF04911A, MAF04911E, MAF049125, MAF04912A, MAF04912E, MAF04915, MAF049155, MAF04915E, MDF04905, MAF04922
|
$79.80
|
|
|
| 46 |
Supersedes: MAF04910, 833197E, MAF04906, 833195E, MAF049065, MAF04906A, MAF04905, 833194E, MAF049055, MAF04905A, MAF04905E, MAF049105, MAF04910A
|
NLA
|
||
| 46 |
Supersedes: MAF04914, MAF049145, MAF04914A, MAF04914E
|
NLA
|
||
| 46 |
Supersedes: MAF04918
|
NLA
|
||
| 47 |
- NOTE: See Lower Unit Assembly Section For Service Parts Breakdown
Supersedes: M899347T, MXC397022 |
NLA
|
||
| 47 |
- NOTE: See Lower Unit Assembly Section For Service Parts Breakdown
Supersedes: MXC397052 |
NLA
|
||
| 48 |
Minimum Order Qty: 10
Supersedes: 12-MAR17501, 12-823322, 833367E |
$1.94
|
|
|
| 49 |
- Design I - With Nylon Prop Nut
Supersedes: MAF174755, 48-MAF174555, 48-MAF174346, 48-MAF174245, 48-MAF174345, 48-MAF174505, 48-MAF174425, 48-MAF174545, 48-MAF174465 |
NLA
|
||
| 49 |
- Design II - With Nylon Prop Nut
Supersedes: MAF174755, 48-MAF174555, 48-MAF174346, 48-MAF174245, 48-MAF174345, 48-MAF174505, 48-MAF174425, 48-MAF174545, 48-MAF174465 |
NLA
|
||
| 49 |
- Design III - With Brass Insert Prop Nut
Supersedes: MAF174755, 48-MAF174555, 48-MAF174346, 48-MAF174245, 48-MAF174345, 48-MAF174505, 48-MAF174425, 48-MAF174545, 48-MAF174465 |
NLA
|
||
| 50 |
Supersedes: 48-MAF12415, 48-MAF12412, 48-MAF12410, 48-MAF12414
|
$48.40
|
|
|
| 50 |
Supersedes: 48-MAF12415, 48-MAF12412, 48-MAF12410, 48-MAF12414
|
$48.40
|
|
|
| 51 |
Minimum Order Qty: 5
Supersedes: 17-MBR10202 |
NLA
|
||
| 52 |
- Design I - All Nylon
Minimum Order Qty: 5 Supersedes: MAR09902, 11-MAR09901, 11-824255, 11-823317, 833360E, 11-M00052, 11-MAR09903, 833174E |
$4.45
|
|
|
| 52 |
- Design II - Nylon With Brass Insert
Minimum Order Qty: 5 Supersedes: MAR09902, 11-MAR09901, 11-824255, 11-823317, 833360E, 11-M00052, 11-MAR09903, 833174E |
$4.45
|
|
|
| 53 |
Minimum Order Qty: 5
Supersedes: 10-MDK13301 |
NLA
|
||
| 54 |
- Design I
Minimum Order Qty: 2 Supersedes: MAR00202T, MAR00202, 823318, 833337E |
NLA
|
||
| 54 |
- Design II
Minimum Order Qty: 2 Supersedes: MAR00202T, MAR00202, 823318, 833337E |
NLA
|
||
| 55 |
Supersedes: MM309922
|
$30.40
|
|
|
| - |
- NOTE: See Mount Assembly Section For Service Parts Breakdown
Supersedes: 75-8M4000308, MST9360FW, MST91642A, MST91536S, MST91542L, MDK300042, 833575E, MDK300049, MST91542, MST91542C, MST91642, MNK300052, MST91642W, MST91536W, MST9205BF, MRK300202, MRK300242, MST920BF, MRK300012, 834166E, MRK300019, MRK300072, MRK300122, MRK300129, MST920BH, MST920BR, MST920BW, MST920TE, MST920TX, MST920BFR |
NLA
|
||
| - |
- NOTE: See Mount Assembly Section For Service Parts Breakdown
Supersedes: MST921BF, MST921BFW, MRK300302 |
NLA
|
||
| - |
- NOTE: See Mount Assembly Section For Service Parts Breakdown
Supersedes: MRK300222, MST923BF, MGA069X1, MRK300052, MRK300059, MRK300192, MST923BH, MST923BR, MST923BW, MST923BFR, MST923BFW |
NLA
|
||
| - |
- NOTE: See Mount Assembly Section For Service Parts Breakdown
Supersedes: MST924BF, MRK300312, MST924BFW |
$539.58
|
|
