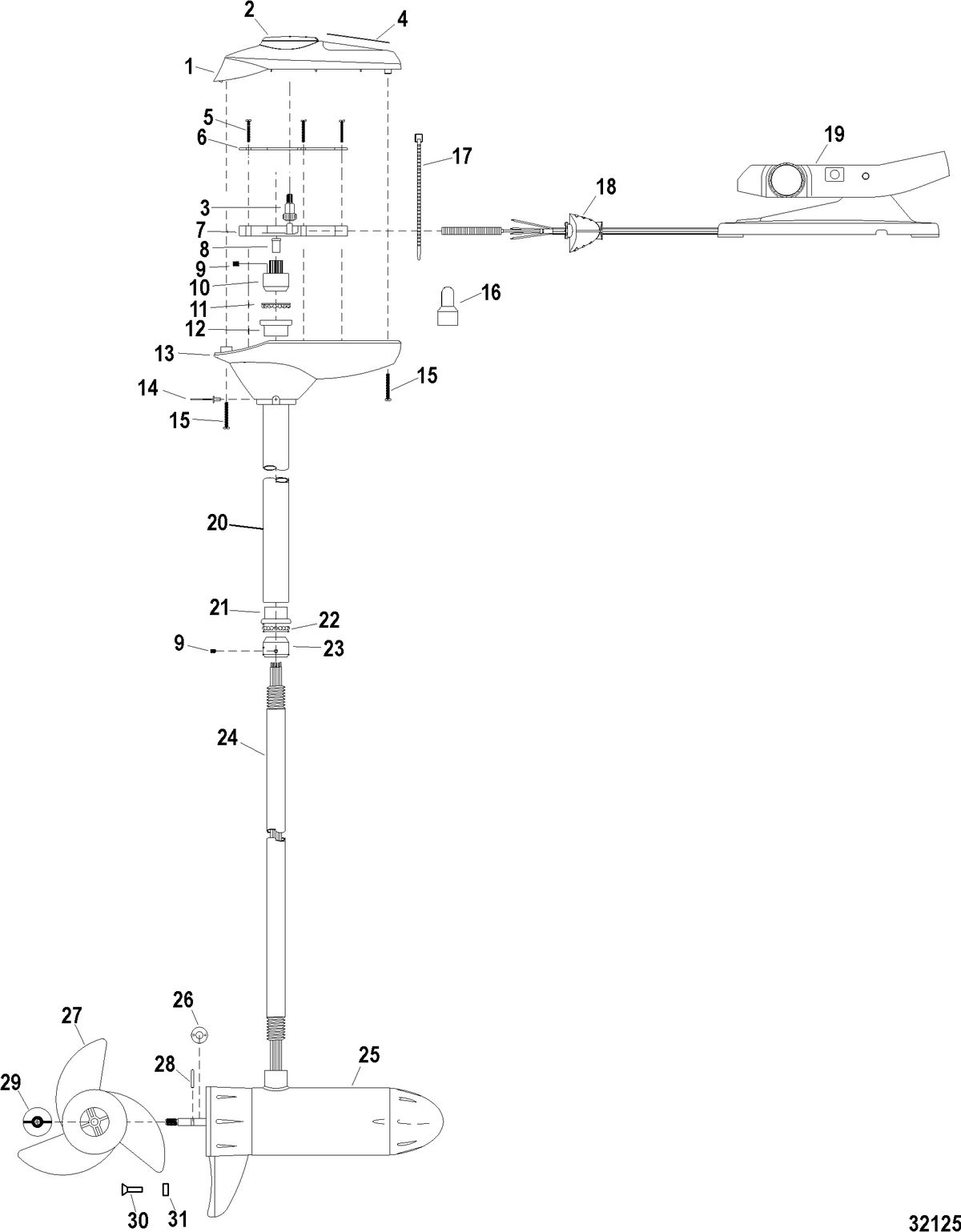

TROLLING MOTOR - MotorGuide Brute Series - Complete Trolling Motor(Brute 70 Digital) (24 Volt)
| Ref ID | Description | Price | ||
|---|---|---|---|---|
| 1 |
Supersedes: MEF05319L, MEF05319K, MEF05319J, MFF05323H
|
NLA
|
||
| 2 |
|
NLA
|
||
| 3 |
Minimum Order Qty: 10
Supersedes: 43-MAF06901, 43-824185, 833200E |
$3.52
|
|
|
| 4 |
|
NLA
|
||
| 5 |
Qty Required For Repair: 6
Minimum Order Qty: 5 Supersedes: 10-MXF13301, 834328E |
$6.40
|
|
|
| 6 |
Minimum Order Qty: 5
Supersedes: MAF12701 |
NLA
|
||
| 7 |
Minimum Order Qty: 2
Supersedes: MAF12601, 824182, 833211E |
$6.16
|
|
|
| 8 |
Minimum Order Qty: 10
Supersedes: MKP02101 |
$1.60
|
|
|
| 9 |
Qty Required For Repair: 3
Minimum Order Qty: 5 Supersedes: 10-MAF14201B, 10-MAF14201, 10-MXF14201, 834331E, 10-MXF14301T, 10-MXF14301, 10-MAF14301 |
$0.53
|
|
|
| 10 |
- Design I - NOTE: Used With MFM00501T Bearing And MFM00703T Retainer Cup
Supersedes: MAF39804T, MAF39804, 11-MAF39801, 833176E, 11-MAF39801B, 11-MAF39802, 11-MAF39803B, 11-MXF39801T, 11-MXF39801, 834334E |
NLA
|
||
| 10 |
- Design II - NOTE: Includes MFM00502T Bearing And MFM00702T Retainer Cup
Supersedes: MAF39804T, MAF39804, 11-MAF39801, 833176E, 11-MAF39801B, 11-MAF39802, 11-MAF39803B, 11-MXF39801T, 11-MXF39801, 834334E |
NLA
|
||
| 11 |
- Design I
Minimum Order Qty: 2 Supersedes: MFM00501, MXF00501, 834321E |
$3.14
|
|
|
| 11 |
- Design II
Minimum Order Qty: 2 Supersedes: MFM00502 |
NLA
|
||
| 12 |
- Design I
Supersedes: MFM00703, MFM00701 |
NLA
|
||
| 12 |
- Design II
Minimum Order Qty: 2 Supersedes: MFM00702T, MFM00702 |
$11.44
|
|
|
| 13 |
Supersedes: MEF004167
|
$9.68
|
|
|
| 14 |
Qty Required For Repair: 3
Minimum Order Qty: 5 Supersedes: MLF11104, MLF11103 |
$2.64
|
|
|
| 15 |
Qty Required For Repair: 3
Minimum Order Qty: 10 Supersedes: 10-MAT14101 |
$0.40
|
|
|
| 16 |
Qty Required For Repair: AR
Minimum Order Qty: 5 Supersedes: 22-MBF02901 |
NLA
|
||
| 16 |
Qty Required For Repair: AR
Minimum Order Qty: 5 Supersedes: MBF02902 |
$0.62
|
|
|
| 17 |
Qty Required For Repair: AR
Minimum Order Qty: 100 Supersedes: 54-816311, 54-90077, 54-826785, F1877, F717046-1, F717046, MAF03001, 833188E, 54-F9301, 54-816311100, 54-898101111, 54-898101275 |
$0.48
|
|
|
| 17 |
Qty Required For Repair: AR
Minimum Order Qty: 10 Supersedes: MAF03002 |
$3.52
|
|
|
| 18 |
Supersedes: 25-MAP07103, 25-MAP07102
|
$10.40
|
|
|
| 19 |
- NOTE: See Foot Pedal Assembly Section For Service Parts Breakdown
|
NLA
|
||
| 19 |
- NOTE: See Foot Pedal Assembly Section For Service Parts Breakdown
Supersedes: MXP300202 |
NLA
|
||
| 20 |
Supersedes: MBF16506, MAF16506, 833222E, 32-MAF16502, MAF165061
|
NLA
|
||
| 21 |
Minimum Order Qty: 2
Supersedes: MFM00702T, MFM00702 |
$11.44
|
|
|
| 22 |
Minimum Order Qty: 2
Supersedes: MFM00502 |
NLA
|
||
| 23 |
Supersedes: MSS00602
|
NLA
|
||
| 24 |
Supersedes: MAF04912, 834736E, MAF04916, MAF049165, MAF04916E, MAF04911, MAF049115, MAF04911A, MAF04911E, MAF049125, MAF04912A, MAF04912E, MAF04915, MAF049155, MAF04915E, MDF04905, MAF04922
|
$79.80
|
|
|
| 24 |
Supersedes: MAF04910, 833197E, MAF04906, 833195E, MAF049065, MAF04906A, MAF04905, 833194E, MAF049055, MAF04905A, MAF04905E, MAF049105, MAF04910A
|
NLA
|
||
| 25 |
- NOTE: See Lower Unit Assembly Section For Service Parts Breakdown
Supersedes: 897345T87, M899351T, MUC397022 |
$520.67
|
|
|
| 25 |
NOTE: See Lower Unit Assembly Section For Service Parts Breakdown
|
$319.43
|
|
|
| 26 |
Minimum Order Qty: 10
Supersedes: 12-MAR17501, 12-823322, 833367E |
$1.94
|
|
|
| 27 |
Supersedes: MAF174755, 48-MAF174555, 48-MAF174346, 48-MAF174245, 48-MAF174345, 48-MAF174505, 48-MAF174425, 48-MAF174545, 48-MAF174465
|
NLA
|
||
| 27 |
Supersedes: 48-MAF12415, 48-MAF12412, 48-MAF12410, 48-MAF12414
|
$48.40
|
|
|
| 28 |
Minimum Order Qty: 5
Supersedes: 17-MBR10202 |
NLA
|
||
| 29 |
Minimum Order Qty: 5
Supersedes: MAR09902, 11-MAR09901, 11-824255, 11-823317, 833360E, 11-M00052, 11-MAR09903, 833174E |
$4.45
|
|
|
| 30 |
Minimum Order Qty: 5
Supersedes: 10-MDK13301 |
NLA
|
||
| 31 |
- Design I
Minimum Order Qty: 2 Supersedes: MAR00202T, MAR00202, 823318, 833337E |
NLA
|
||
| 31 |
- Design II
Minimum Order Qty: 2 Supersedes: MAR00202T, MAR00202, 823318, 833337E |
NLA
|
||
| - |
- NOTE: See Mount Assembly Section For Service Parts Breakdown
Supersedes: 75-8M4000402, 75-8M4000198 |
NLA
|
