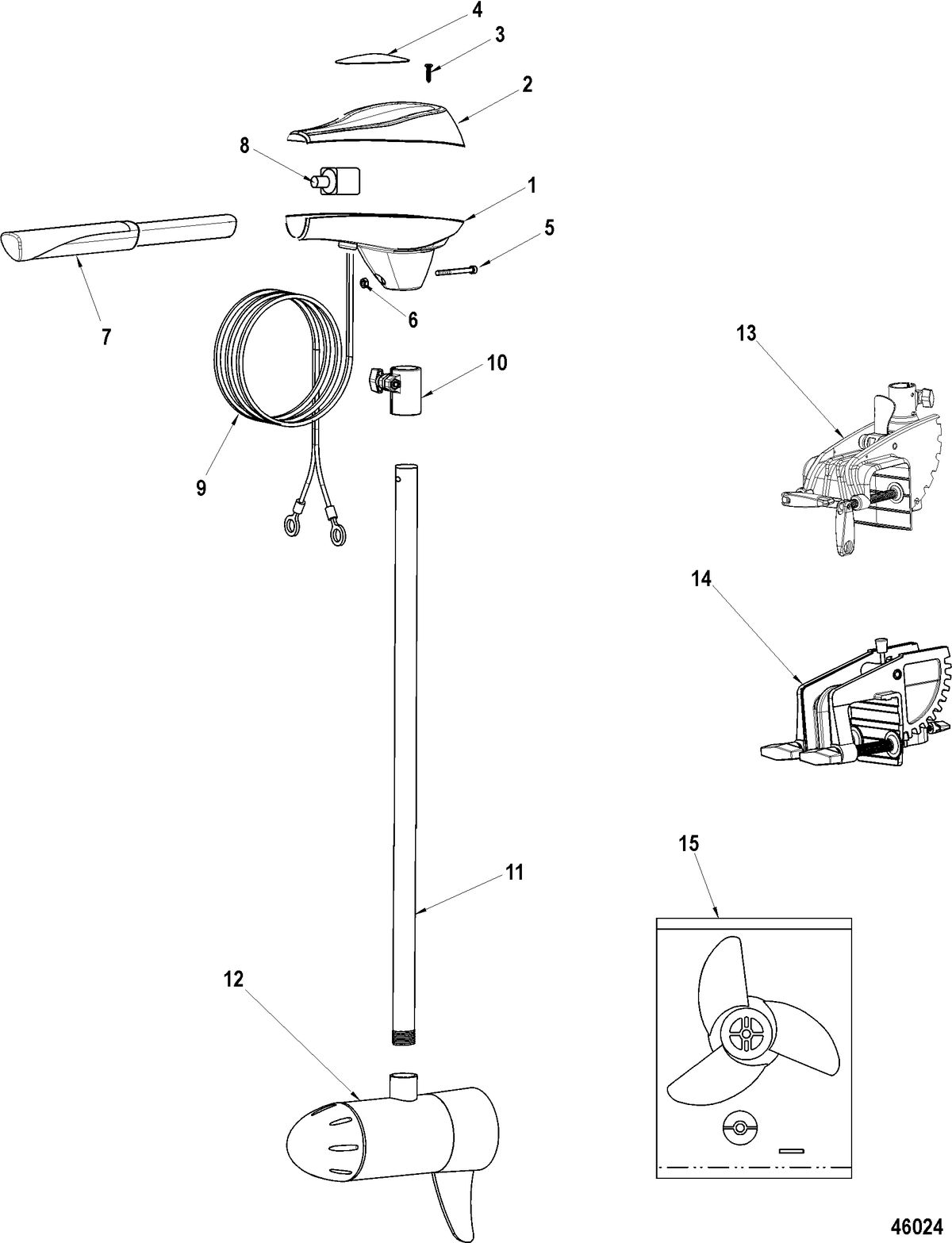

TROLLING MOTOR - MotorGuide R3 Series - Complete Trolling Motor

Ref ID	Description	Price
1	COVER KIT, 1.00 inch, Upper and Lower (#8M4002639) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
1	COVER KIT, 1.25 inch,, Upper and Lower (#8M4002579) Qty Required For Repair: 1 Minimum Order Qty: 1	$35.28 ~~$28.34~~
2	NOT SOLD SEPARATE, COVER, Upper (#NSS) Qty Required For Repair: 1	NLA
3	NOT SOLD SEPARATE, SCREW (#NSS) Qty Required For Repair: 4 Qty Required For Repair: 4	NLA
4	NOT SOLD SEPARATE, DECAL (#NSS) Qty Required For Repair: 1	NLA
5	NOT SOLD SEPARATE, BOLT (#NSS) Qty Required For Repair: 1	NLA
6	NOT SOLD SEPARATE, NUT (#NSS) Qty Required For Repair: 1	NLA
7	HANDLE ASSEMBLY (#8M4002638) Qty Required For Repair: 1 Minimum Order Qty: 1	$26.05 ~~$23.09~~
8	SWITCH, 5 Speed (#8M4004636) Qty Required For Repair: 1	$18.40 ~~$14.99~~
9	CABLE ASSEMBLY (#8M0058715) Comment: 30# Qty Required For Repair: 1 Minimum Order Qty: 1 30#	$21.84 ~~$17.84~~
9	CABLE ASSEMBLY (#8M0058717) Comment: 40, 45, 55# Qty Required For Repair: 1 Minimum Order Qty: 1 40, 45, 55#	NLA
10	COLLAR, Depth, 1.00 Inch (#8M0058718) Qty Required For Repair: 1 Minimum Order Qty: 1	$2.96 ~~$2.65~~
10	COLLAR, Depth, 1.25 inch (#8M4002640) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
11	COLUMN, 36 Inch Aluminum (#879364T15) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
12	LOWER UNIT ASSEMBLY, Freashwater, Black, 30 Pound Thrust (#76-8M4002643) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
12	LOWER UNIT ASSEMBLY, Freashwater, Black, 40 Pound Thrust (#76-8M4002644) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
12	LOWER UNIT ASSEMBLY, Freashwater, Black, 45 Pound Thrust (#76-8M4002645) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
12	LOWER UNIT ASSEMBLY, Freashwater, Black, 55 Pound Thrust (#76-8M4002646) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
13	MOUNT ASSEMBLY, Complete, 09 Transom (#8M0057337) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: 8M4002567 Supersedes: 8M4002567	NLA
14	MOUNT ASSEMBLY, Complete, 03 Transom (#8M0059805) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
15	PROPELLER KIT, 3 Blade with Wrench (#8M4002641) Comment: 40-55 lb Qty Required For Repair: 1 Minimum Order Qty: 1 40-55 lb	$22.96 ~~$19.94~~
15	PROPELLER KIT, 2 blade, 3 inch (#MGA0476B) Comment: 30 lb Qty Required For Repair: 1 Minimum Order Qty: 4 Supersedes: 48-MGA0476, 48-MGA0476T, 48-MGA047B6, MGFA047B6 30 lb Minimum Order Qty: 4 Supersedes: 48-MGA0476, 48-MGA0476T, 48-MGA047B6, MGFA047B6	$16.80 ~~$14.69~~

TROLLING MOTOR MOTORGUIDE R3 Complete Trolling Motor

This assembly is found in these models:

TROLLING MOTOR > MotorGuide R3 Series
