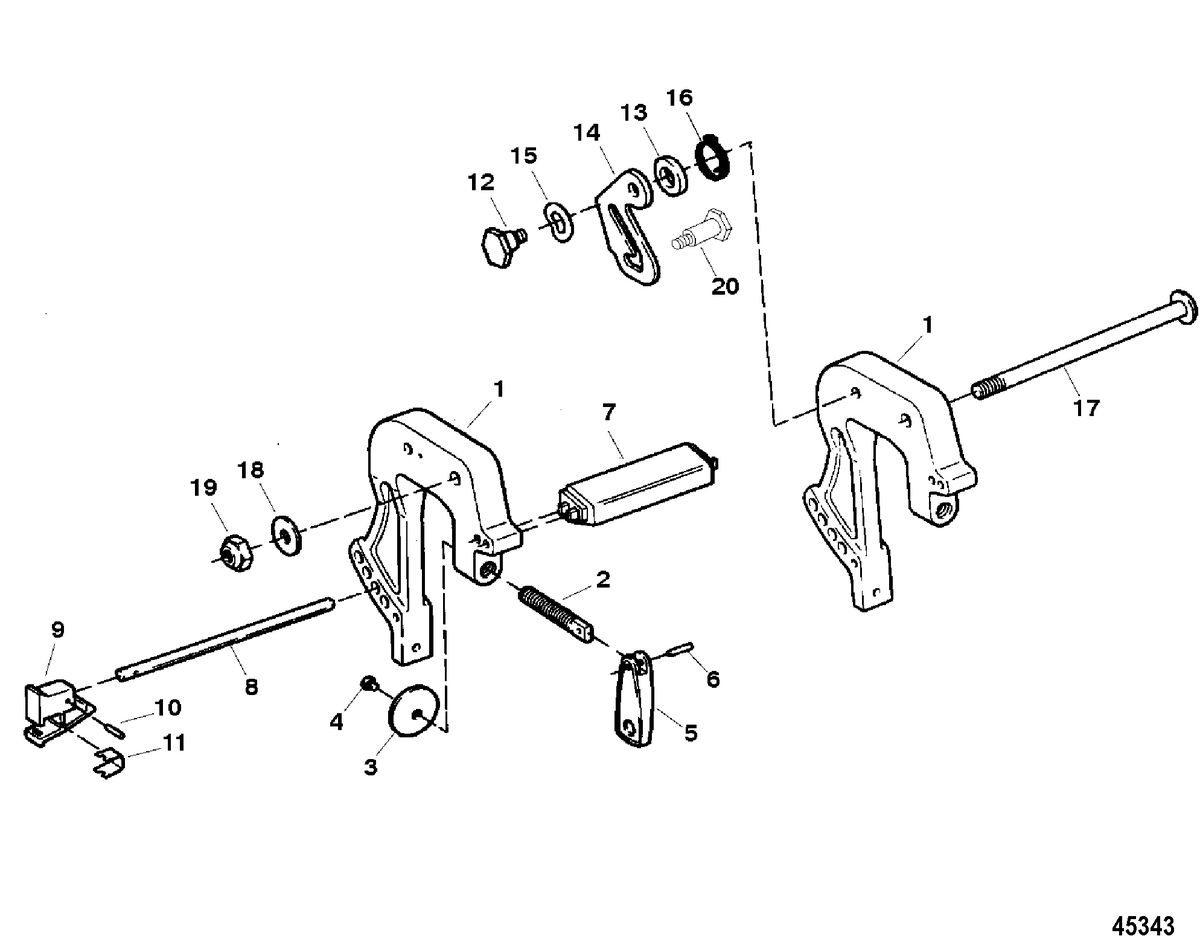

FORCE - 9.9 H.P. (1996) - Clamp Brackets(Serial # 0E127700 Thru 0E143887)

Ref ID	Description	Price
1	BRACKET, Stern (Painted) (#1400-850073A1) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
2	SCREW, Stern Bracket (#10-826248) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
3	FOOT, Stern Bracket Screw (#F24074) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: F9074-2 Qty Required For Repair: 2 Supersedes: F9074-2	NLA
4	SCREW, (#10-32 x .500) Stainless Steel (#10-69022) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	$0.88 ~~$1.10~~
5	HANDLE (Painted) (#F424075T3) Qty Required For Repair: 2 Minimum Order Qty: 1 Supersedes: F424075T, F424075, F298075, F425075 Qty Required For Repair: 2 Supersedes: F424075T, F424075, F298075, F425075	NLA
6	PIN, Roll (#17-24198) Qty Required For Repair: 2 Minimum Order Qty: 1 Qty Required For Repair: 2	NLA
7	HANDLE, Carrying (#832035T) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F286647, F392647 Supersedes: F286647, F392647	NLA
8	BAR KIT, Lock (#851924A2) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
9	HANDLE, Lock Bar (#F286114) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
10	PIN, Roll (#17-38489) Qty Required For Repair: 1 Minimum Order Qty: 1	$4.00 ~~$5.00~~
11	SPRING, Lock Bar (#24-F286461) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
12	SCREW, (.312-18 Special), Tilt Lock (#10-F286422-1) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F286422 Supersedes: F286422	NLA
13	SPACER, Tilt Lock (#23-819226) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F286451 Supersedes: F286451	NLA
14	LOCK, Tilt (#F429541) Qty Required For Repair: 1 Minimum Order Qty: 1	$55.92 ~~$58.25~~
15	WAVE WASHER (#13-69150) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$2.96 ~~$3.70~~
16	SPRING, Tilt Lock (#24-F286544-1) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F286544, F285544 Supersedes: F286544, F285544	NLA
17	BOLT, (.375-16 x 6.880), Stern Bracket Pivot (#10-F617037) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA
18	WASHER, (.406 x .734 x .063) (#12-20553) Qty Required For Repair: 1 Minimum Order Qty: 5 Minimum Order Qty: 5	$1.12 ~~$1.40~~
19	NUT, (.375-16) (#11-F7026) Qty Required For Repair: 1 Minimum Order Qty: 1 Supersedes: F7005 Supersedes: F7005	NLA
20	PIN, Tilt Lock (.250-20) (#17-819707) Qty Required For Repair: 1 Minimum Order Qty: 1	NLA

FORCE 9.9/15 HP FORCE Clamp Brackets(Serial # 0E127700 Thru 0E143887)

Mercury Marine Parts Catalog

FORCE - 9.9 H.P. (1996) - Clamp Brackets(Serial # 0E127700 Thru 0E143887)

This assembly is found in these models:
